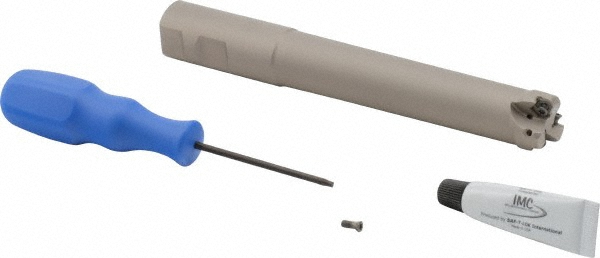

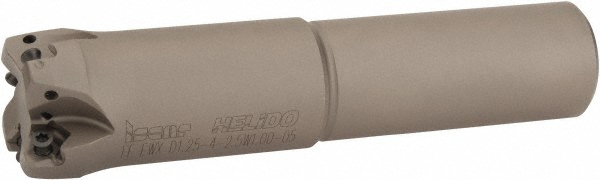

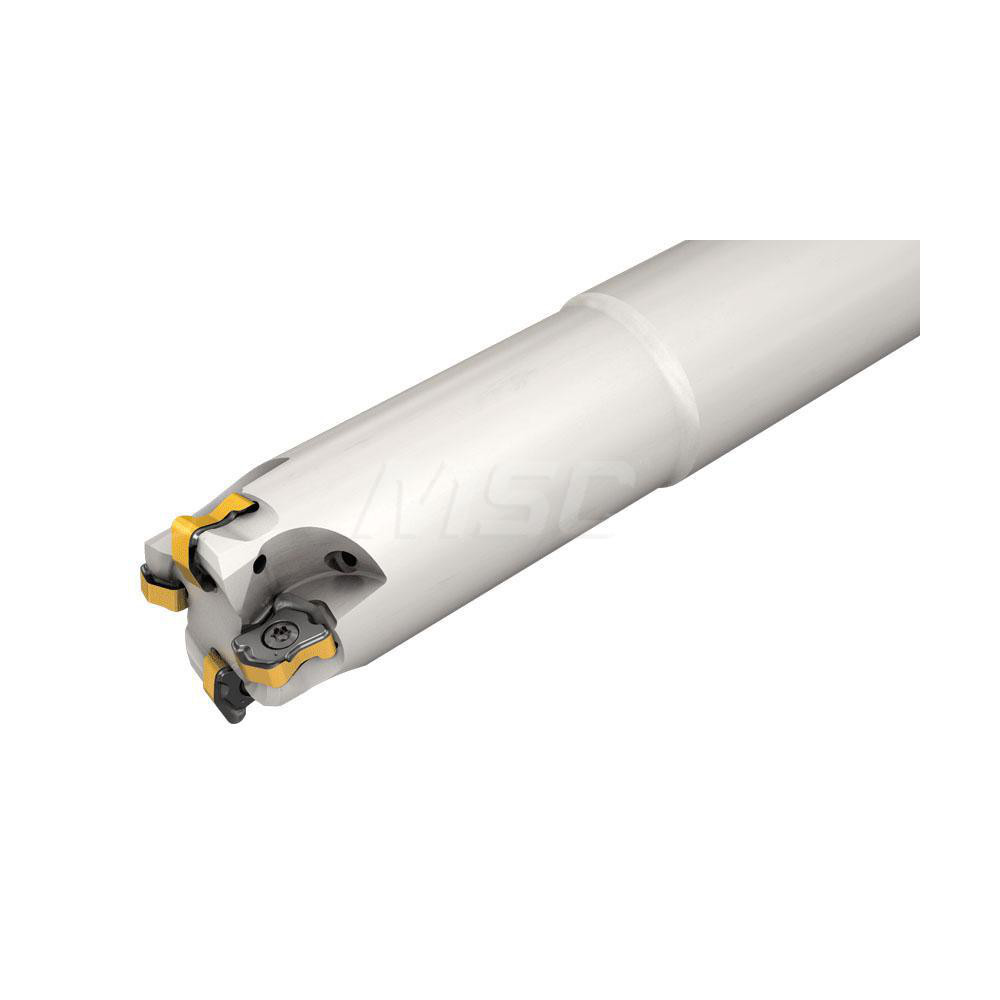

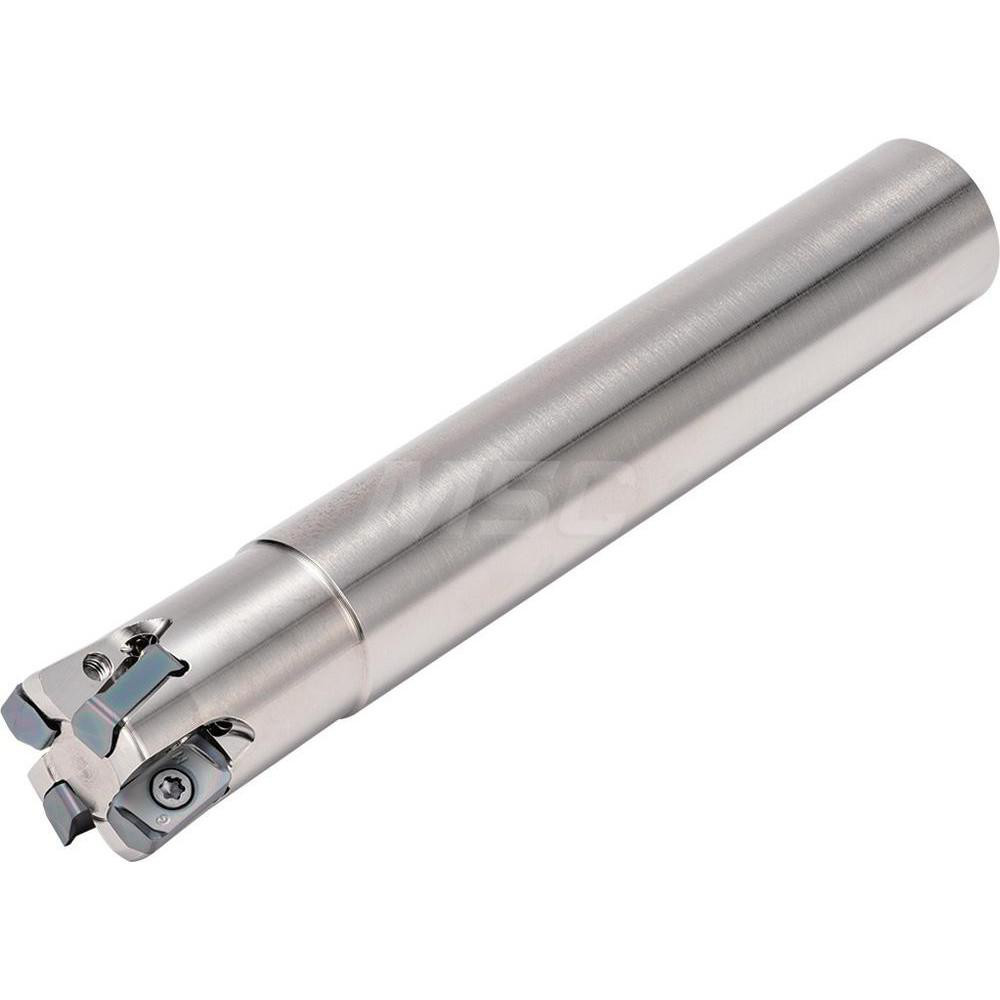

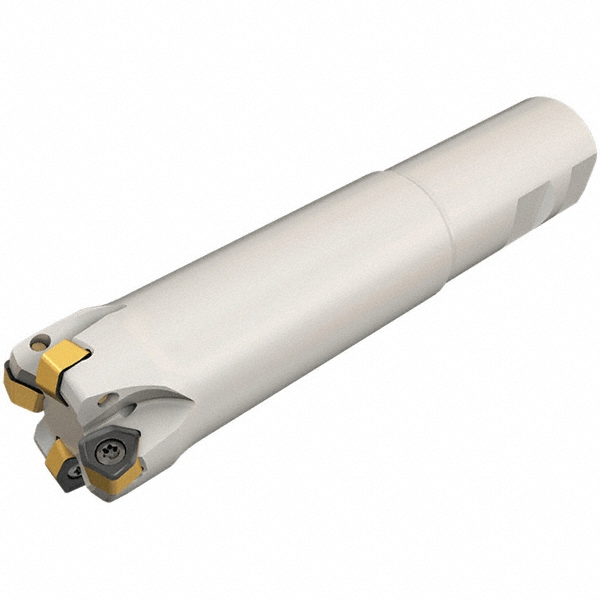

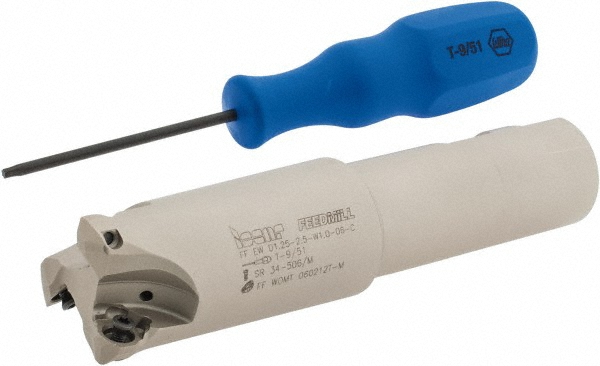

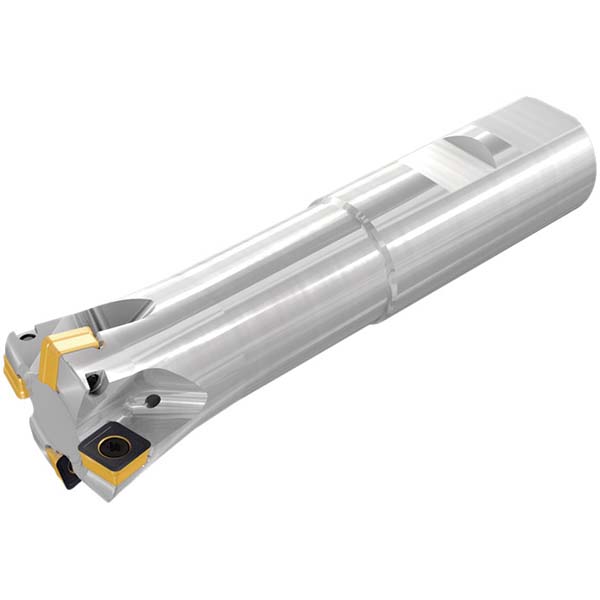

Uses 4 H600WXCU05T312T Inserts, 0.0400" Max Depth, Coolant Through

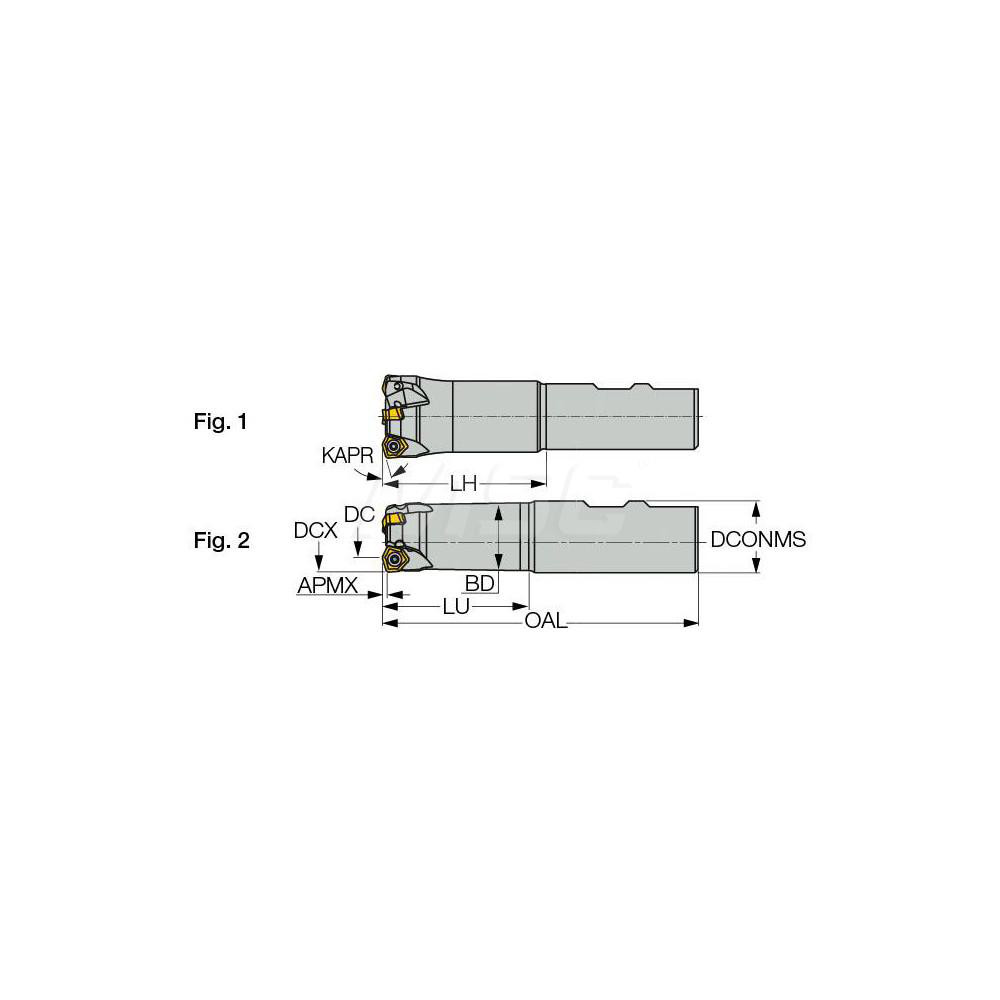

| Minimum Cutting Diameter (Decimal Inch) | 0.8600 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0400 |
| Toolholder Style | FF EWX-05 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Maximum Ramping Angle | 4.00 |
| Compatible Insert Style | H600WXCU05T312T |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (Decimal Inch) | 4.9500 |
| Series | High Feed 6 |
| Head Length (Decimal Inch) | 2.6200 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Weldon Flat | Yes |

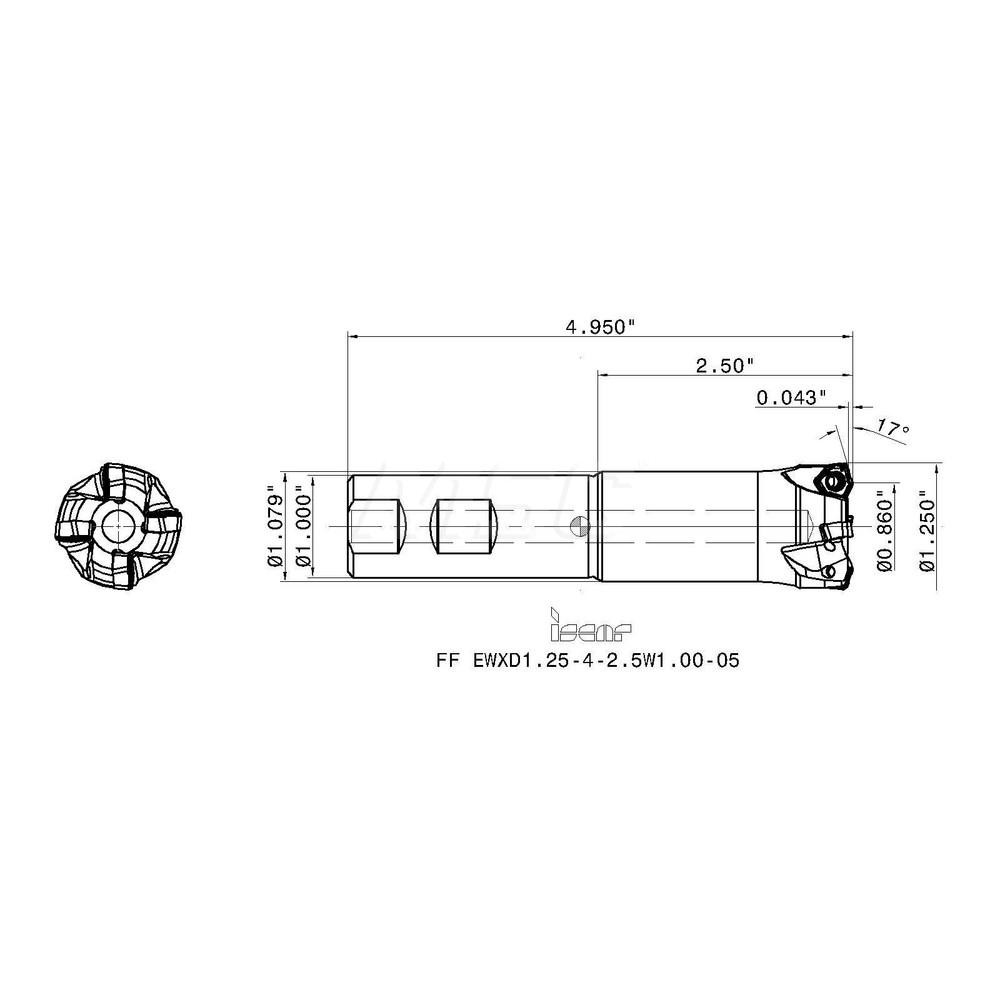

| Manufacturers Catalog Number | FF EWXD1.25-4-2.5W1.00-05 |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 91133769 |
