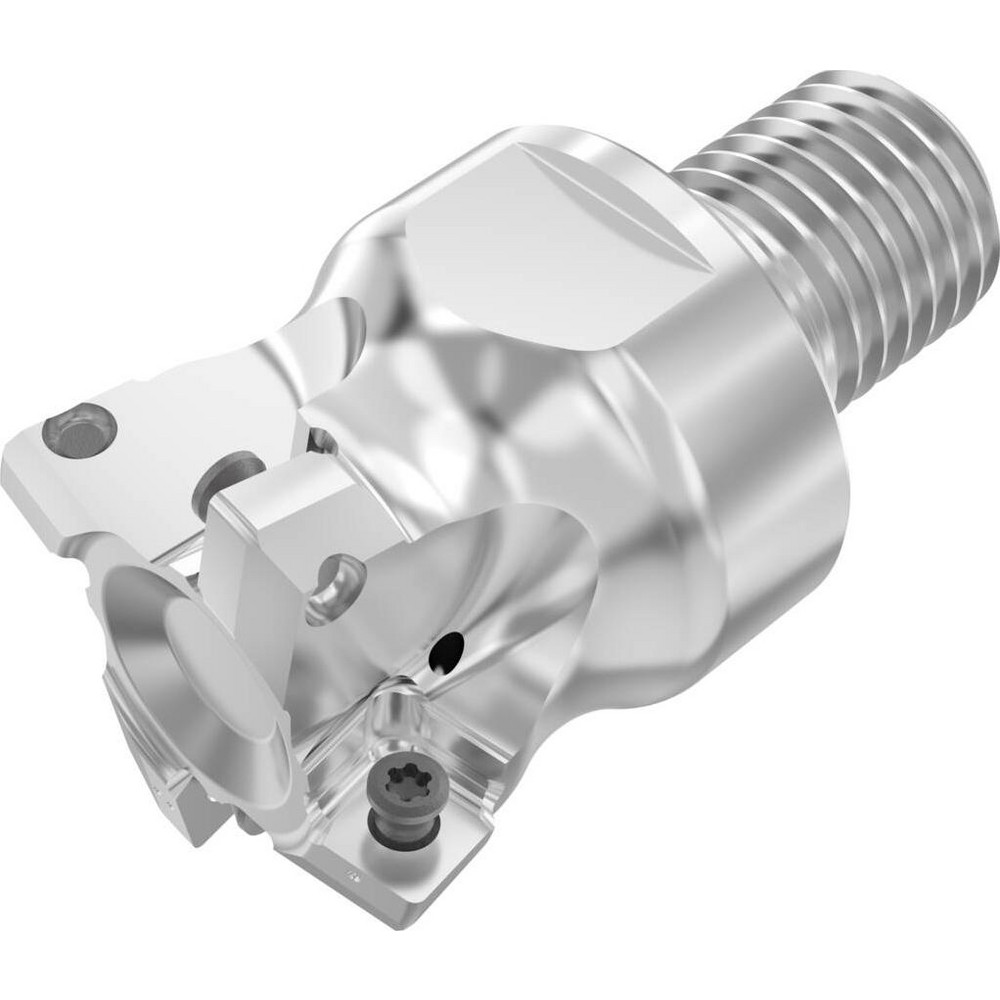

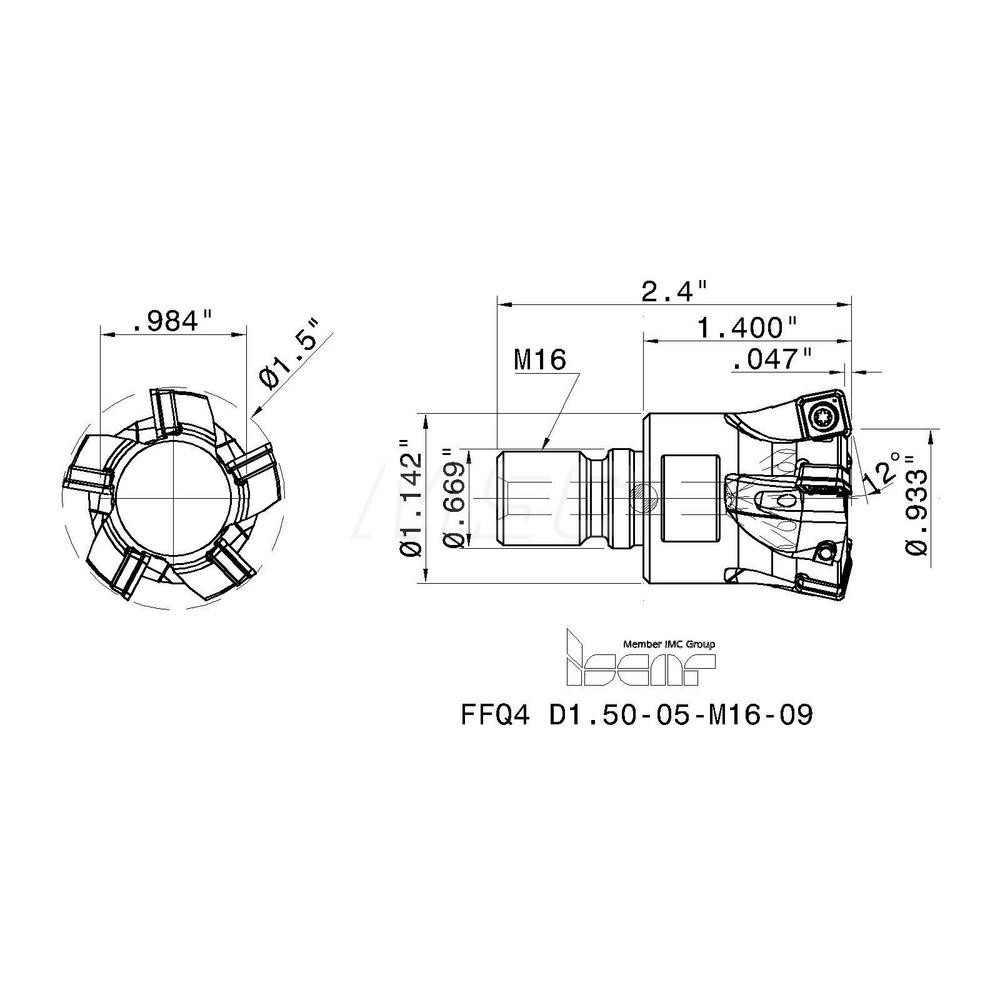

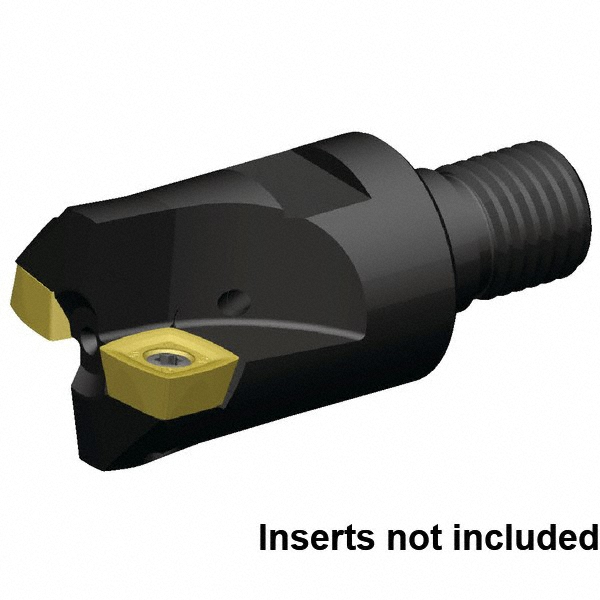

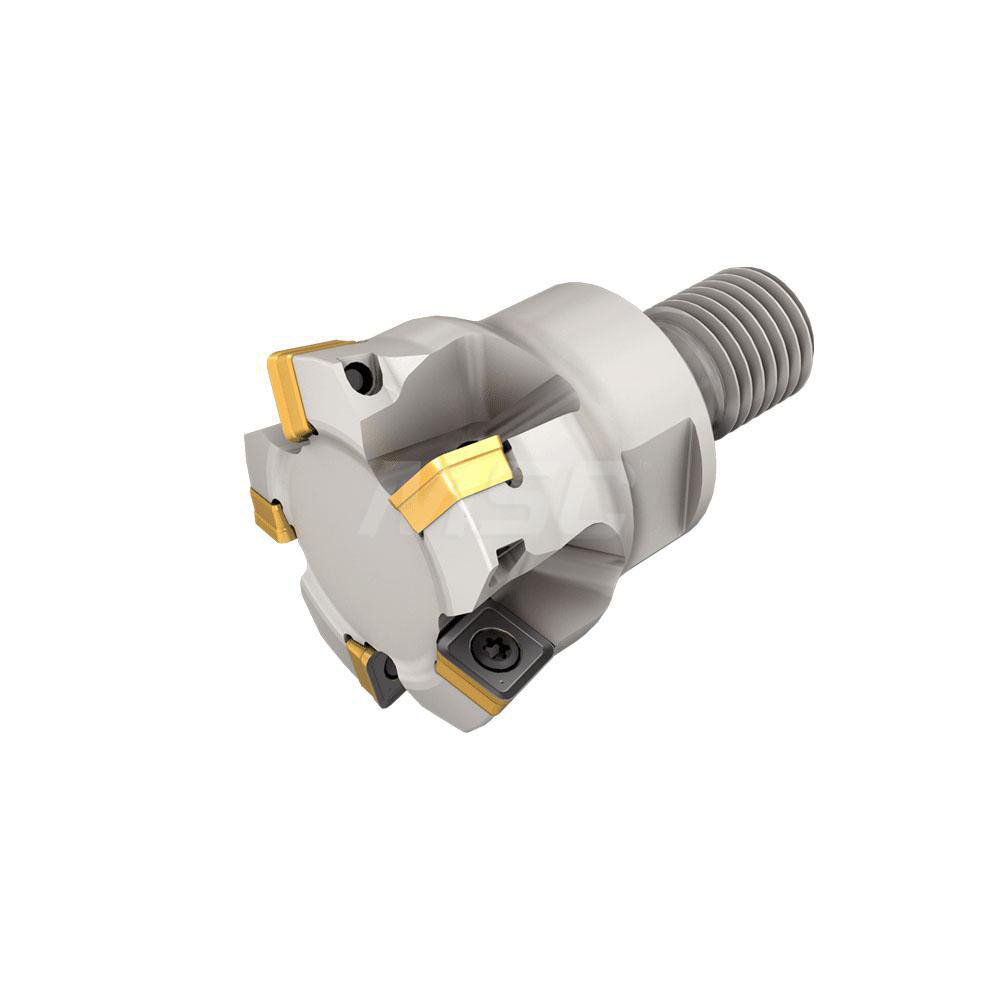

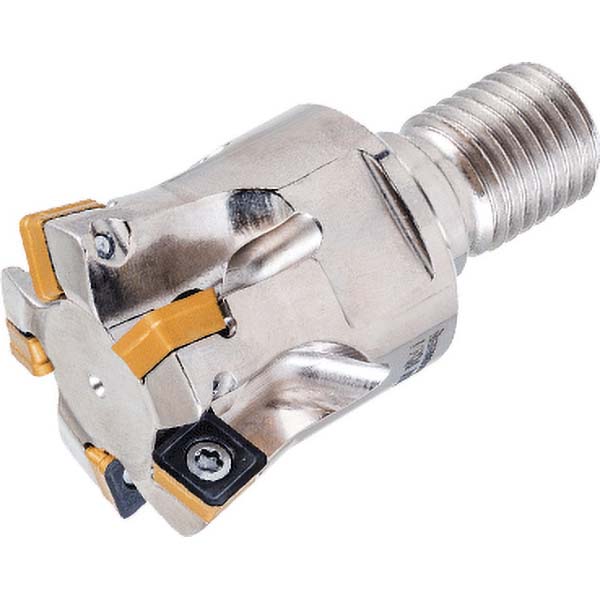

Uses 5 FFQ4SOMT090412T Inserts, Coolant Through

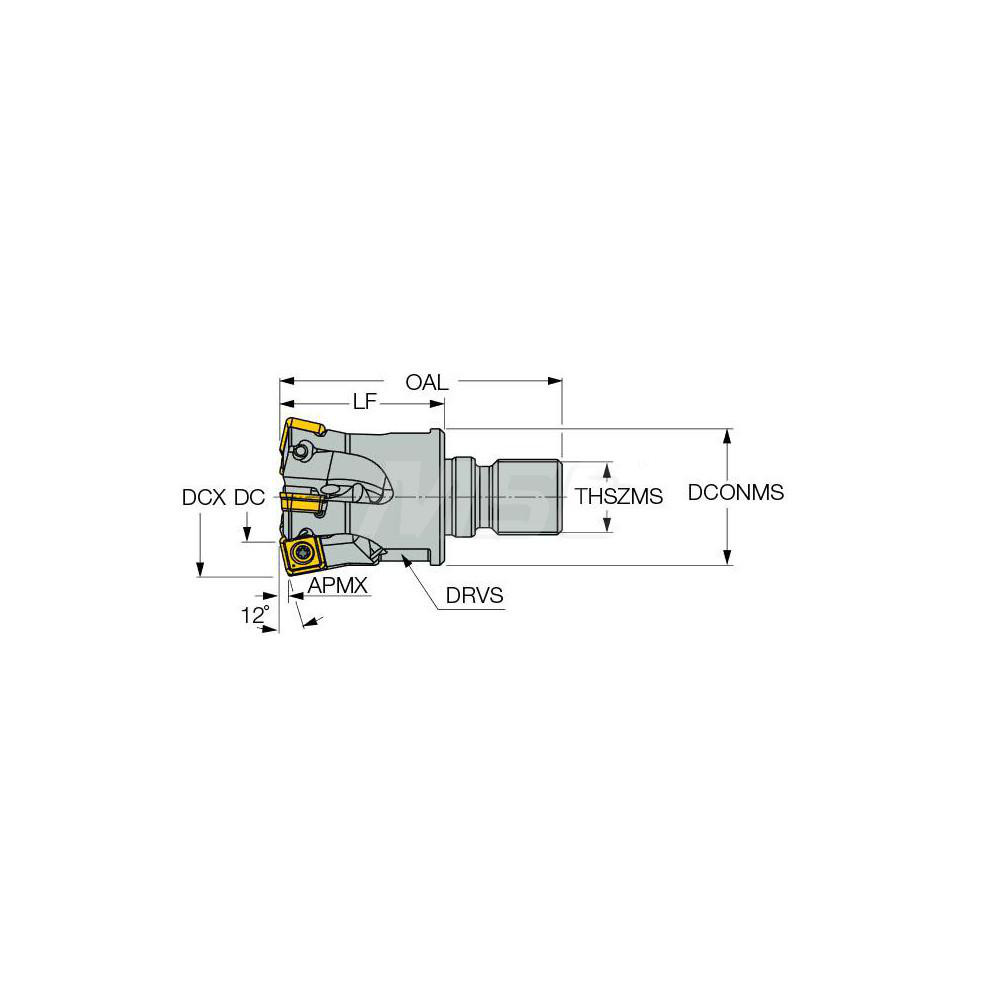

| Minimum Cutting Diameter (Decimal Inch) | 0.9330 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (mm) | 23.70 |
| Maximum Cutting Diameter (Inch) | 1-1/2 |
| Maximum Depth of Cut (mm) | 1.20 |
| Toolholder Style | FFQ4 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 29.00 |
| Maximum Ramping Angle | 2.30 |
| Compatible Insert Style | FFQ4SOMT090412T |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Overall Length (mm) | 61.00 |
| Series | Mill 4 Feed |
| Modular Connection Size | M16 |
| Head Length (mm) | 35.50 |
| Functional Length (Decimal Inch) | 1.4000 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number Of Flutes | 5 |
| End Mill Material | Steel |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
| MSC Number | MSC# 97791792 |
