Uses 4 FFX4XNMU040310T Inserts, Coolant Through

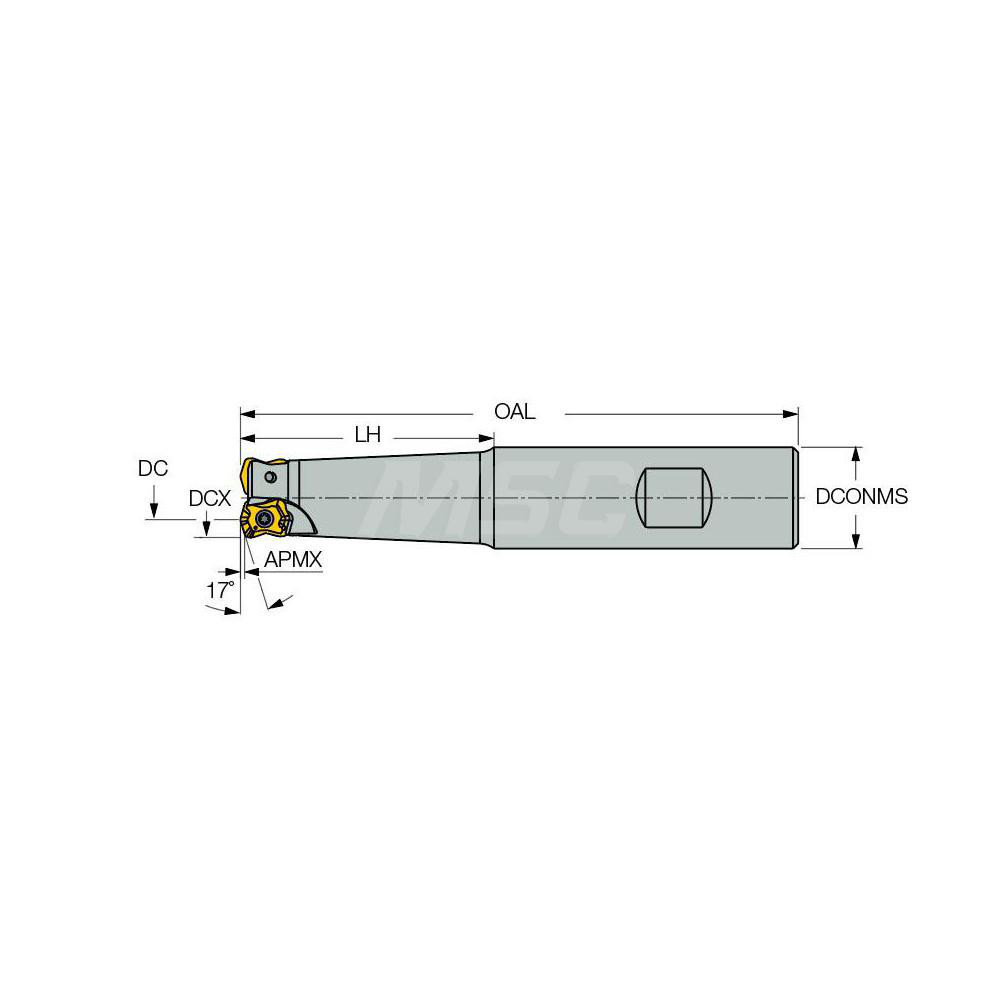

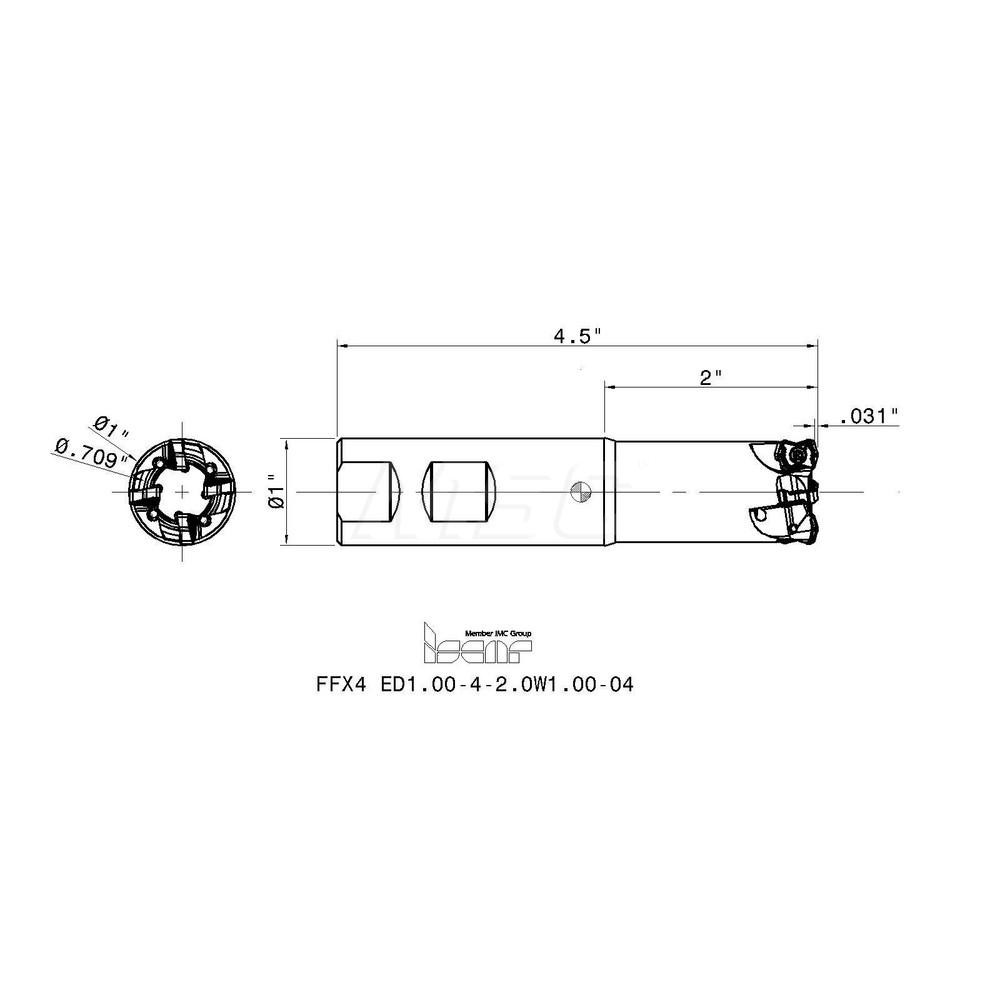

| Minimum Cutting Diameter (Decimal Inch) | 0.7090 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (mm) | 0.80 |
| Toolholder Style | FFX4 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Maximum Ramping Angle | 1.80 |
| Compatible Insert Style | FFX4XNMU040310T |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Series | Logiq 4 Feed |
| Head Length (Decimal Inch) | 2.0000 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Weldon Flat | Yes |
| End Mill Type | High Feed |
| Number Of Flutes | 4 |
| End Mill Material | Steel |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
| MSC Number | MSC# 97791602 |
