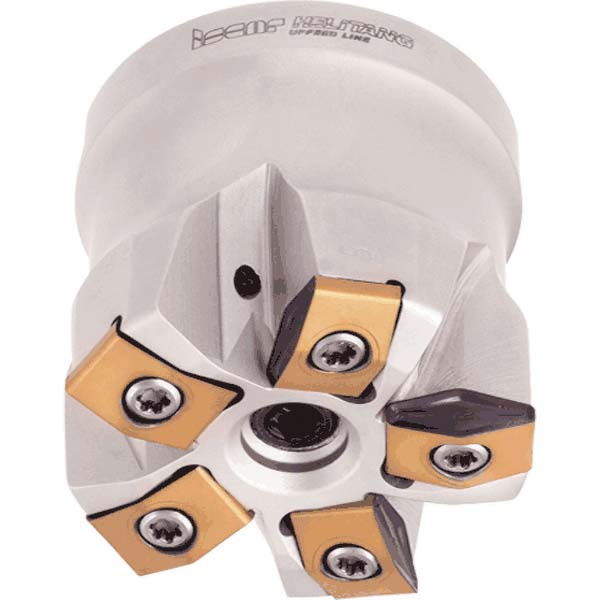

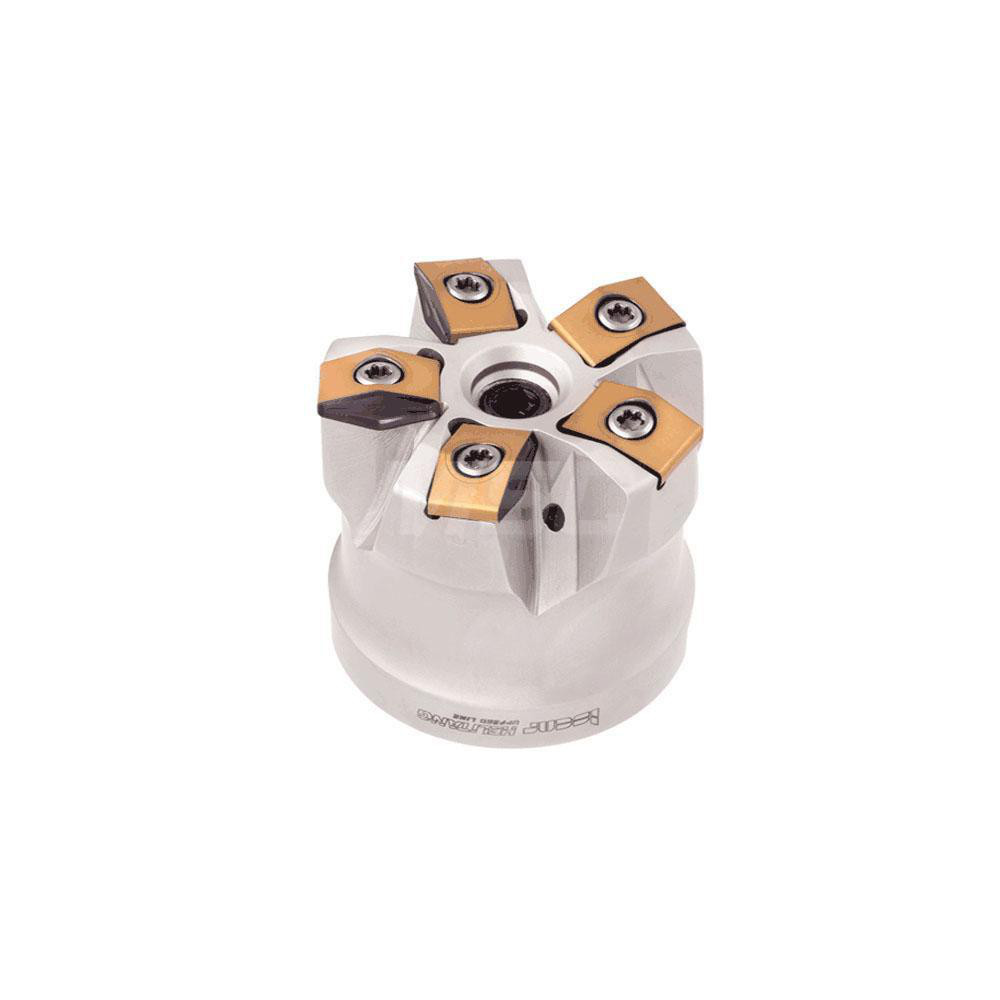

Takes (5) FF VNMT 0706ZN-ER Inserts, Through Coolant
| Cutting Diameter (mm) | 50.00 |
|---|---|
| Minimum Cutting Diameter (mm) | 35.00 |
| Cutting Diameter (Decimal Inch) | 1.9680 |
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 1.50 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | FF VNMT 0706ZN-ER |
| Maximum Ramping Angle | 3.20 |
| Cutter Style | FFV |
| Cutting Direction | Right Hand |
| Insert Compatibility | FF VNMT 0706ZN |
| Insert Holding Method | Screw |
| Series | FFV |
| Maximum Body Diameter (mm) | 48.00 |
| Maximum Body Diameter (Decimal Inch) | 1.8890 |
| Overall Height (Decimal Inch) | 50.00 |
| Maximum RPM | 7000 |
| Standards | ISO |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 97791230 |
