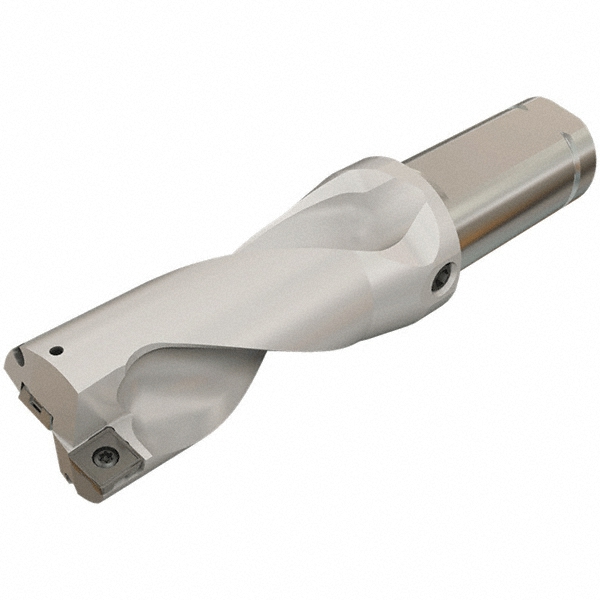

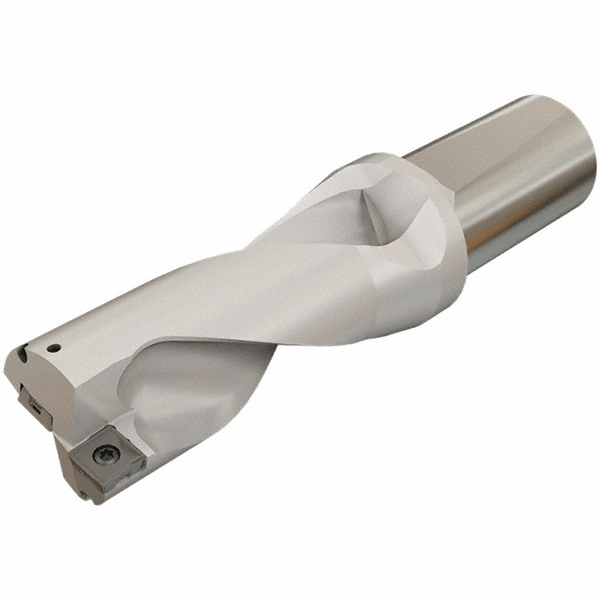

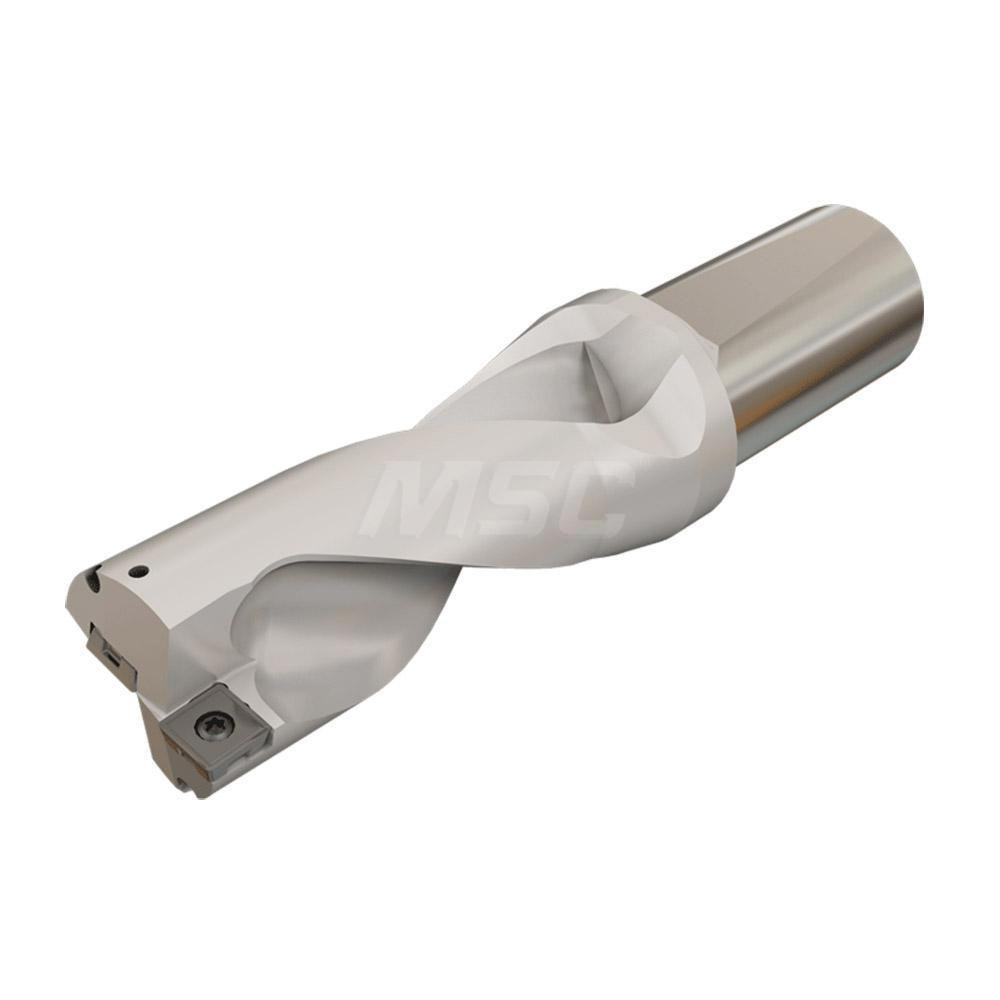

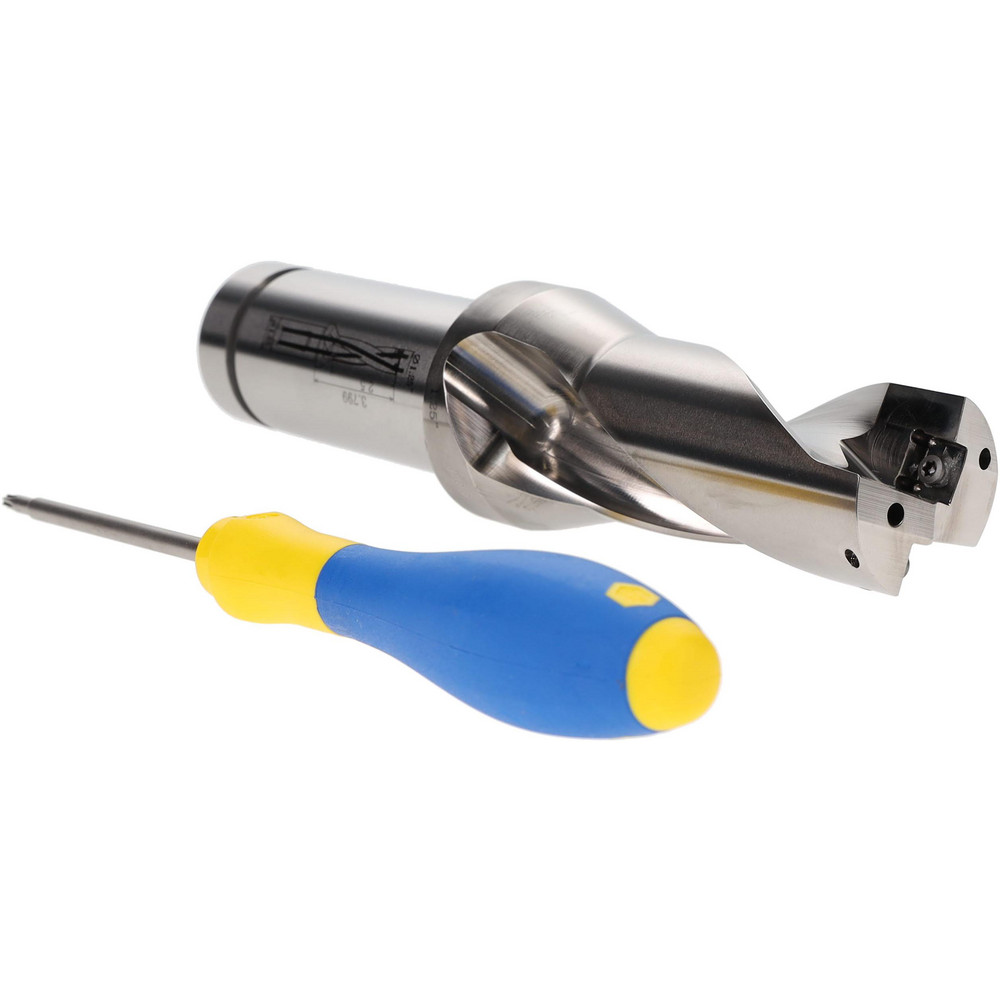

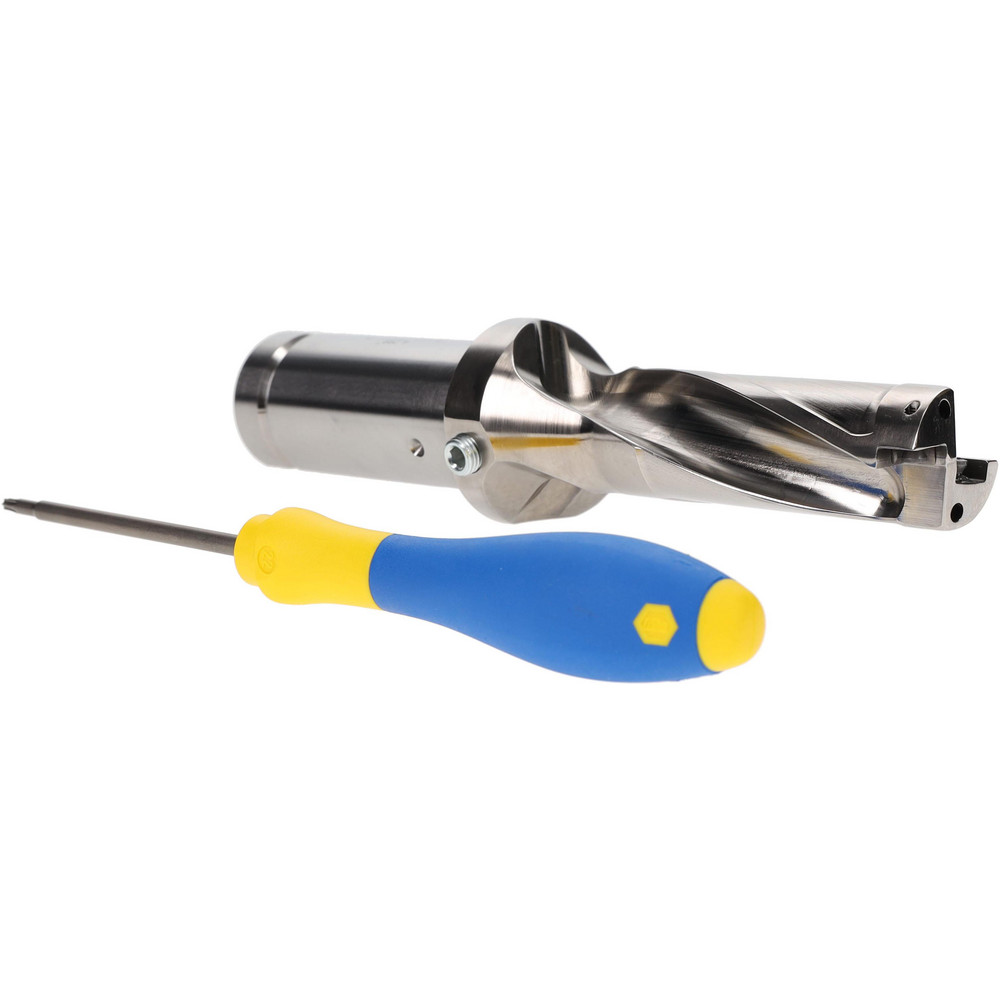

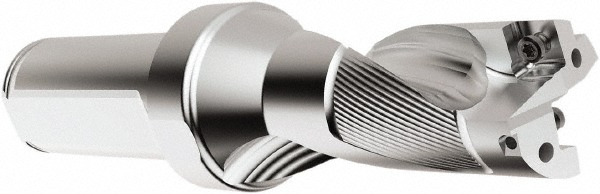

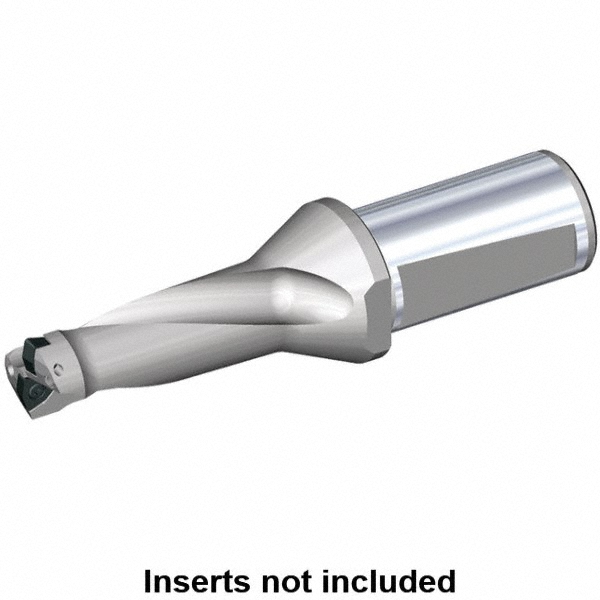

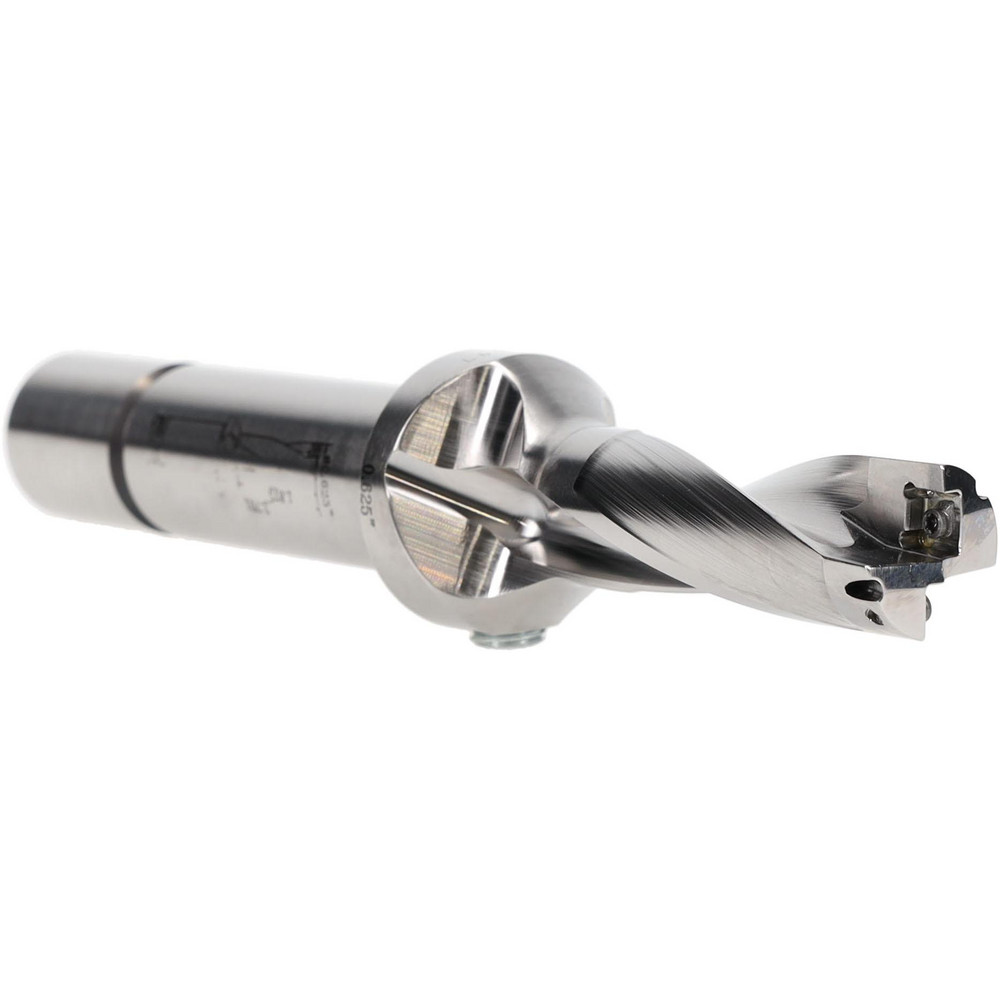

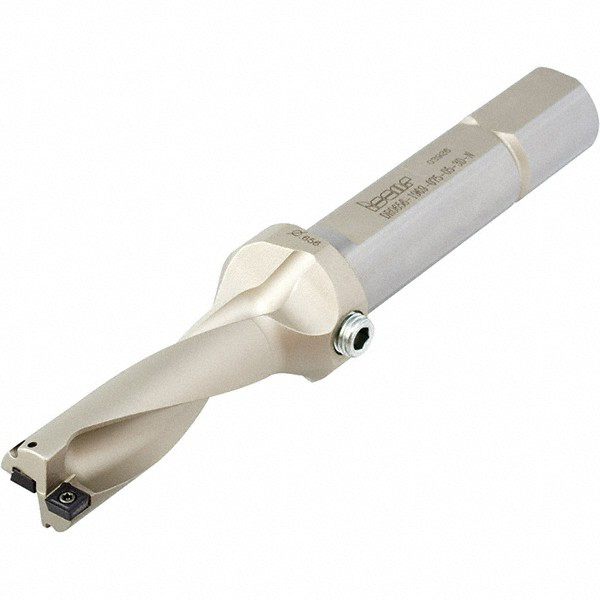

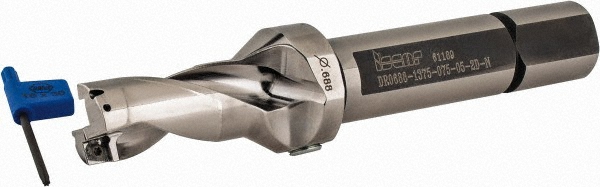

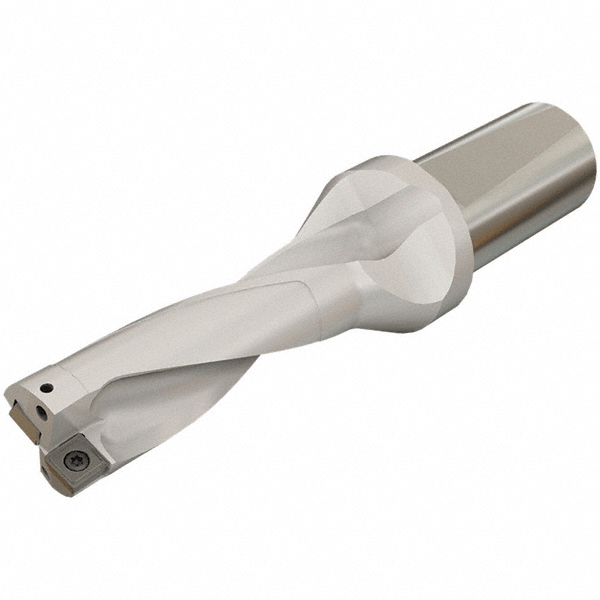

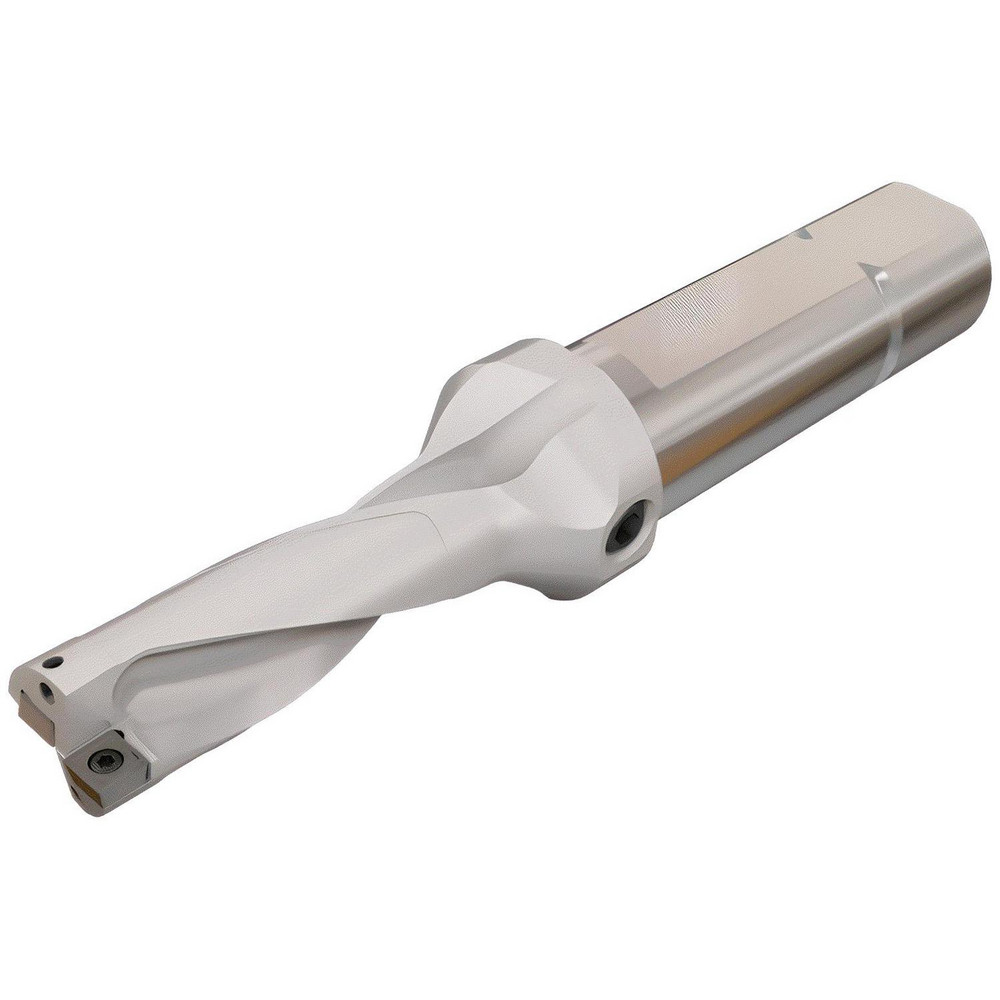

Weldon Flat & Flange Shank, Uses SOMT 09T306 Inserts, Series DR-2D-N
| Compatible Drill Style | DR |
|---|---|
| Maximum Drill Diameter (mm) | 29.50 |
| Maximum Drill Depth (mm) | 50.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 32.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |

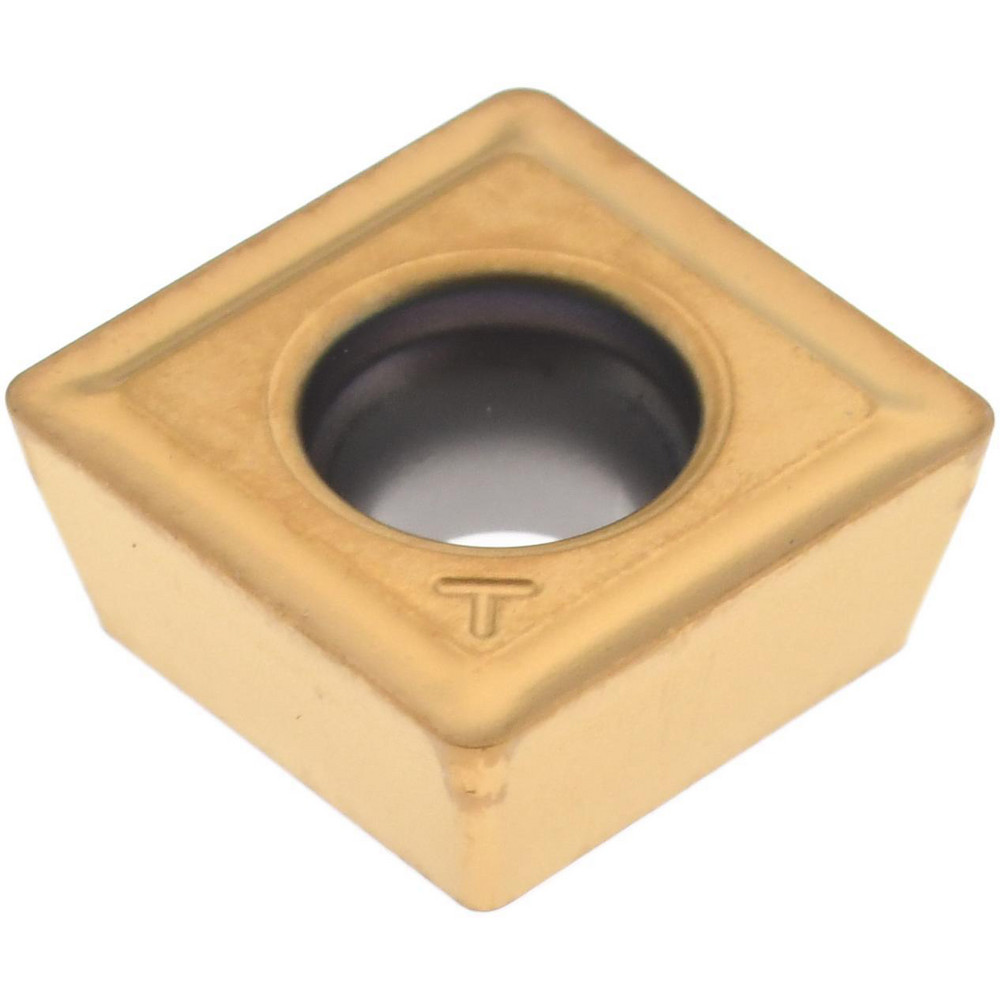

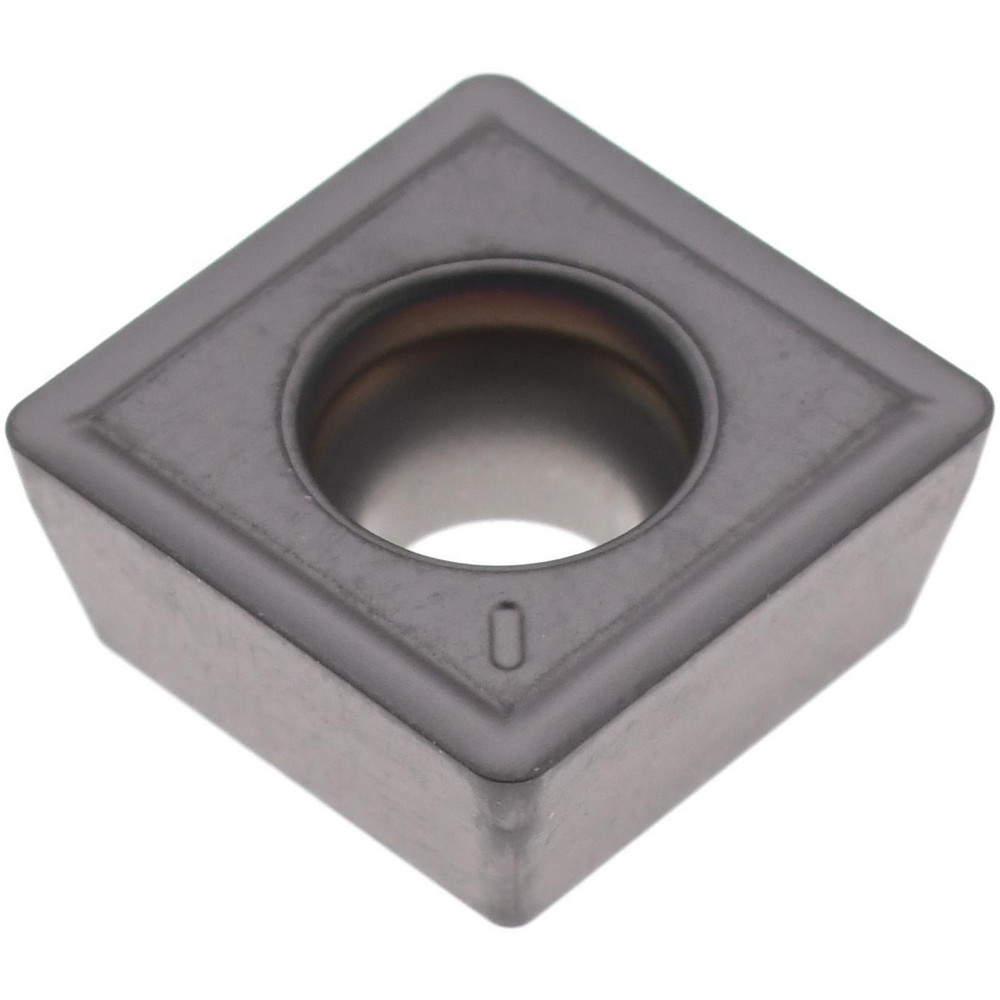

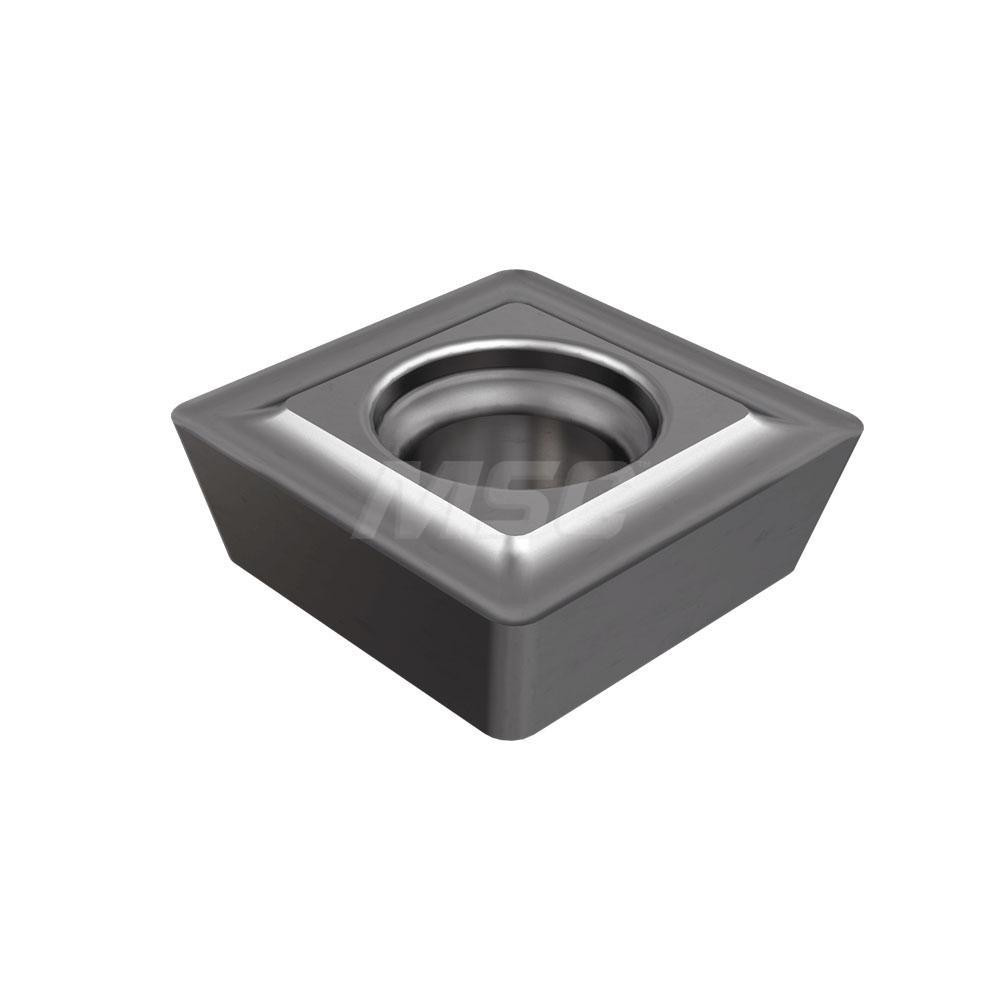

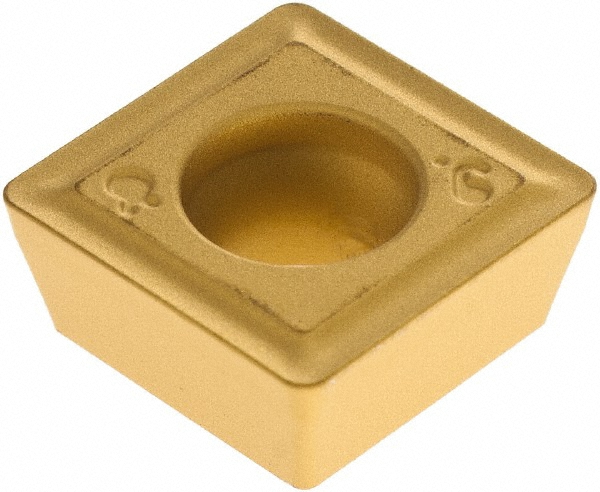

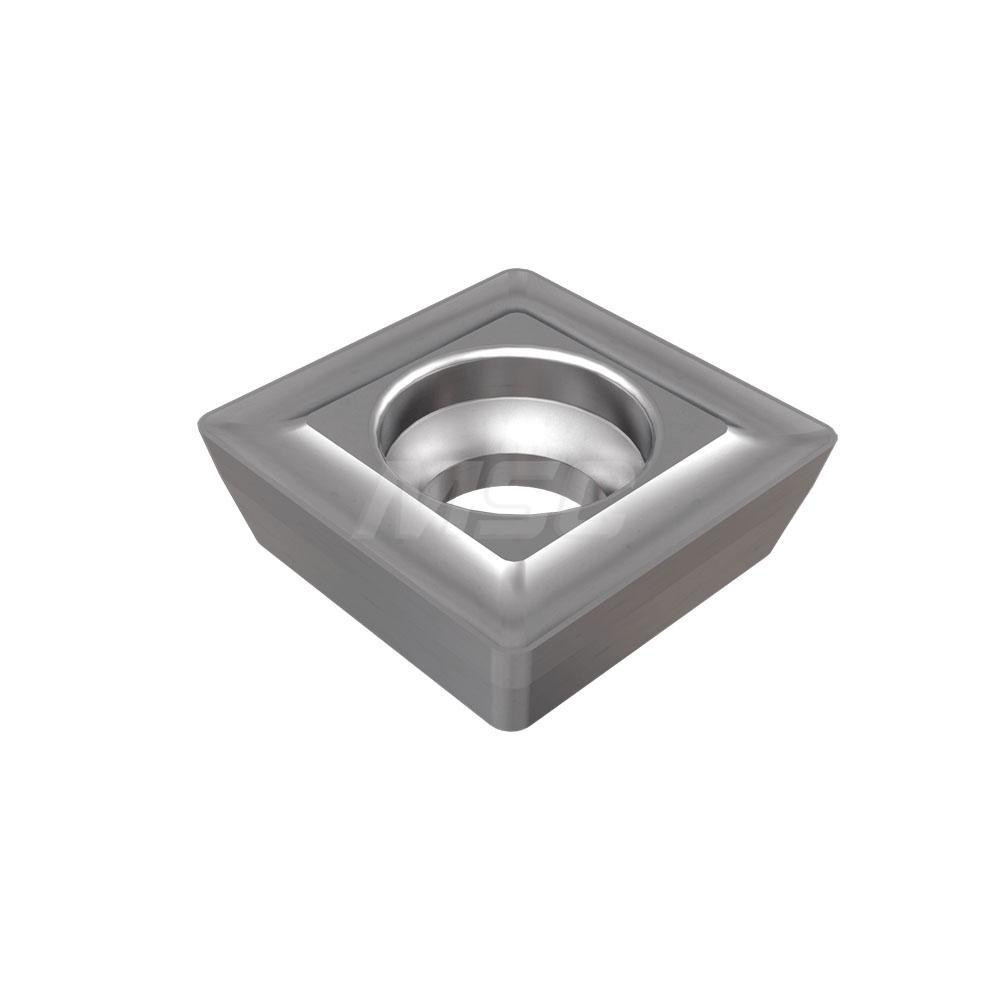

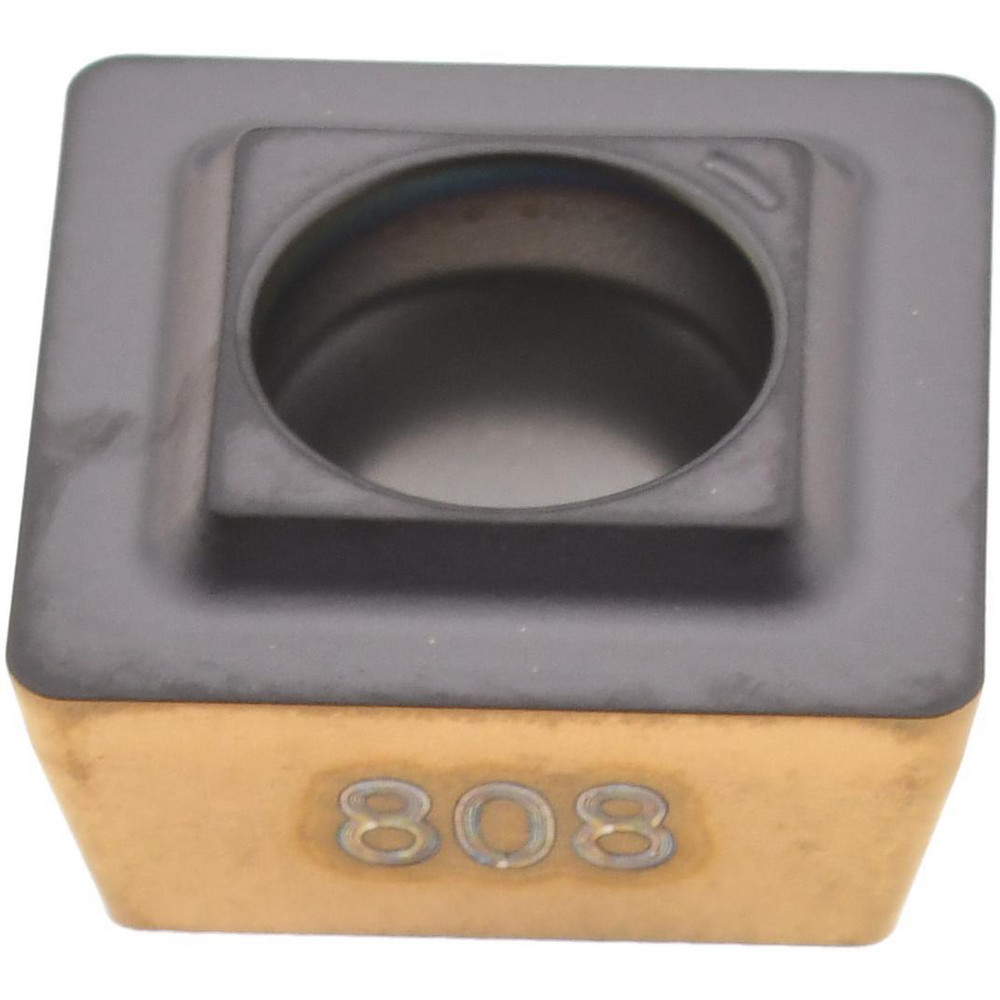

| Compatible Insert Style | SOMT |
| Compatible Insert Size Code | 09T306 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | DR-2D-N |

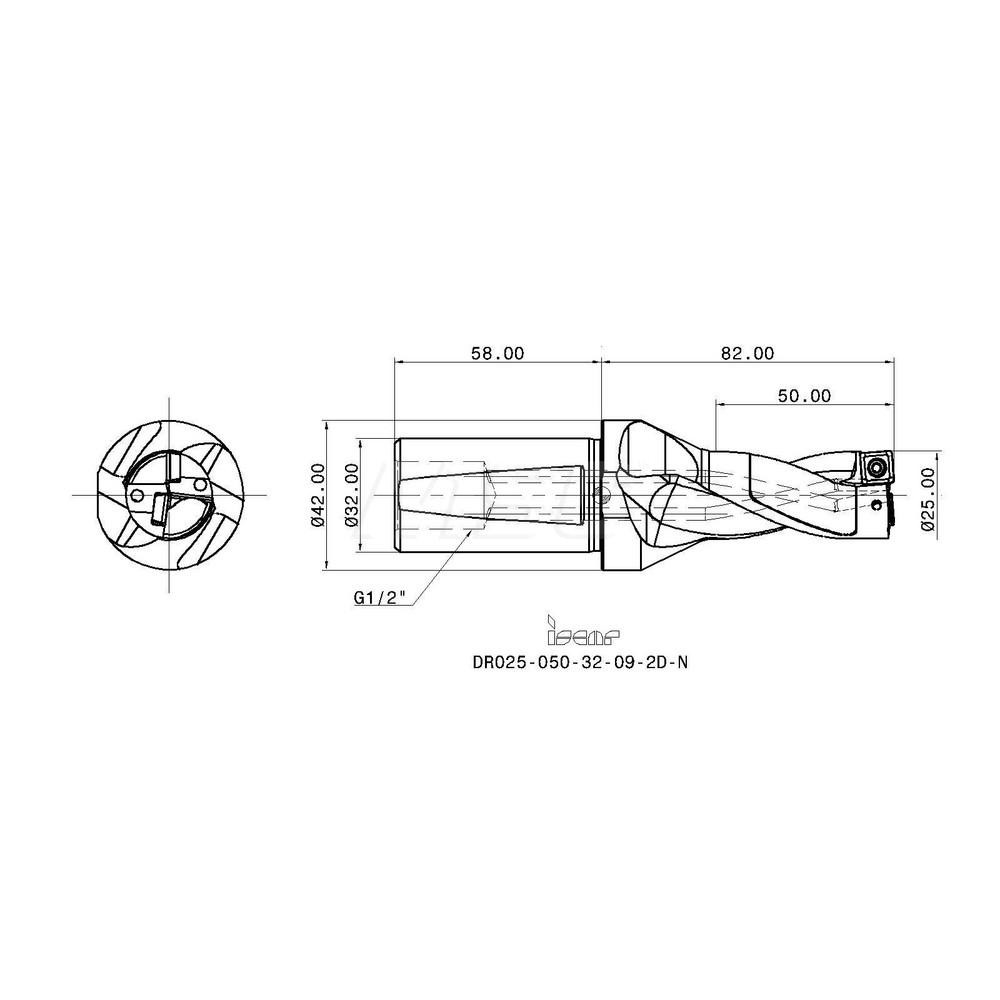

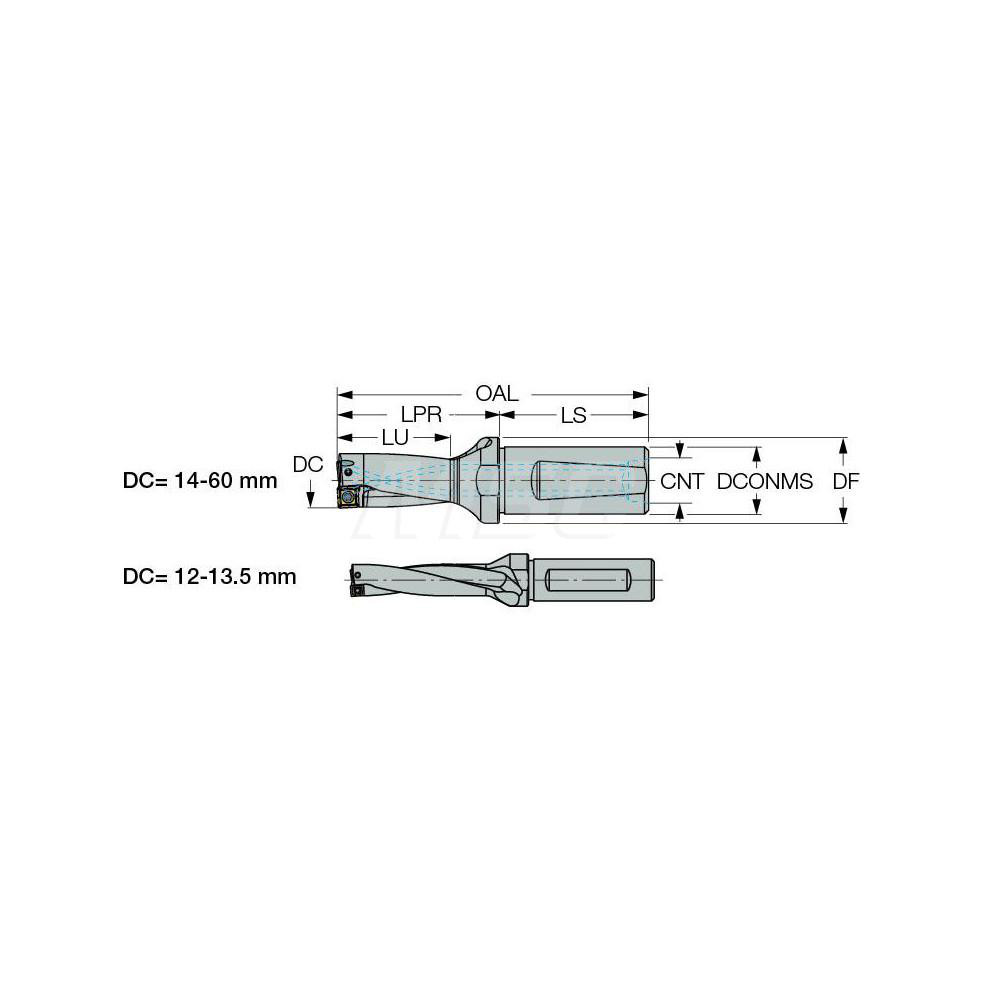

| Flute Length (mm) | 50.00 |
| Body Length (mm) | 82.00 |
| Shank Length (mm) | 58.00 |
| Neck Diameter (mm) | 42.00 |
| Modular Connection Size | 32 mm |
| Coolant Hole Thread Size | "1/2-14 G(BSP)" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3540 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SOMT09T306 |
| Collar Diameter (mm) | 42.00 |
| Shank End Coolant Hole Thread Size (Inch) | G 1/2 |
| Insert Lock Screw | SR 34-506 M3X0.5 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 65816357 |
