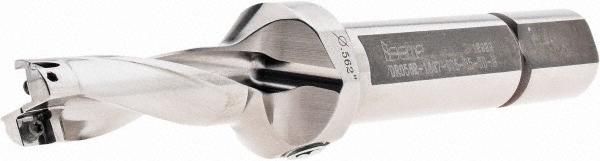

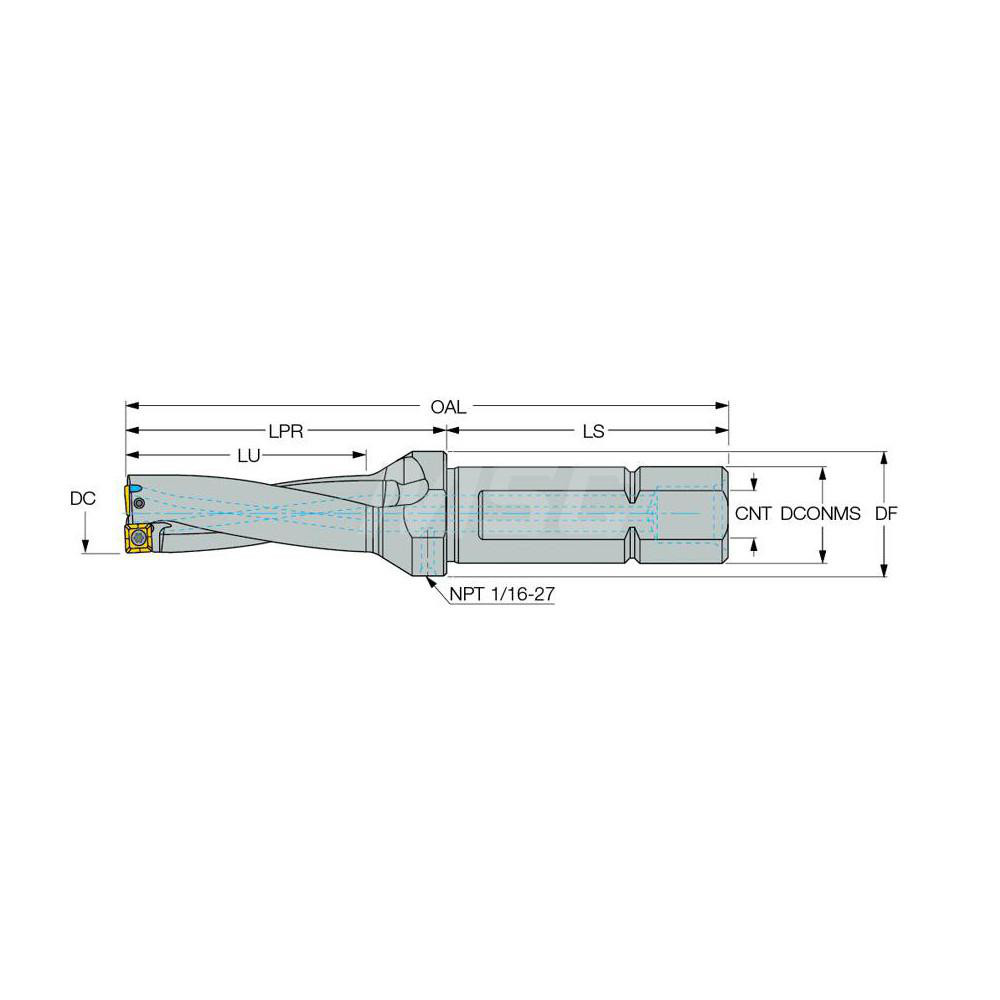

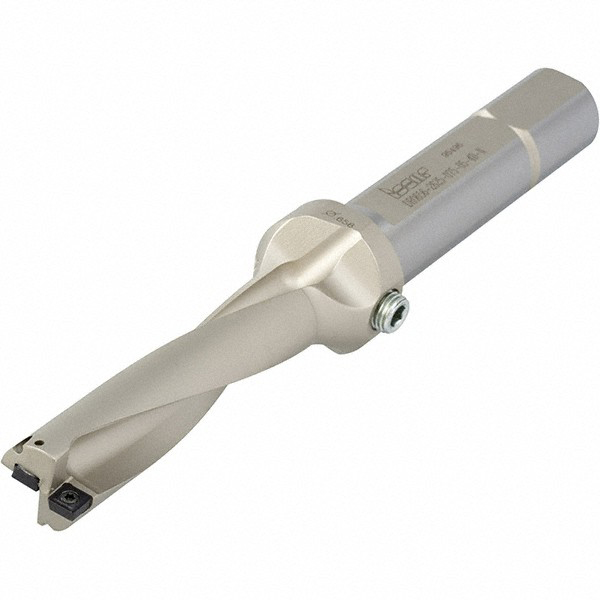

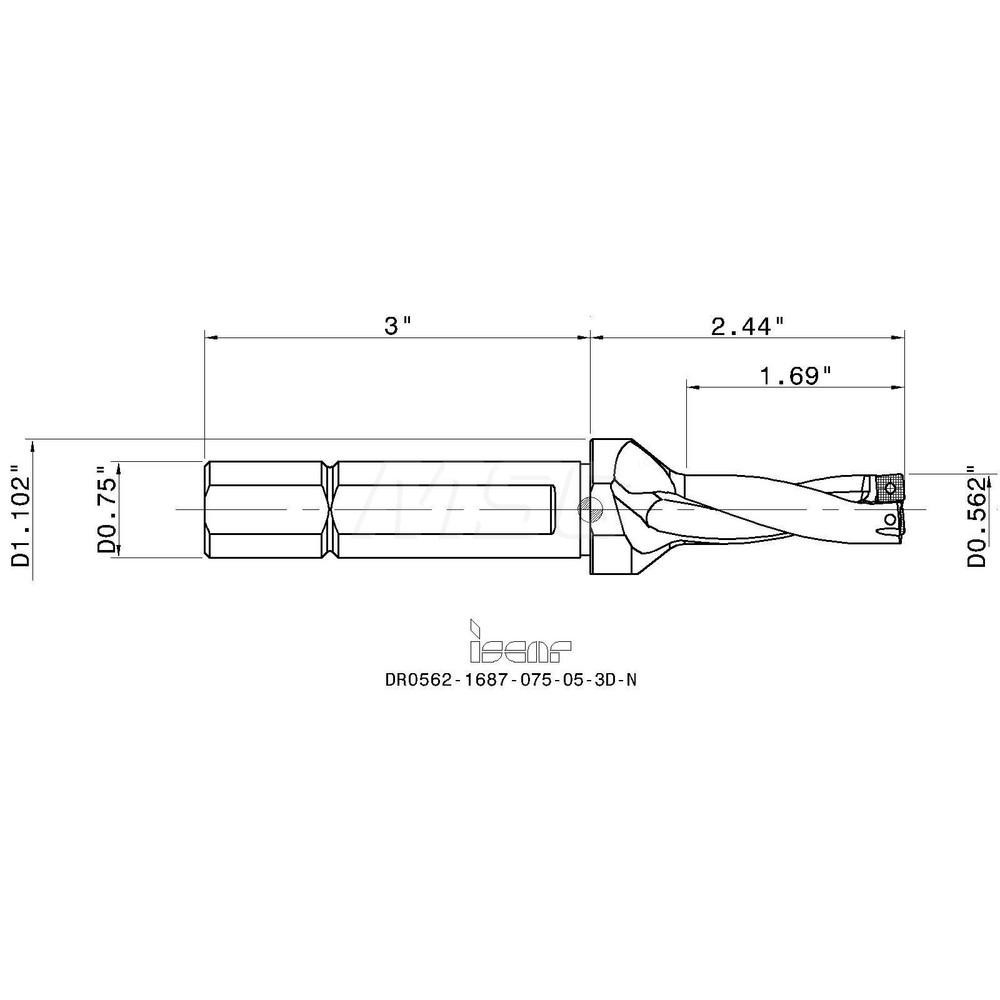

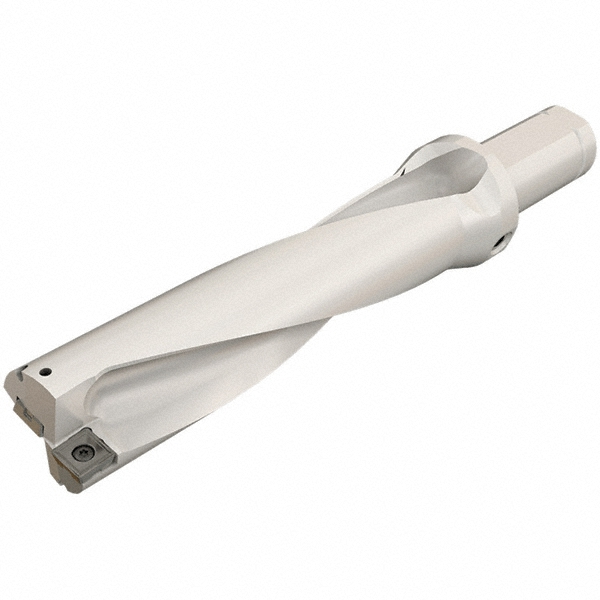

Weldon Flat & Flange Shank, Uses SOMX 050204 Inserts, Series DR-3D-N
| Compatible Drill Style | DR |
|---|---|
| Maximum Drill Diameter (Inch) | 9/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.6650 |
| Maximum Drill Depth (Decimal Inch) | 1.6900 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |

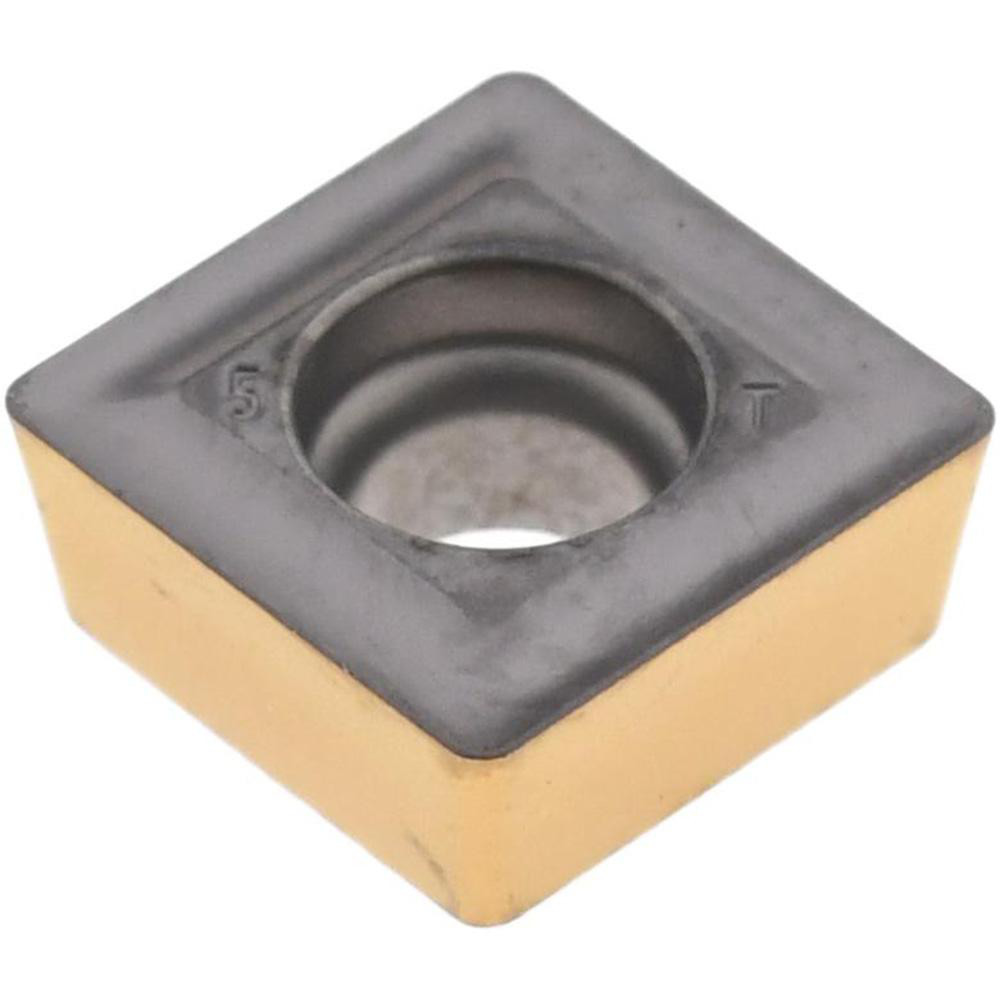

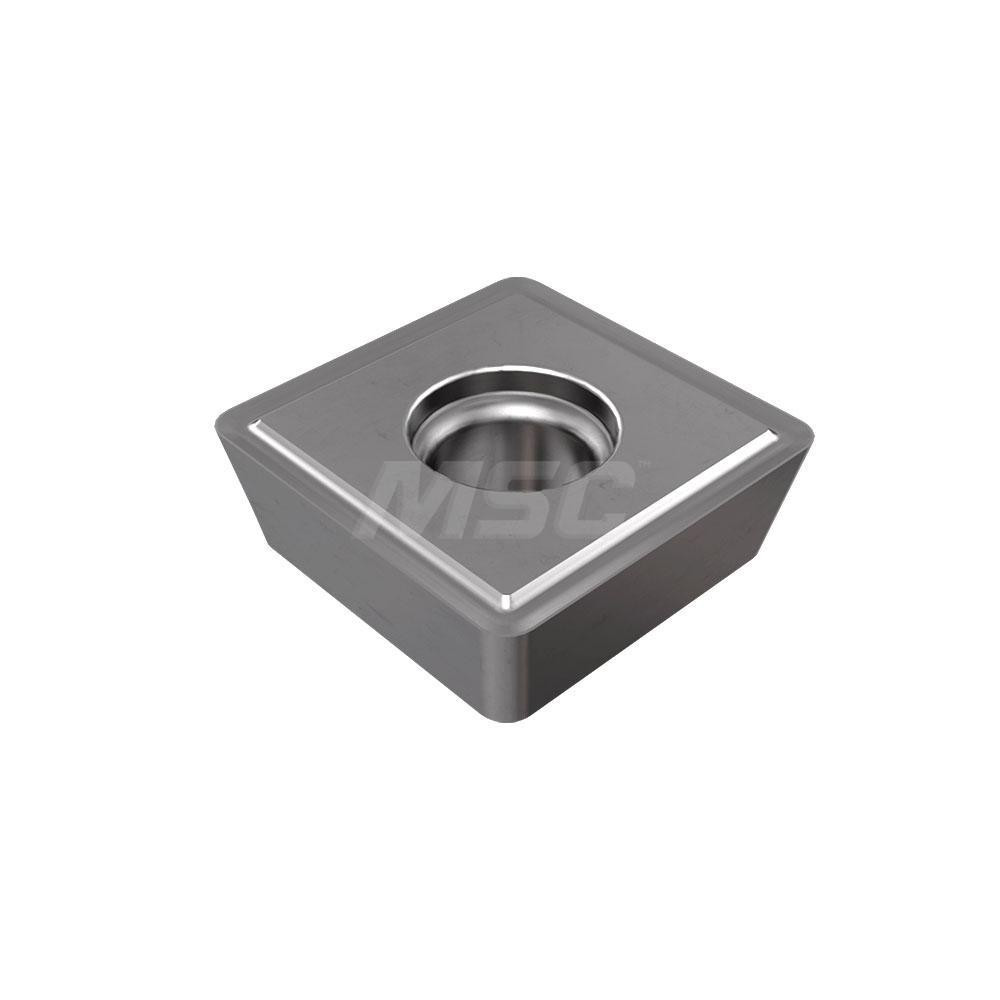

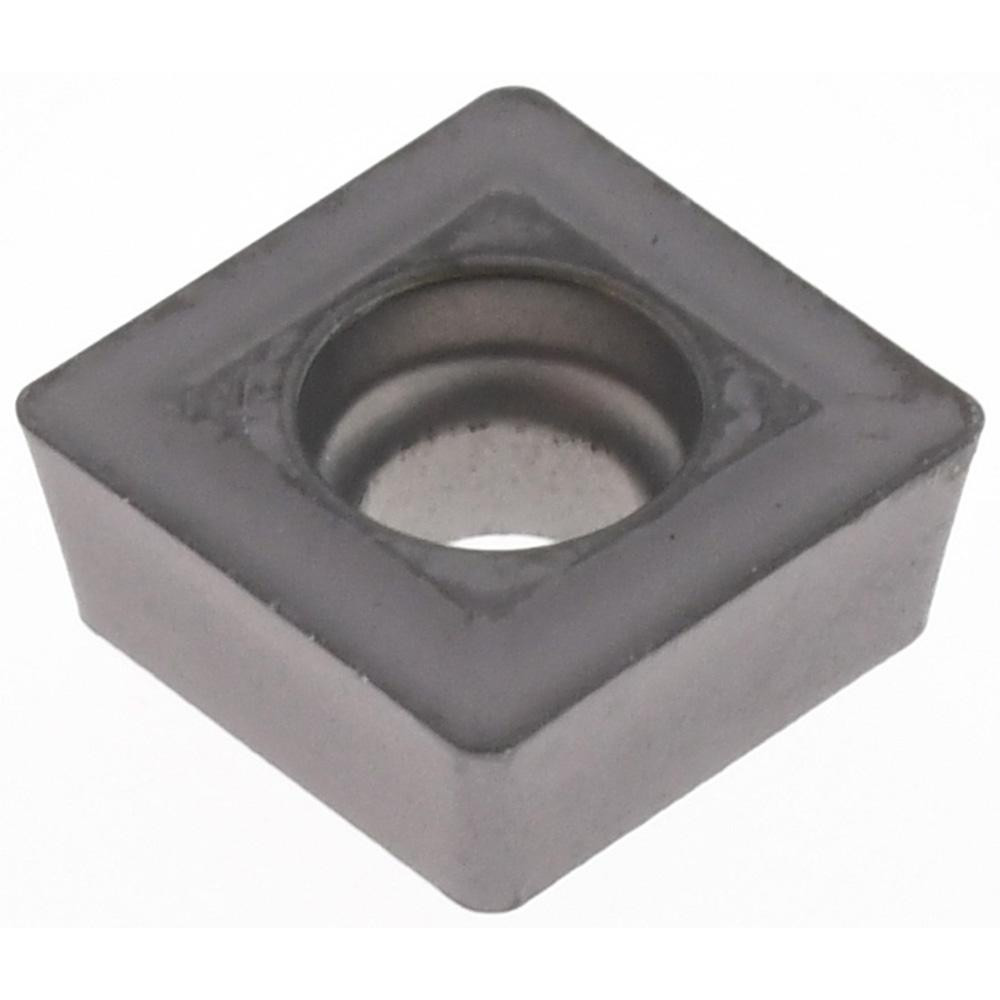

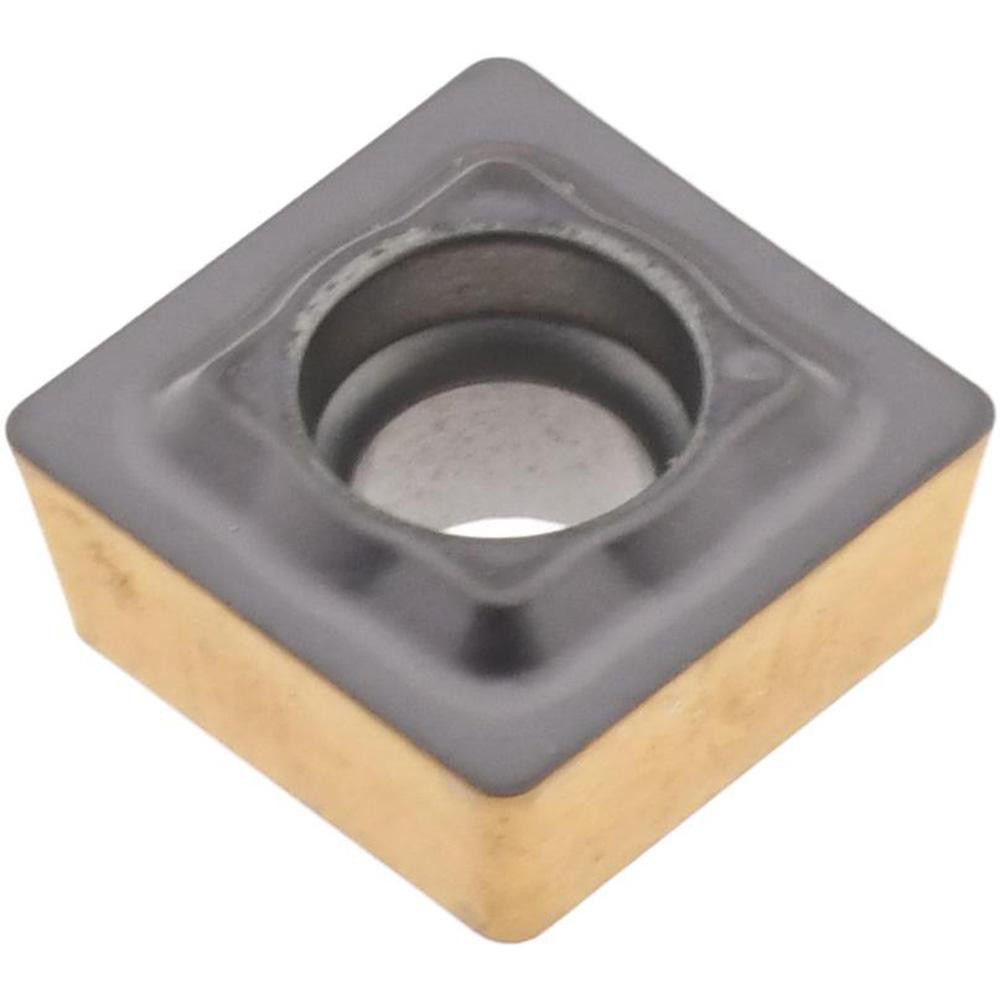

| Compatible Insert Style | SOMX |
| Compatible Insert Size Code | 050204 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.5100 |
| Series | DR-3D-N |
| Flute Length (Decimal Inch) | 1.6900 |
| Body Length (Decimal Inch) | 2.5100 |
| Shank Length (Decimal Inch) | 3.0000 |
| Neck Diameter (Inch) | 1.1020 |
| Modular Connection Size | 3/4 in |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2130 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SOMX050204 |
| Collar Diameter (Decimal Inch) | 1.1020 |

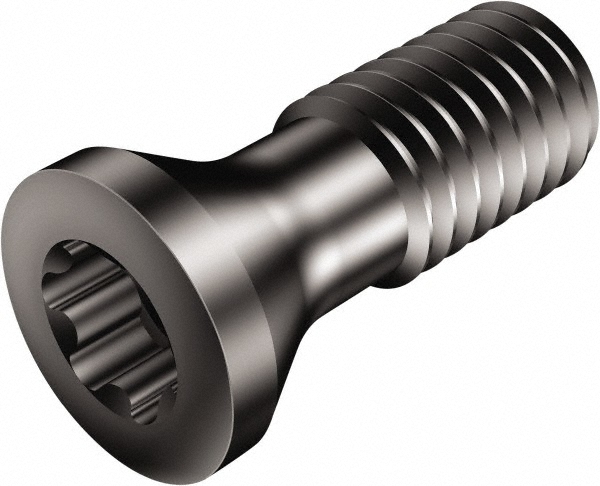

| Insert Lock Screw | SR 34-533/L |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 63111702 |
