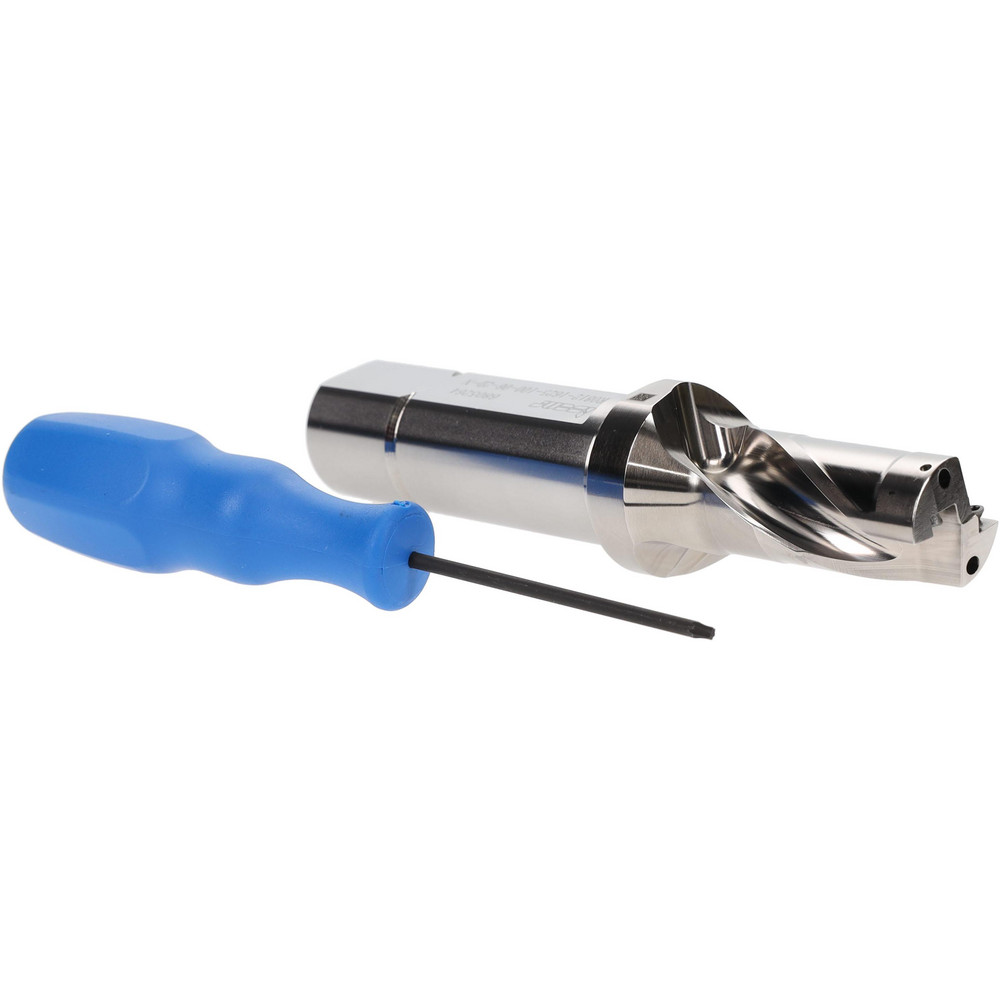

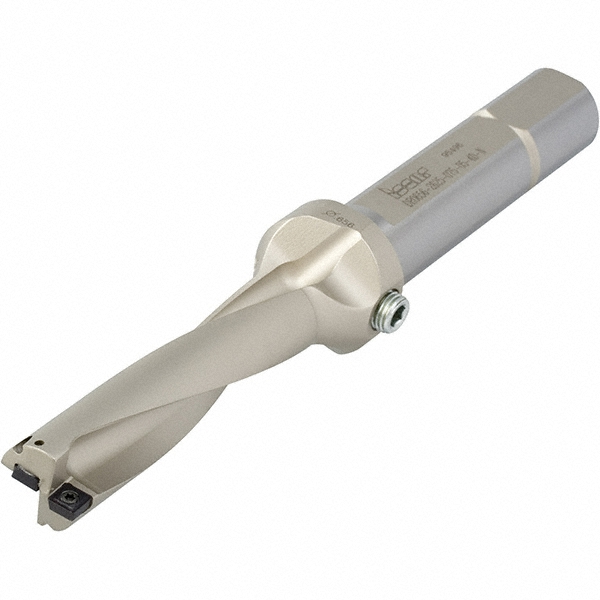

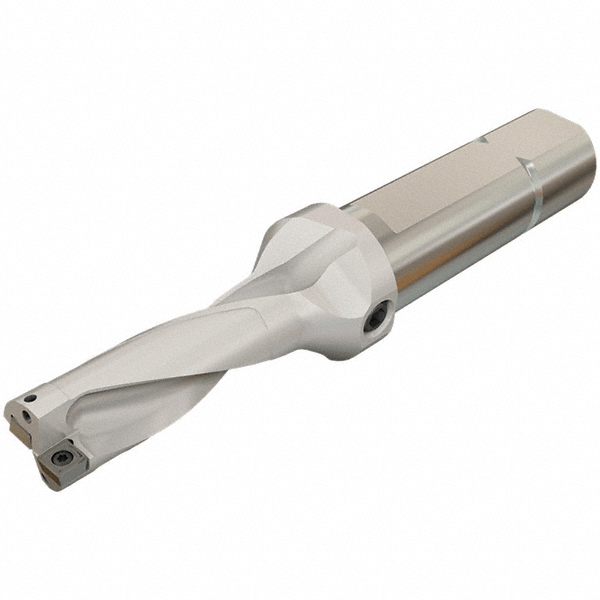

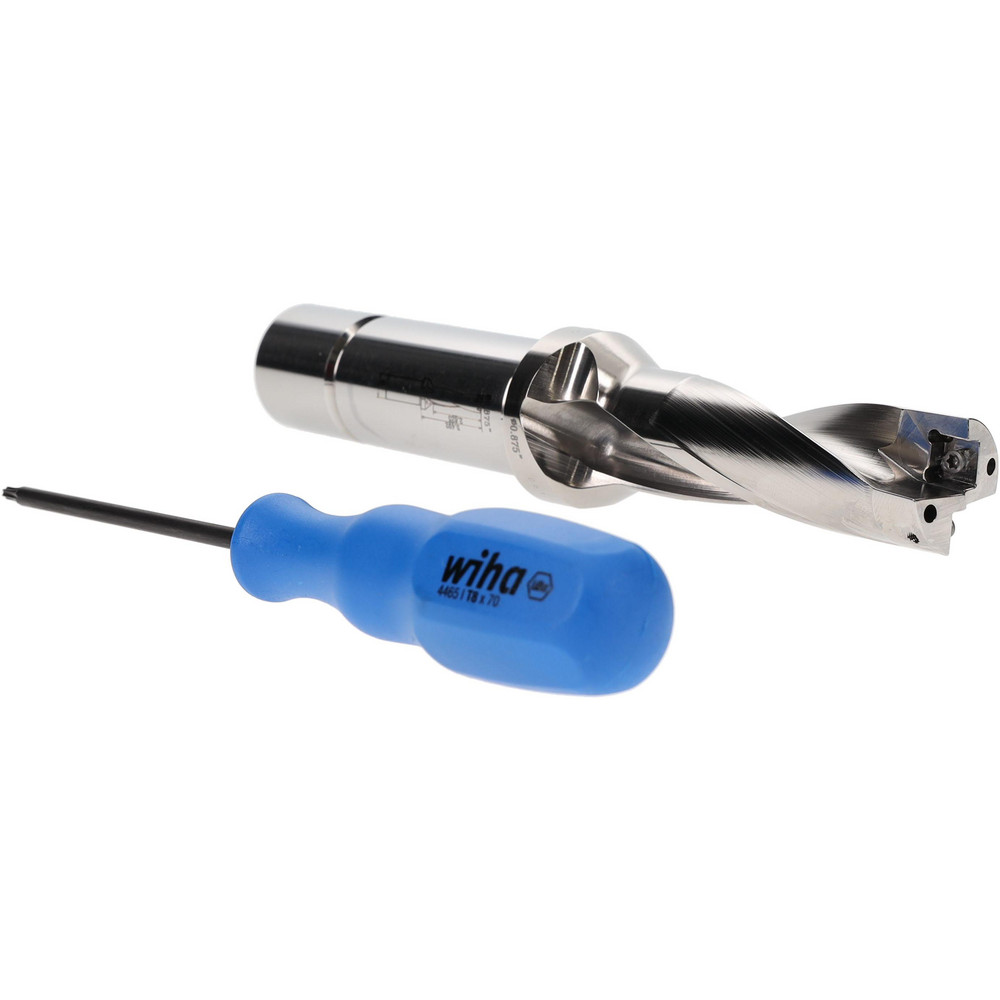

Weldon Flat & Flange Shank, Uses SOMX 060304 Inserts, Series DR-5D-N
| Compatible Drill Style | DR |
|---|---|
| Maximum Drill Diameter (Inch) | 13/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.8400 |
| Maximum Drill Depth (Decimal Inch) | 4.0600 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOMX |
| Compatible Insert Size Code | 060304 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 7.9100 |
| Series | DR-5D-N |
| Flute Length (Decimal Inch) | 4.0600 |
| Body Length (Decimal Inch) | 4.9100 |
| Shank Length (Decimal Inch) | 3.0000 |
| Neck Diameter (Inch) | 1.2500 |
| Modular Connection Size | 1 in |
| Coolant Hole Thread Size | "1/16-28 BSP" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2441 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SOMX060304 |
| Collar Diameter (Decimal Inch) | 1.2500 |
| Body Side Coolant Hole Thread Size (Inch) | 1/16-27 |
| Shank End Coolant Hole Thread Size (Inch) | G 3/8 |
| Insert Lock Screw | SR 34-508/L |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 91104786 |
