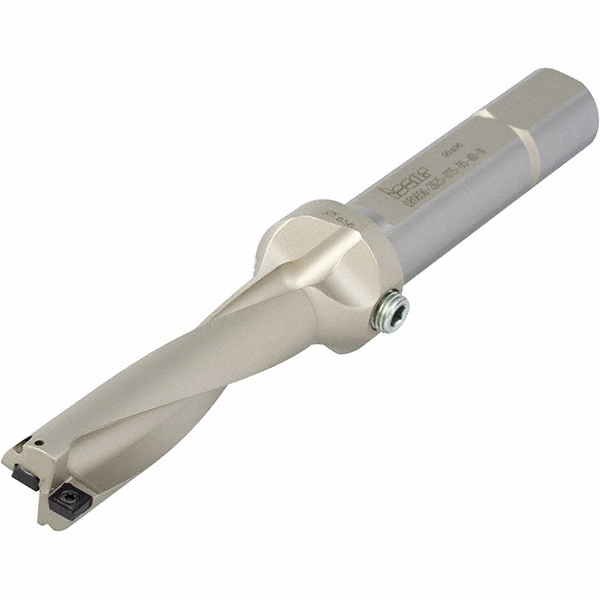

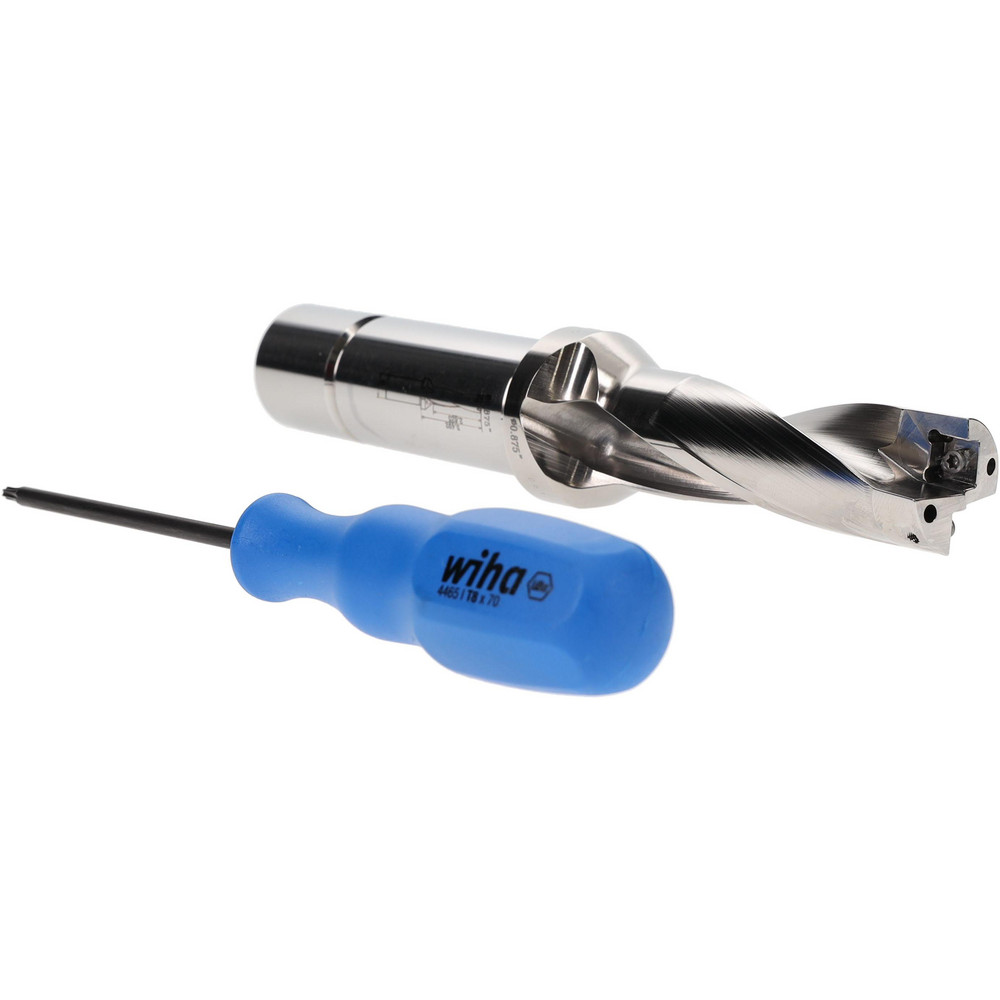

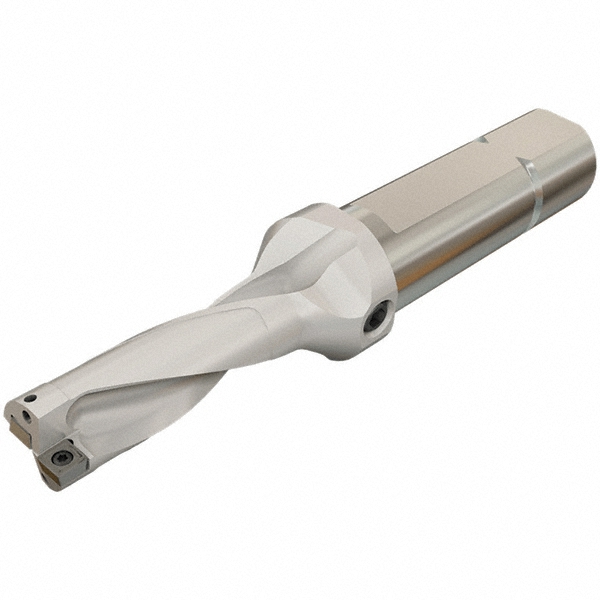

Weldon Flat Shank, Uses SOMX 070305 Inserts, Series DR-2D-N
| Compatible Drill Style | DR |
|---|---|
| Maximum Drill Diameter (Inch) | 27/32 |
| Maximum Drill Diameter (Decimal Inch) | 0.9720 |
| Maximum Drill Depth (Decimal Inch) | 1.6900 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |

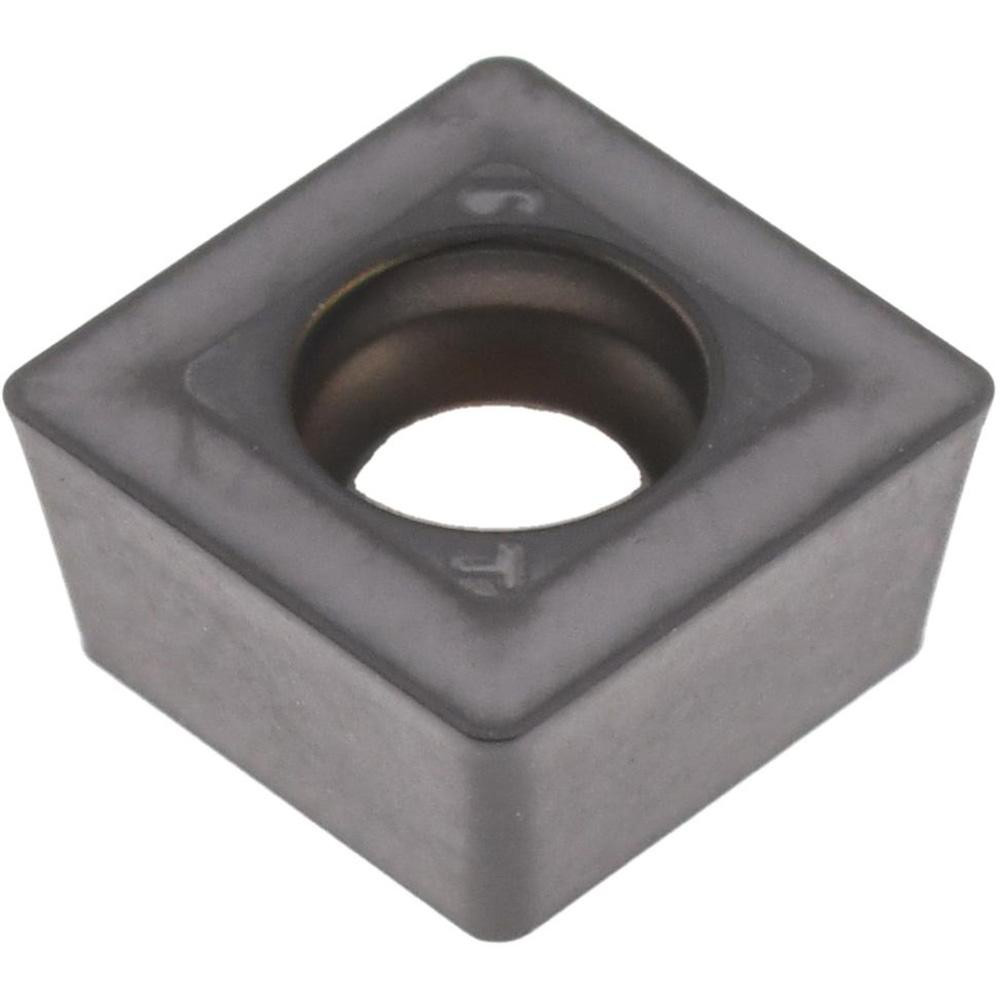

| Compatible Insert Style | SOMX |
| Compatible Insert Size Code | 070305 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 5.5500 |
| Series | DR-2D-N |
| Flute Length (Decimal Inch) | 1.6900 |
| Body Length (Decimal Inch) | 2.5500 |
| Shank Length (Decimal Inch) | 3.0000 |
| Neck Diameter (Inch) | 1.2600 |
| Modular Connection Size | 1 in |
| Coolant Hole Thread Size | "1/16-27 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3031 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SOMX070305 |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Body Side Coolant Hole Thread Size (Inch) | 1/16-27 |
| Shank End Coolant Hole Thread Size (Inch) | 3/8-18 |
| Insert Lock Screw | SR 14-560 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 01589845 |
