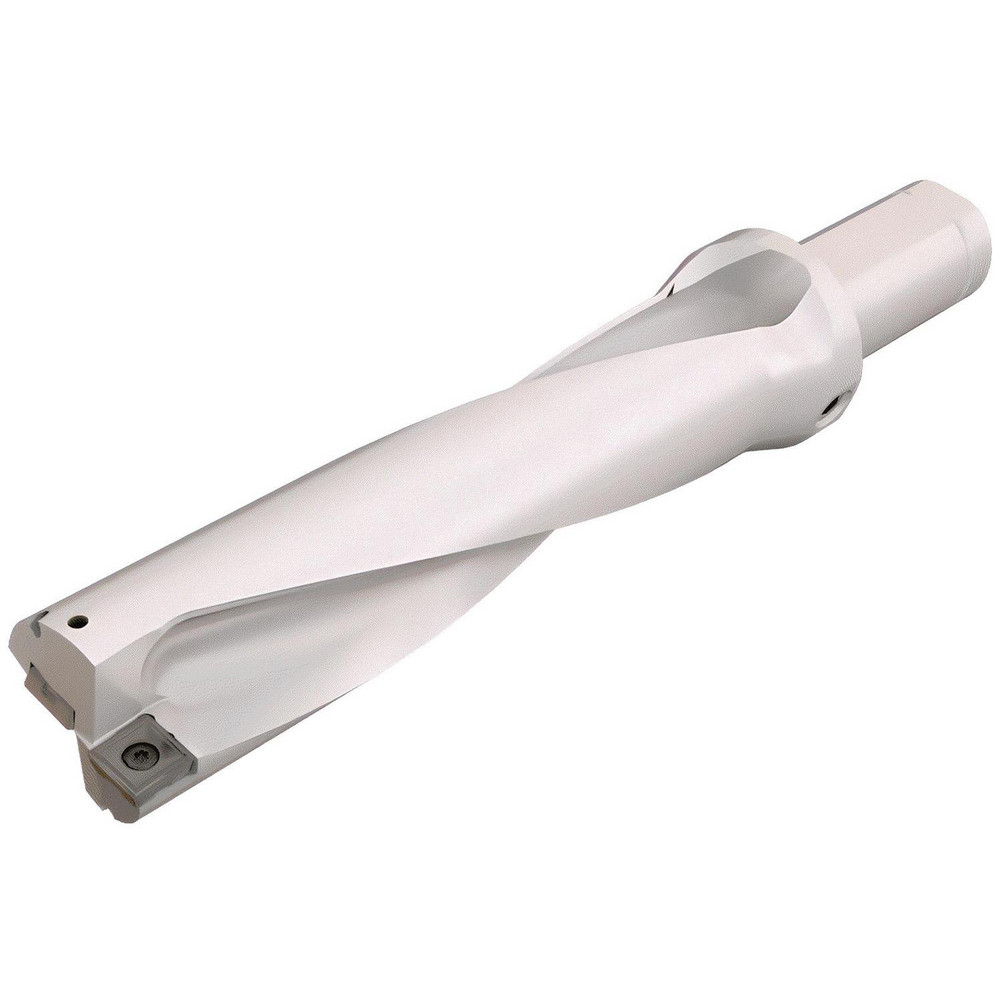

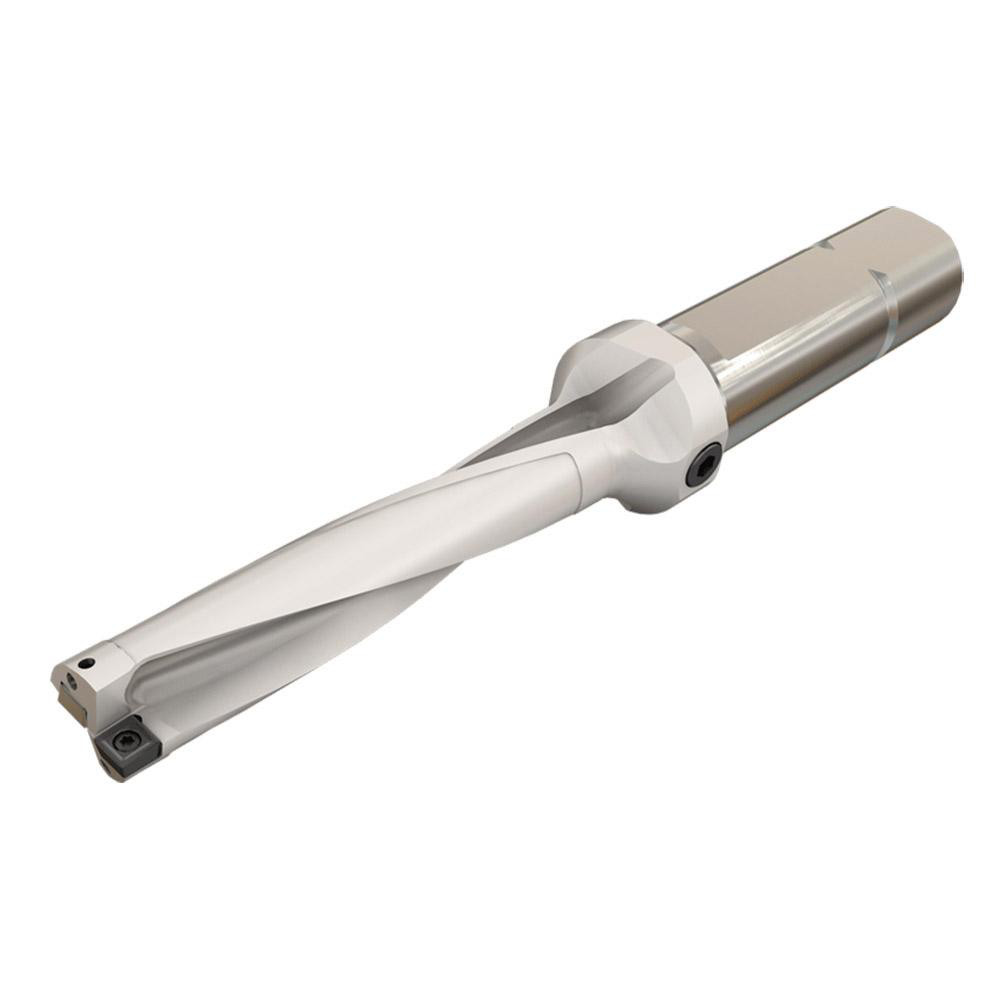

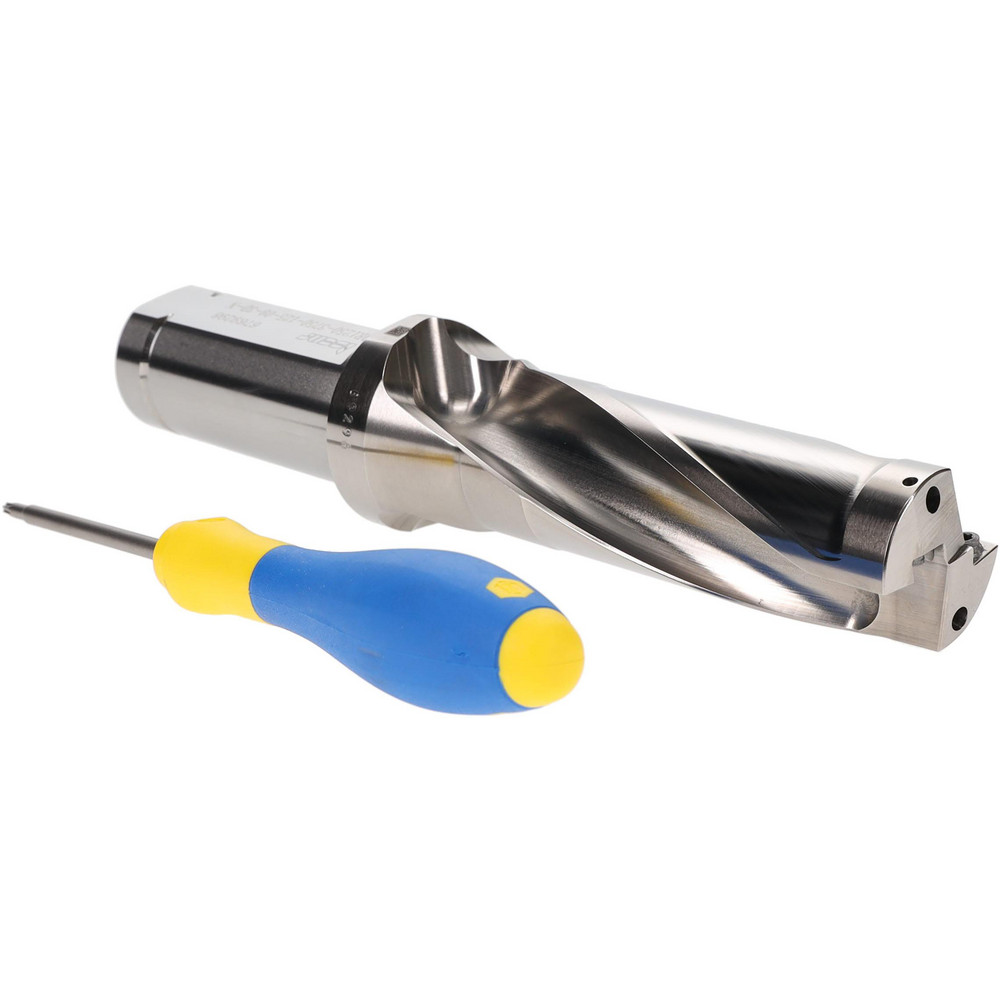

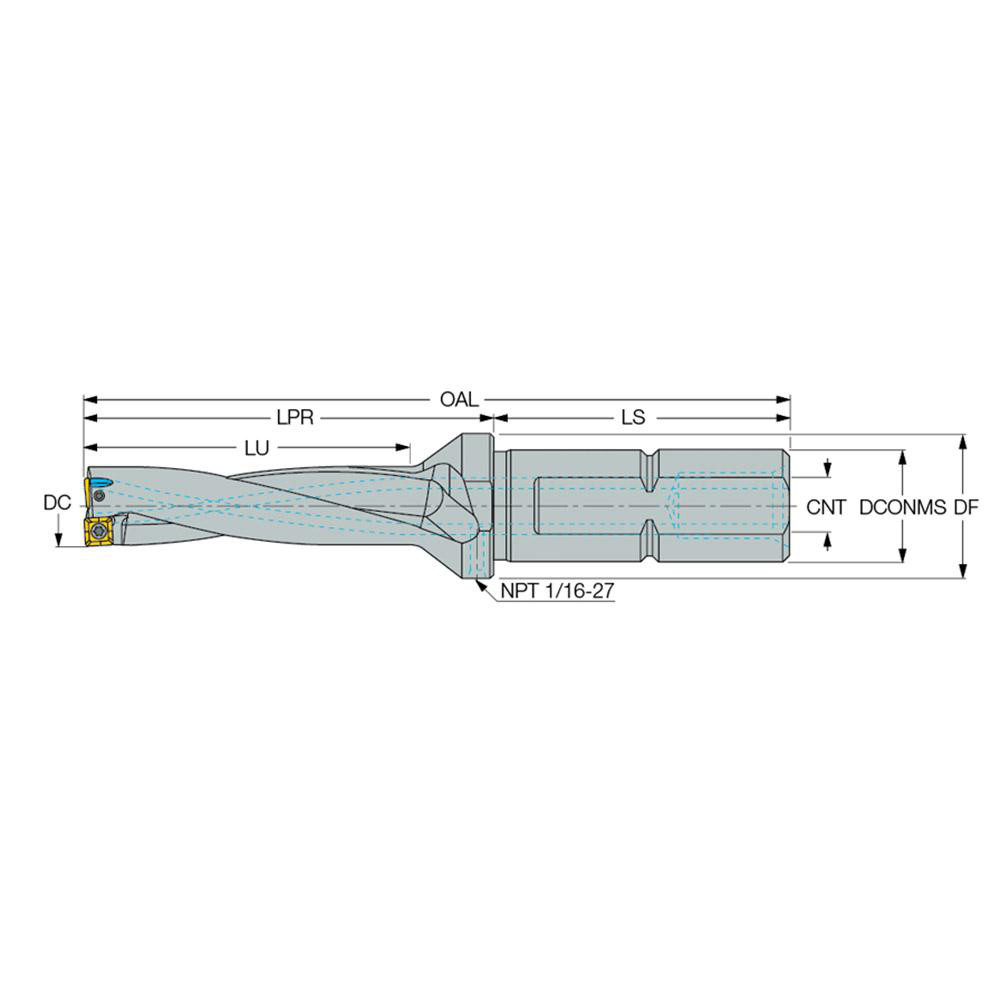

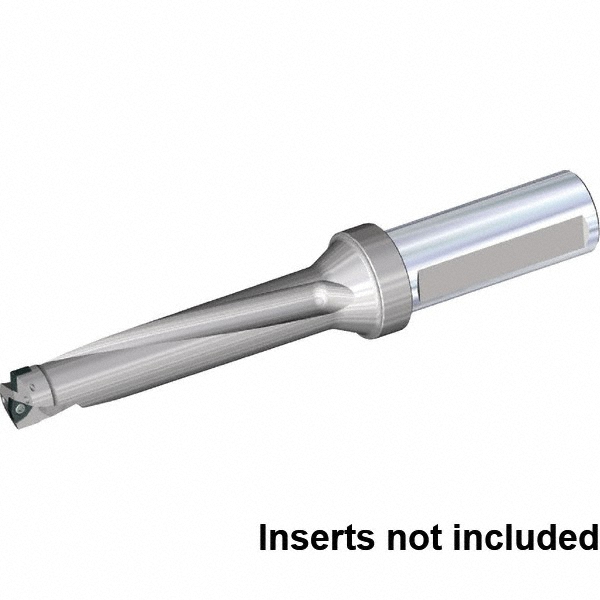

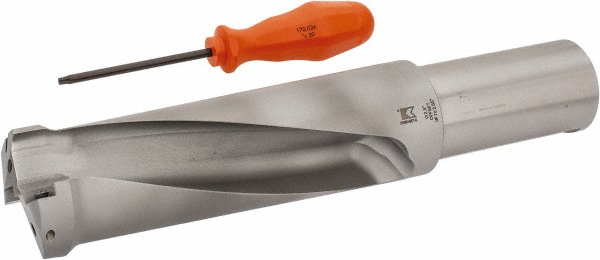

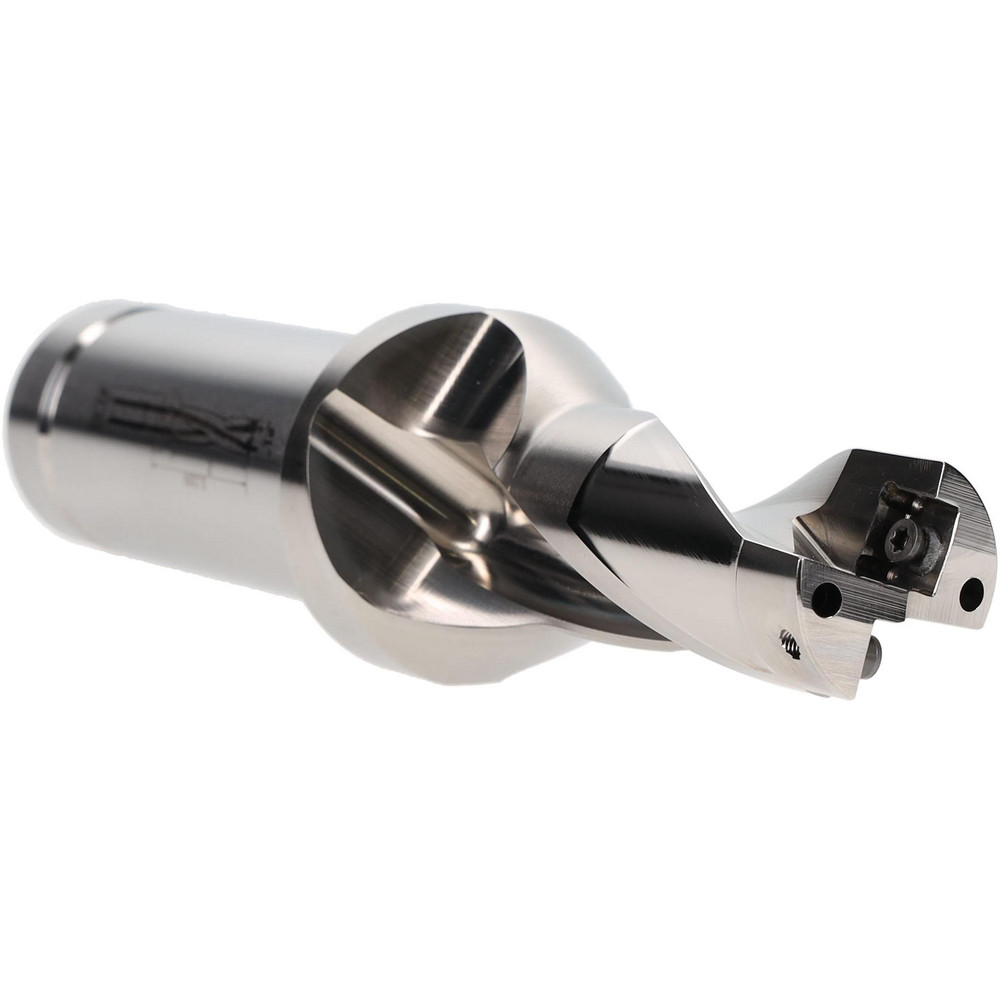

Weldon Flat & Flange Shank, Uses SOMT 09T306 Inserts, Series DR-5D-N
| Compatible Drill Style | DR |
|---|---|
| Maximum Drill Diameter (Inch) | 1-17/64 |
| Maximum Drill Diameter (Decimal Inch) | 1.2660 |
| Maximum Drill Depth (Inch) | 6-1/4 |
| Maximum Drill Depth (Decimal Inch) | 6.2500 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOMT |
| Compatible Insert Size Code | 09T306 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 10.5500 |
| Series | DR-5D-N |
| Flute Length (Decimal Inch) | 6.2500 |
| Body Length (Decimal Inch) | 7.5500 |
| Shank Length (Decimal Inch) | 3.0000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3540 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SOMT09T306 |
| Collar Diameter (Decimal Inch) | 1.6500 |
| Insert Lock Screw | SR 34-506 M3X0.5 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 23065105 |
