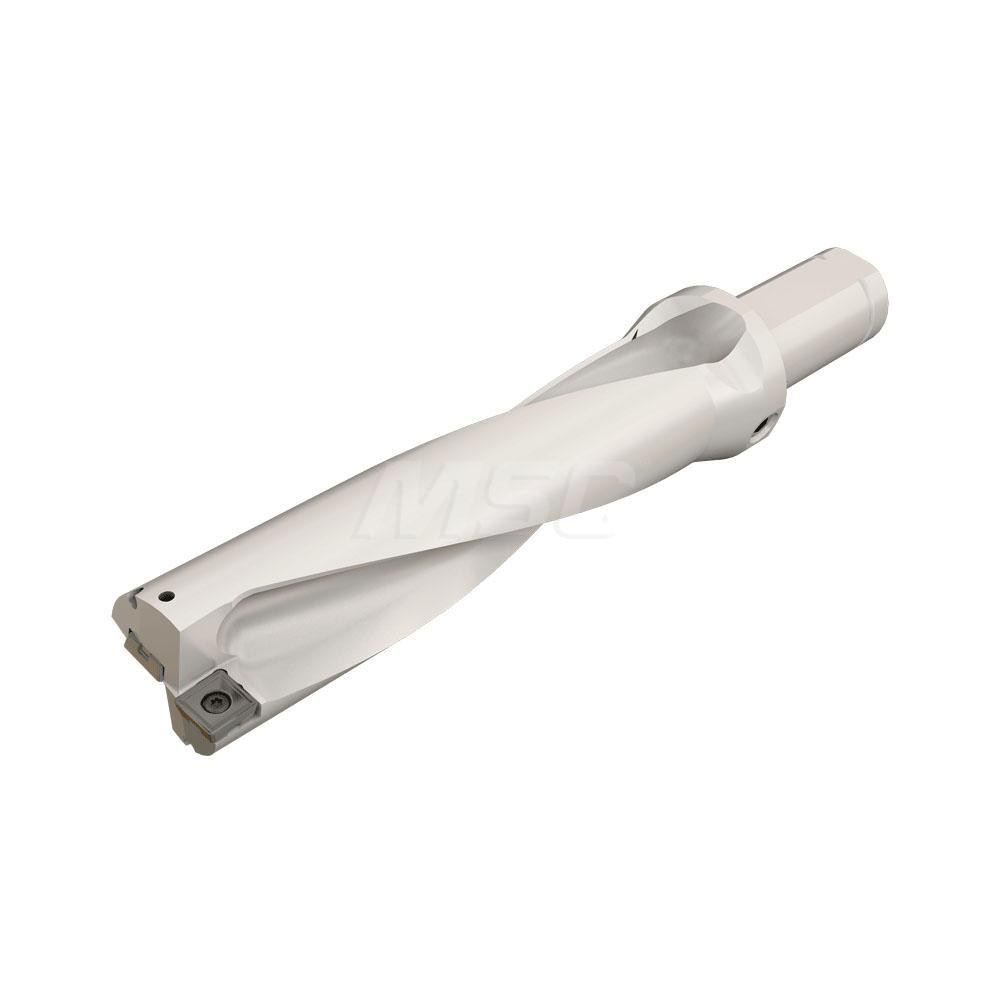

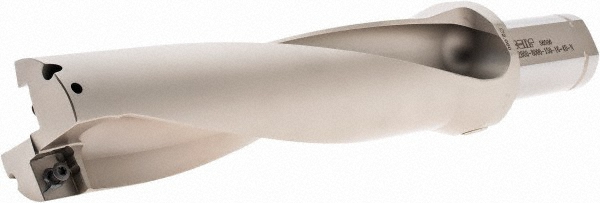

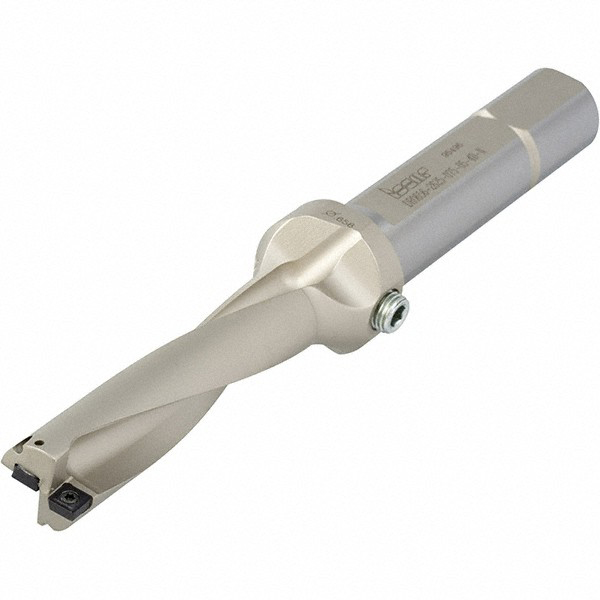

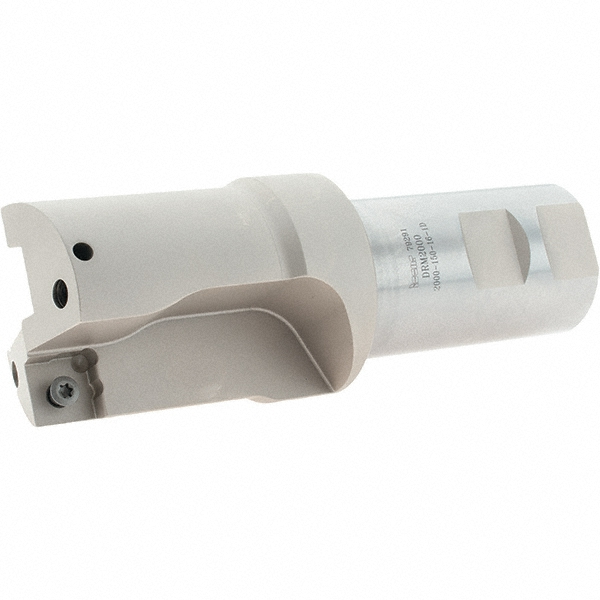

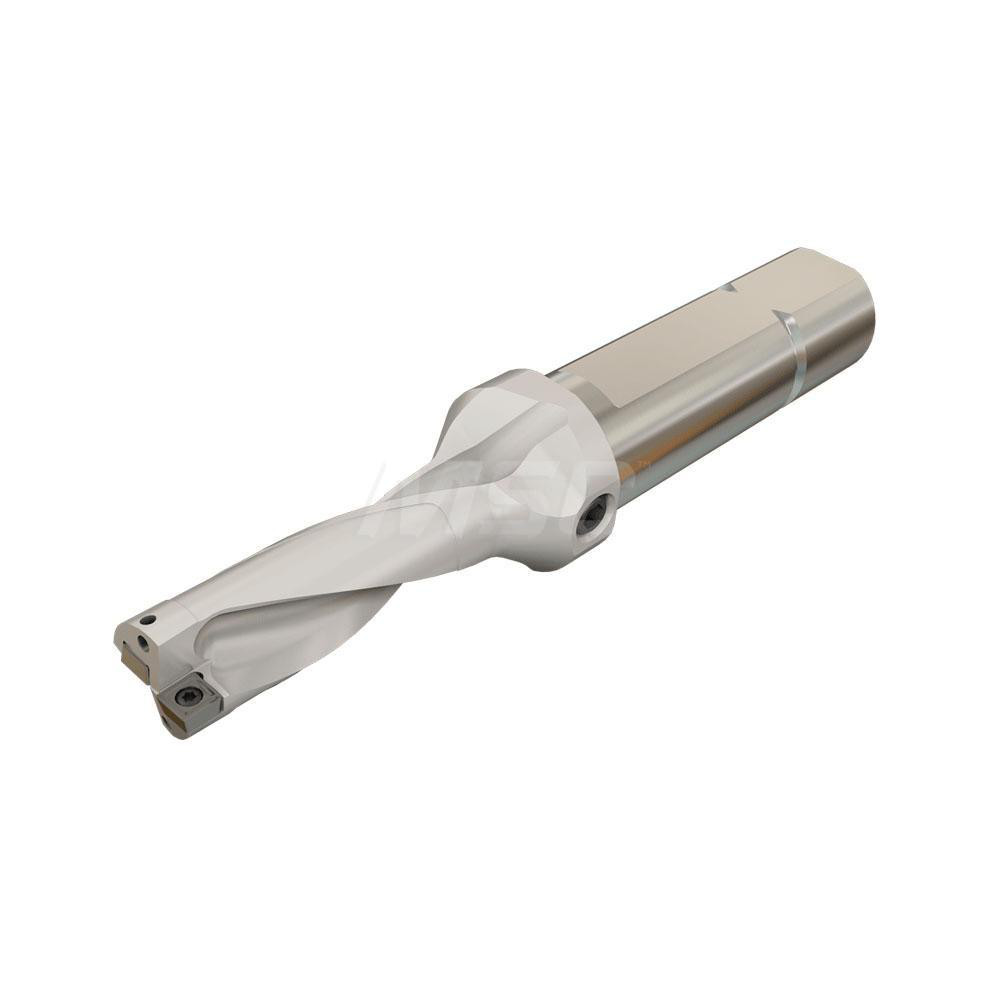

Weldon Flat & Flange Shank, Uses SOMT 160512 Inserts, Series DR-2D-N
| Compatible Drill Style | DR |
|---|---|
| Maximum Drill Diameter (Inch) | 2-3/16 |
| Maximum Drill Diameter (Decimal Inch) | 2.2240 |
| Maximum Drill Depth (Decimal Inch) | 4.3700 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |

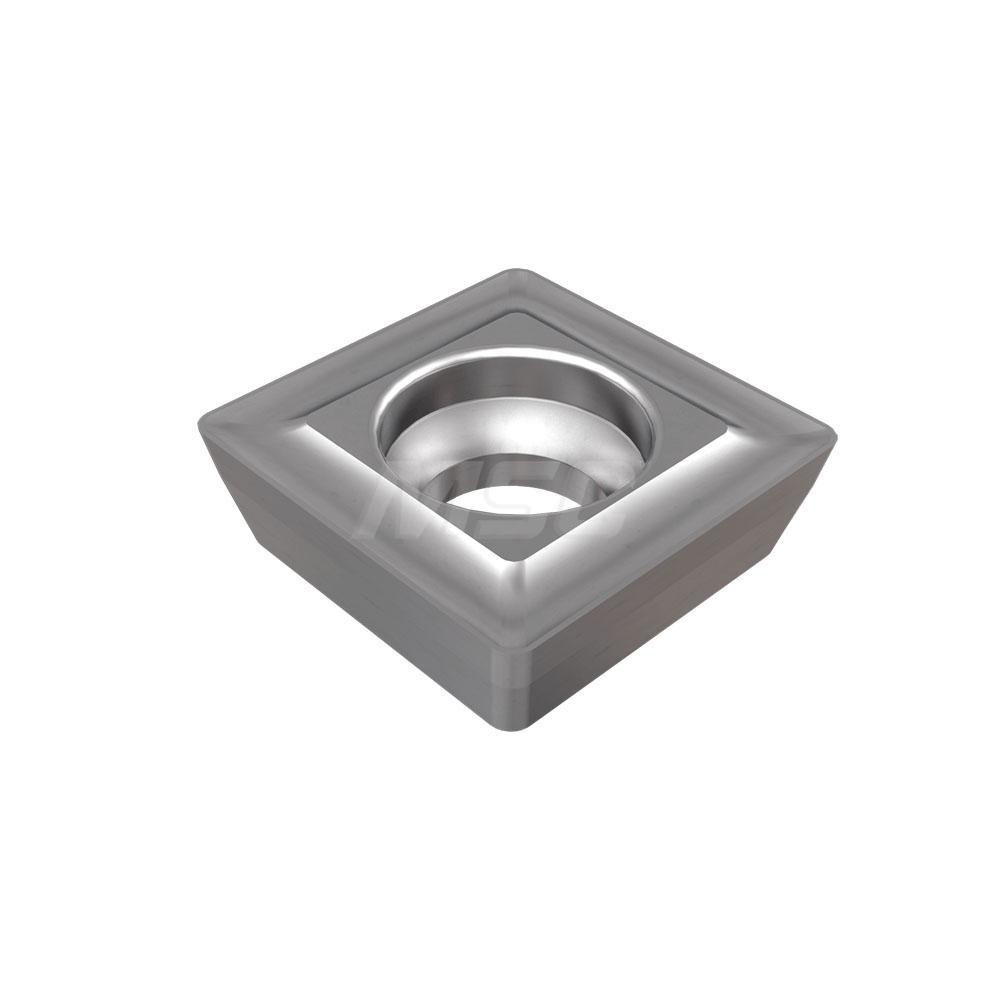

| Compatible Insert Style | SOMT |
| Compatible Insert Size Code | 160512 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 8.8700 |
| Series | DR-2D-N |
| Flute Length (Decimal Inch) | 4.3700 |
| Body Length (Decimal Inch) | 5.8700 |
| Shank Length (Decimal Inch) | 3.0000 |
| Neck Diameter (Inch) | 2.3620 |
| Modular Connection Size | 1-1/2 in |
| Coolant Hole Thread Size | "1/16-27 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.6300 |
| UNSPSC Code | 23291503 |

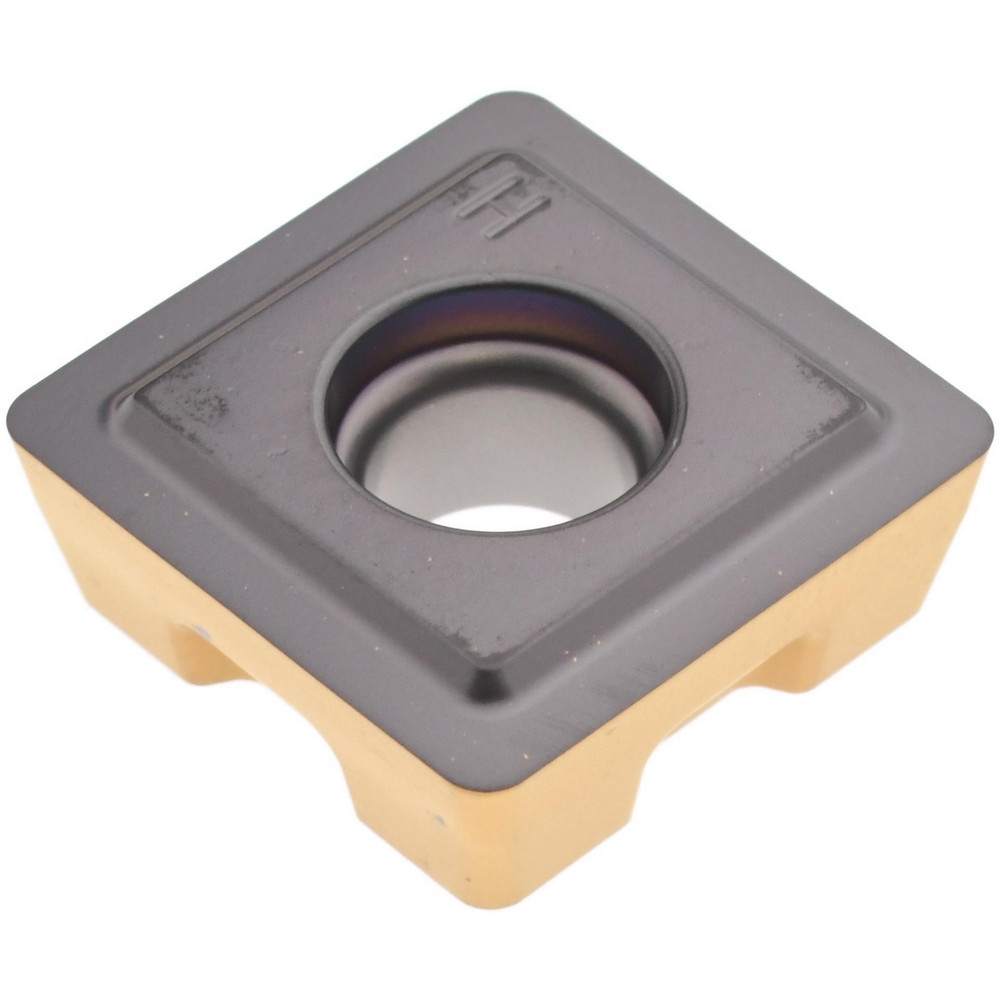

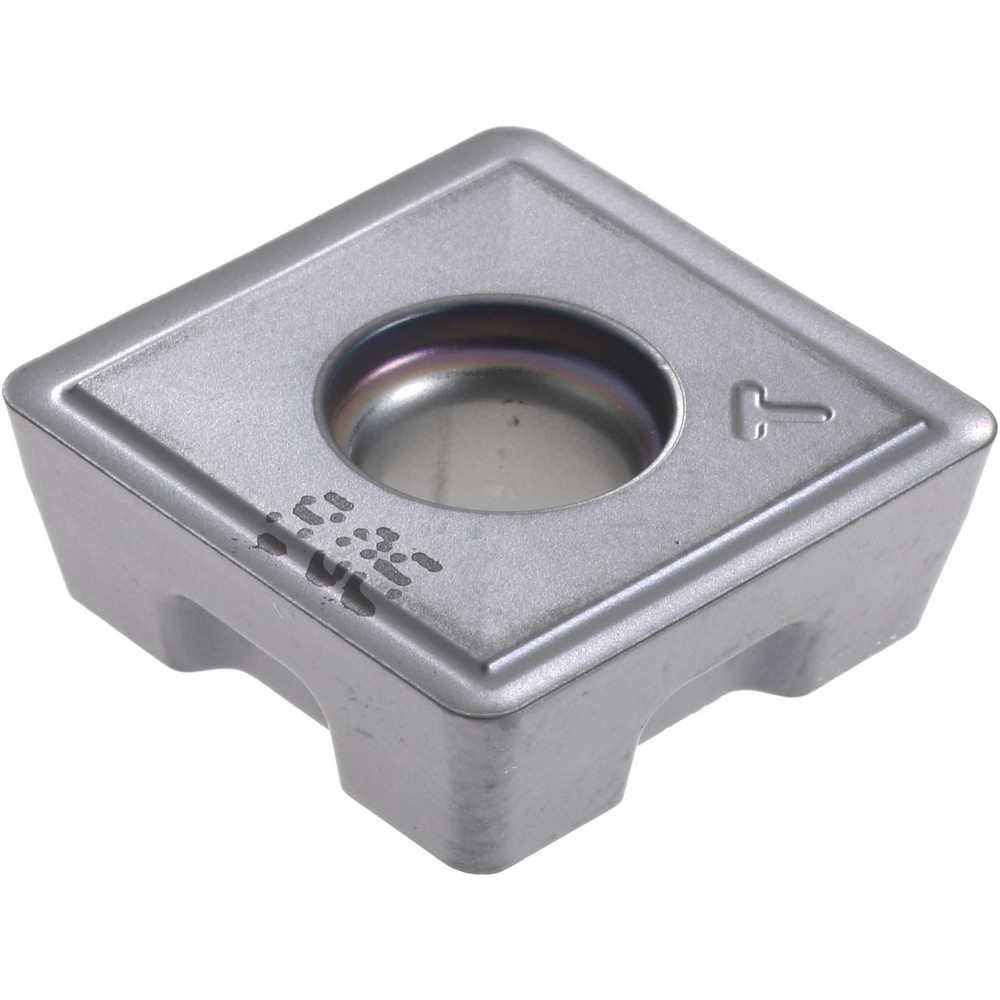

| Insert Compatibility | SOMT160512 |
| Collar Diameter (Decimal Inch) | 2.3620 |
| Body Side Coolant Hole Thread Size (Inch) | 1/16-27 |
| Insert Lock Screw | SR 76-961 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 57725061 |
