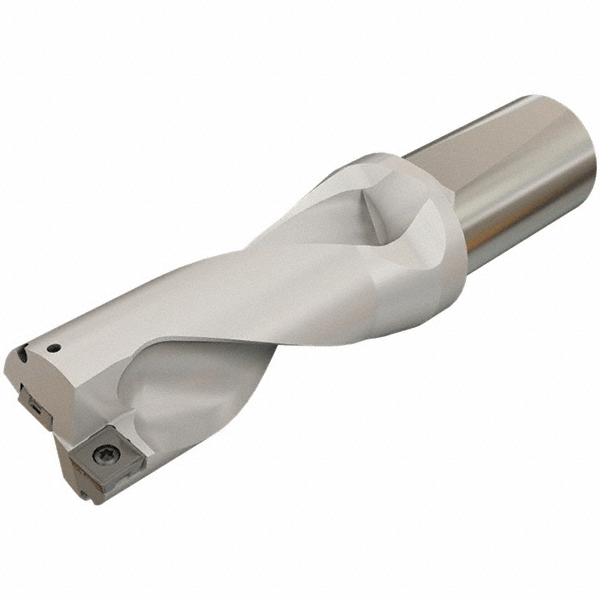

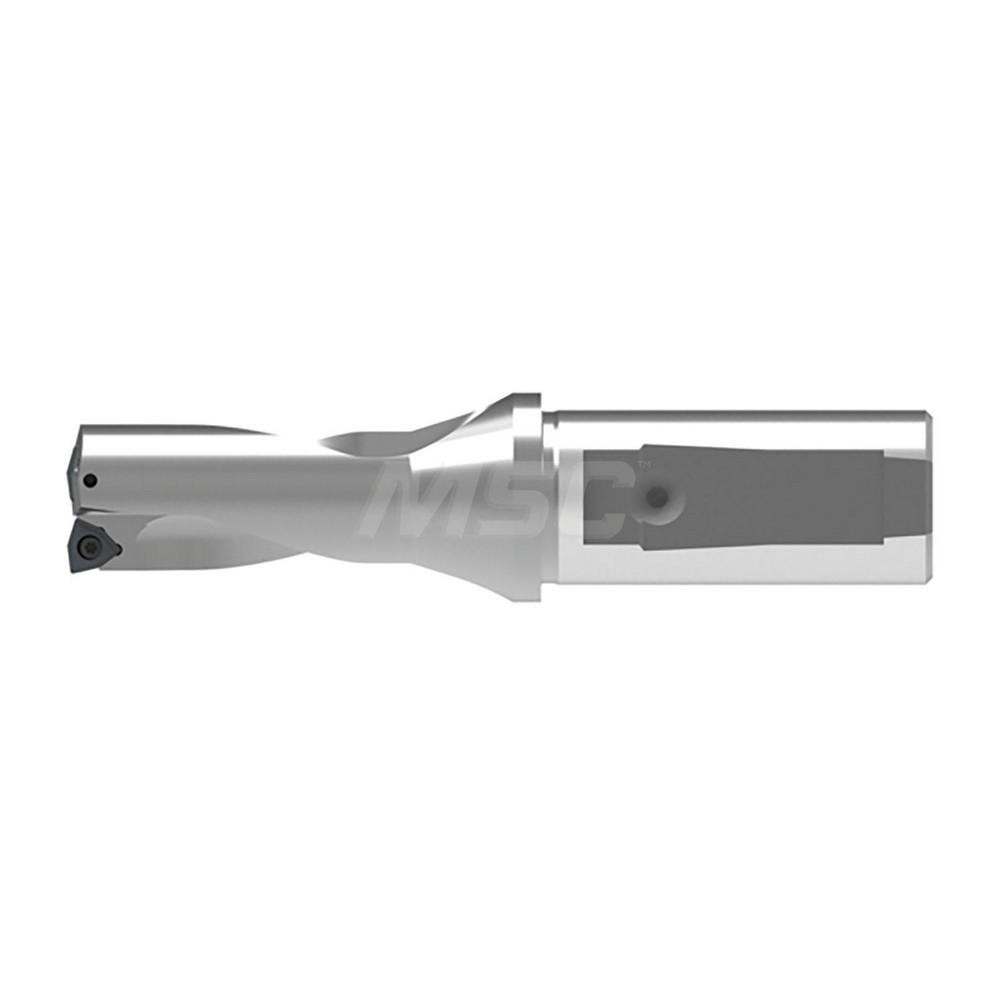

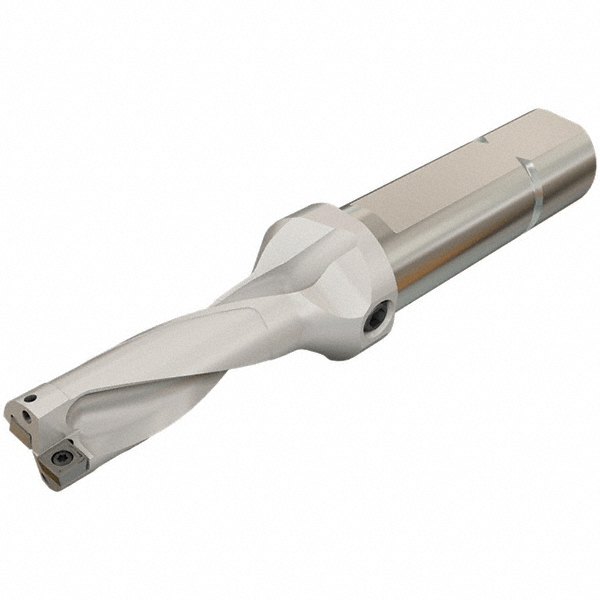

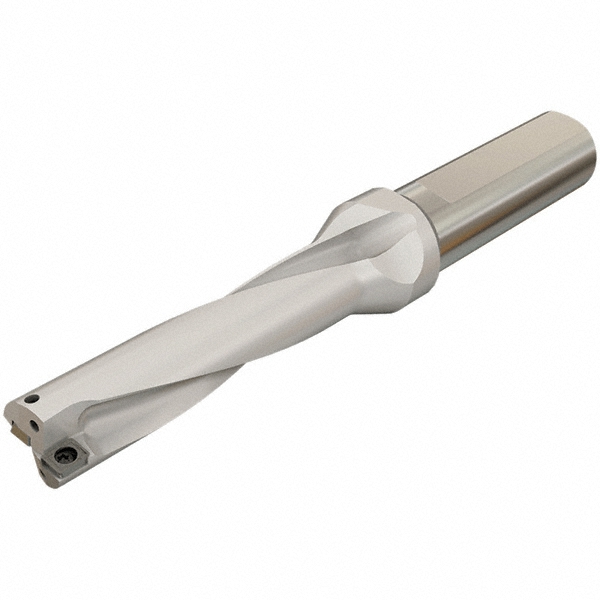

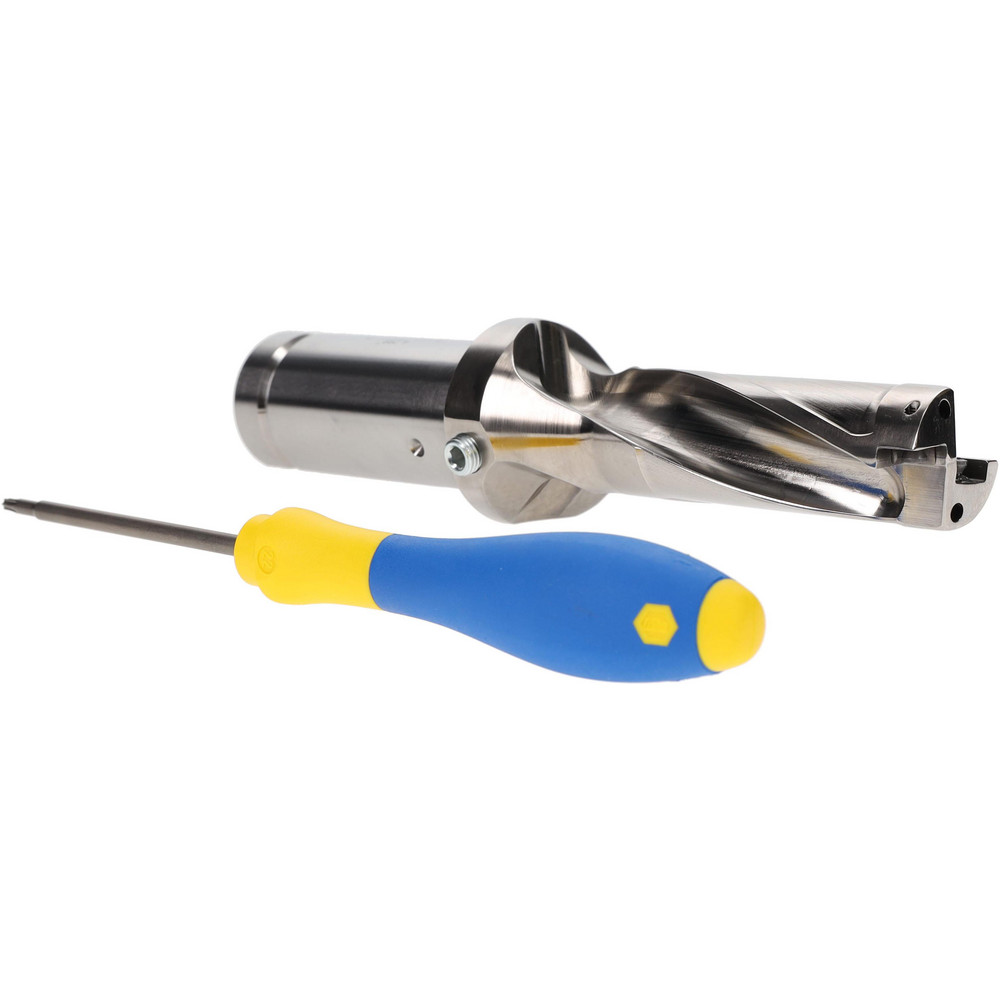

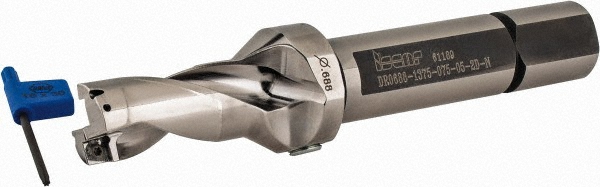

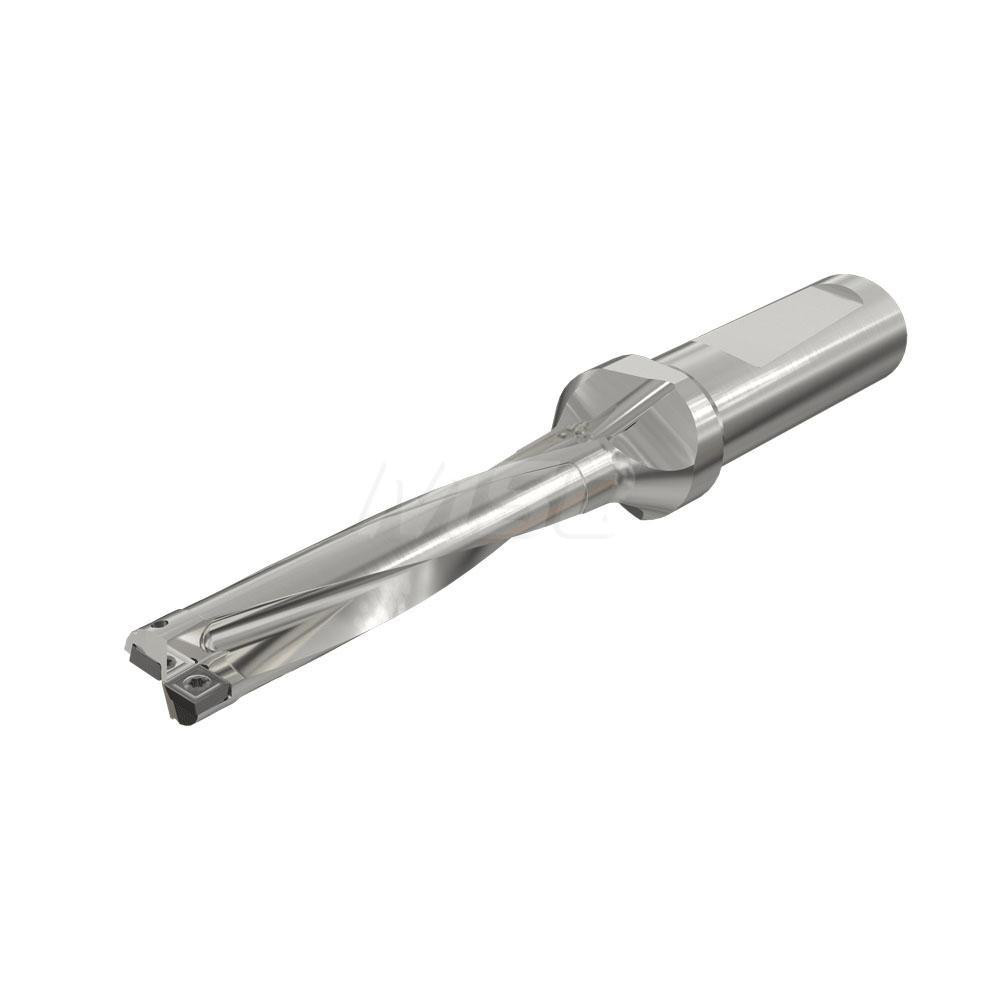

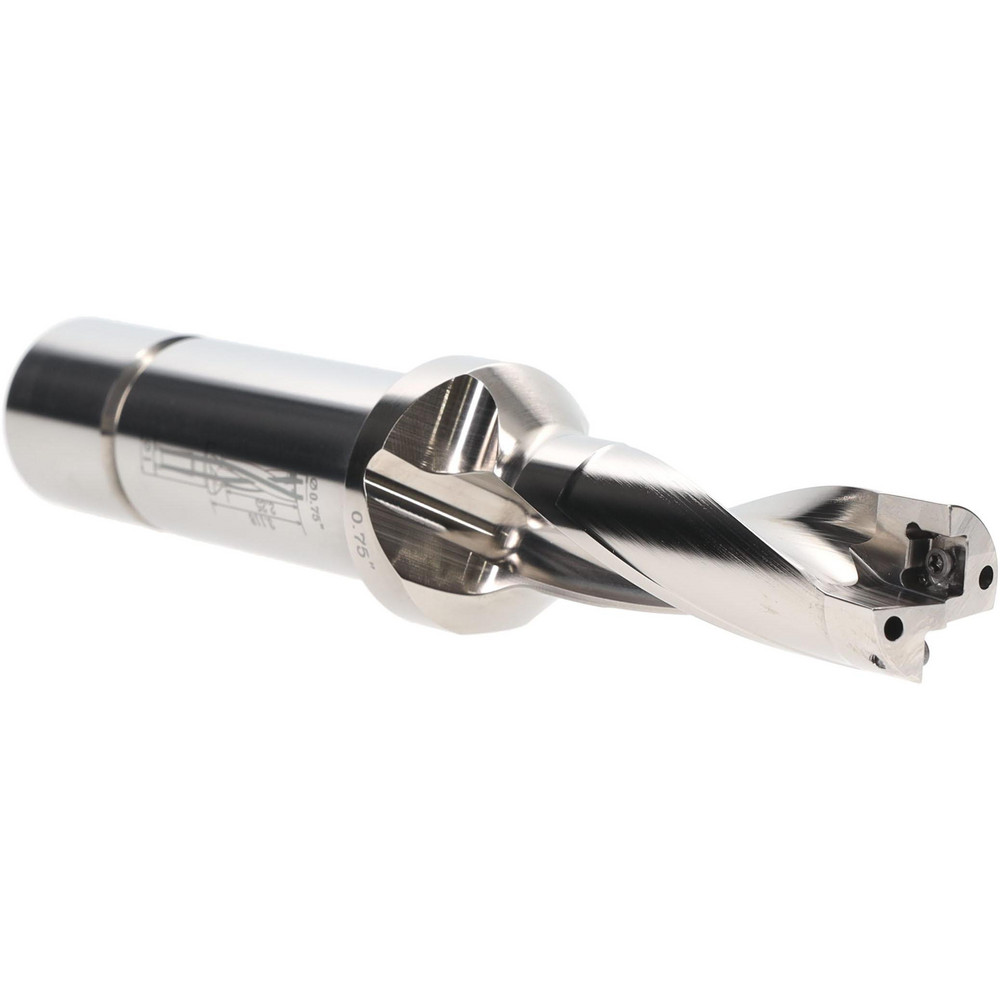

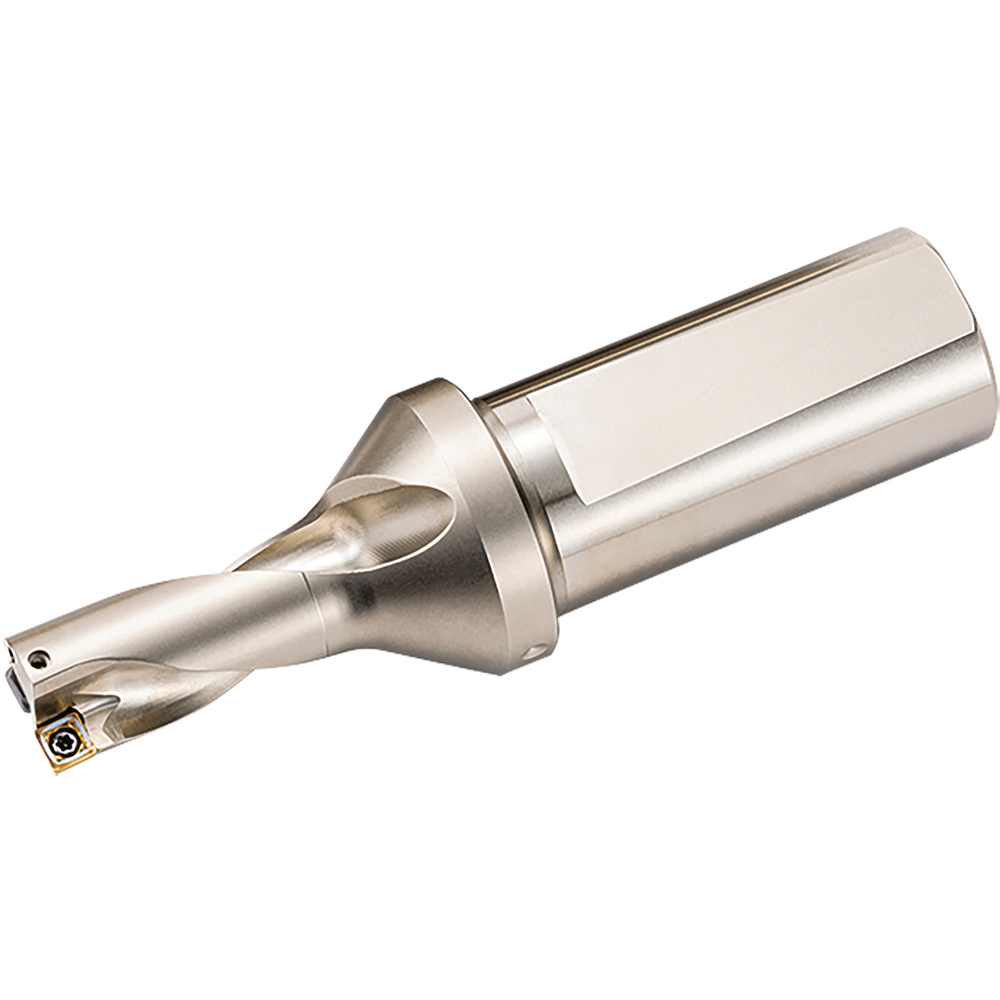

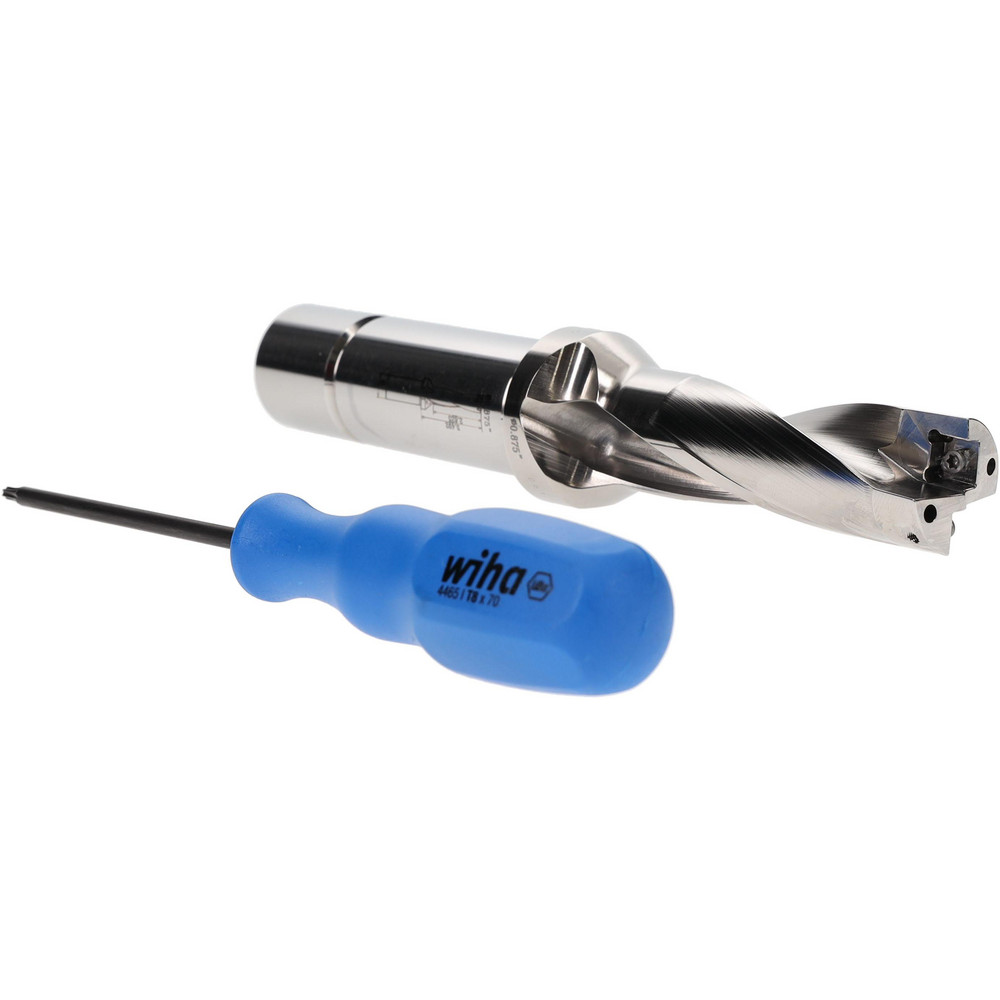

Weldon Flat & Flange Shank, Uses SOMX 070305 Inserts, Series DR-2D-N
| Compatible Drill Style | DR |
|---|---|
| Maximum Drill Diameter (mm) | 25.50 |
| Maximum Drill Depth (mm) | 46.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 25.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | SOMX |
| Compatible Insert Size Code | 070305 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | DR-2D-N |

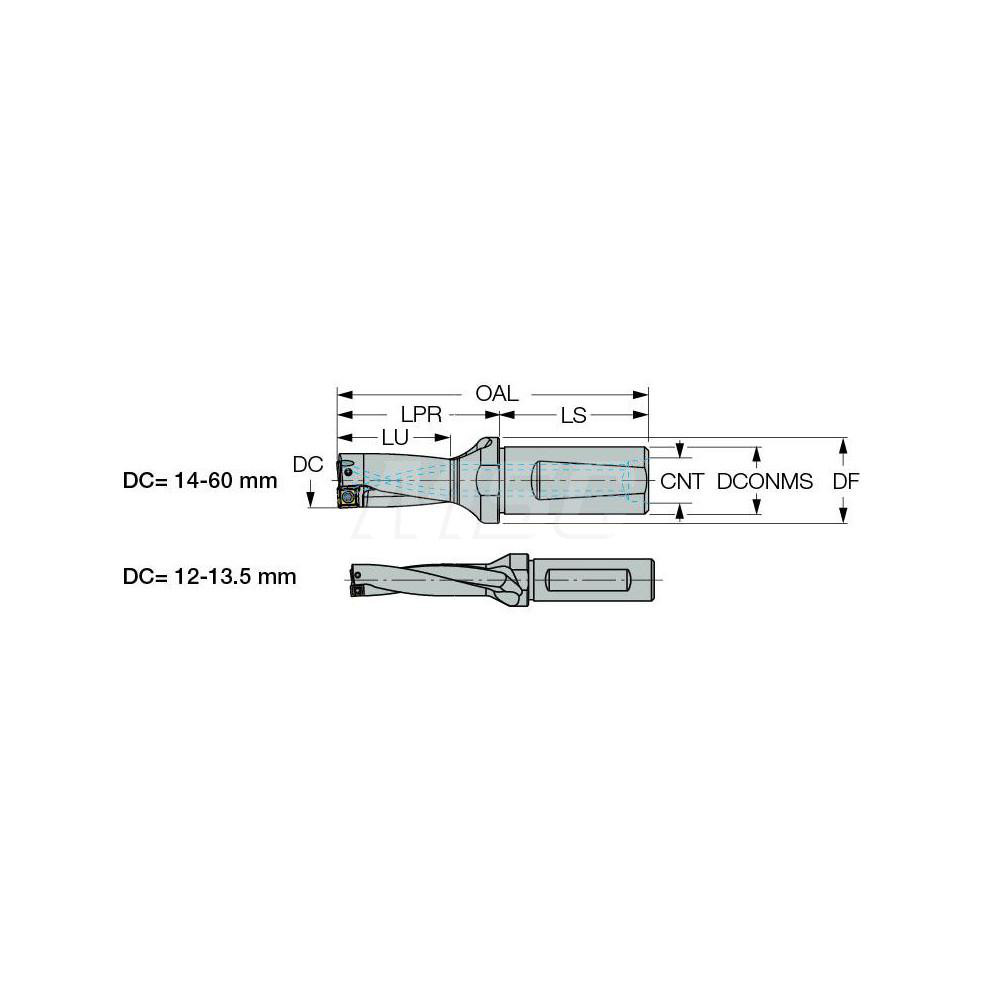

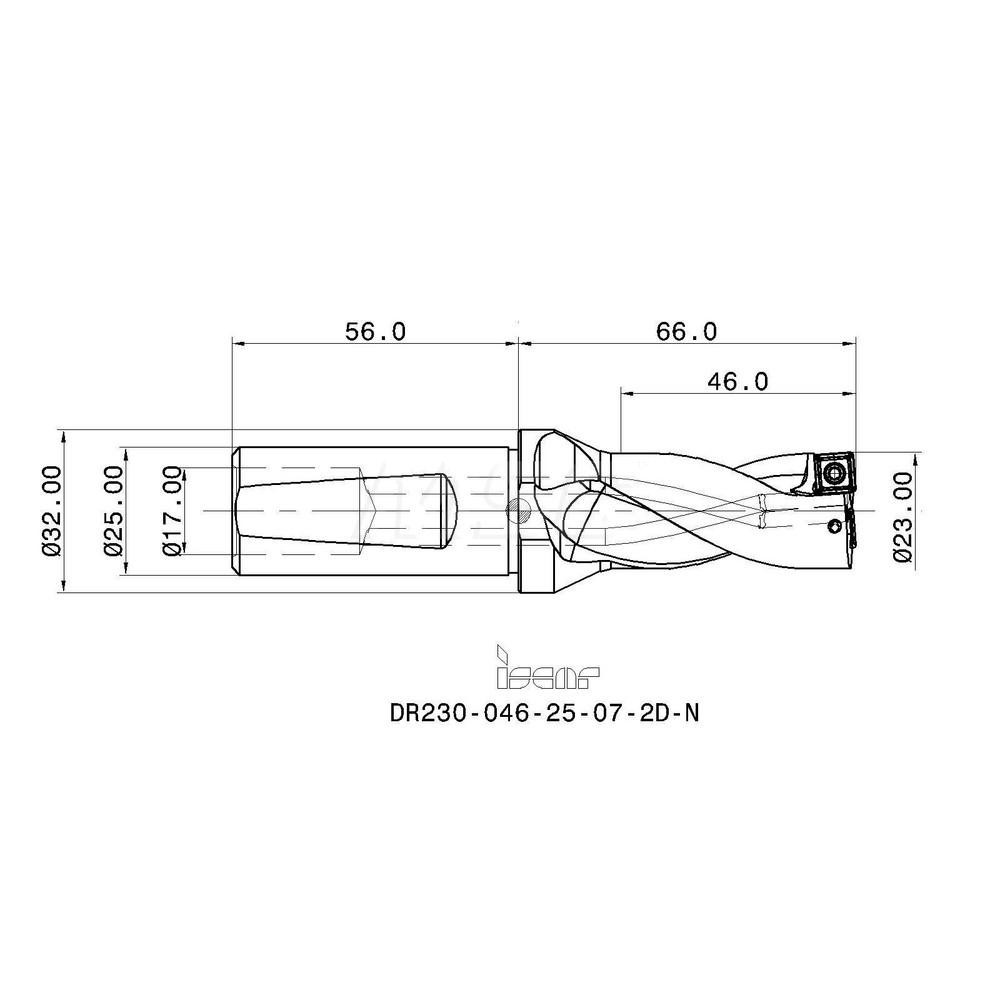

| Flute Length (mm) | 46.00 |
| Body Length (mm) | 66.00 |
| Shank Length (mm) | 56.00 |
| Neck Diameter (mm) | 32.00 |
| Modular Connection Size | 25 mm |
| Coolant Hole Thread Size | "3/8-19 G(BSP)" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3031 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SOMX070305 |
| Collar Diameter (mm) | 32.00 |
| Shank End Coolant Hole Thread Size (Inch) | G 3/8 |
| Insert Lock Screw | SR 14-560 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 78050176 |
