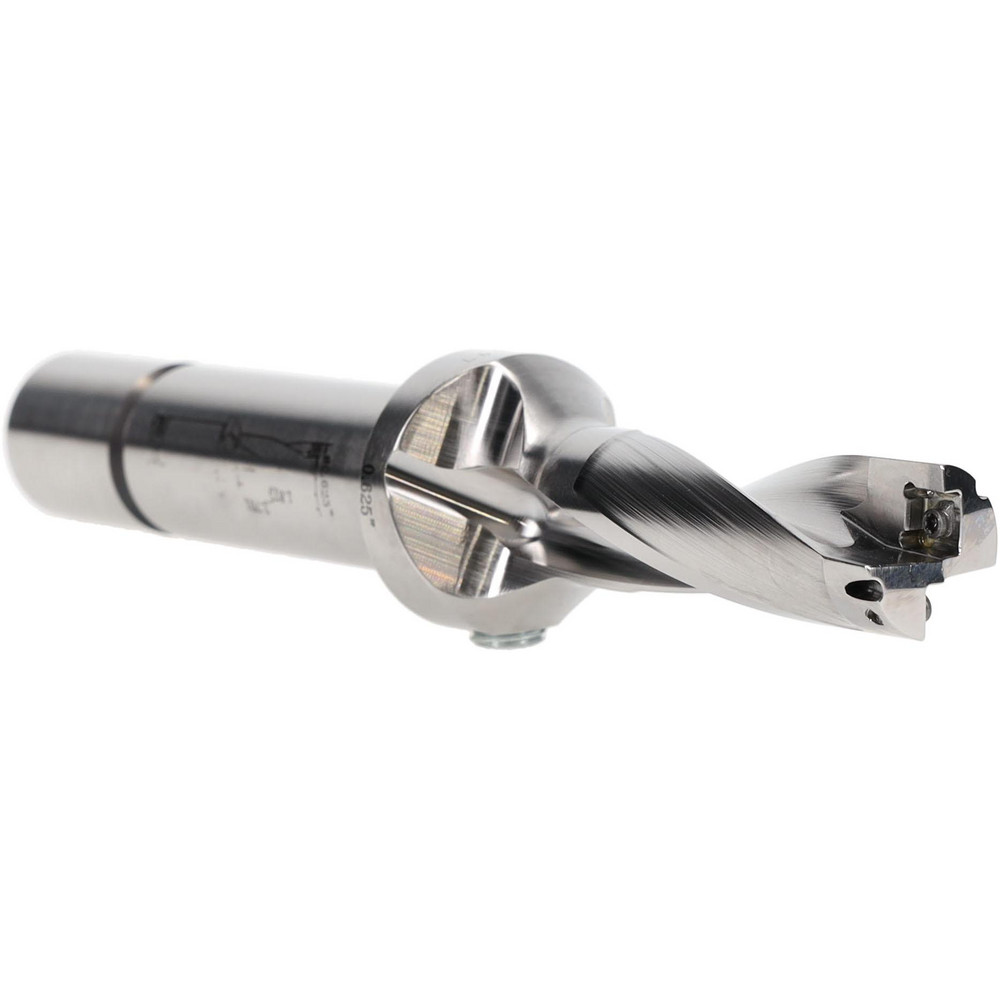

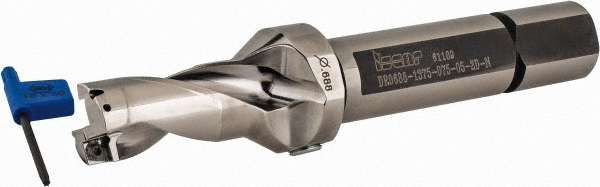

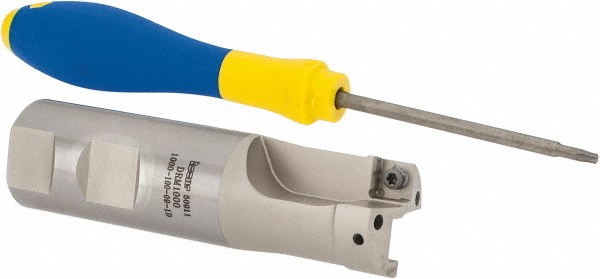

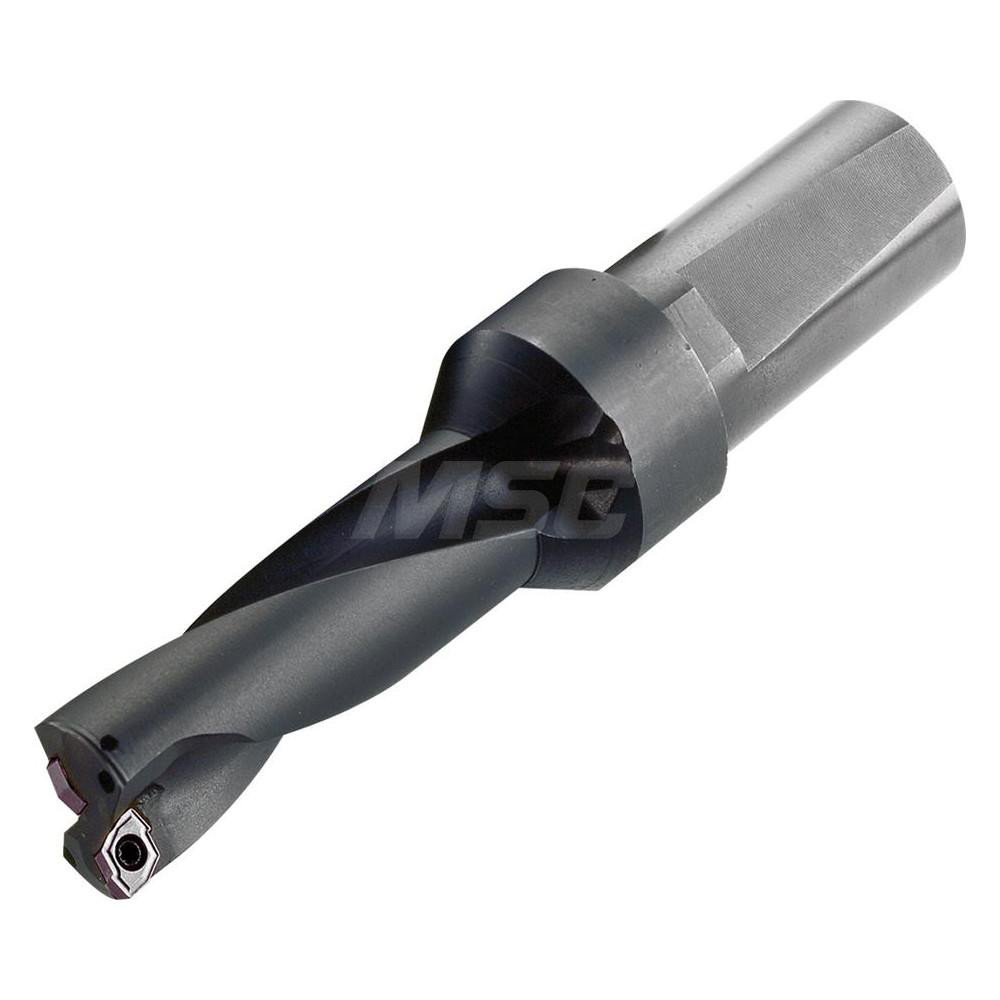

Weldon Flat Shank, Uses SOM. 060304 Inserts, Series DRM-1D
| Compatible Drill Style | DRM |
|---|---|
| Maximum Drill Diameter (Inch) | 3/4 |
| Maximum Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Depth (Inch) | 3/4 |
| Maximum Drill Depth (Decimal Inch) | 0.7500 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 0.0000 to 1.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOM. |
| Compatible Insert Size Code | 060304 |
| Drill Depth by Diameter Ratio | 1xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 3.1880 |
| Series | DRM-1D |
| Flute Length (Decimal Inch) | 0.7500 |
| Body Length (Decimal Inch) | 1.2200 |
| Shank Length (Decimal Inch) | 1.9700 |
| Modular Connection Size | 3/4 in |
| Tool Application | Drilling; Plunging; Spot Facing; Milling; Shouldering; Slotting |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2440 |
| UNSPSC Code | 23291503 |

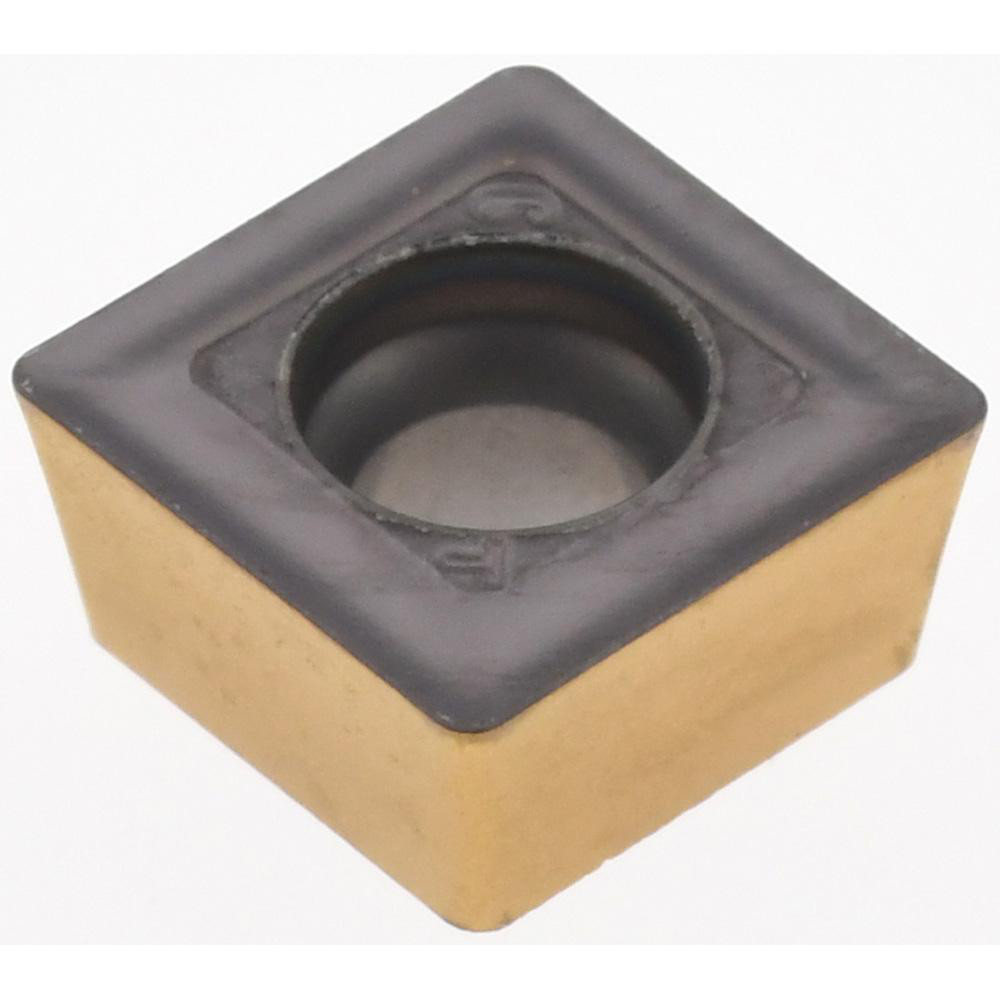

| Insert Compatibility | SOM.060304 |
| Insert Lock Screw | SR 34-508/L |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 45392578 |
