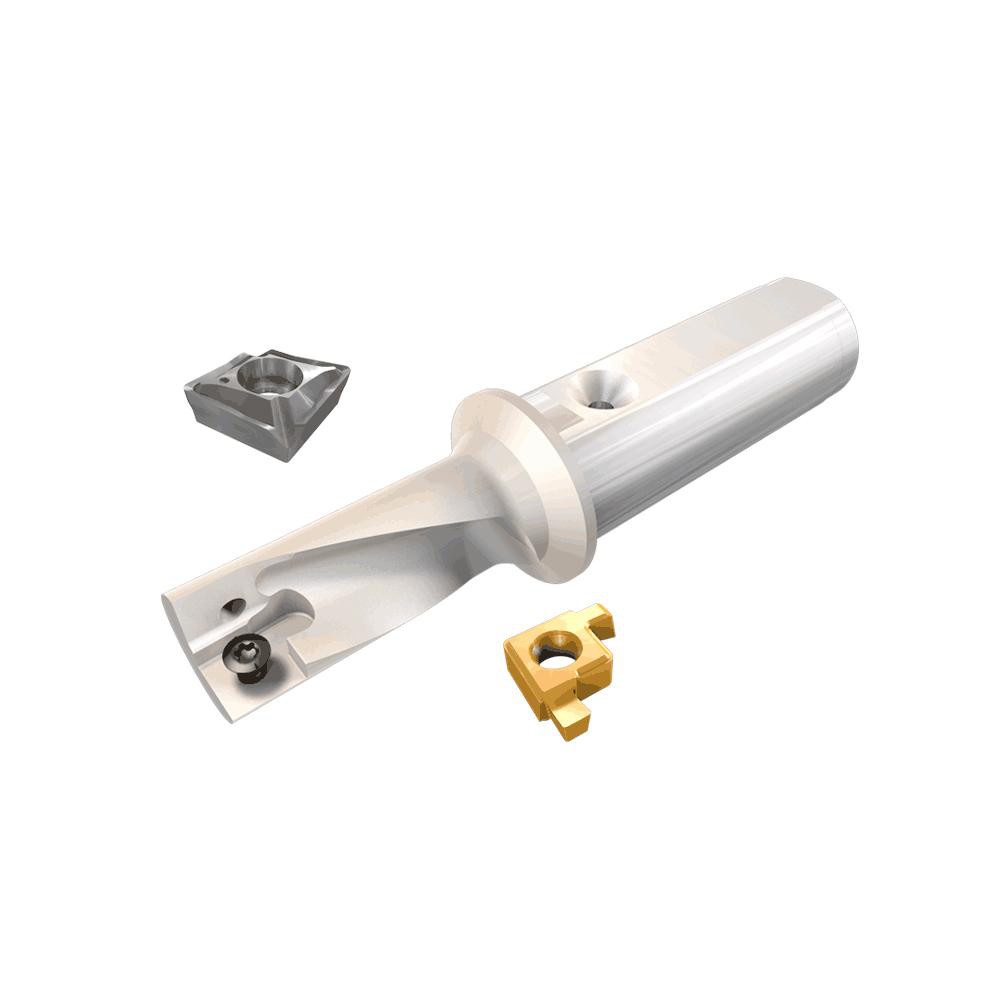

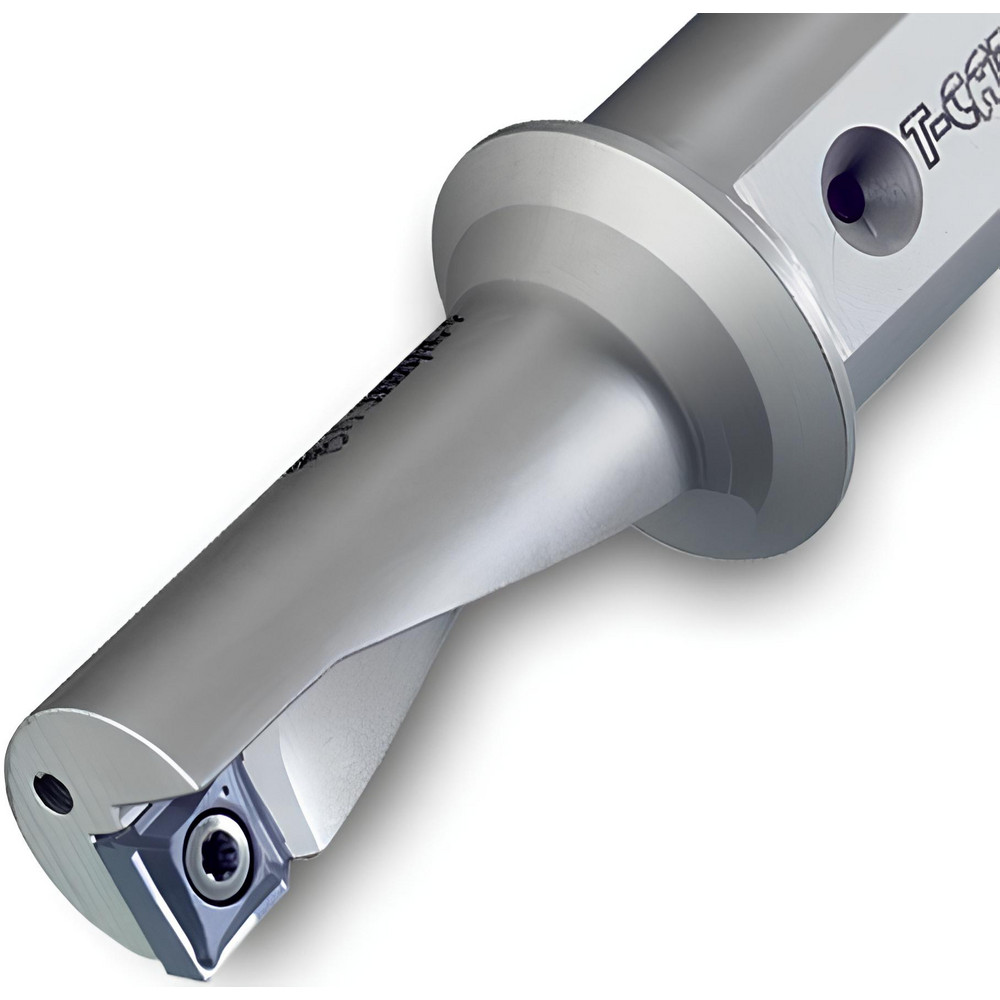

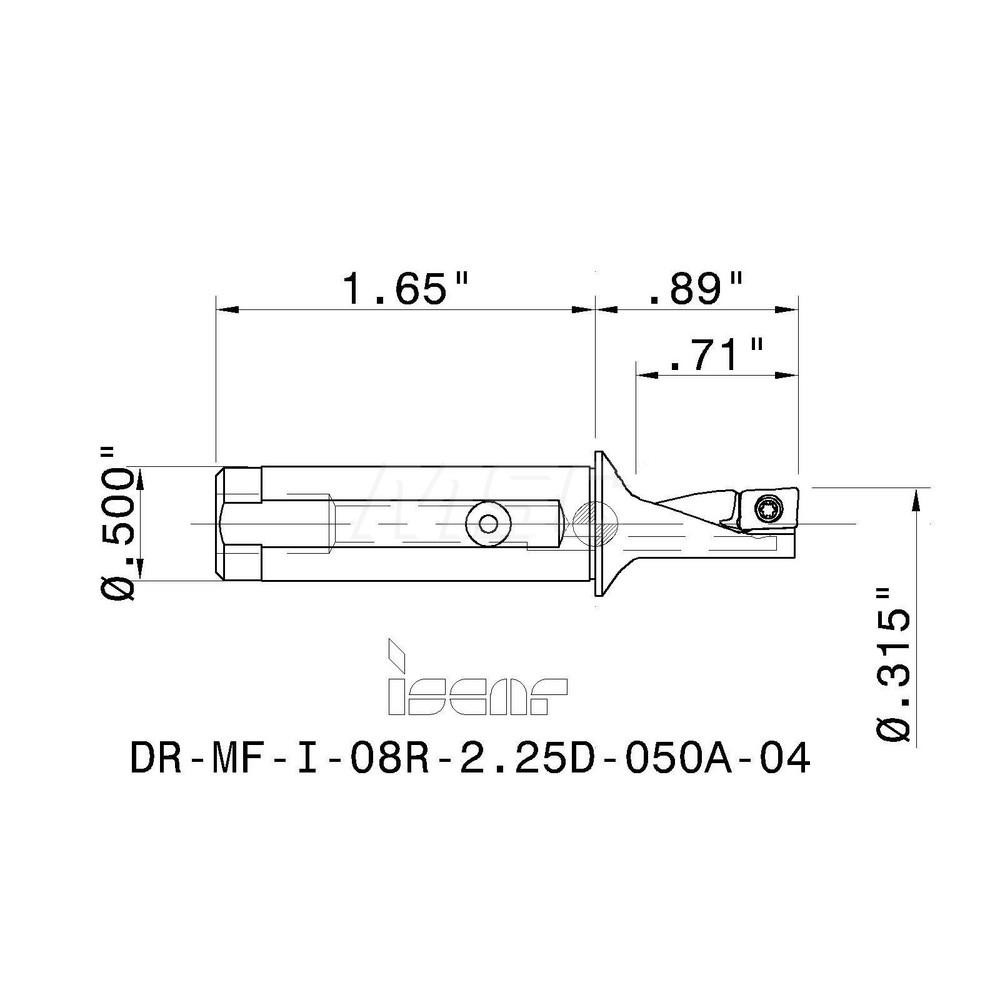

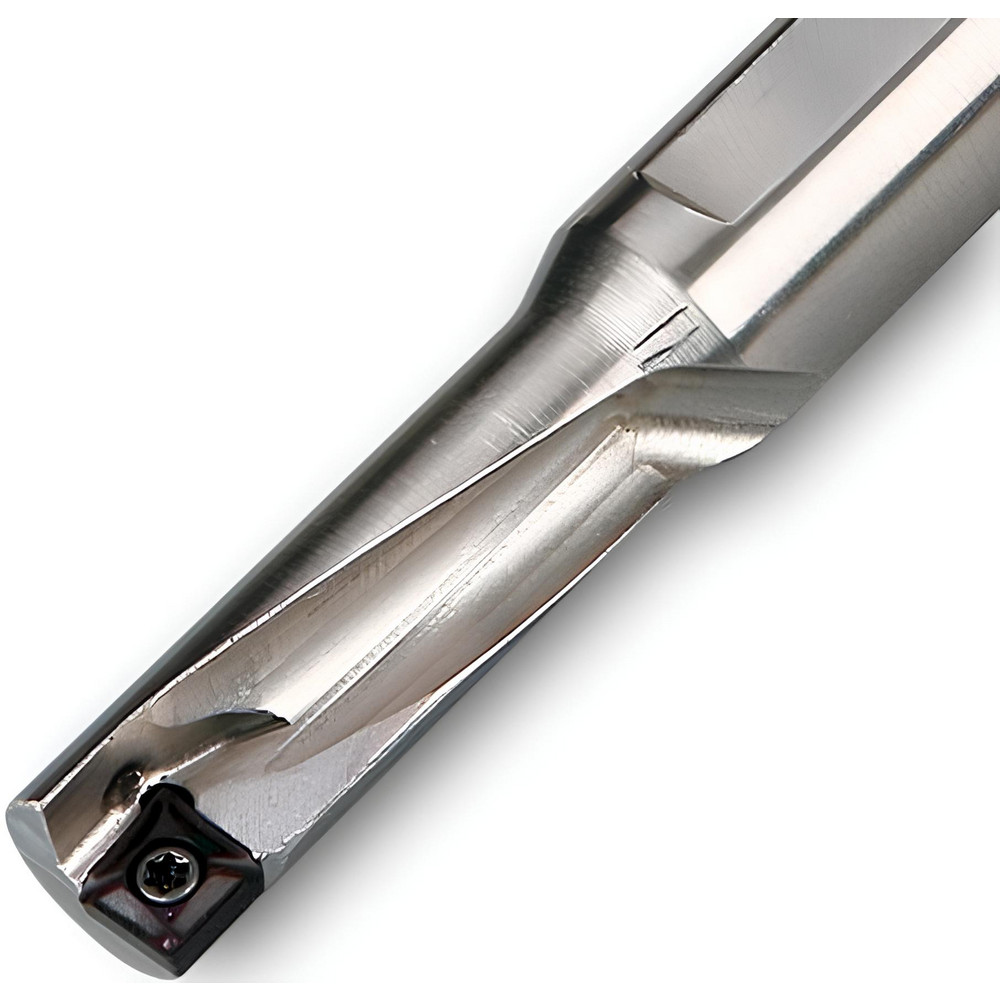

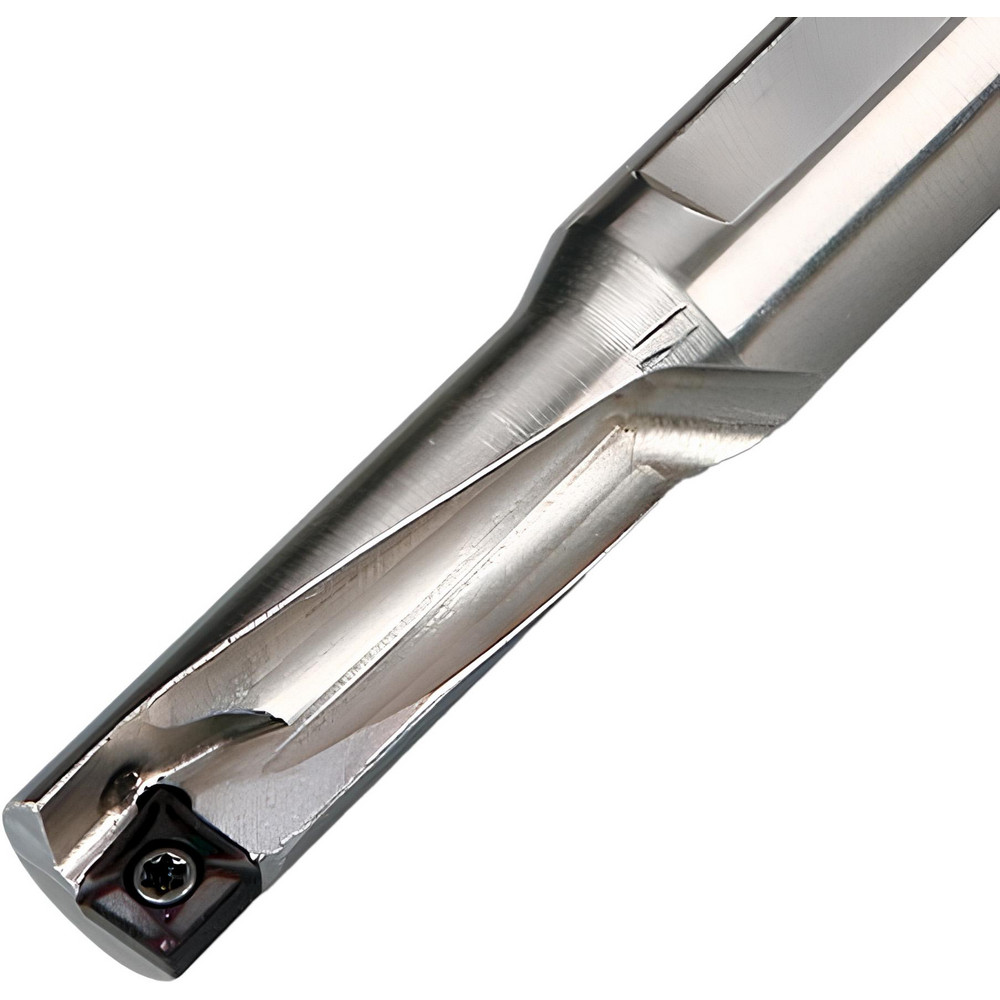

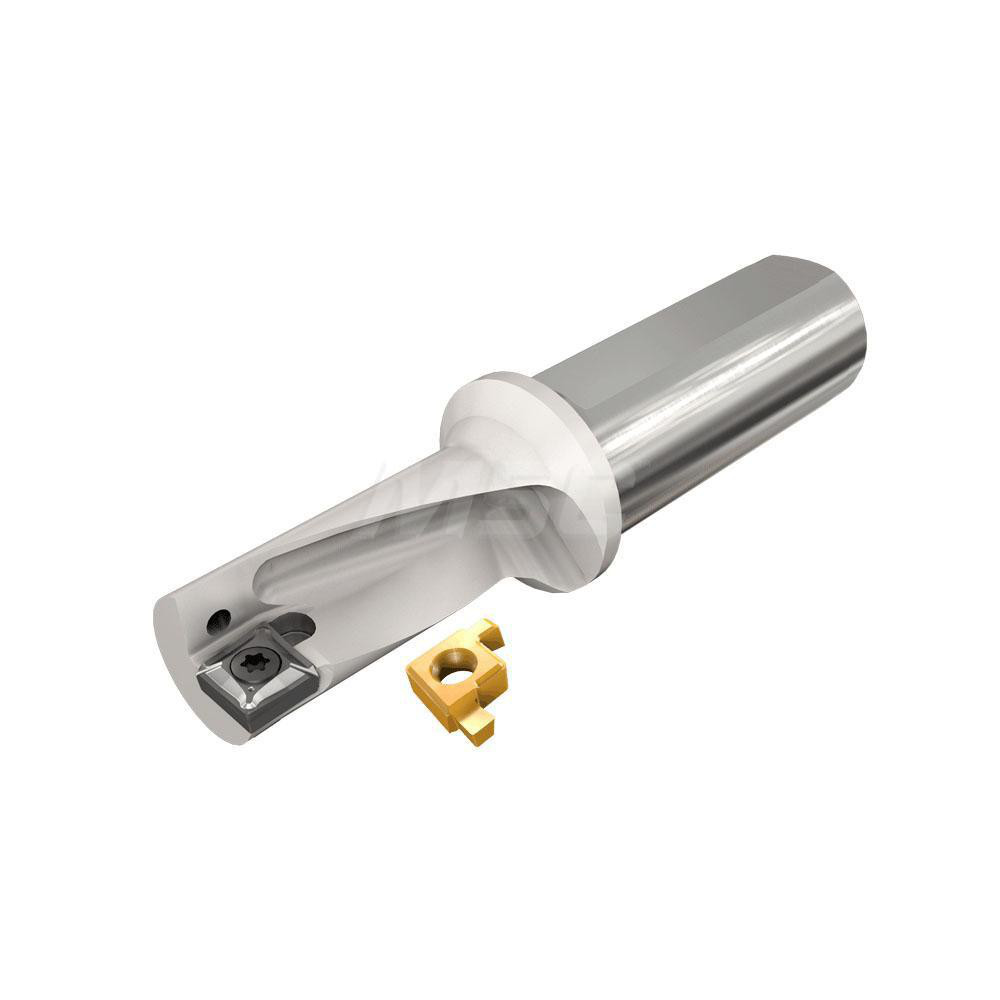

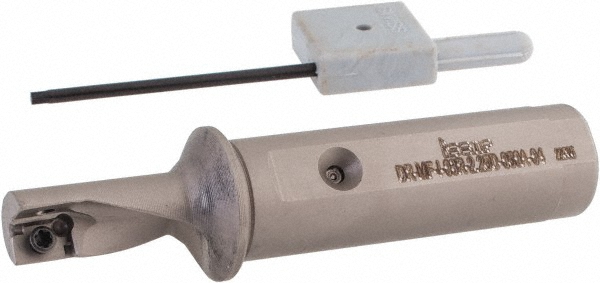

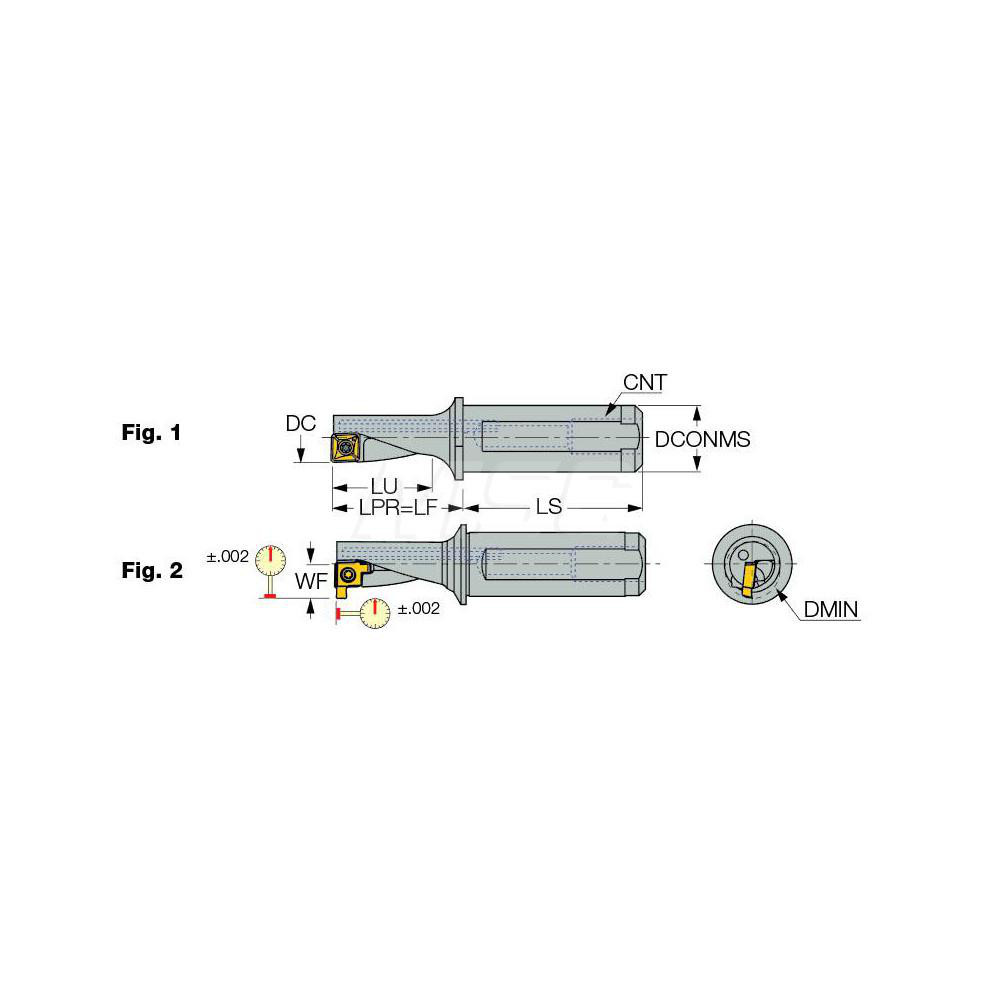

Weldon Flat & Flange Shank, Uses XCMT 040104 Inserts, Series DRG-MF
| Compatible Drill Style | DR-MF |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.3150 |
| Maximum Drill Depth (Decimal Inch) | 0.7100 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 0.0000 to 1.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 040104 |
| Drill Depth by Diameter Ratio | 2.25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 2.5400 |
| Series | DRG-MF |
| Flute Length (Decimal Inch) | 0.7100 |
| Body Length (Decimal Inch) | 0.8900 |
| Shank Length (Decimal Inch) | 1.6500 |
| Modular Connection Size | 1/2 in |
| Coolant Hole Thread Size | "1/16-28 G(BSP)" |
| Tool Application | Drilling; Facing; Turning; Internal Grooving; Boring |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.1730 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT040104 |
| Insert Lock Screw | SR 18034/HG-P |
| Coolant Through | Yes |
| Country of Origin | South Korea |
| undefined | undefined |
| MSC Number | MSC# 93981470 |
