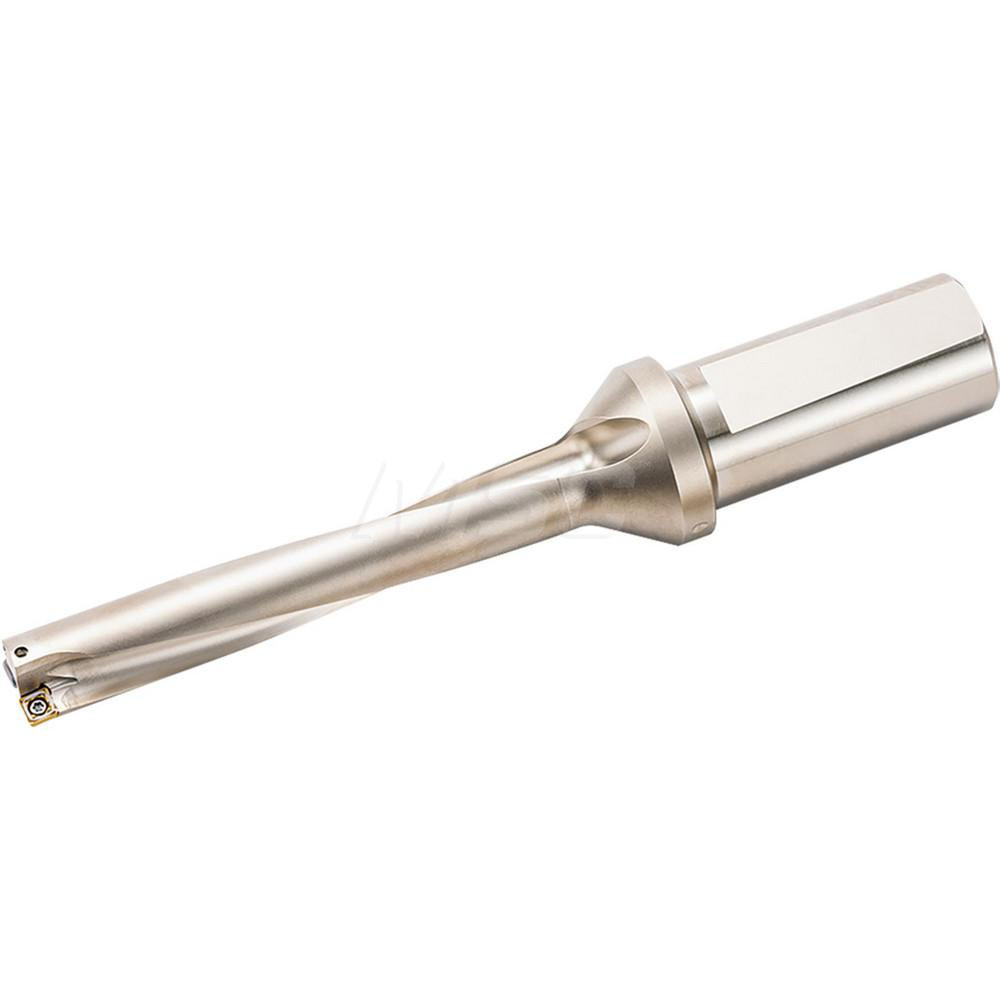

Weldon Flat & Flange Shank, Uses LOGT 060204 Inserts, Series GD-DH
| Compatible Drill Style | GD |
|---|---|
| Maximum Drill Diameter (Inch) | 1/2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Depth (Decimal Inch) | 12.8700 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Tool Material | Steel |
| Compatible Insert Style | LOGT |
| Compatible Insert Size Code | 060204 |
| Drill Depth by Diameter Ratio | 25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 16.0460 |
| Overall Length (Inch) | 14-1/64 |
| Series | GD-DH |
| Flute Length (Decimal Inch) | 12.8700 |
| Body Length (Decimal Inch) | 11.9860 |
| Shank Length (Decimal Inch) | 2.0300 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2760 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | LOGT060204 |
| Insert Lock Screw | SR 10503833L040 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 13625215 |
