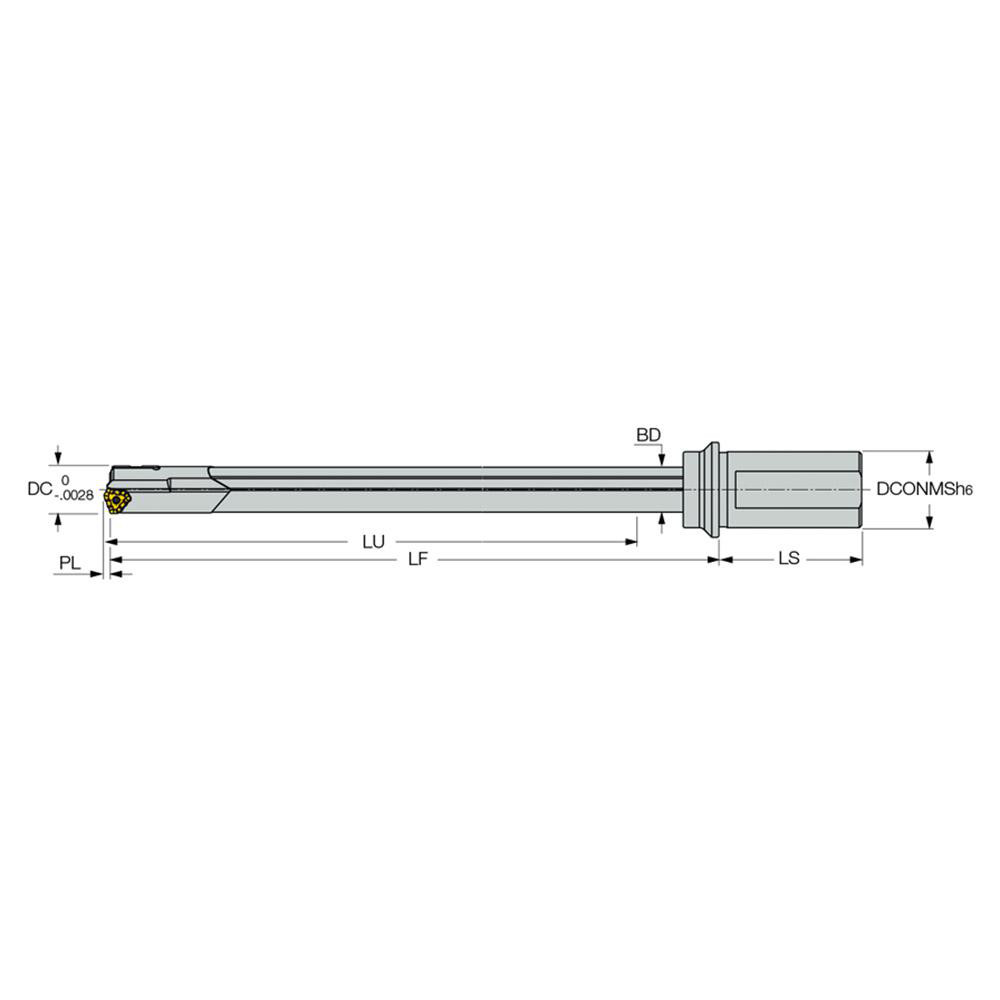

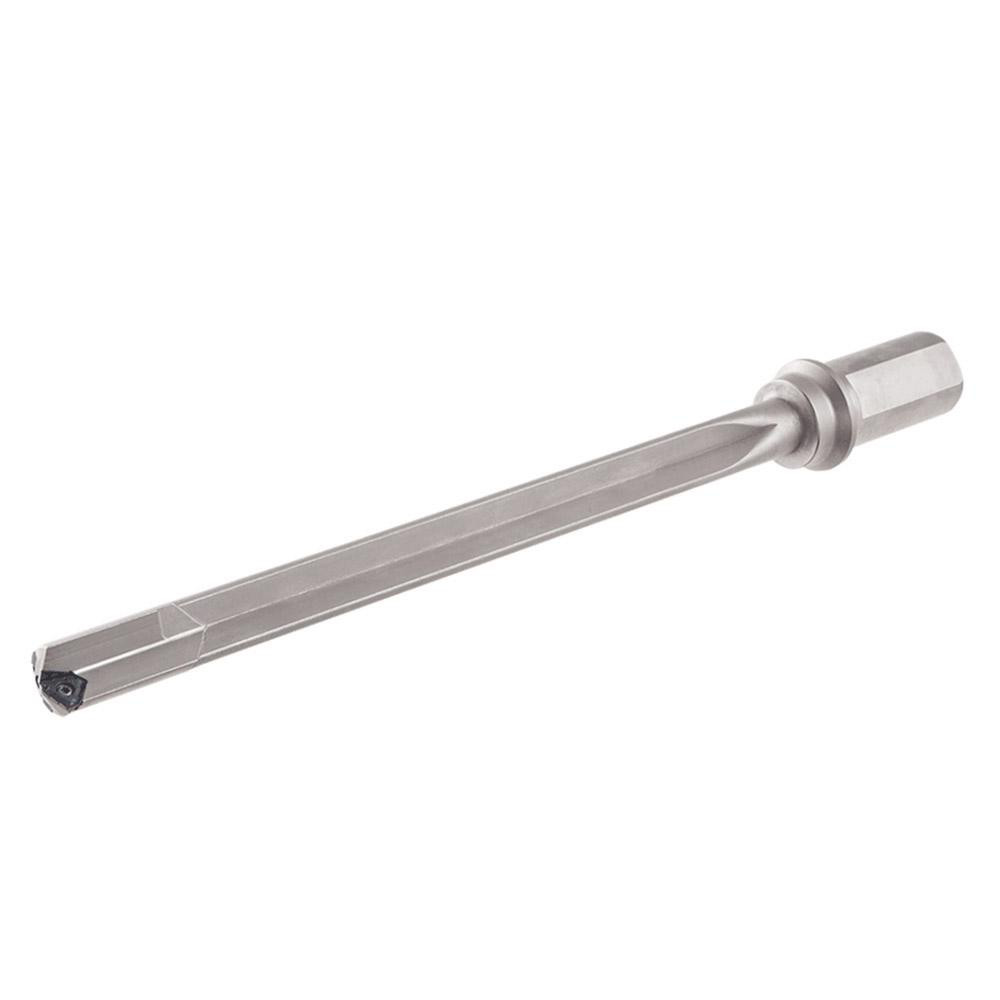

Weldon Flat & Flange Shank, Uses TOGT 100305 Inserts, Series GD-DH
| Compatible Drill Style | GD |
|---|---|
| Maximum Drill Diameter (Inch) | 27/32 |
| Maximum Drill Diameter (Decimal Inch) | 0.8440 |
| Maximum Drill Depth (Decimal Inch) | 12.9900 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Tool Material | Steel |
| Compatible Insert Style | TOGT |
| Compatible Insert Size Code | 100305 |
| Drill Depth by Diameter Ratio | 15xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 17.1600 |
| Series | GD-DH |
| Flute Length (Decimal Inch) | 12.9900 |
| Body Length (Decimal Inch) | 14.8000 |
| Shank Length (Decimal Inch) | 2.3600 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3634 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | TOGT100305 |
| Insert Lock Screw | SR 34-506 M3X0.5 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 13625231 |
