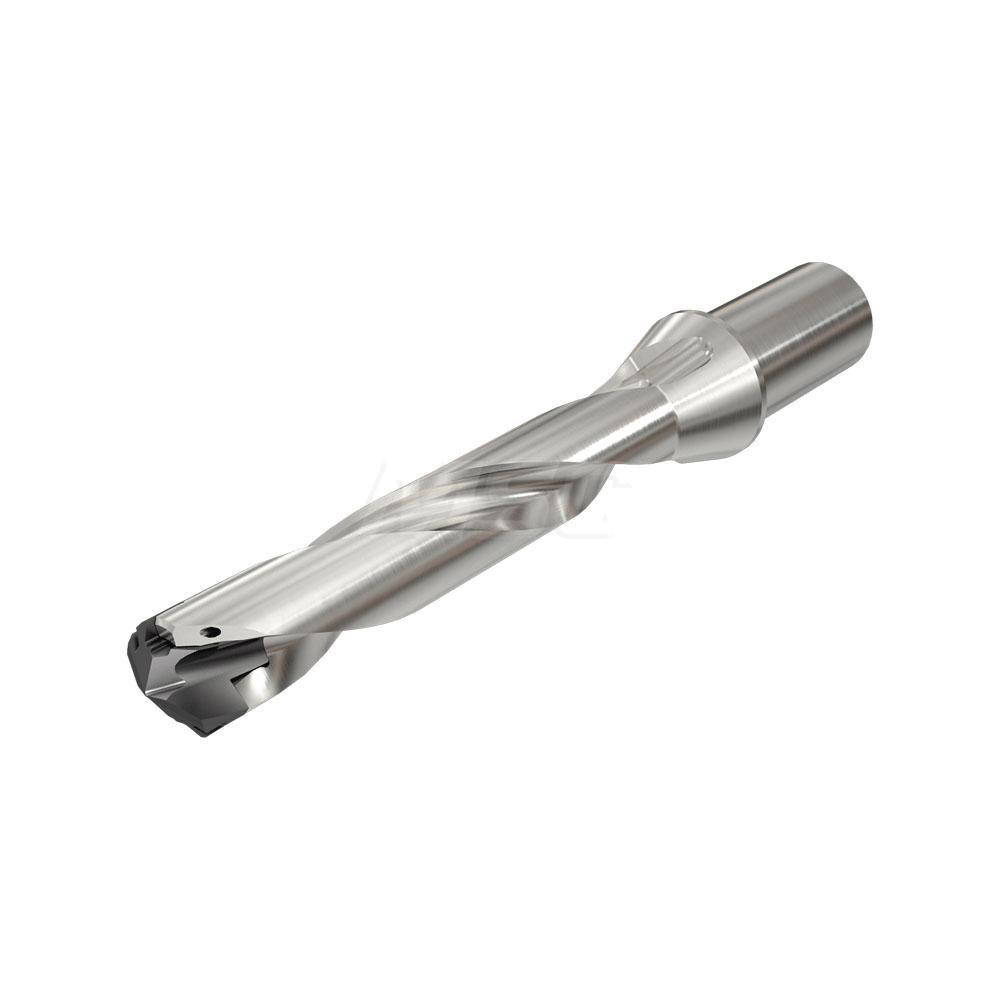

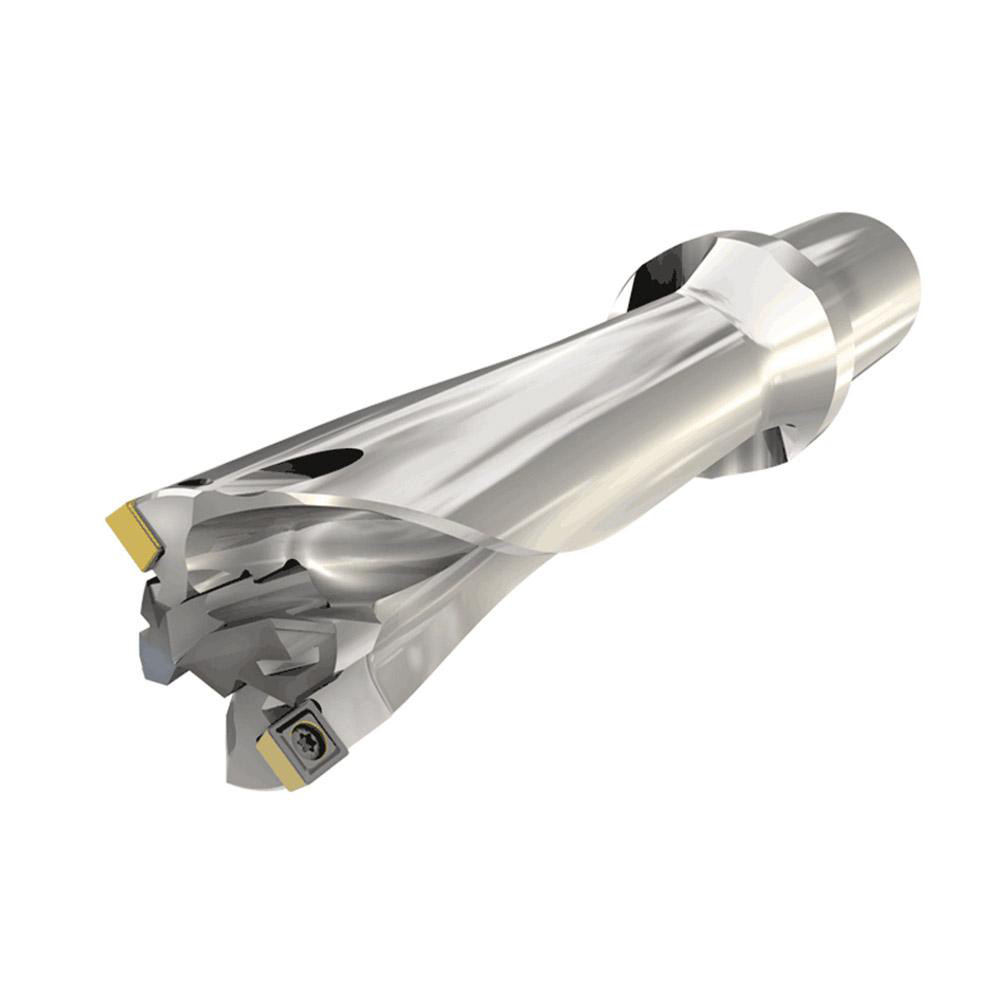

Weldon Flat & Flange Shank, Uses SOGT & IC. 100408 & 0965 Inserts, Series MNC-3D
| Compatible Drill Style | MNC |
|---|---|
| Maximum Drill Diameter (Inch) | 1-5/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.6250 |
| Maximum Drill Depth (Decimal Inch) | 5.0650 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | IC.; SOGT |
| Compatible Insert Size Code | 100408; 0965 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 0-Without Coolant |

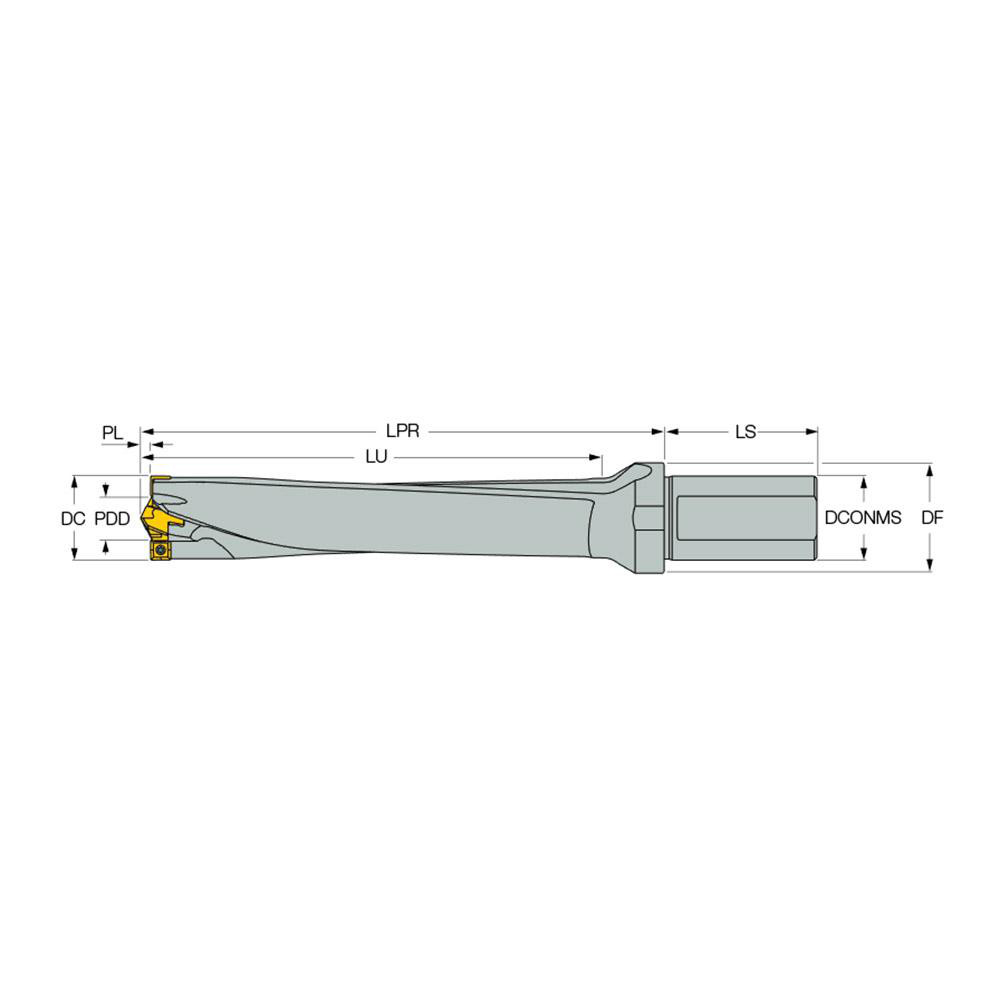

| Overall Length (Decimal Inch) | 9.4400 |
| Series | MNC-3D |
| Flute Length (Decimal Inch) | 5.0650 |
| Body Length (Decimal Inch) | 6.7700 |
| Shank Length (Decimal Inch) | 2.6700 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3860; 0.9650 |
| UNSPSC Code | 23291503 |

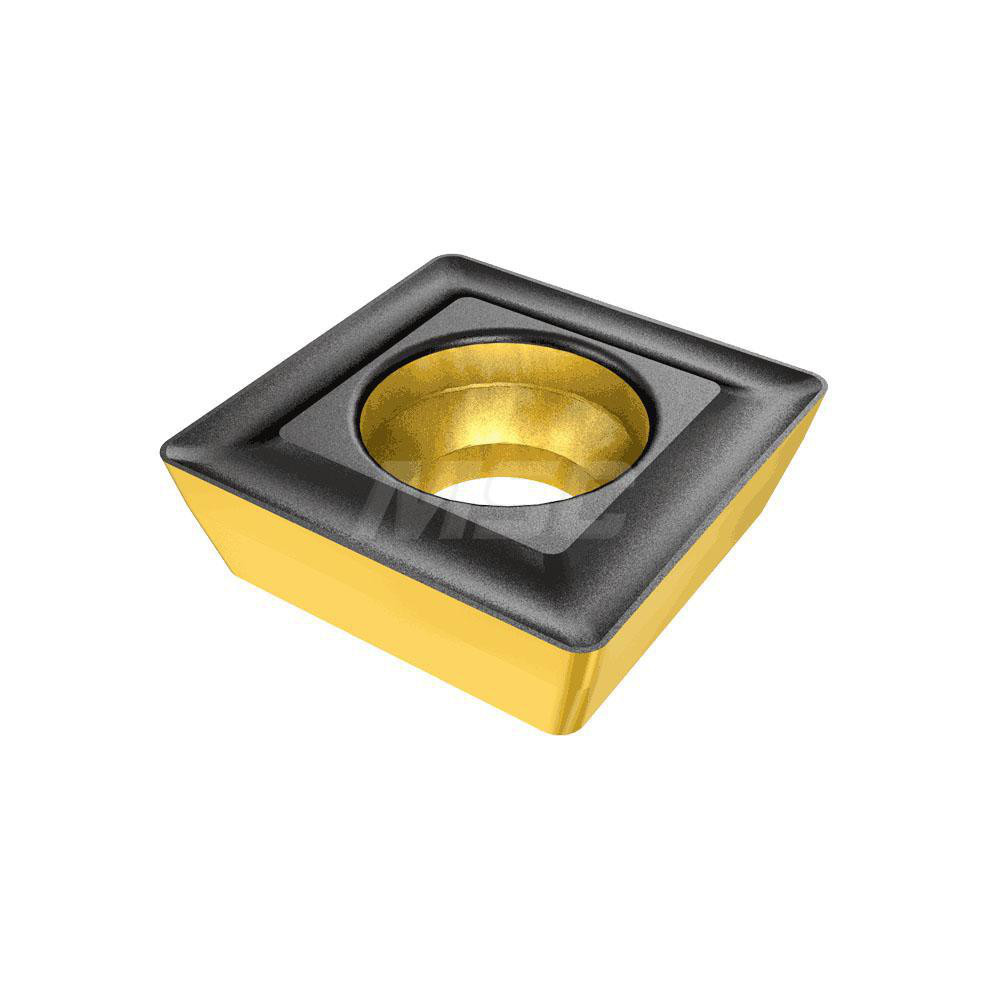

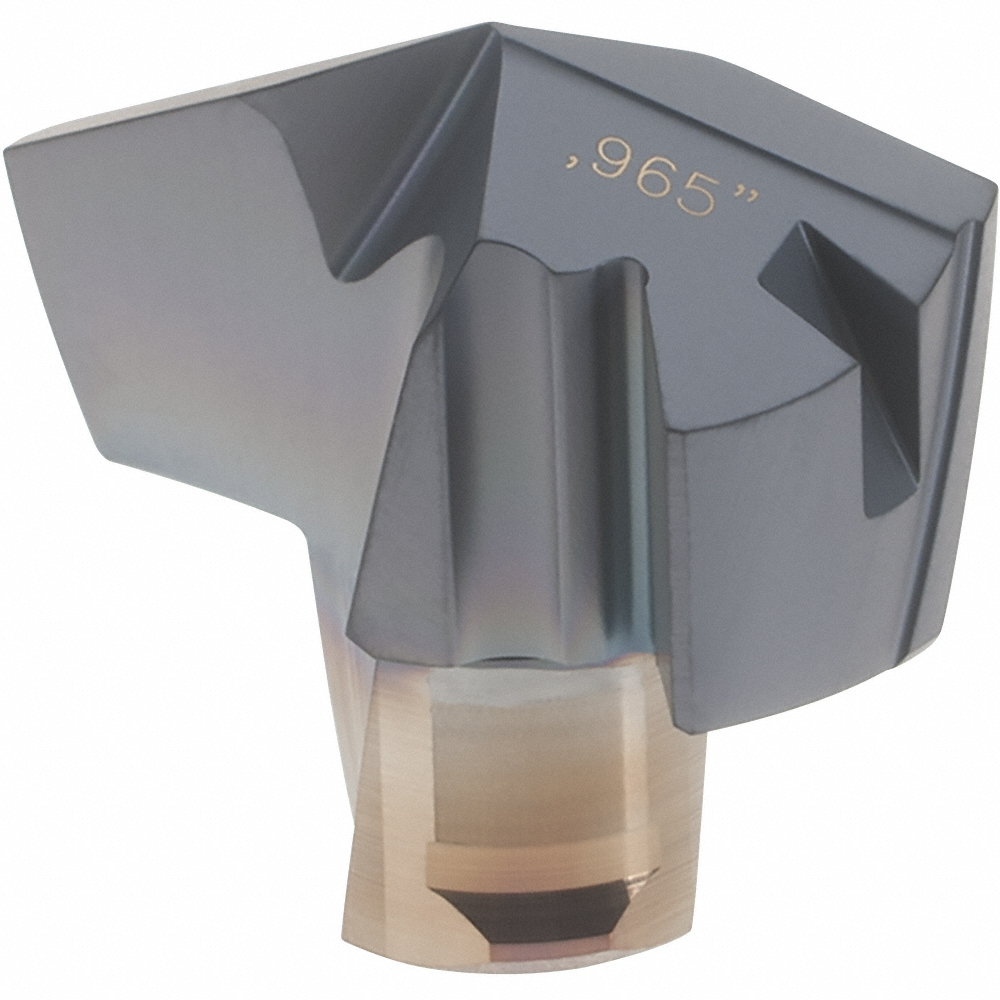

| Insert Compatibility | SOGT100408; ICP0965 |
| Collar Diameter (Decimal Inch) | 1.9680 |

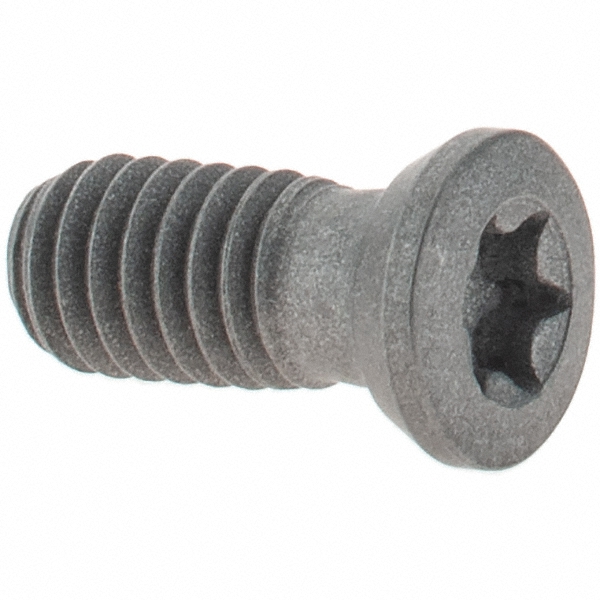

| Insert Lock Screw | SR 14-571 |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 13649322 |
