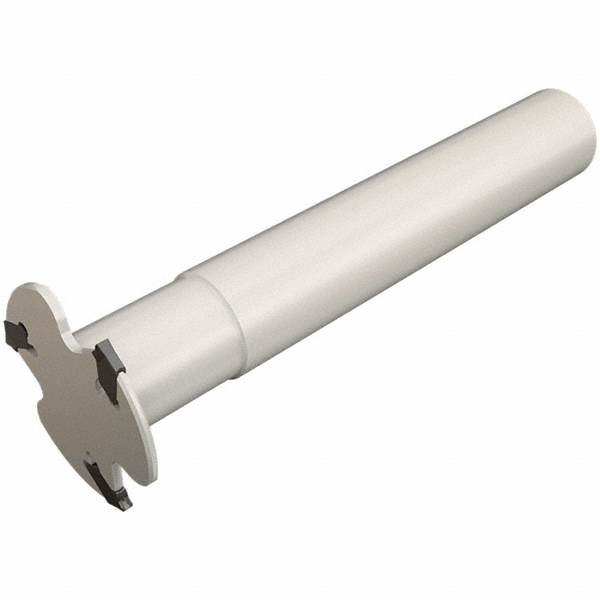

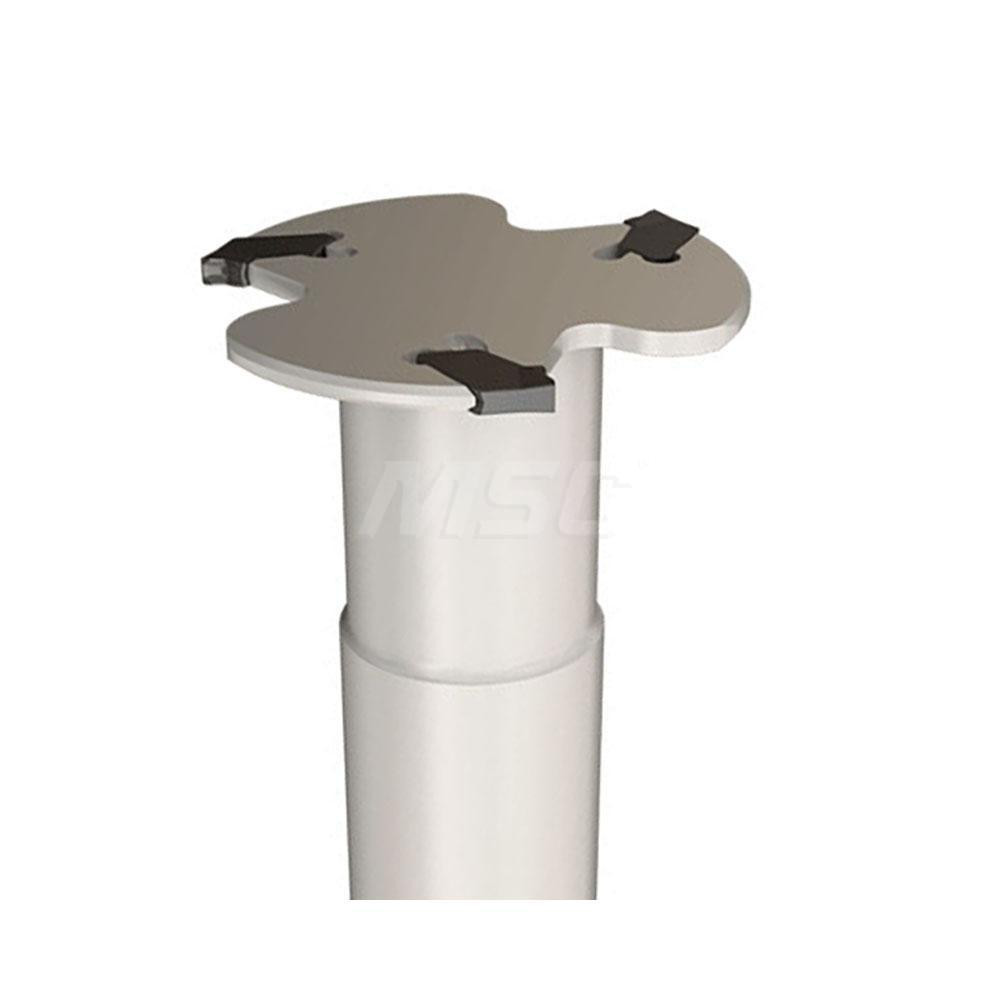

Screw, Uses 4 Inserts, GSFN Inserts, 4 Tooth, Straight Teeth
| Connection Type | Shank |
|---|---|
| Maximum Depth of Cut (mm) | 11.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 16.00 |
| Cutter Diameter (mm) | 40.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Compatible Insert Style | GSFN |
| Compatible Insert Size Code | 1.6 |
| Tooth Type | Straight |
| Series | SGSF-W |
| Toolholder Style | SGSF-W |
| Cutting Radius (Fractional Inch) | 1/32 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.0591 |
| Maximum Cutting Width (mm) | 1.79 |
| Minimum Cutting Diameter (mm) | 40.00 |
| UNSPSC Code | 23241629 |
| Weldon Flat | Yes |

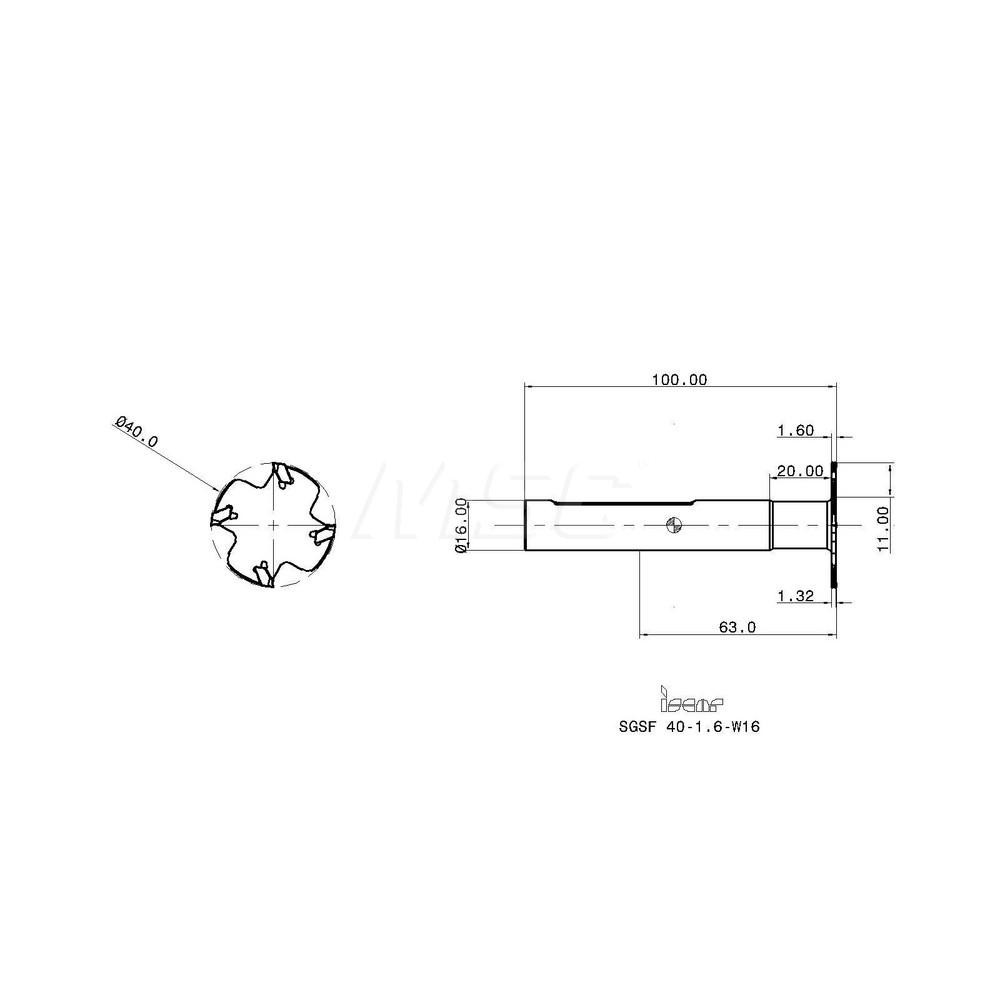

| Manufacturers Catalog Number | SGSF 40-1.6-W16 |
| Number Of Teeth | 4 |

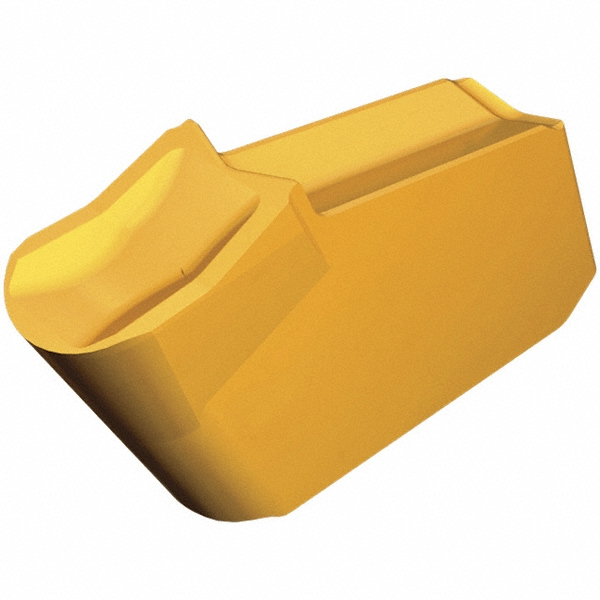

| Complete Insert Compatibility | GSFN 1.6 |
| Overall Height (Decimal Inch) | 100.00 |
| Country of Origin | Israel |
| MSC Number | MSC# 45387362 |
