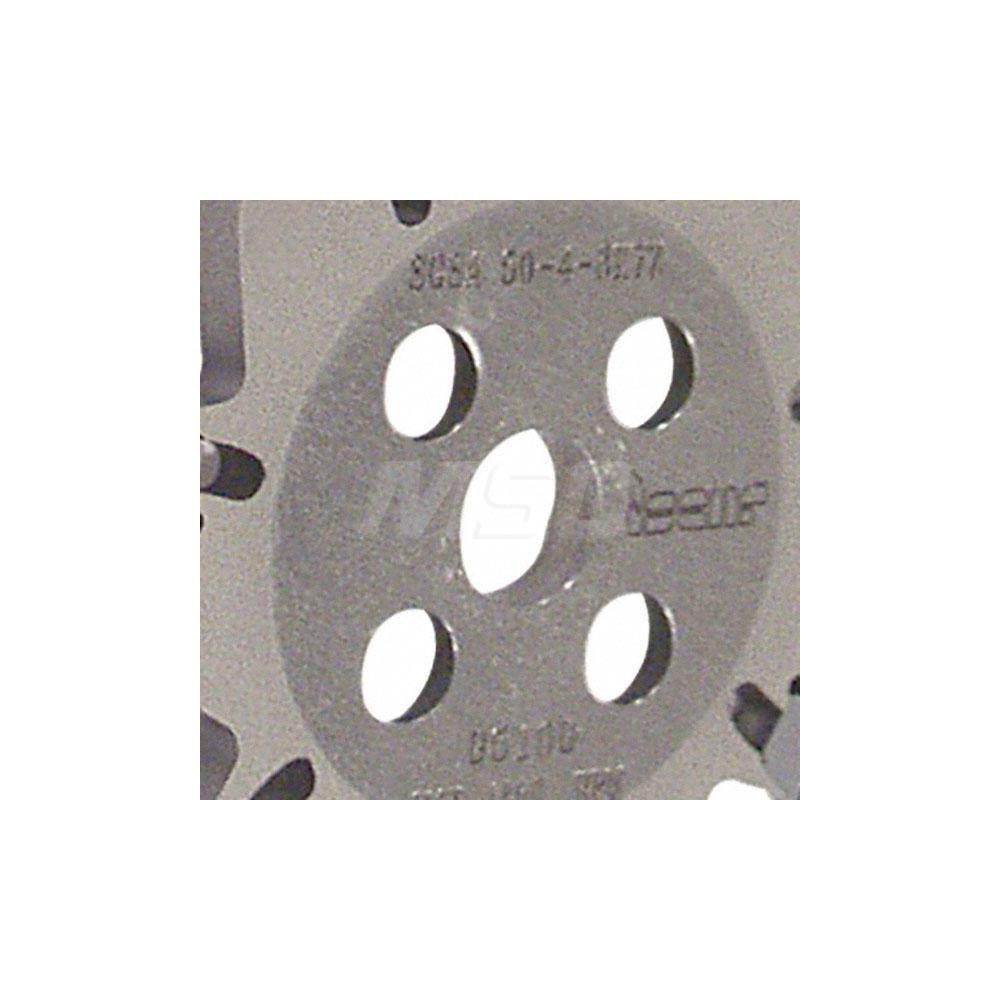

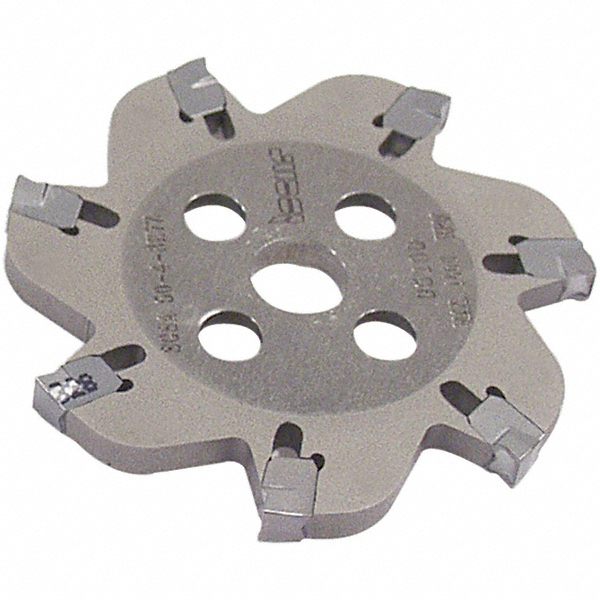

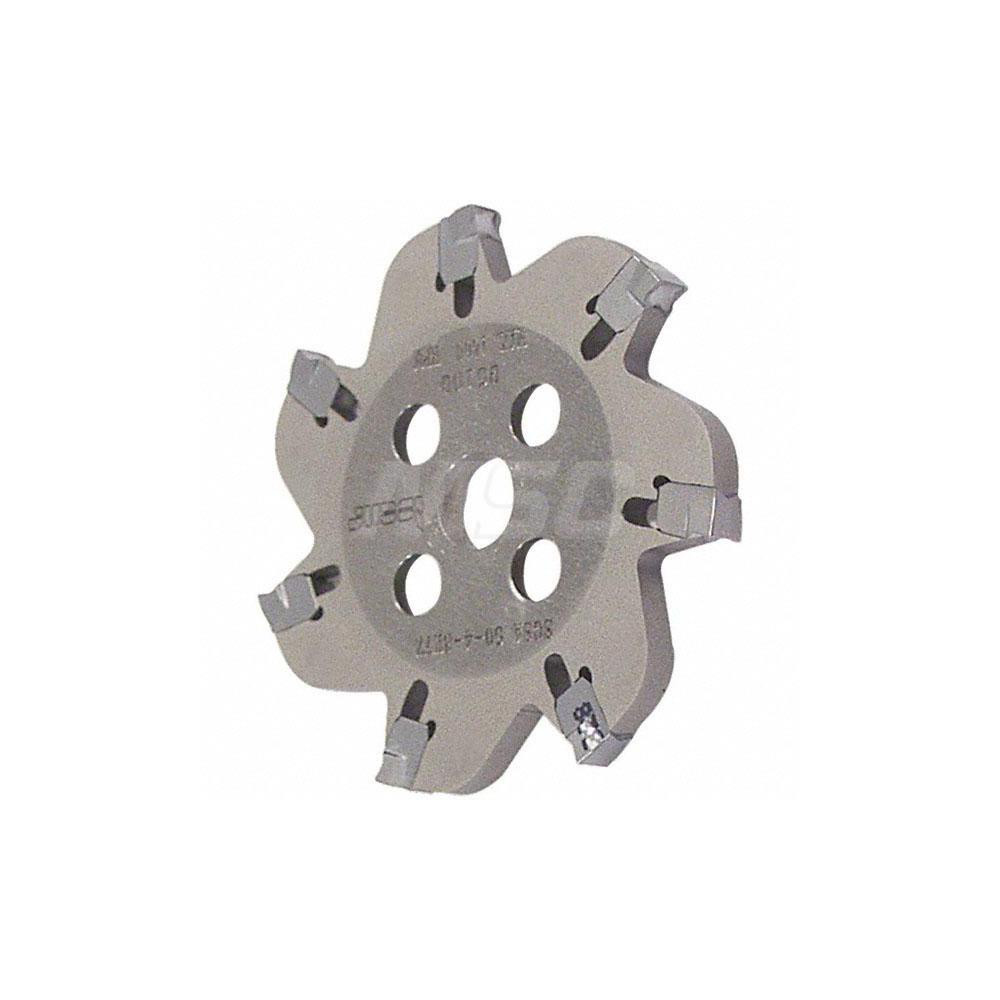

Self Clamping, Uses 12 Inserts, GSAN Inserts, 12 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.7800 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Cutter Diameter (Decimal Inch) | 3.9400 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Self Clamping |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | GSAN |
| Compatible Insert Size Code | 3 |
| Tooth Type | Straight |
| Series | SGSA |
| Toolholder Style | SGSA |
| Cutting Radius (Fractional Inch) | 1/64 |
| Maximum RPM | 795 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.1060 |
| Maximum Cutting Width (Decimal Inch) | 0.1380 |
| Minimum Cutting Diameter (mm) | 100.08 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.0940 |
| Manufacturers Catalog Number | SGSA 100-3-1.00K-12Z-FP |
| Number Of Teeth | 12 |
| Complete Insert Compatibility | GSAN 3 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 45387412 |
