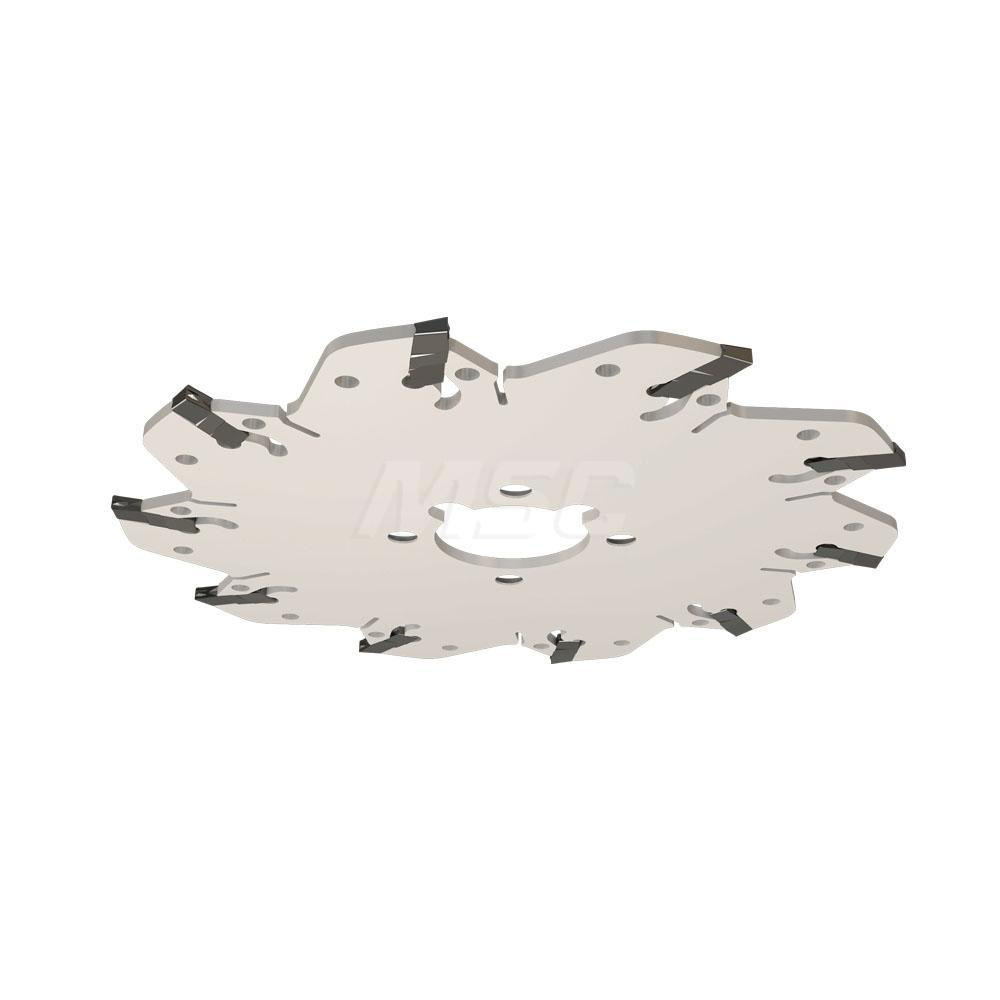

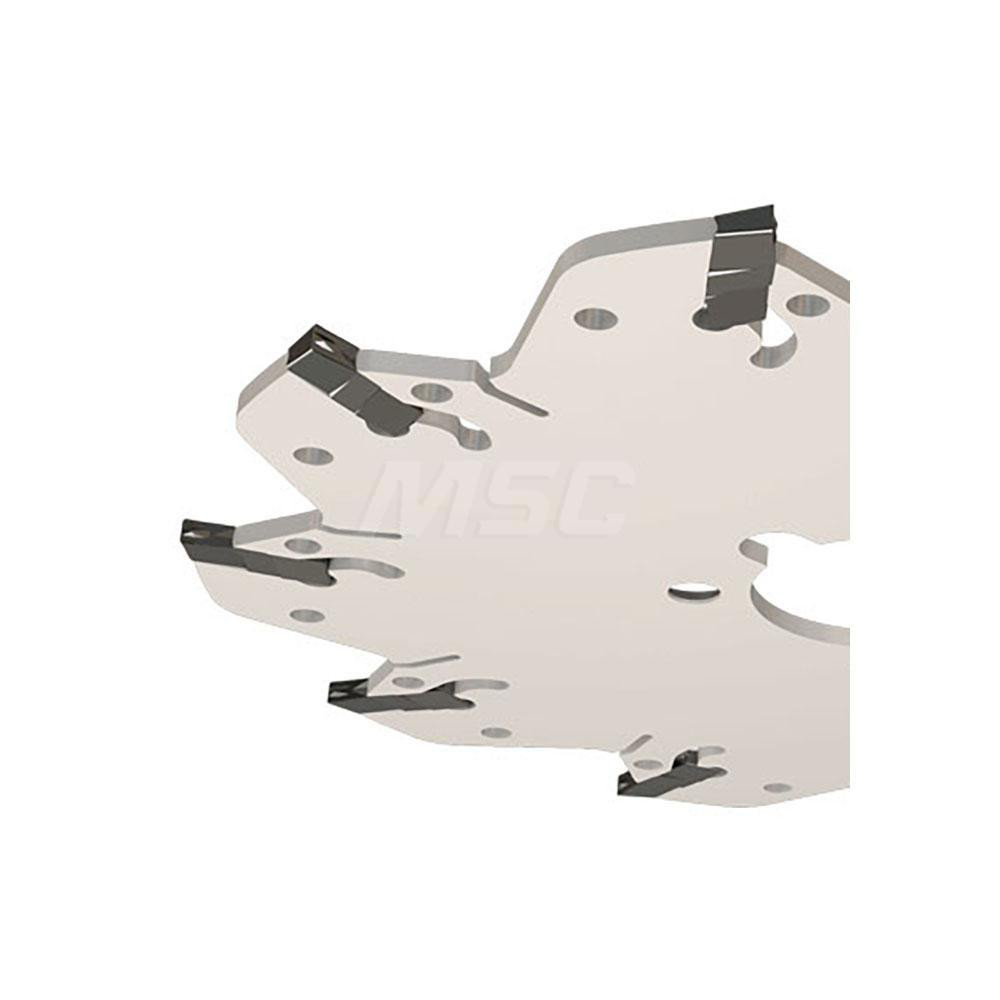

Clamp, Uses 10 Inserts, GIP Inserts, 10 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (mm) | 39.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 32.00 |
| Cutter Diameter (mm) | 160.00 |
| Shank Diameter (mm) | 32.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 10 |
| Compatible Insert Style | GIP |
| Compatible Insert Size Code | 3.00E-0.40 |
| Tooth Type | Straight |
| Series | GM-DG |
| Toolholder Style | GM-DG |
| Cutting Radius (Fractional Inch) | 1/16 |
| Maximum RPM | 500 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.1063 |
| Maximum Cutting Width (mm) | 3.35 |
| Minimum Cutting Diameter (mm) | 160.00 |
| Radius | Yes |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (mm) | 2.40 |
| Manufacturers Catalog Number | GM D160-3DG-32K |
| Number Of Teeth | 10 |
| Complete Insert Compatibility | GIP 3.00E-0.40 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 45387511 |
