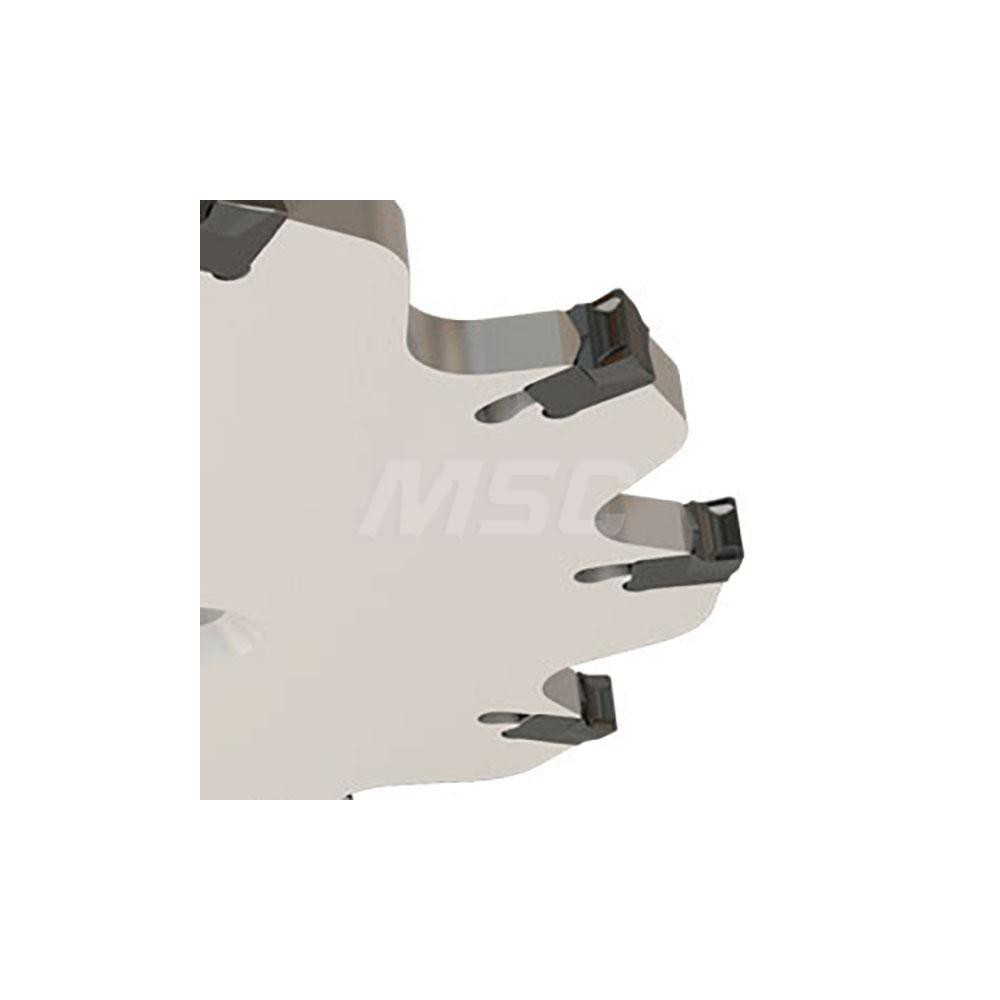

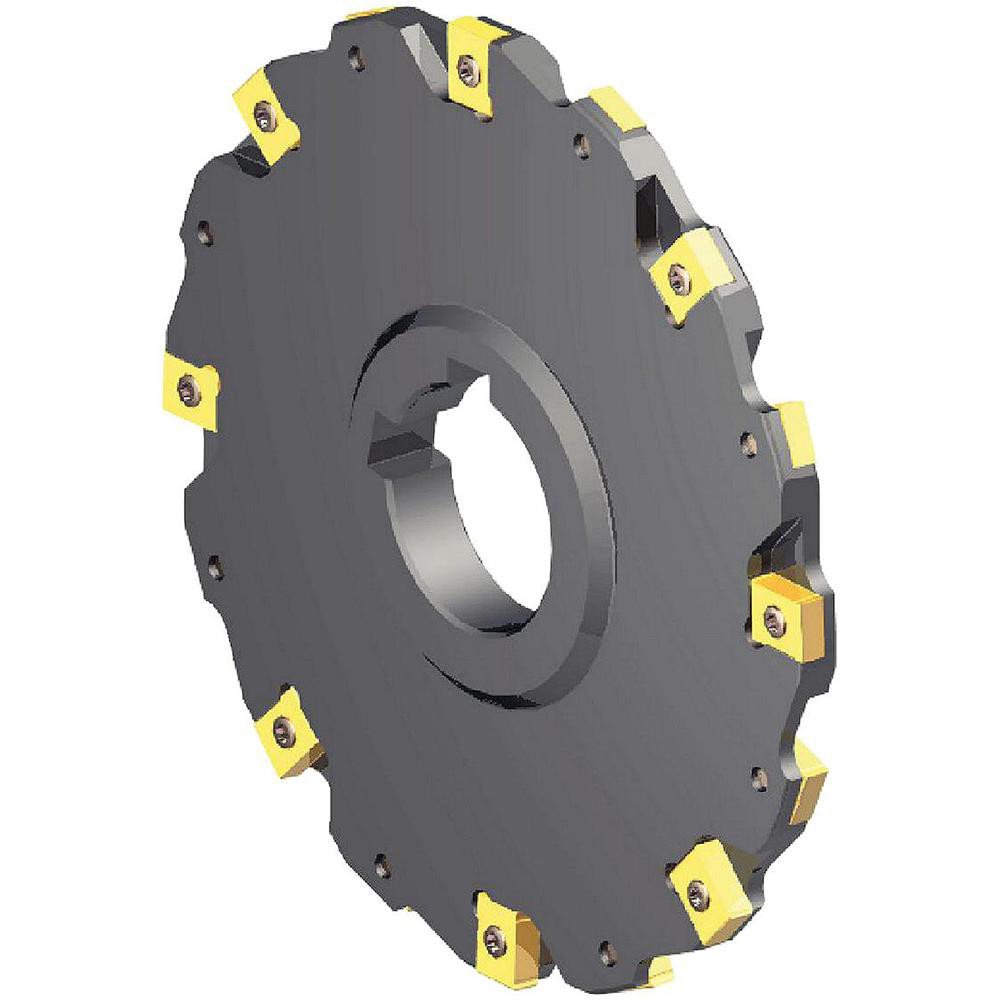

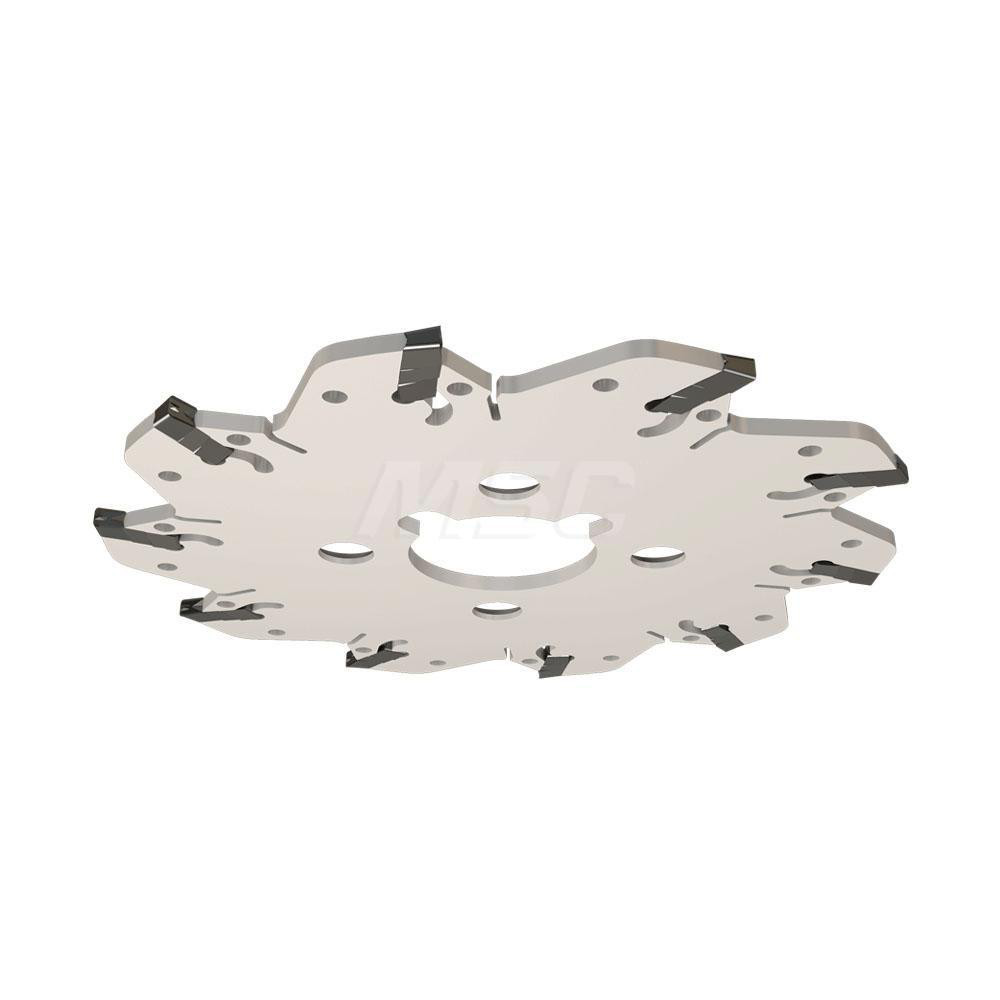

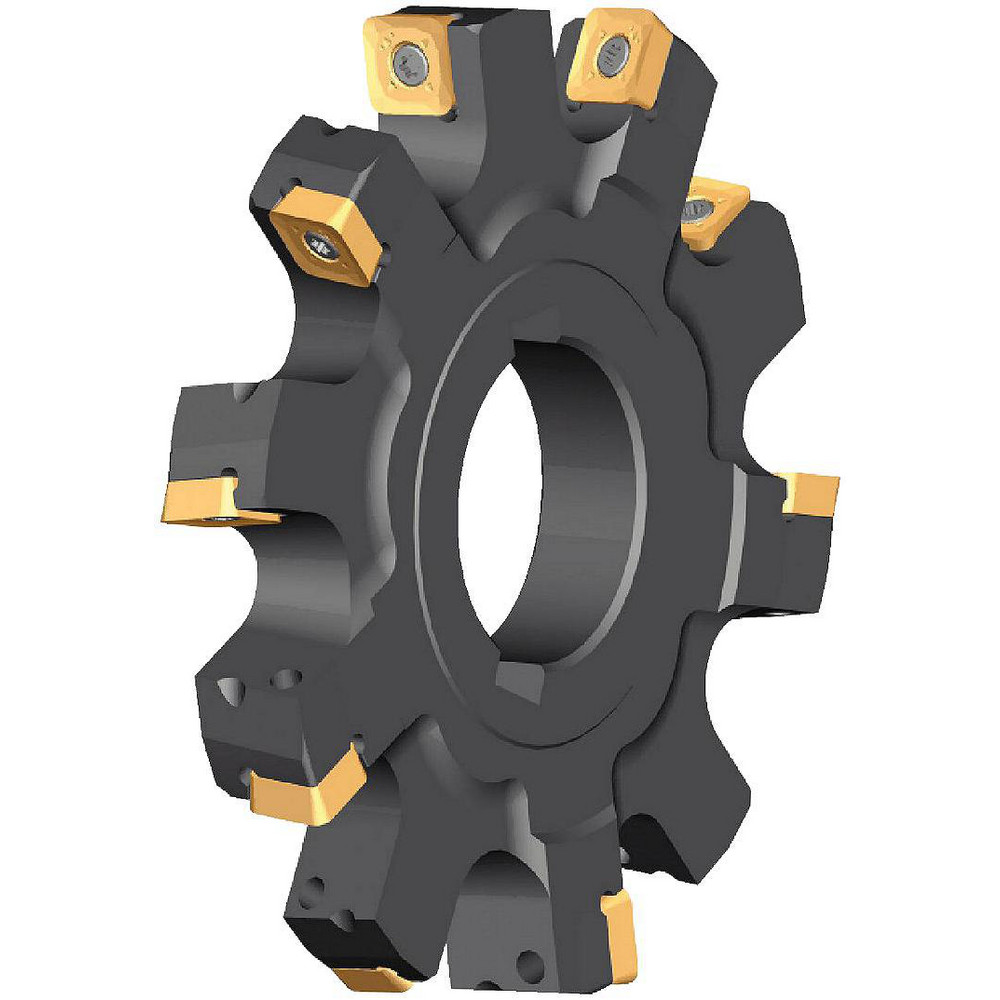

Self Clamping, Uses 10 Inserts, GIP Inserts, 10 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.5300 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Cutter Diameter (Decimal Inch) | 6.3000 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Self Clamping |
| Number Of Cutter Inserts | 10 |
| Compatible Insert Style | GIP |
| Compatible Insert Size Code | 4.00 |
| Tooth Type | Straight |
| Series | GM-DG |
| Toolholder Style | GM-DG |
| Cutting Radius (Fractional Inch) | 5/64 |
| Maximum RPM | 500 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.1320 |
| Maximum Cutting Width (Decimal Inch) | 0.1710 |
| Minimum Cutting Diameter (mm) | 160.02 |
| Radius | Yes |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.1260 |
| Manufacturers Catalog Number | GM D160-4DG-1.500K |
| Number Of Teeth | 10 |
| Complete Insert Compatibility | GIP 4.00 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 04373858 |
