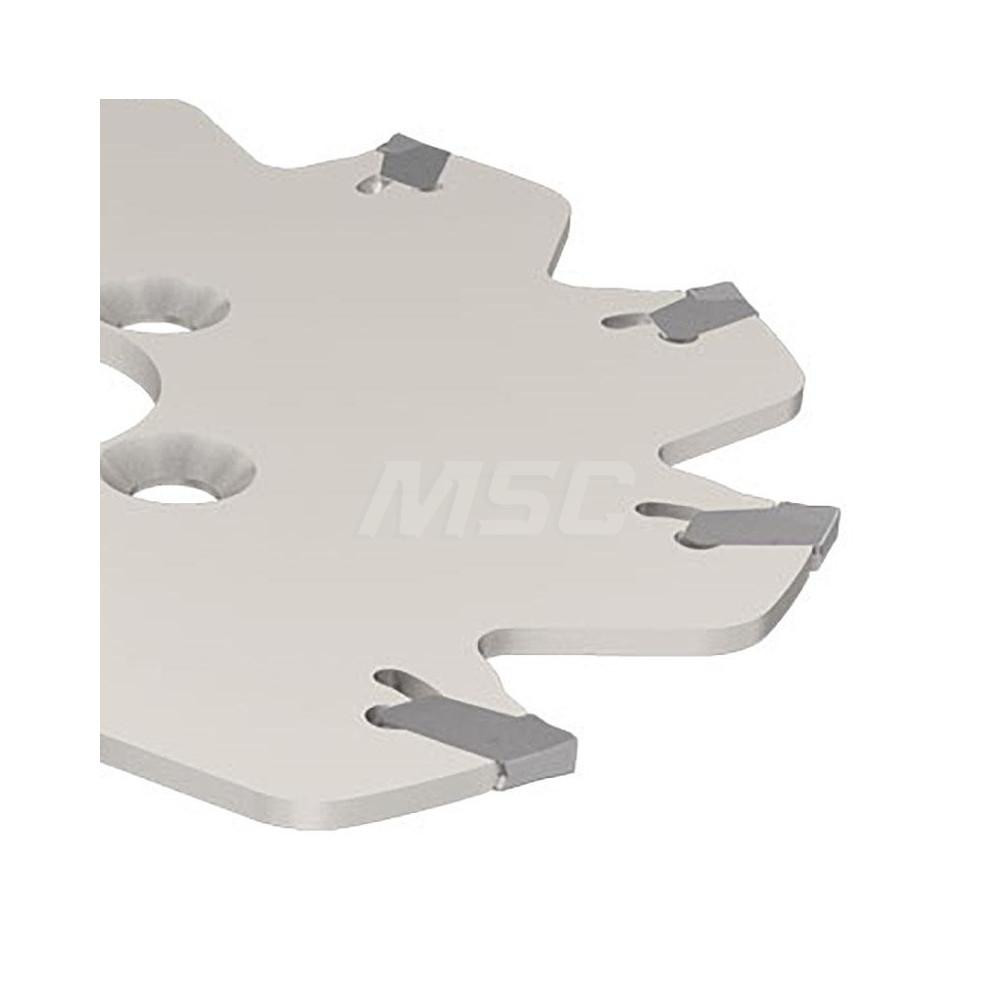

Self Clamping, Uses 5 Inserts, GSFN Inserts, 5 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 10.00 |
| Hole Diameter (Decimal Inch) | 0.3937 |
| Cutter Diameter (Decimal Inch) | 2.4803 |
| Cutter Diameter (mm) | 63.00 |
| Shank Diameter (mm) | 10.00 |
| Insert Holding Method | Self Clamping |
| Number Of Cutter Inserts | 5 |
| Compatible Insert Style | GSFN |
| Compatible Insert Size Code | 3 |
| Tooth Type | Straight |
| Series | SGSF |
| Toolholder Style | SGSF |
| Hub Diameter (Decimal Inch) | 1.2598 |
| Hub Diameter (mm) | 32.00 |
| Maximum RPM | 1260 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.1063 |
| Maximum Cutting Width (Decimal Inch) | 0.1390 |
| Maximum Cutting Width (mm) | 3.53 |
| Minimum Cutting Diameter (mm) | 63.00 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (mm) | 2.40 |
| Manufacturers Catalog Number | SGSF 63-3-10K |
| Number Of Teeth | 5 |
| Complete Insert Compatibility | GSFN 3 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52733847 |
