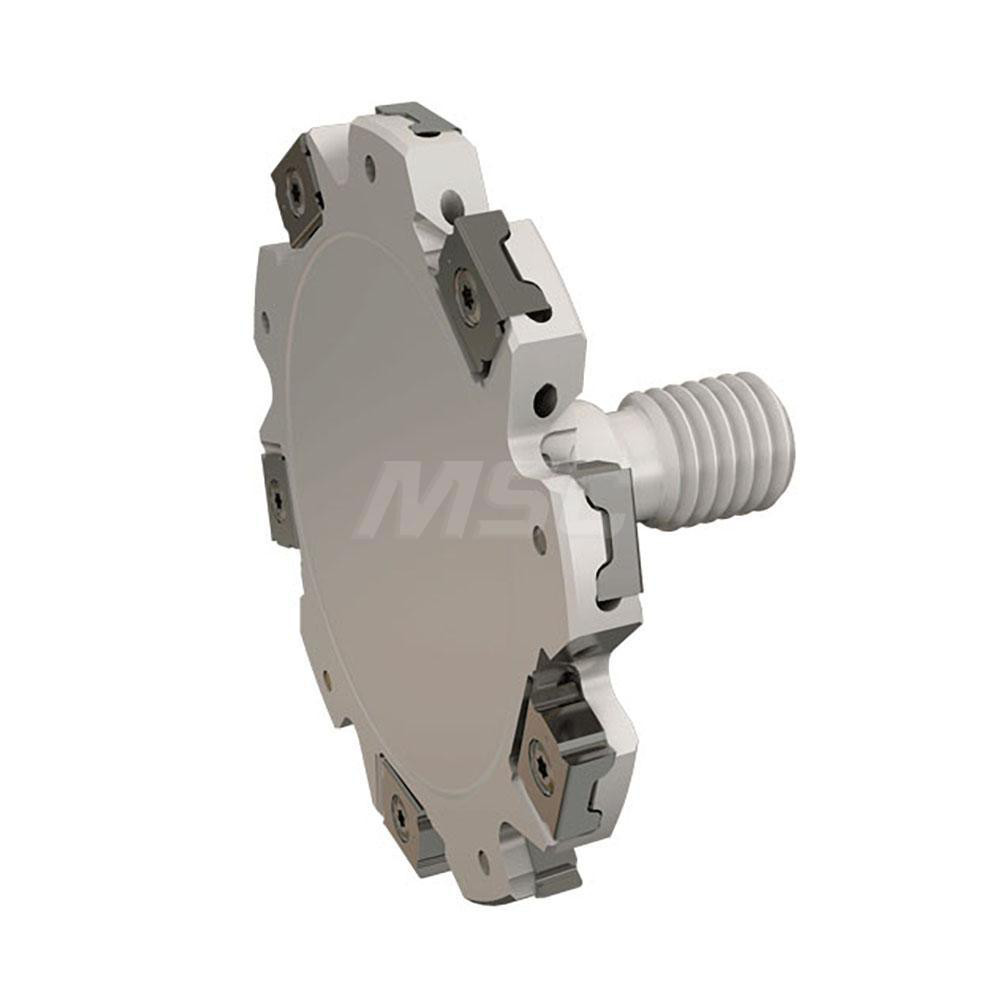

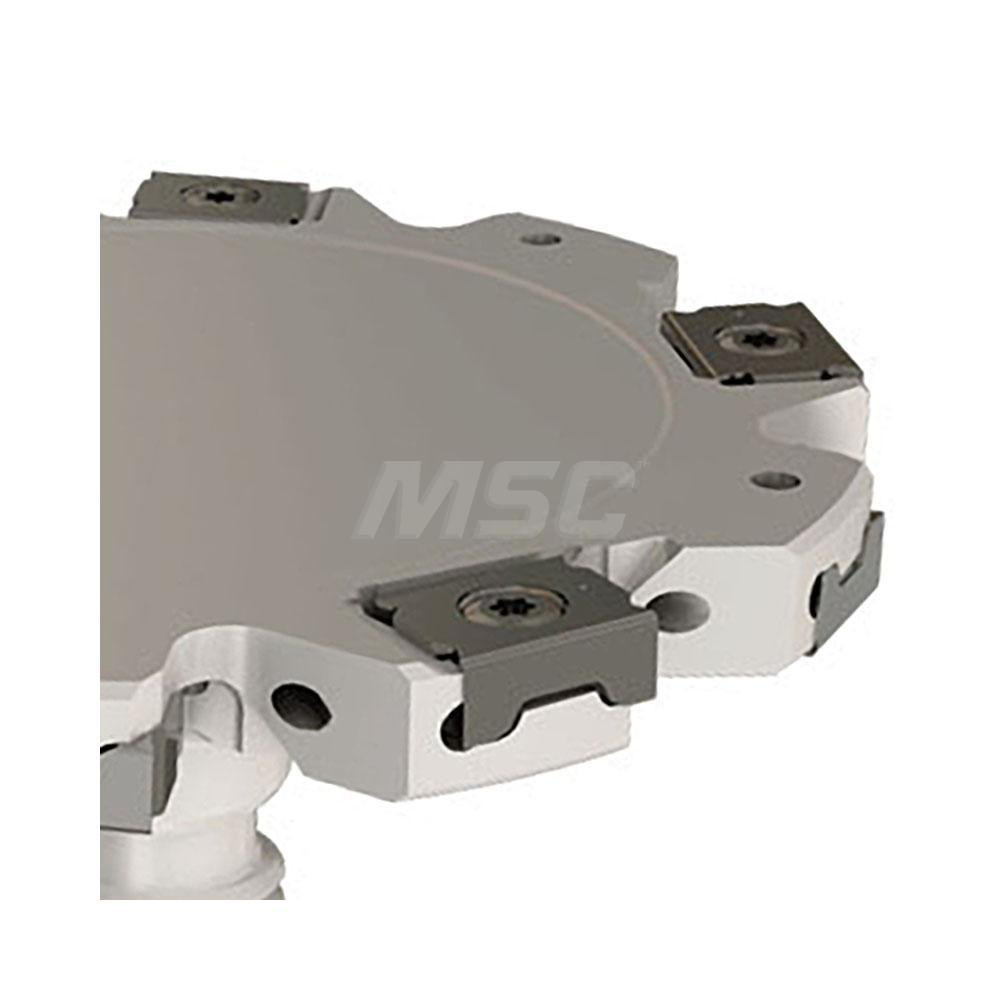

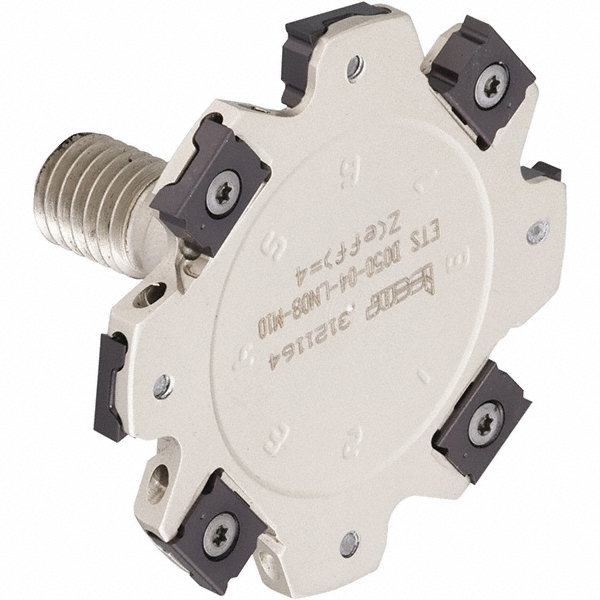

Screw, Uses 4 Inserts, LNET Inserts, 8 Tooth
| Connection Type | Modular |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.6102 |
| Maximum Depth of Cut (mm) | 15.50 |
| Hole Diameter (Decimal Inch) | 0.7090 |
| Cutter Diameter (Decimal Inch) | 1.9685 |
| Cutter Diameter (mm) | 50.00 |
| Shank Diameter (mm) | 18.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Compatible Insert Style | LNET |
| Compatible Insert Size Code | 082604 |
| Series | ETS-LN08-M |
| Toolholder Style | ETS-LN08-M |
| Modular Connection Size | M10 |
| Hub Diameter (Decimal Inch) | 0.7087 |
| Hub Diameter (mm) | 18.00 |
| Cutting Radius (Fractional Inch) | 1/64 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Cutting Width (Decimal Inch) | 0.1770 |
| Maximum Cutting Width (mm) | 4.50 |
| Minimum Cutting Diameter (mm) | 50.00 |
| UNSPSC Code | 23241629 |
| Manufacturers Catalog Number | ETS D050-04-LN08-M10 |
| Overall Height (Decimal Inch) | 33.00 |
| Insert Inscribed Circle (mm) | 6.85 |
| Number Of Teeth | 8 |
| Complete Insert Compatibility | LNET 082604-TN-N |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 45387230 |
