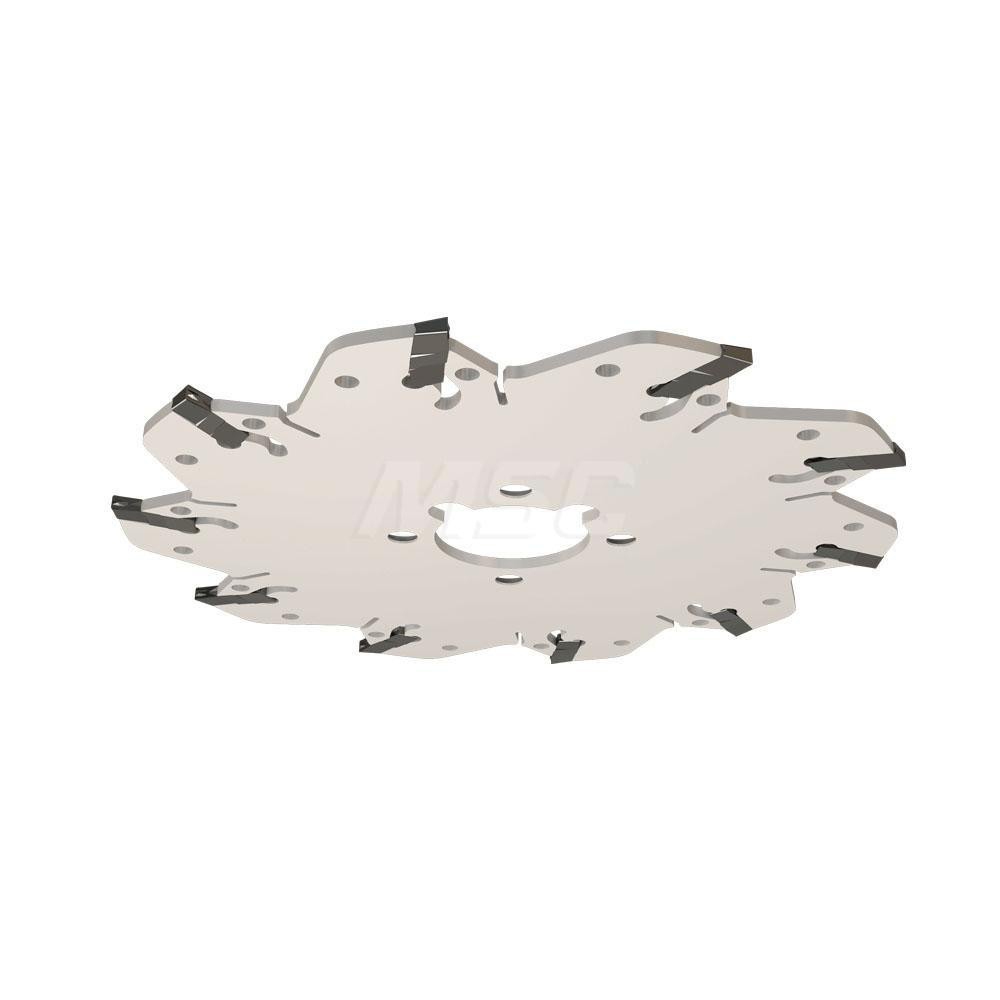

Clamp, Uses 6 Inserts, GSFN Inserts, 6 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (mm) | 29.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 22.00 |
| Cutter Diameter (mm) | 100.00 |
| Shank Diameter (mm) | 22.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 6 |
| Compatible Insert Style | GSFN |
| Compatible Insert Size Code | 5 |
| Tooth Type | Straight |
| Series | SGSF |
| Toolholder Style | SGSF |
| Hub Diameter (mm) | 40.00 |
| Cutting Radius (Fractional Inch) | 1/32 |
| Maximum RPM | 800 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.1783 |
| Maximum Cutting Width (mm) | 5.50 |
| Minimum Cutting Diameter (mm) | 100.00 |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (mm) | 4.00 |
| Manufacturers Catalog Number | SGSF 100-5-22K |
| Number Of Teeth | 6 |
| Complete Insert Compatibility | GSFN 5 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 35466838 |
