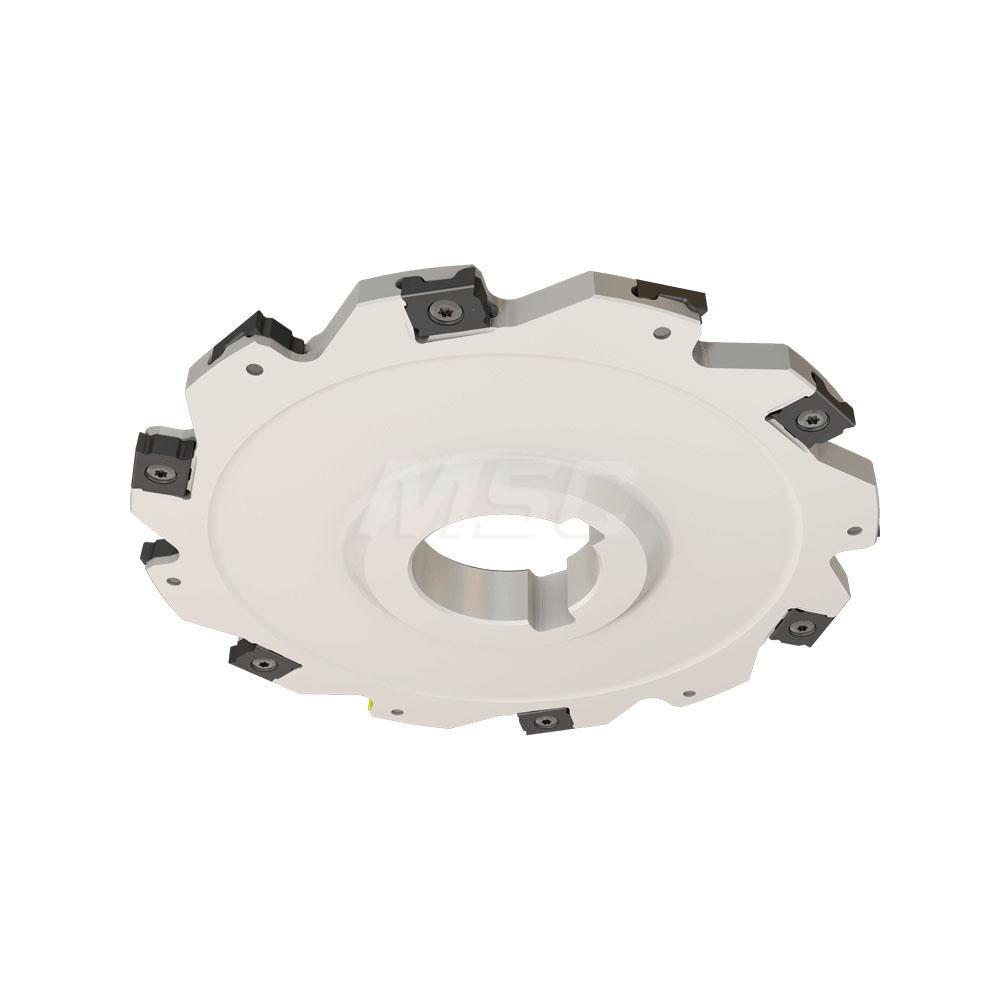

Screw, Uses 8 Inserts, LNET Inserts, 16 Tooth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.4700 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 8 |
| Compatible Insert Style | LNET |
| Series | SDN-LN08 |
| Toolholder Style | SDN-LN08 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Hub Diameter (Inch) | 1-3/4 |
| Cutting Radius (Fractional Inch) | 1/64 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.1870 |
| Minimum Cutting Width (Inch) | 3/16 |
| Maximum Cutting Width (Decimal Inch) | 0.2070 |
| Minimum Cutting Diameter (mm) | 127.00 |
| UNSPSC Code | 23241629 |
| Manufacturers Catalog Number | SDN D5.00-.187-10-LN08 |
| Insert Inscribed Circle (mm) | 6.85 |
| Number Of Teeth | 16 |
| Complete Insert Compatibility | LNET 083204-TN-N; LNET 083004-TN-N |
| Country of Origin | Israel |
| MSC Number | MSC# 45386802 |
