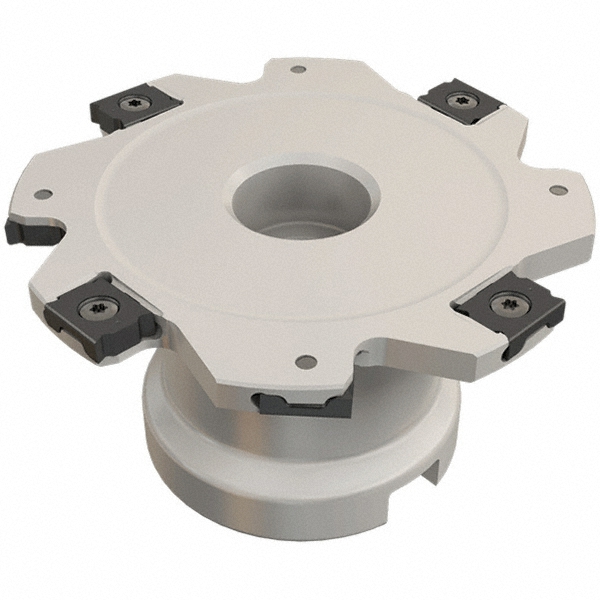

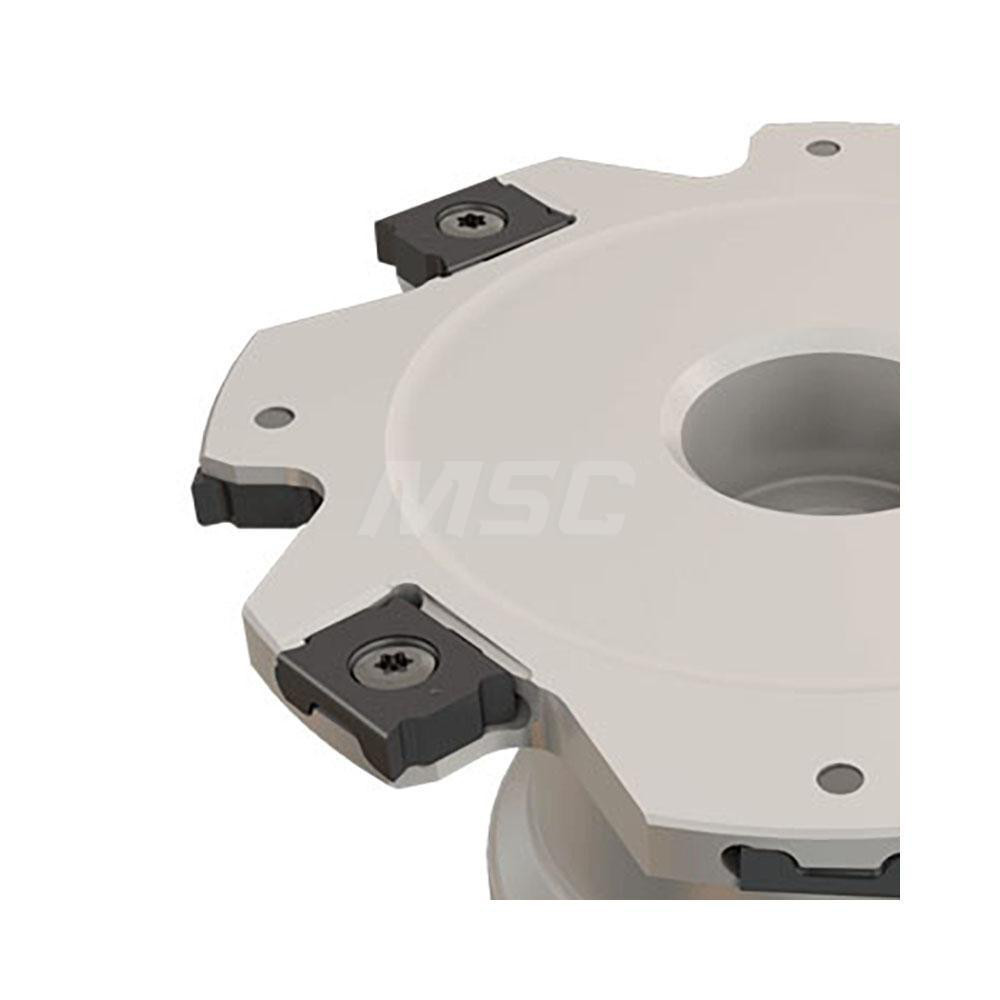

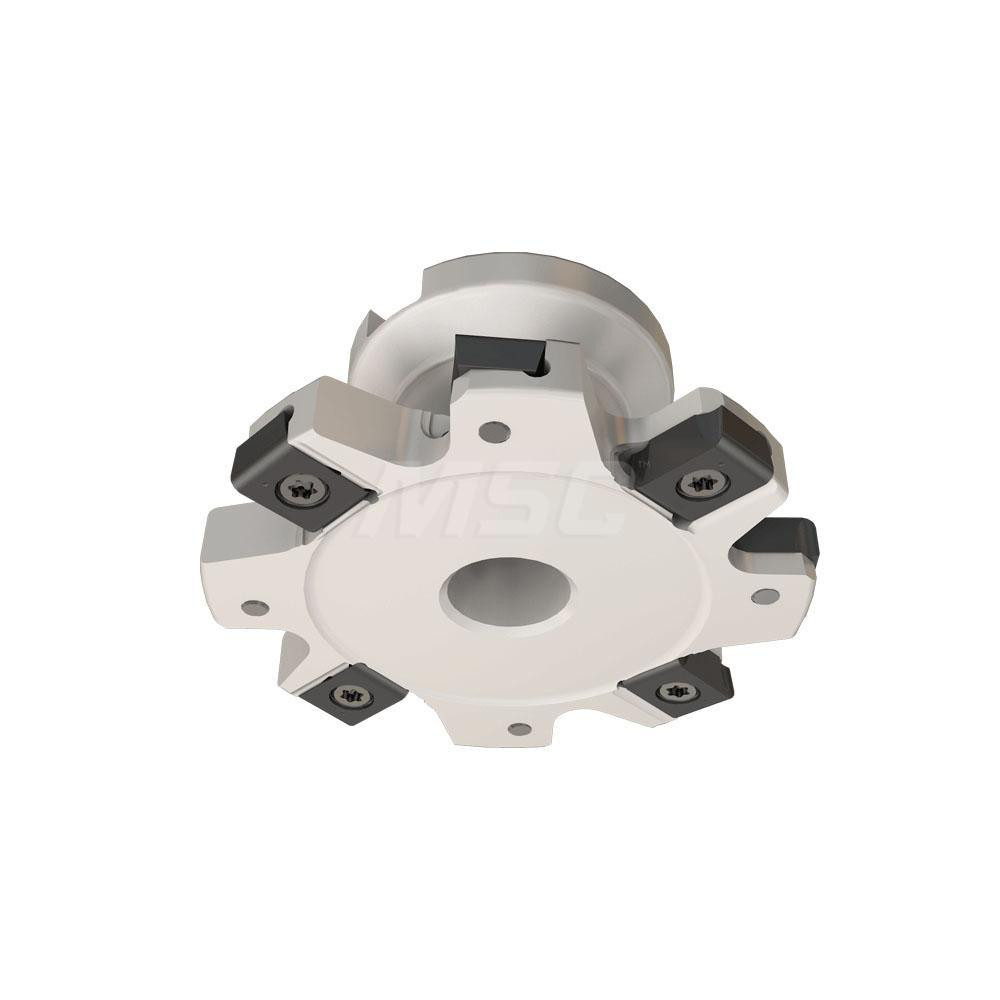

Screw, Uses 5 Inserts, LNET Inserts, 10 Tooth
| Connection Type | Shell Mount A |
|---|---|
| Maximum Depth of Cut (mm) | 22.50 |
| Hole Diameter (Mm) ( - 0 Decimals) | 22.00 |
| Cutter Diameter (mm) | 80.00 |
| Shank Diameter (mm) | 22.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Compatible Insert Style | LNET |
| Compatible Insert Size Code | 083004 |
| Series | FDN-LN08 |
| Toolholder Style | FDN-LN08 |
| Hub Diameter (mm) | 45.00 |
| Cutting Radius (Fractional Inch) | 1/64 |
| Keyway Width (Decimal Inch) | 10.4000 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Cutting Width (mm) | 5.50 |
| Minimum Cutting Diameter (mm) | 80.00 |
| UNSPSC Code | 23241629 |
| Manufacturers Catalog Number | FDN D080-05-22-LN08 |
| Insert Inscribed Circle (mm) | 6.85 |
| Number Of Teeth | 10 |
| Complete Insert Compatibility | LNET 083004-TN-N |
| Overall Height (Decimal Inch) | 40.00 |
| Country of Origin | Israel |
| MSC Number | MSC# 45386810 |
