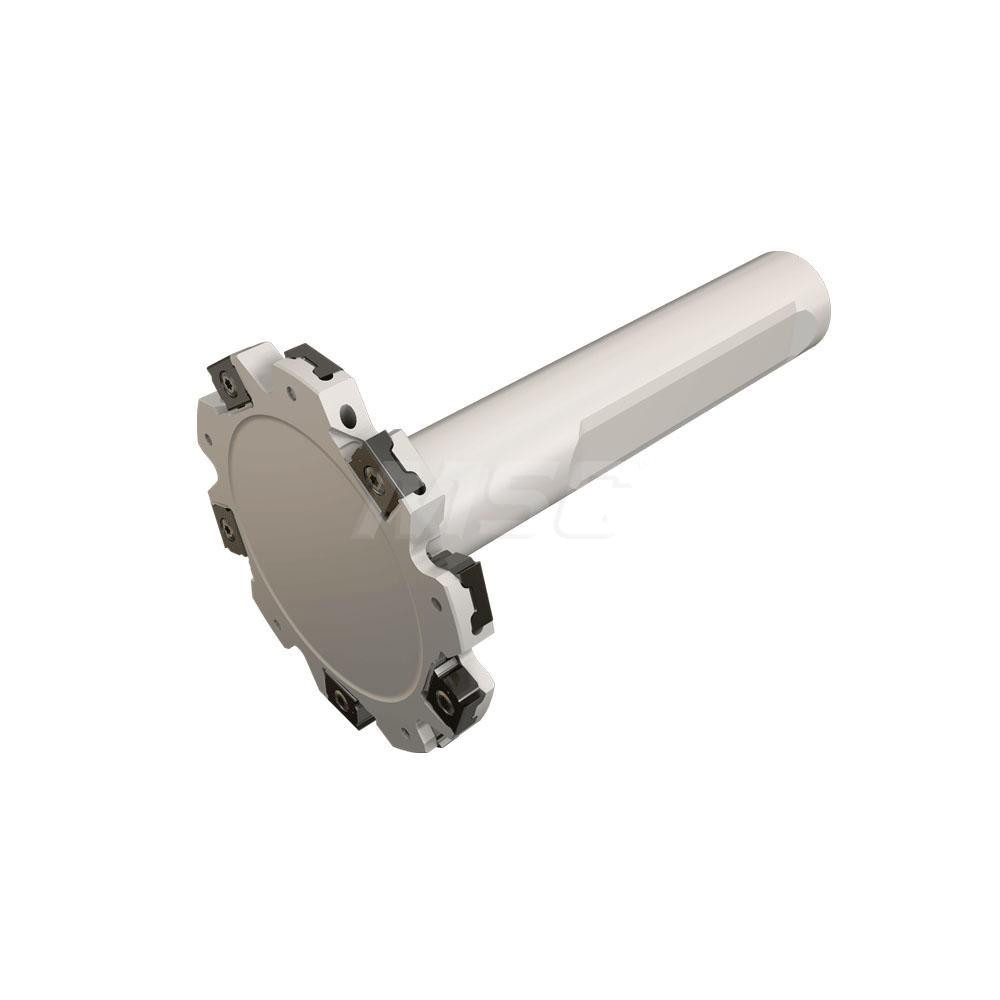

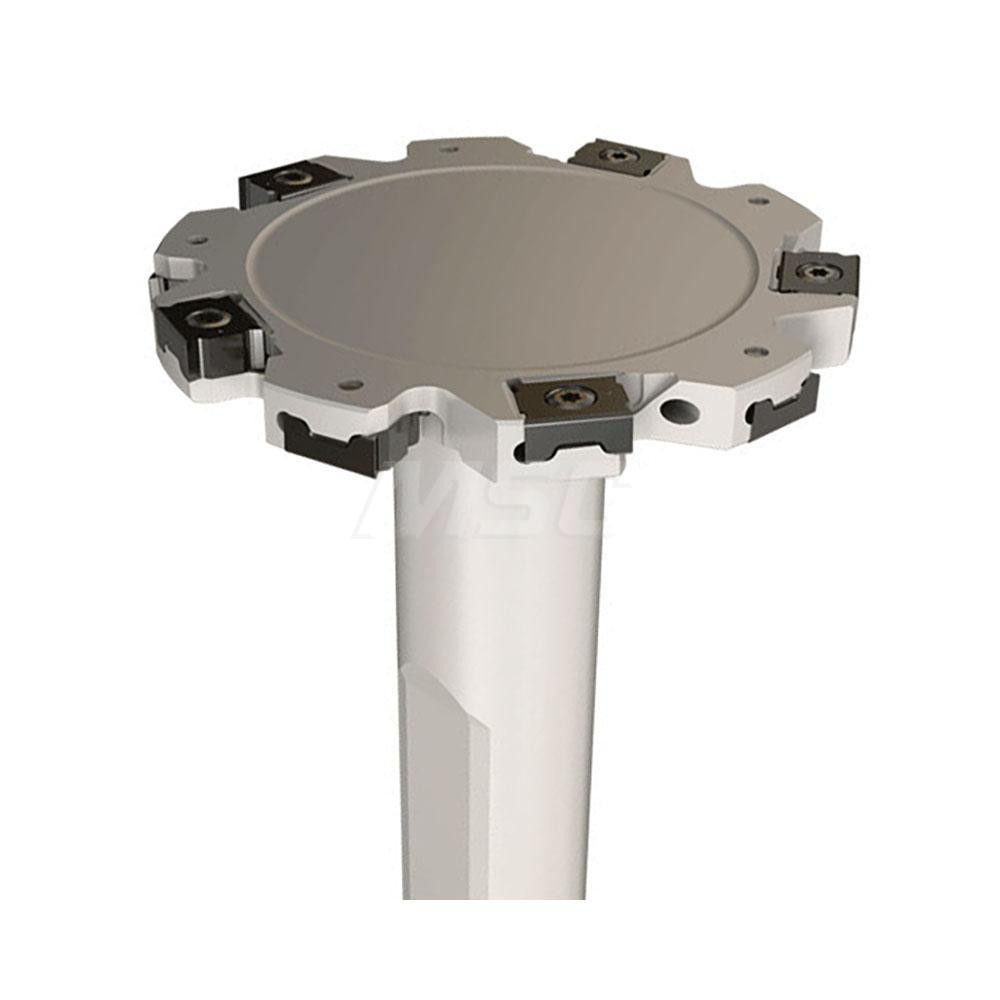

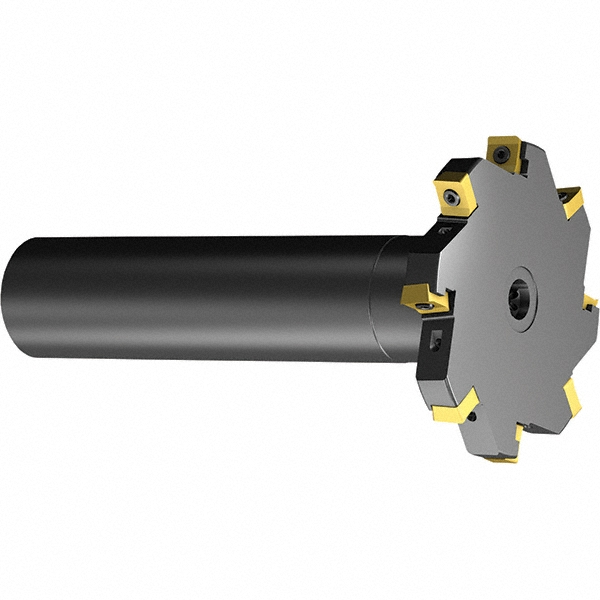

Screw, Uses 4 Inserts, LNET Inserts, 8 Tooth
| Connection Type | Weldon |
|---|---|
| Maximum Depth of Cut (mm) | 14.70 |
| Hole Diameter (Mm) ( - 0 Decimals) | 20.00 |
| Cutter Diameter (mm) | 50.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Shank Length (Decimal Inch) | 4.0160 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Compatible Insert Style | LNET |
| Compatible Insert Size Code | 084004 |
| Series | ETS-LN08 |
| Toolholder Style | ETS-LN08 |
| Cutting Radius (Fractional Inch) | 1/64 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.2756 |
| Maximum Cutting Width (mm) | 8.00 |
| Minimum Cutting Diameter (mm) | 50.00 |
| UNSPSC Code | 23241629 |
| Weldon Flat | Yes |
| Manufacturers Catalog Number | ETS D050-07-W20-LN08 |
| Insert Inscribed Circle (mm) | 6.85 |
| Number Of Teeth | 8 |
| Complete Insert Compatibility | LNET 084004-TN-N |
| Overall Height (Decimal Inch) | 110.00 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 45386745 |
