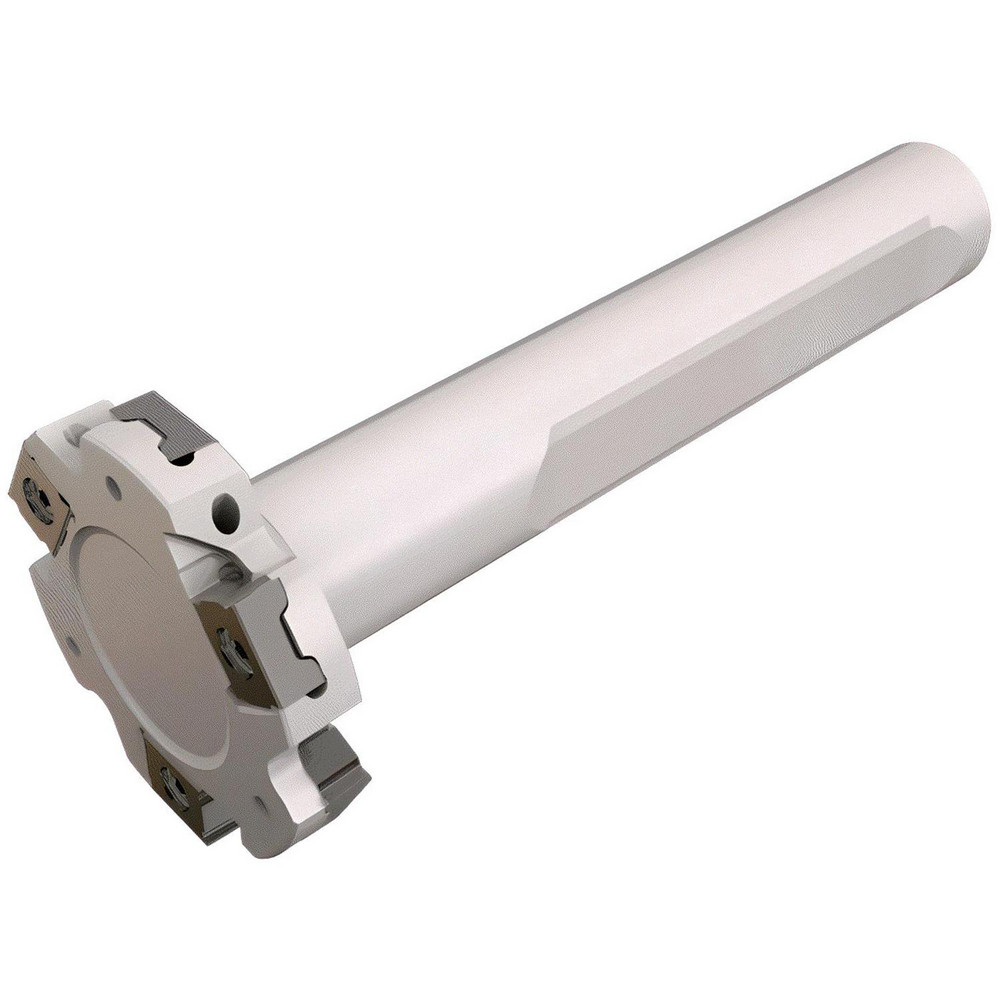

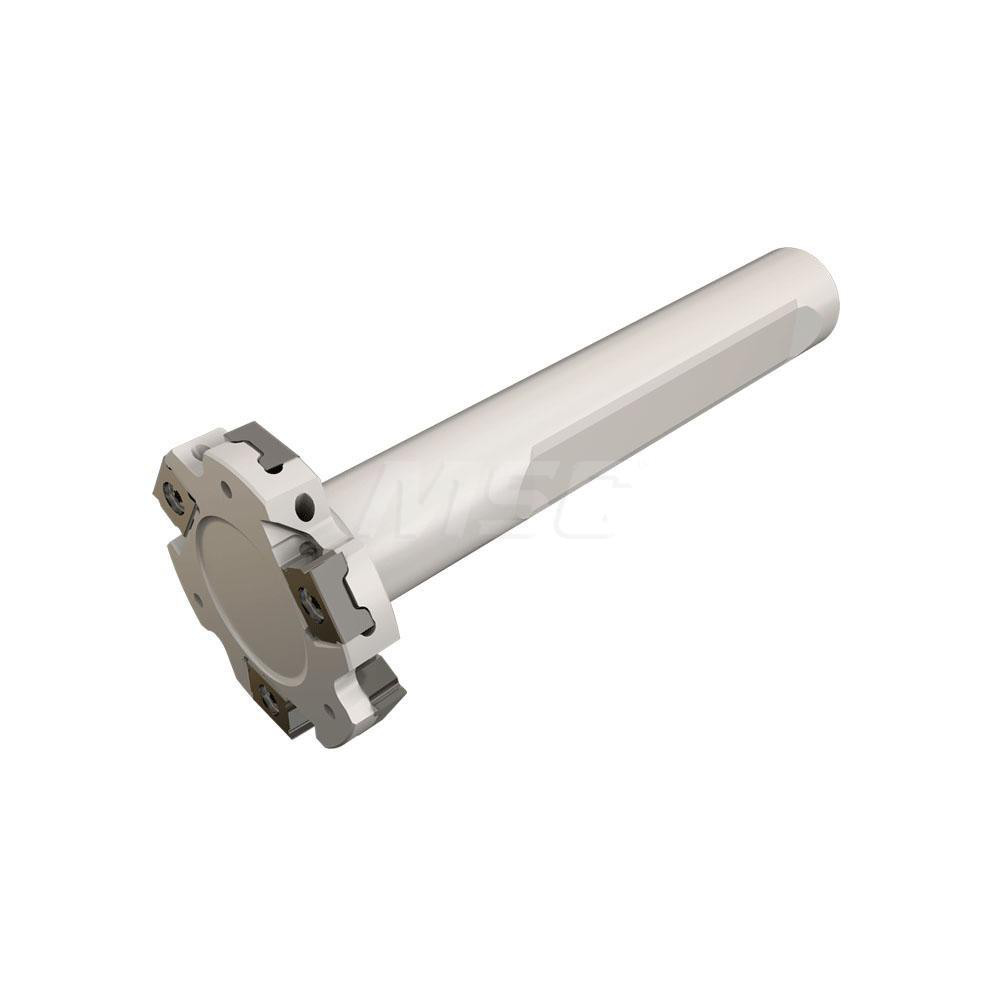

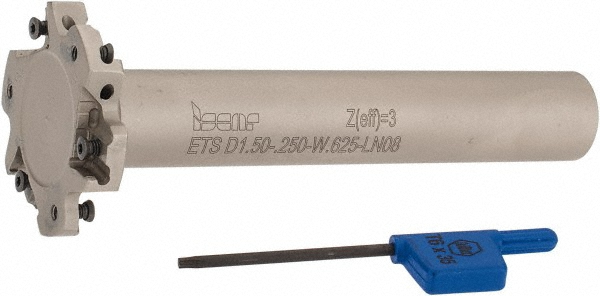

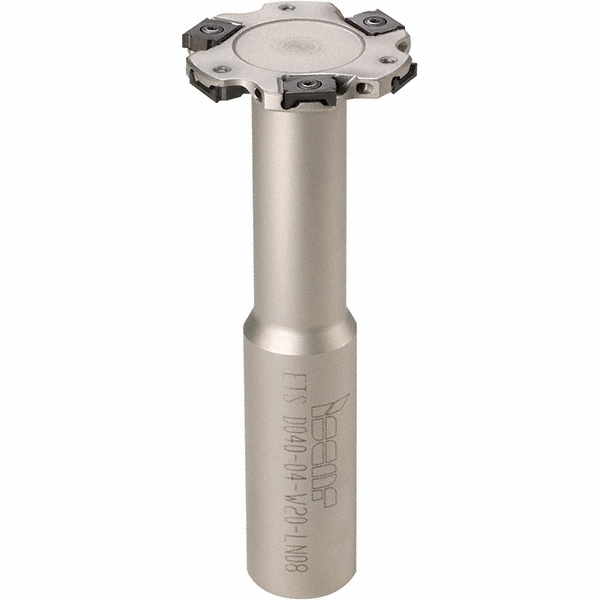

Screw, Uses 2 Inserts, LNET Inserts, 4 Tooth
| Connection Type | Weldon |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.3120 |
| Hole Diameter (Inch) | 5/8 |
| Hole Diameter (Decimal Inch) | 0.6250 |
| Cutter Diameter (Decimal Inch) | 1.2500 |
| Cutter Diameter (Inch) | 1-1/4 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Length (Decimal Inch) | 3.1790 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |

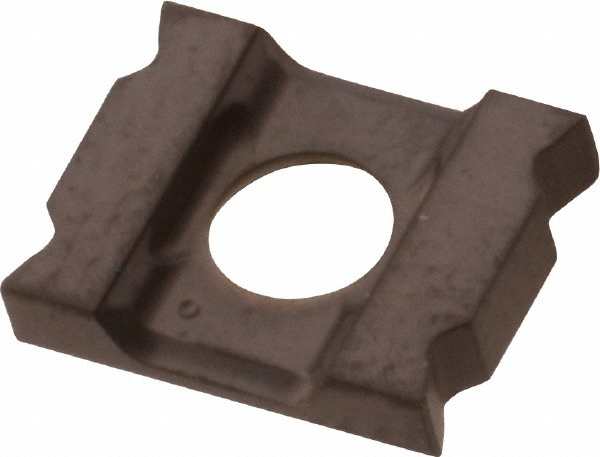

| Compatible Insert Style | LNET |
| Compatible Insert Size Code | 084004 |
| Series | ETS-LN08 |
| Toolholder Style | ETS-LN08 |
| Cutting Radius (Fractional Inch) | 1/64 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.2810 |
| Minimum Cutting Width (Inch) | 9/32 |
| Maximum Cutting Width (Decimal Inch) | 0.3210 |
| Minimum Cutting Diameter (mm) | 31.75 |
| UNSPSC Code | 23241629 |
| Weldon Flat | Yes |

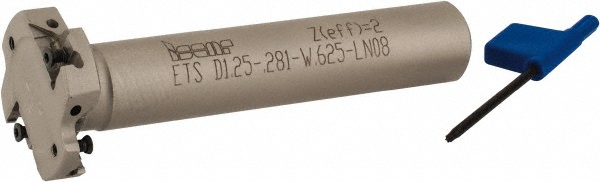

| Manufacturers Catalog Number | ETS D1.25-.281-W.625-LN08 |
| Overall Height (Decimal Inch) | 3.5000 |
| Insert Inscribed Circle (mm) | 6.85 |
| Number Of Teeth | 4 |

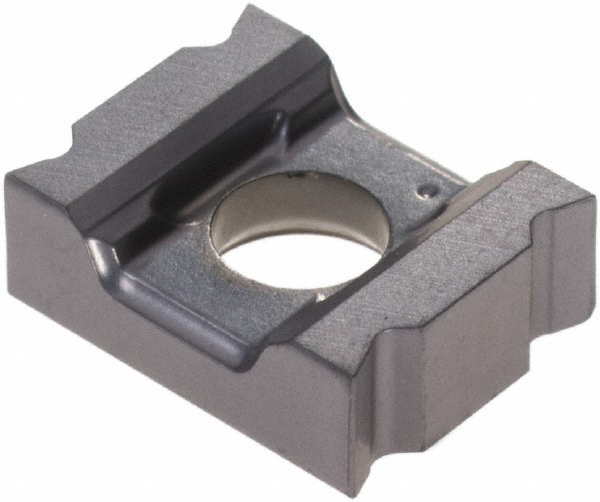

| Complete Insert Compatibility | LNET 084004-TN-N |
| Country of Origin | Israel |
| MSC Number | MSC# 45386638 |
