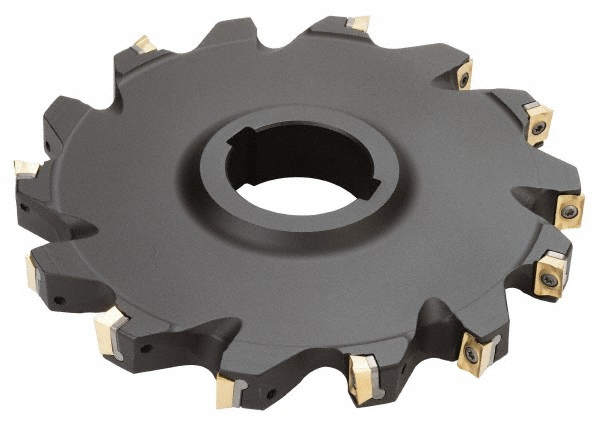

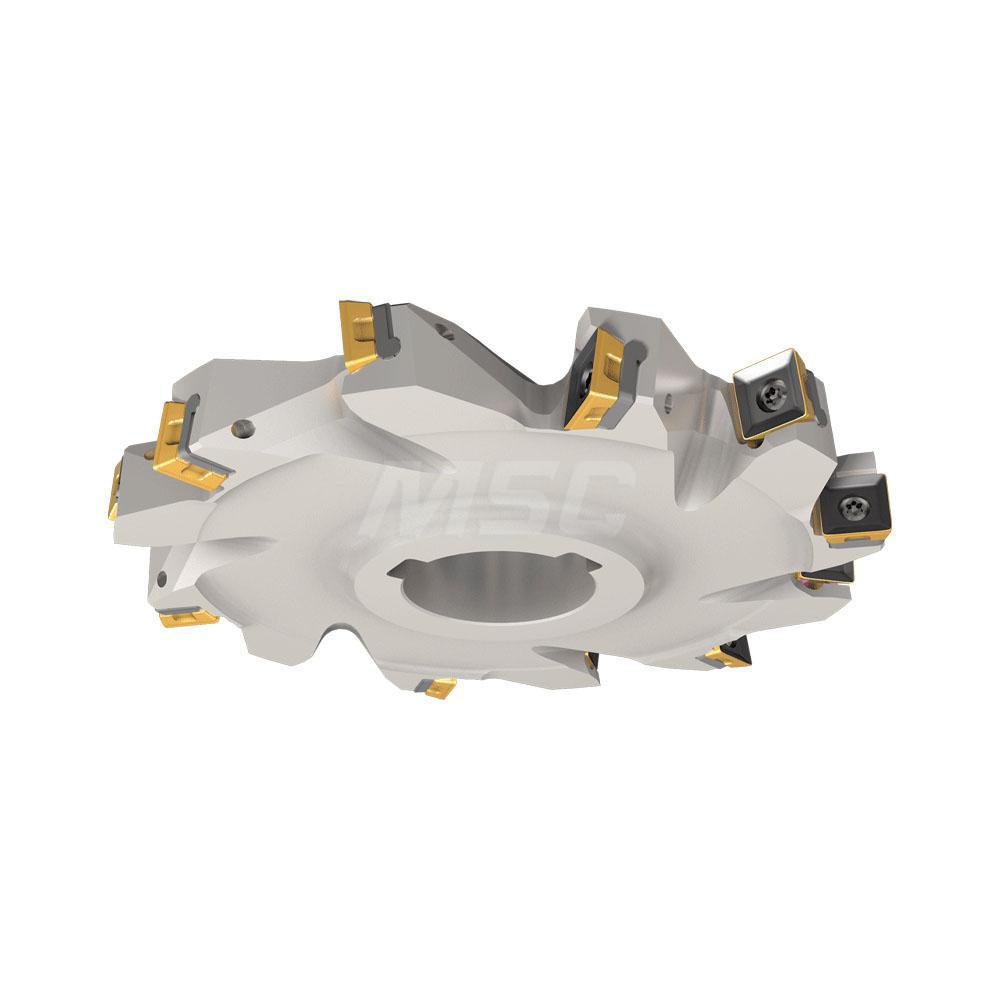

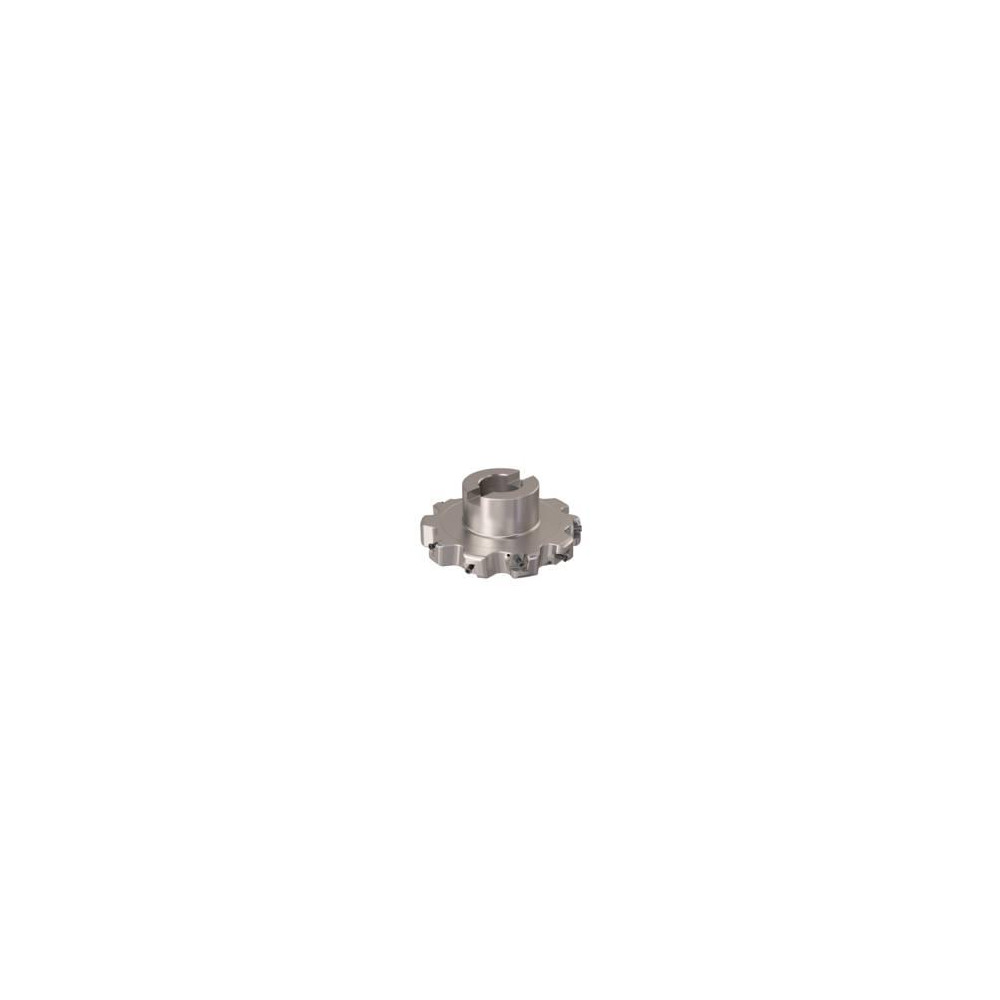

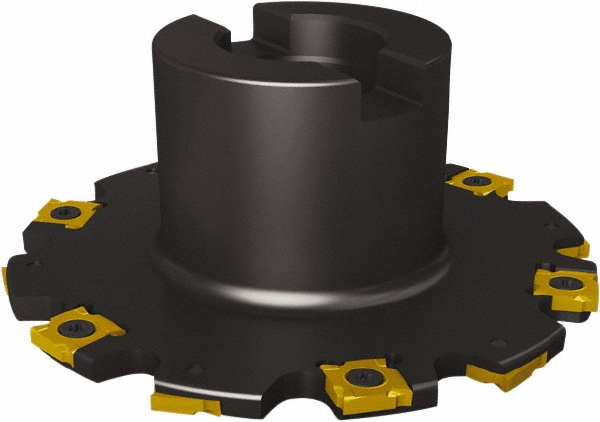

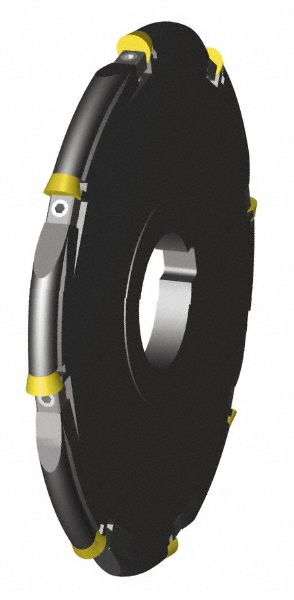

Screw, Uses 12 Inserts, QPMT PDTN Inserts, 12 Tooth
| Connection Type | Arbor |
|---|---|
| Cutting Width (Inch) | 1/2 |
| Maximum Depth of Cut (Decimal Inch) | 1.3100 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | QPMT PDTN |
| Series | Heliquad (SDN) |
| Toolholder Style | SDN |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Hub Diameter (Inch) | 2-1/4 |
| Minimum Cutting Width (Decimal Inch) | 0.5000 |
| Maximum Cutting Width (Decimal Inch) | 0.5000 |
| Radius | No |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.6250 |
| Number Of Teeth | 12 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52732260 |
