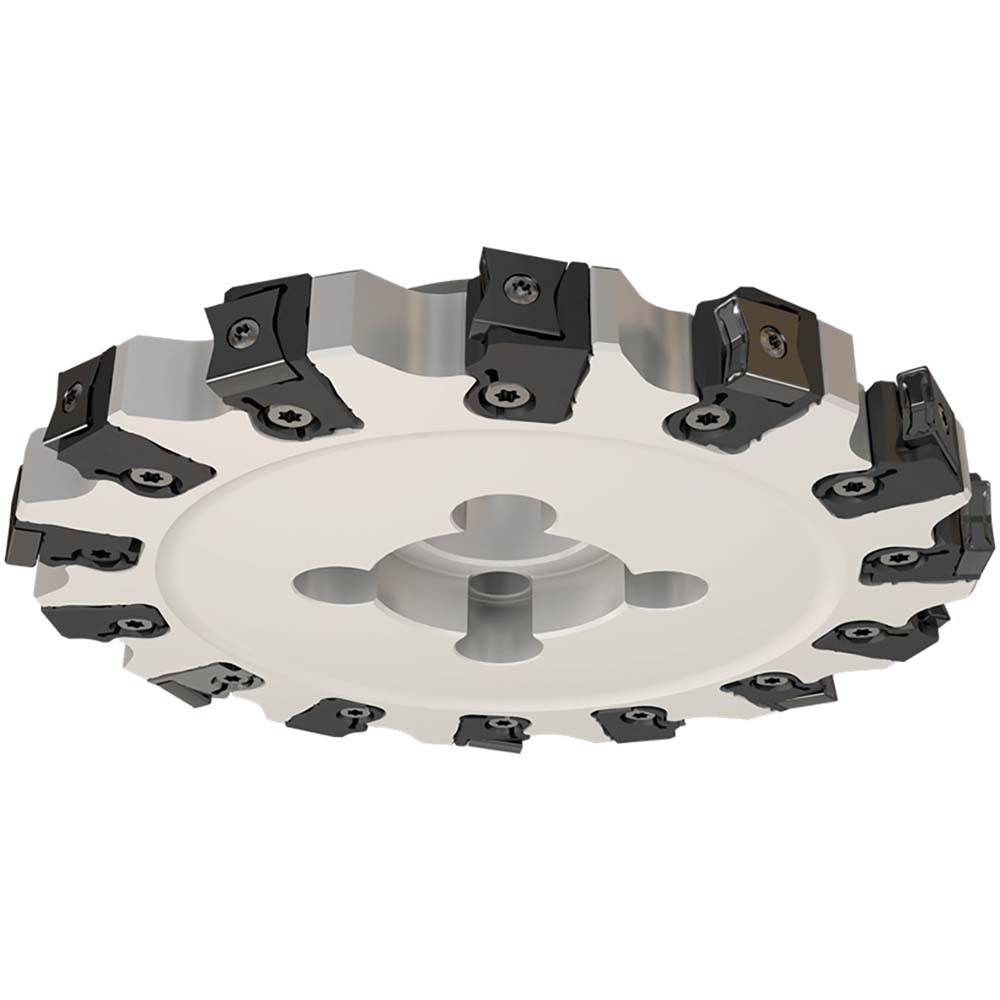

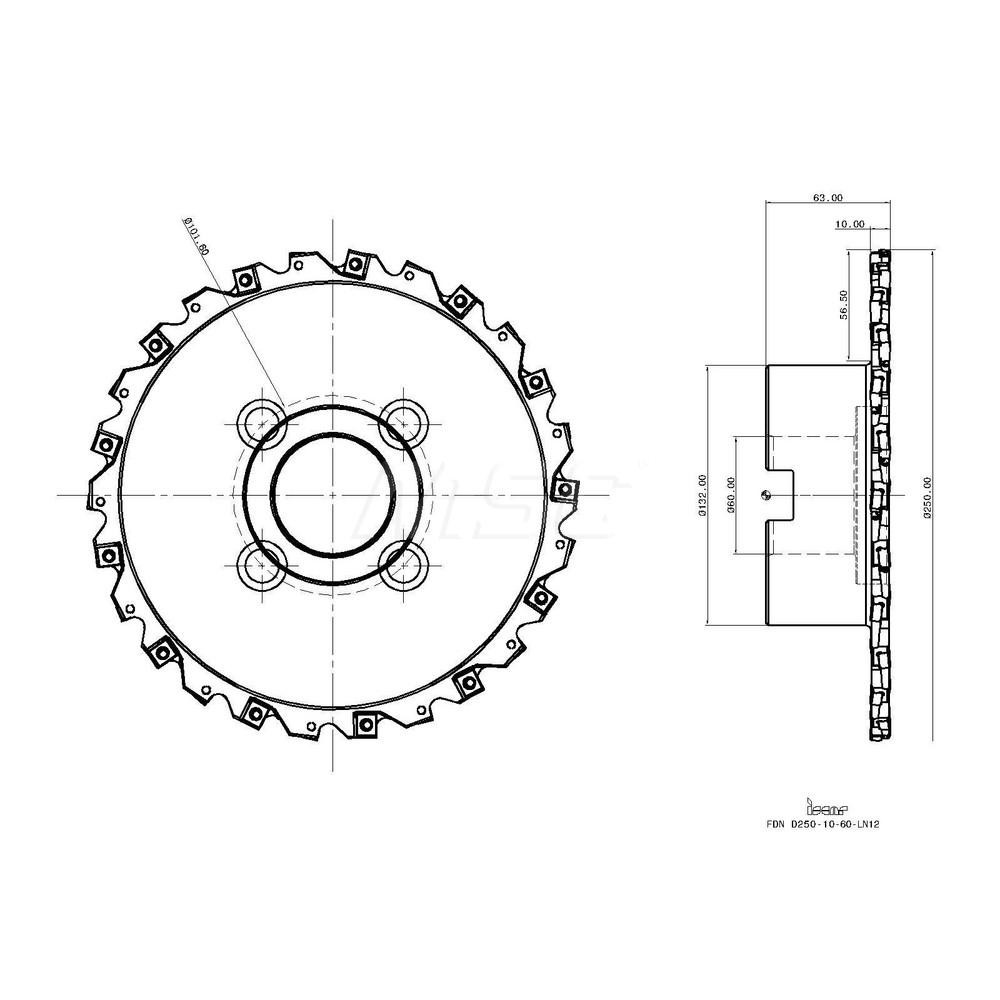

Screw, Uses 13 Inserts, LNET Inserts, 26 Tooth, Staggered Teeth
| Connection Type | Shell Mount C |
|---|---|
| Cutting Width (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.2244 |
| Maximum Depth of Cut (mm) | 56.50 |
| Hole Diameter (Mm) ( - 0 Decimals) | 60.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Cutter Diameter (Decimal Inch) | 9.8425 |
| Cutter Diameter (mm) | 250.00 |
| Shank Diameter (mm) | 60.00 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 13 |
| Compatible Insert Style | LNET |
| Compatible Insert Size Code | 125504 |
| Tooth Type | Staggered |
| Series | FDN-LN12 |
| Toolholder Style | FDN-LN12 |
| Hub Diameter (Decimal Inch) | 5.1969 |
| Hub Diameter (mm) | 132.00 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (mm) | 12.00 |
| Minimum Cutting Diameter (mm) | 250.00 |
| UNSPSC Code | 23241629 |
| Manufacturers Catalog Number | FDN D250-10-60-LN12 |
| Number Of Teeth | 26 |
| Complete Insert Compatibility | LNET 125504-TN |
| Country of Origin | Israel |
| MSC Number | MSC# 05353198 |
