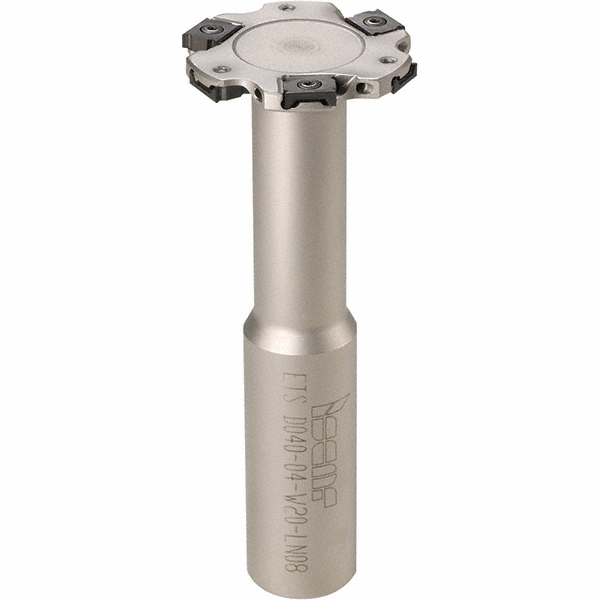

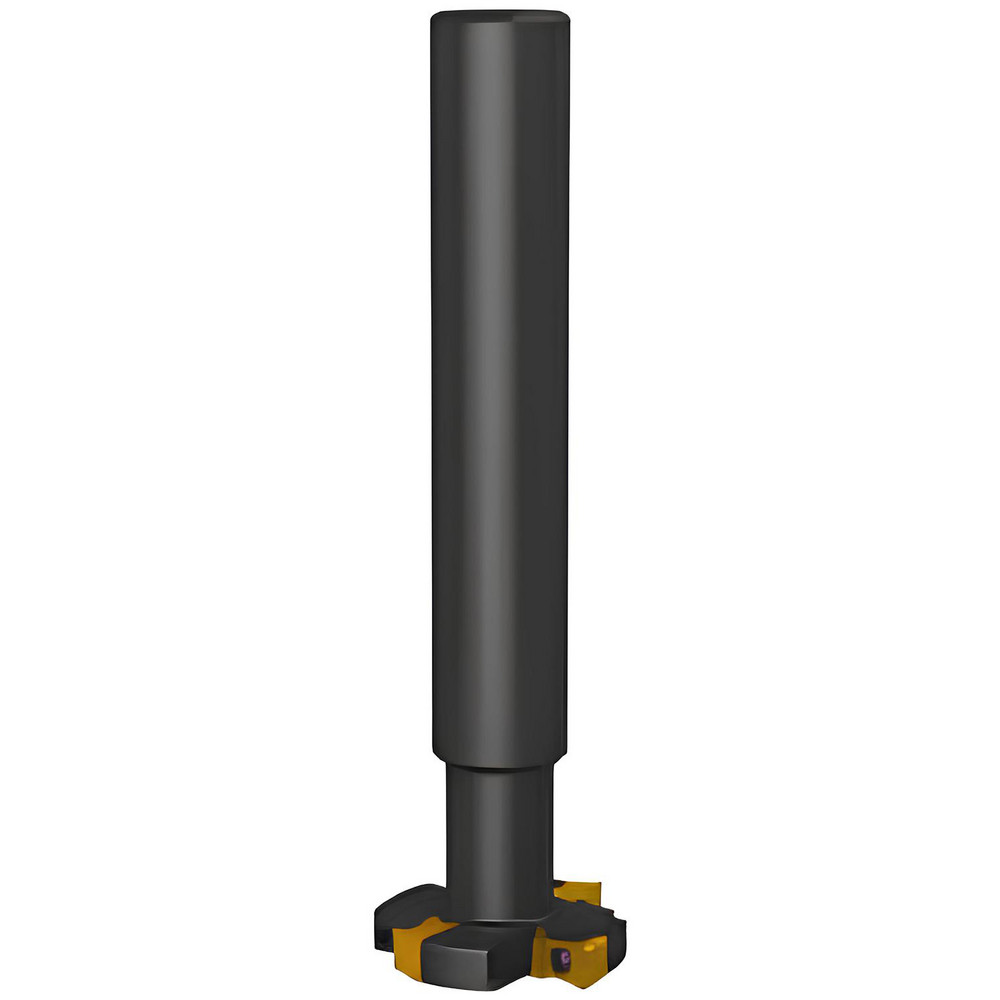

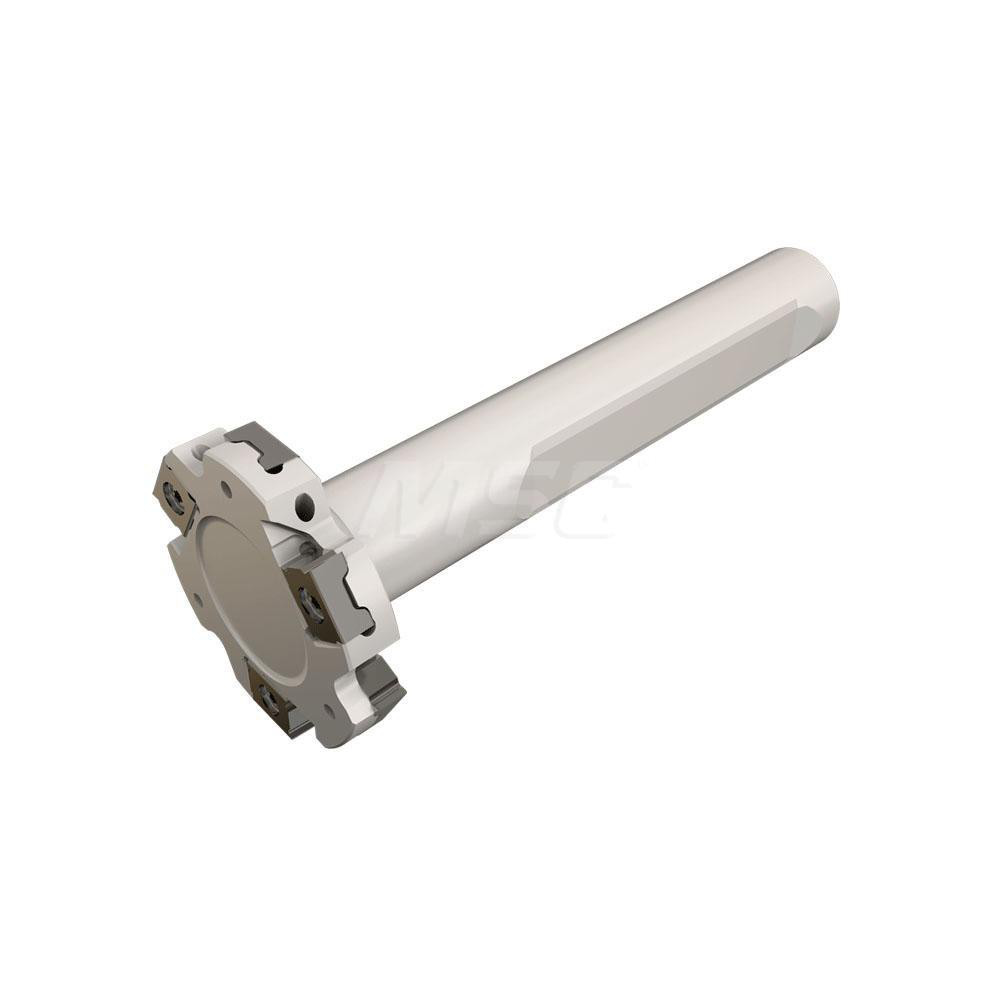

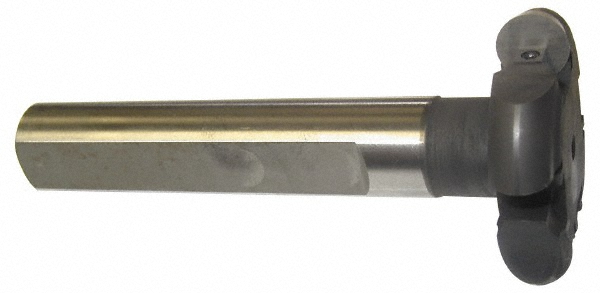

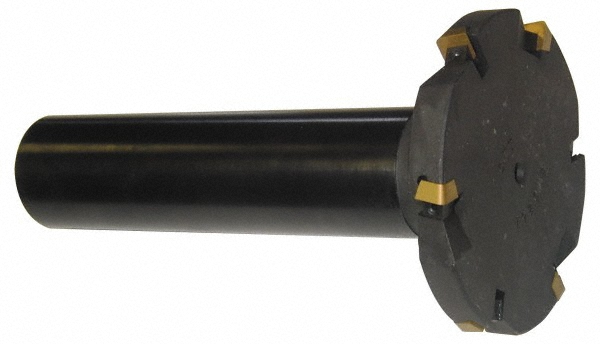

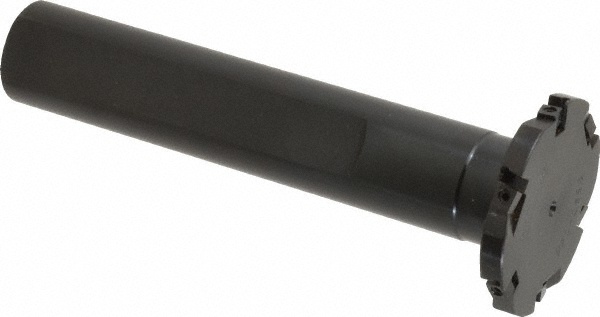

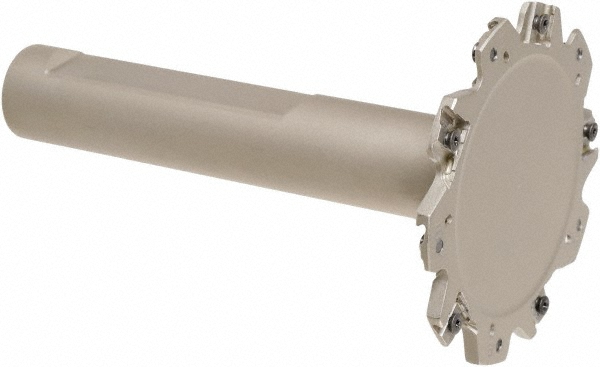

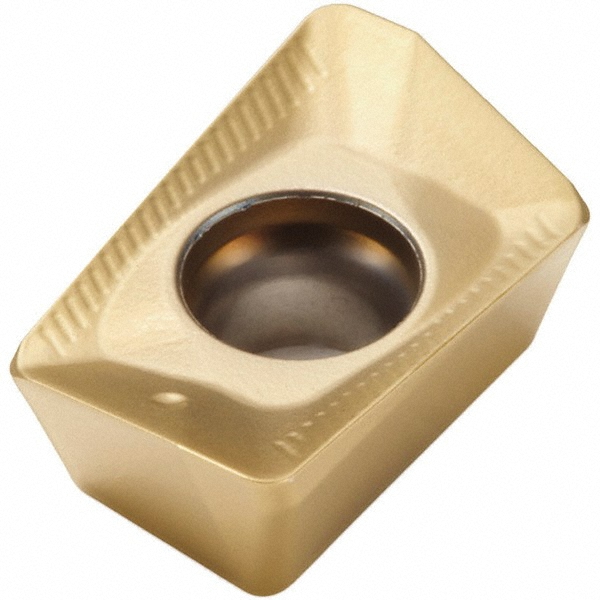

Screw, Uses 4 Inserts, LNET Inserts, 8 Tooth
| Connection Type | Weldon |
|---|---|
| Cutting Width (Inch) | 1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Cutter Diameter (Decimal Inch) | 2.0000 |
| Cutter Diameter (Inch) | 2 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 3.9810 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Compatible Insert Style | LNET |
| Compatible Insert Size Code | 083504 |
| Series | ETS-LN08 |
| Toolholder Style | ETS-LN08 |
| Cutting Radius (Fractional Inch) | 1/64 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.2500 |
| Minimum Cutting Width (Inch) | 1/4 |
| Maximum Cutting Width (Decimal Inch) | 0.2690 |
| Minimum Cutting Diameter (mm) | 50.80 |
| UNSPSC Code | 23241629 |
| Weldon Flat | Yes |

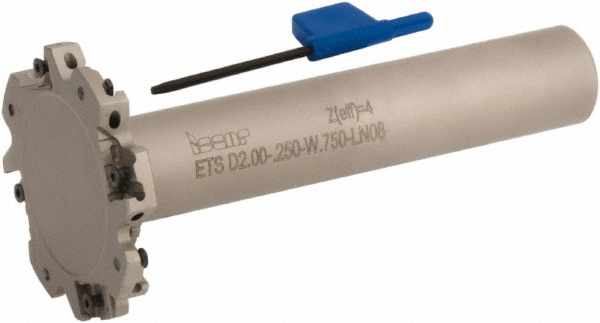

| Manufacturers Catalog Number | ETS D2.00-.250-W.750-LN08 |
| Overall Height (Decimal Inch) | 4.2500 |
| Insert Inscribed Circle (mm) | 6.85 |
| Number Of Teeth | 8 |

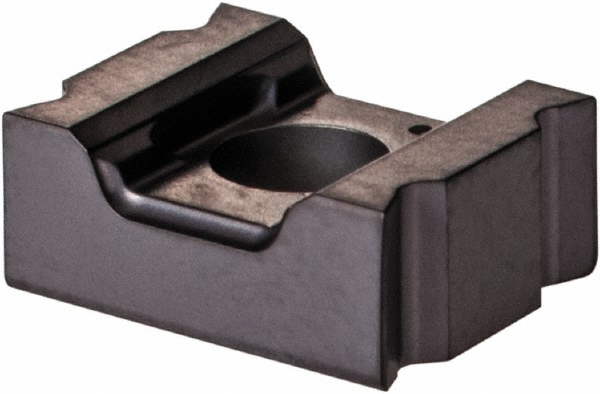

| Complete Insert Compatibility | LNET 083504-TN-N |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 45386927 |
