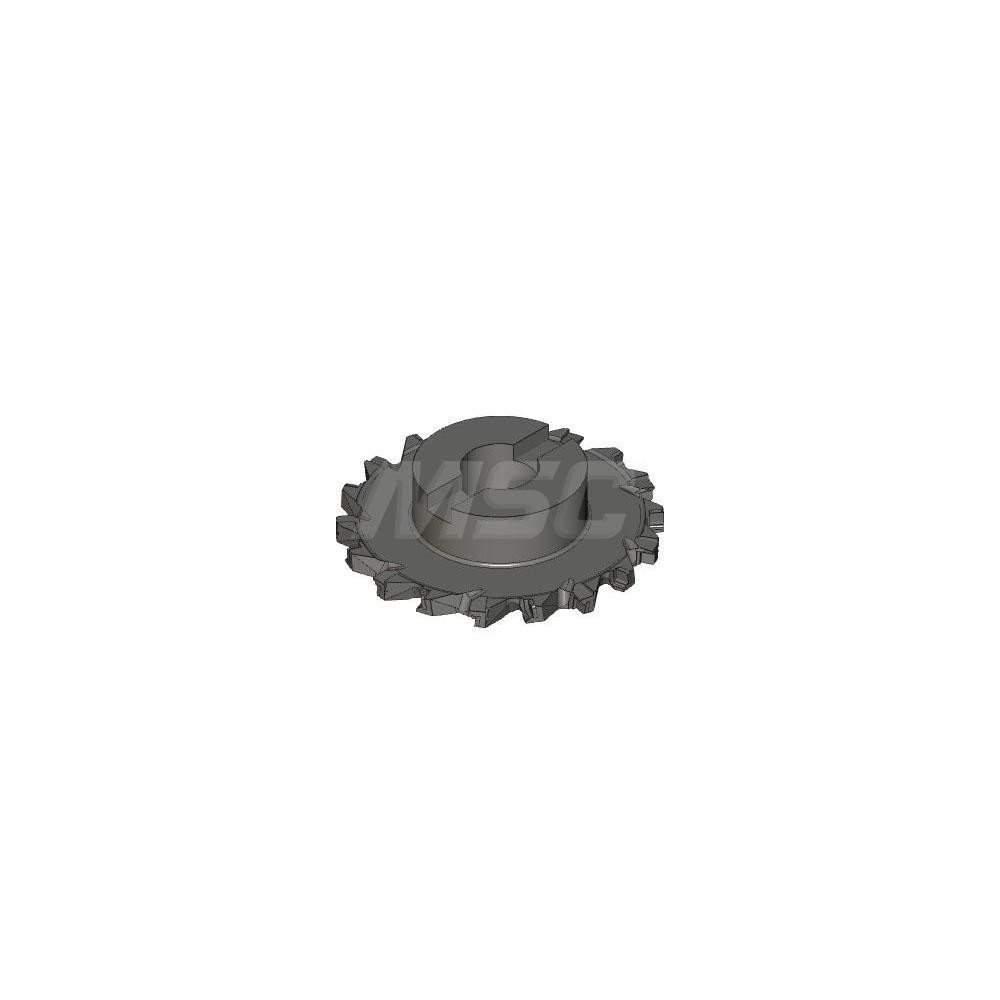

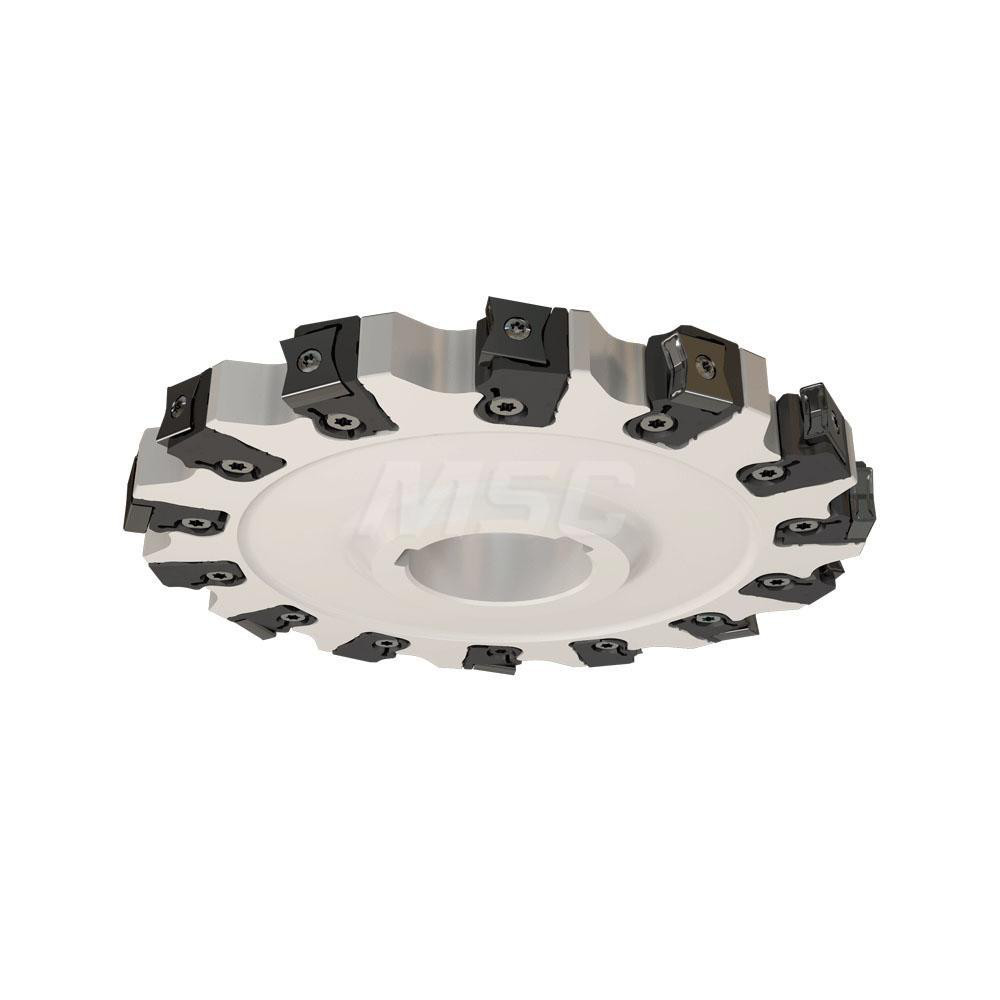

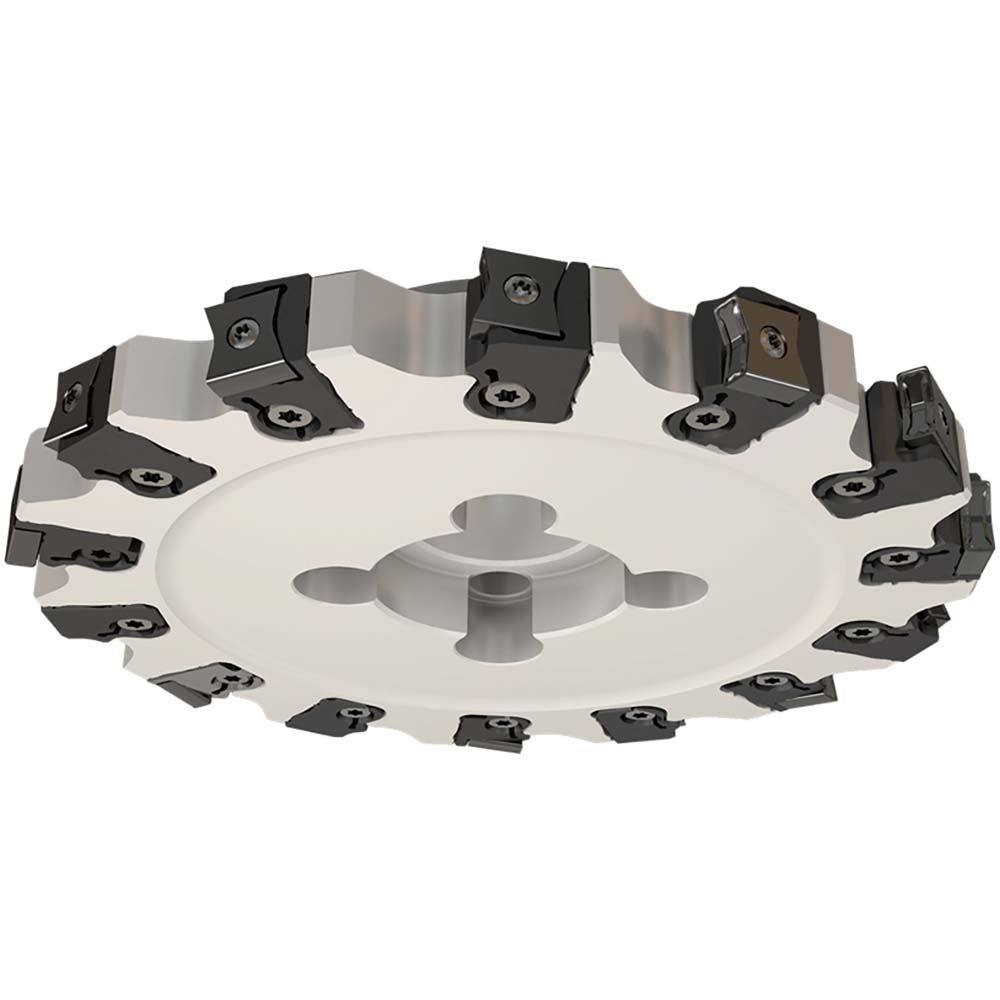

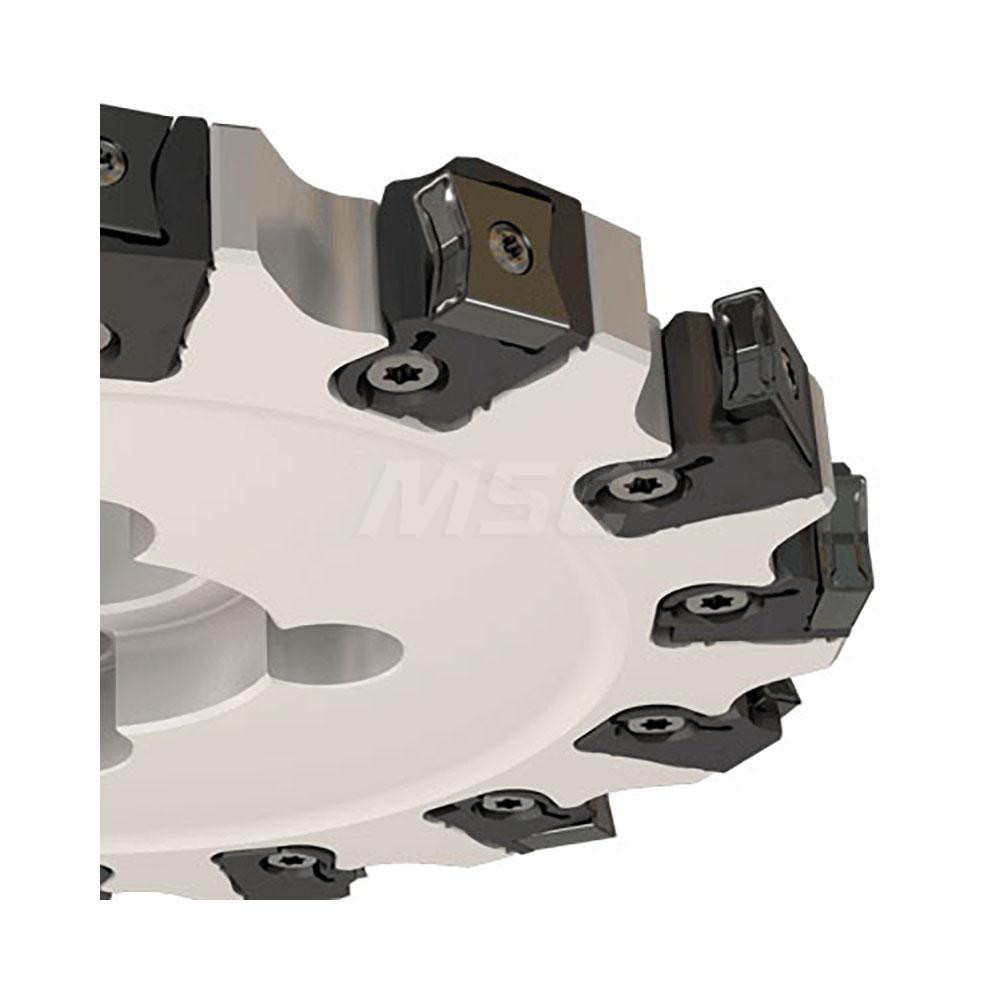

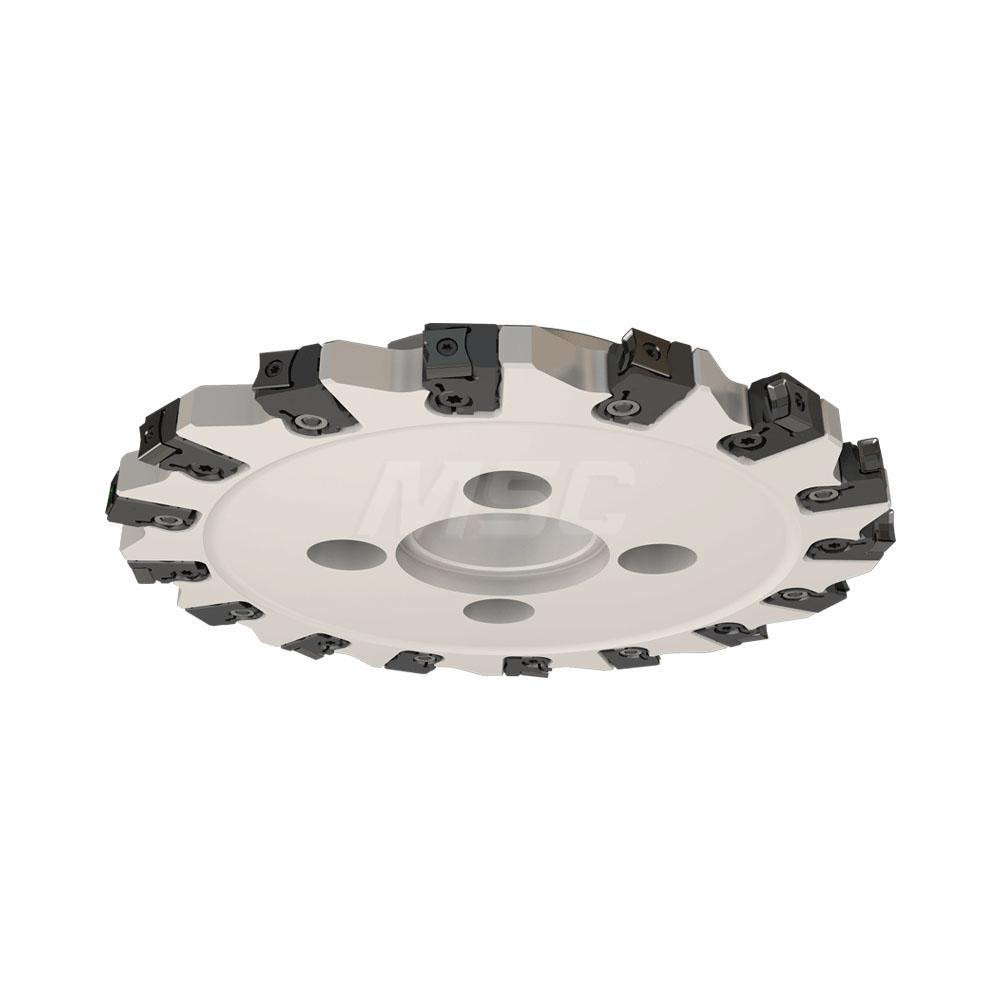

Cartridge, Uses 8 Inserts, LNAT Inserts, 16 Tooth, Staggered Teeth
| Connection Type | Shell Mount C |
|---|---|
| Cutting Width (mm) | 25.60 |
| Maximum Depth of Cut (Decimal Inch) | 2.2835 |
| Maximum Depth of Cut (mm) | 58.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 60.00 |
| Hole Diameter (Decimal Inch) | 2.3622 |
| Cutter Diameter (Decimal Inch) | 9.8425 |
| Cutter Diameter (mm) | 250.00 |
| Shank Diameter (mm) | 60.00 |
| Insert Holding Method | Cartridge |
| Number Of Cutter Inserts | 8 |
| Compatible Insert Style | LNAT |
| Compatible Insert Size Code | 150608 |
| Tooth Type | Staggered |
| Series | FDN-CAPM15 |
| Toolholder Style | FDN-CAPM15 |
| Hub Diameter (Decimal Inch) | 5.1969 |
| Hub Diameter (mm) | 132.00 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.7441 |
| Maximum Cutting Width (Decimal Inch) | 1.0079 |
| Maximum Cutting Width (mm) | 25.60 |
| Minimum Cutting Diameter (mm) | 250.00 |
| UNSPSC Code | 23241629 |
| Manufacturers Catalog Number | FDN D250-1925-60R-CAPM15 |
| Number Of Teeth | 16 |
| Complete Insert Compatibility | LNAT 150608-N-MM-PM |
| Country of Origin | Israel |
| MSC Number | MSC# 45386596 |
