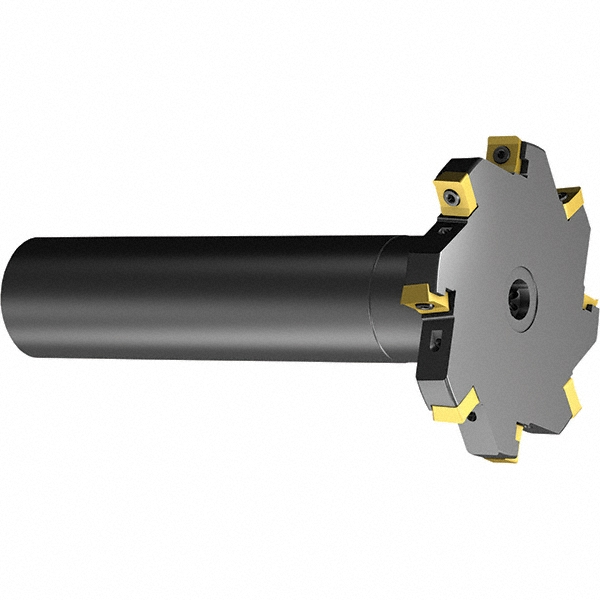

Uses 8 Inserts, XOMT Inserts, 8 Tooth, Straight Teeth
| Connection Type | CF4 |
|---|---|
| Cutting Width (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5472 |
| Maximum Depth of Cut (mm) | 13.90 |
| Hole Diameter (Mm) ( - 0 Decimals) | 44.00 |
| Cutter Diameter (Decimal Inch) | 1.9685 |
| Cutter Diameter (mm) | 50.00 |
| Shank Diameter (mm) | 44.00 |
| Shank Length (mm) | 42.00 |
| Number Of Cutter Inserts | 8 |
| Compatible Insert Style | XOMT |
| Compatible Insert Size Code | 060204 |
| Tooth Type | Straight |
| Series | FDN-CF4 |
| Toolholder Style | FDN-CF4 |
| Modular Connection Size | CF4 |
| Tool Application | Milling |
| Minimum Cutting Diameter (mm) | 50.00 |
| UNSPSC Code | 23241629 |
| Manufacturers Catalog Number | FDN D050-08-CF4-06 |
| Number Of Teeth | 8 |
| Complete Insert Compatibility | XOMT 060204-HQ |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 05352935 |
