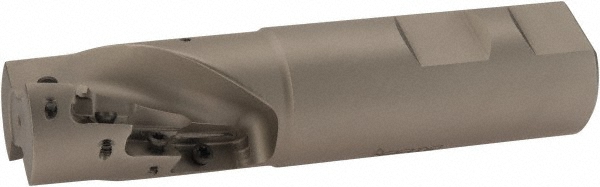

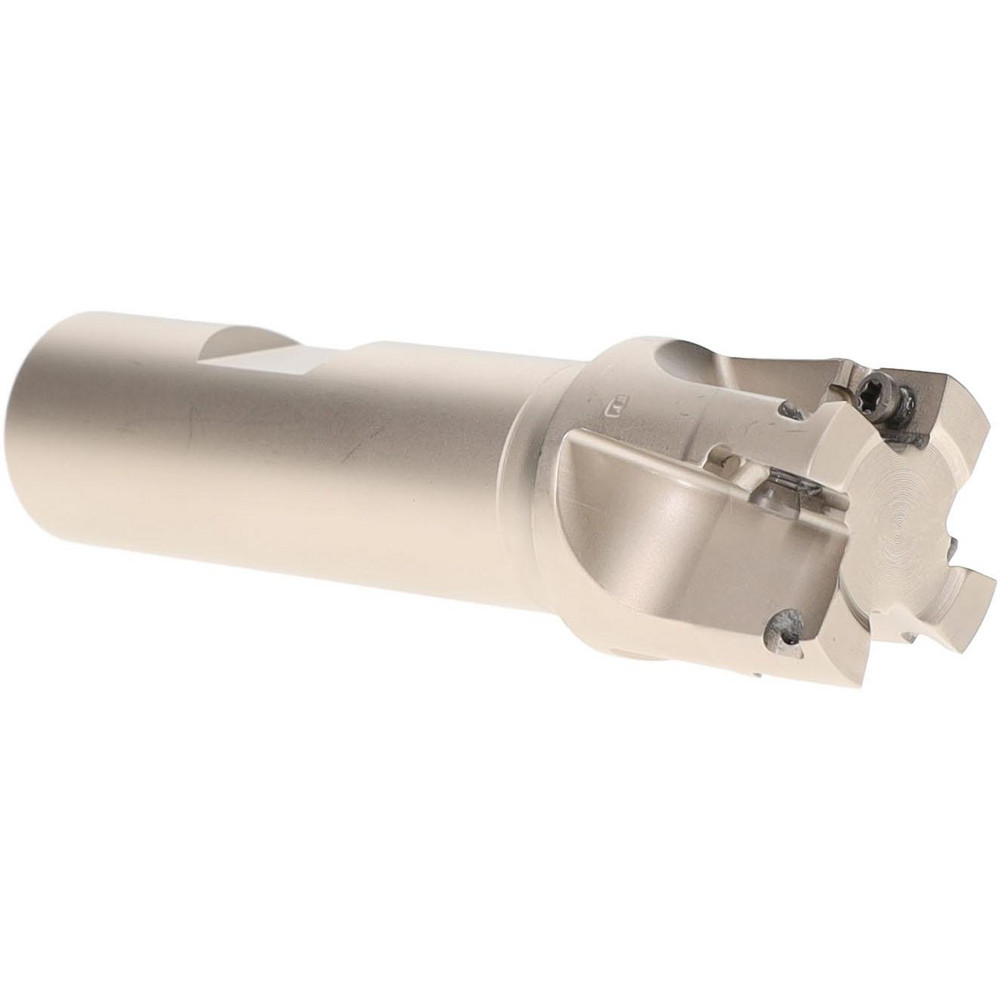

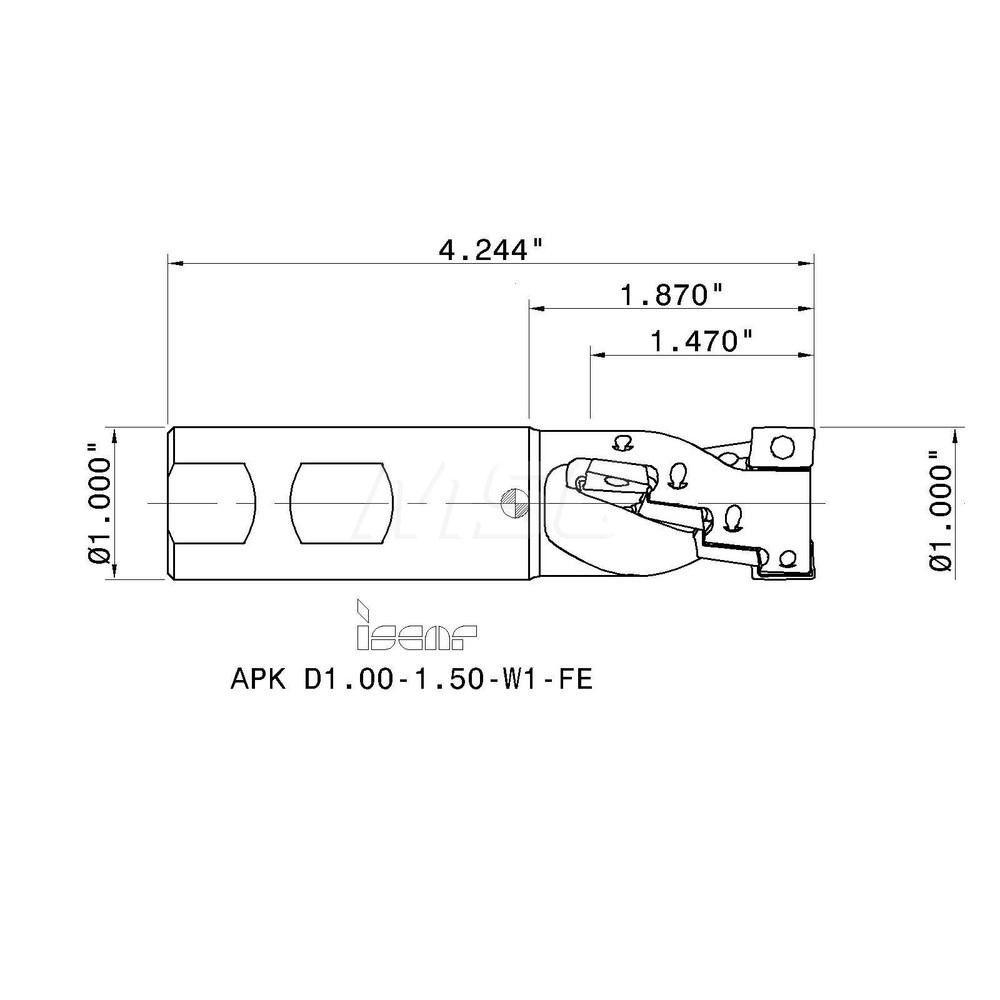

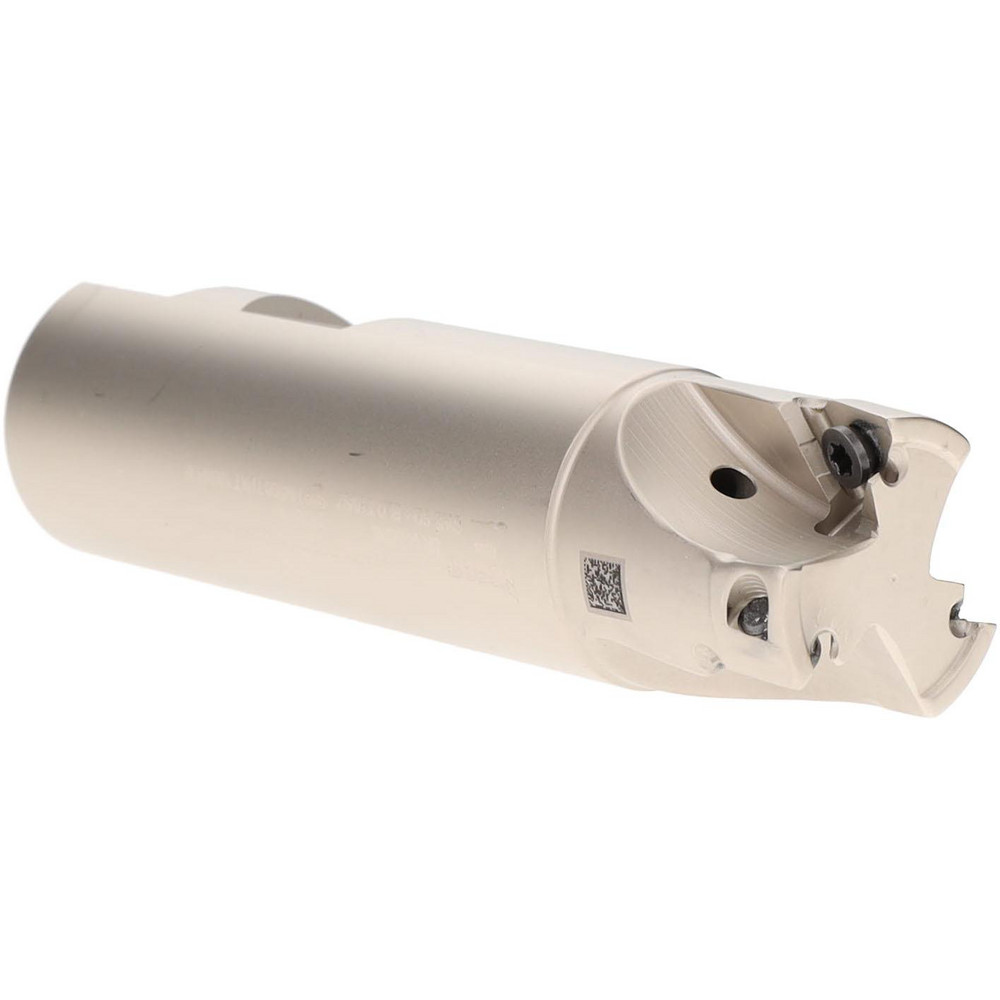

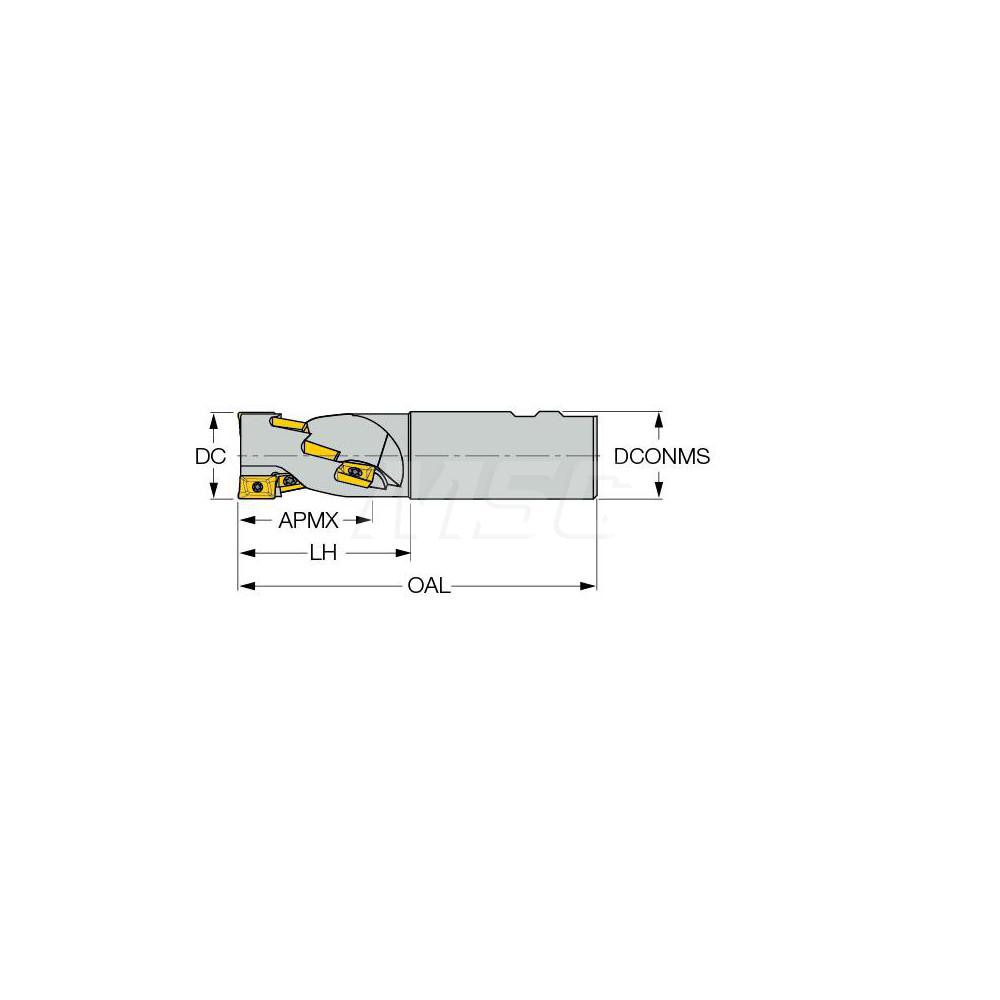

Uses (8) AP.T 1003.. Inserts, 4-1/4" OAL
| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 4.2500 |
| Maximum Depth of Cut (Decimal Inch) | 1.4700 |
| Cutter Style | APK-FE |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 4 |
| Series | Helimill |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 1.5000 |
| Head Length (Decimal Inch) | 1.87 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |

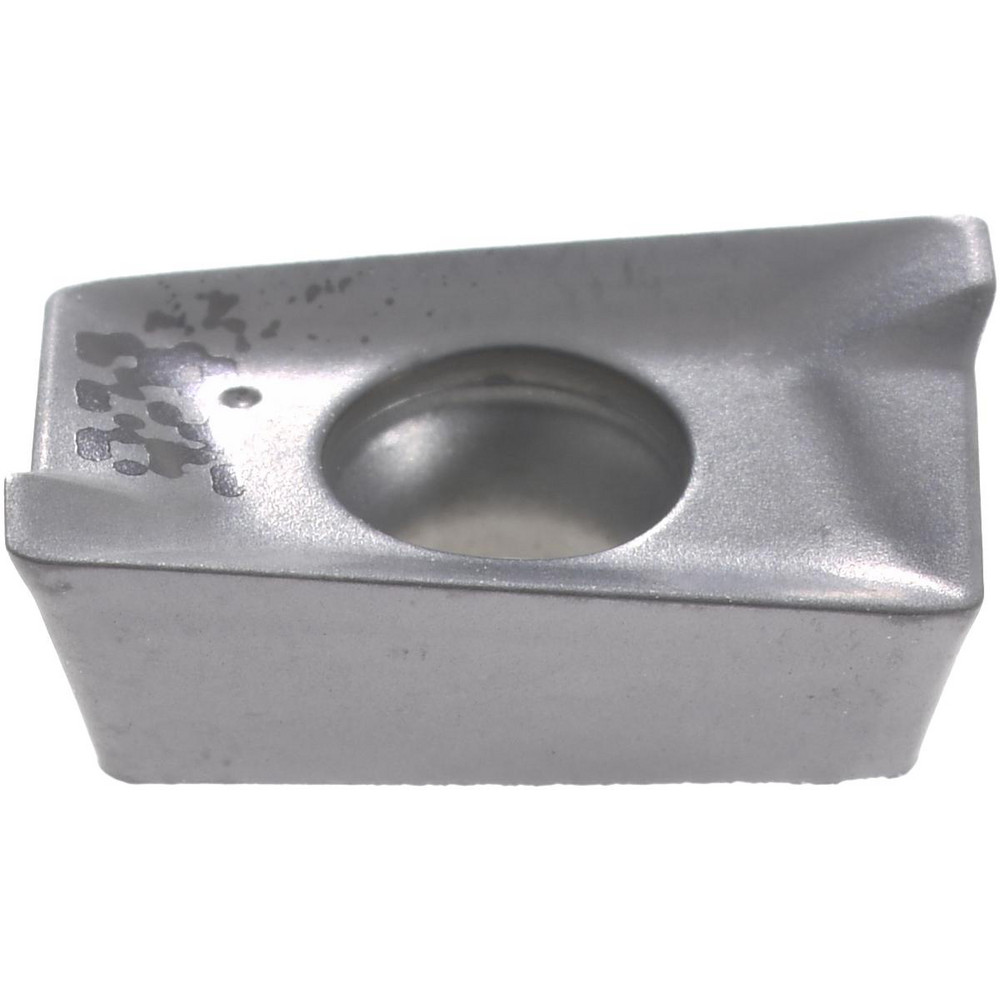

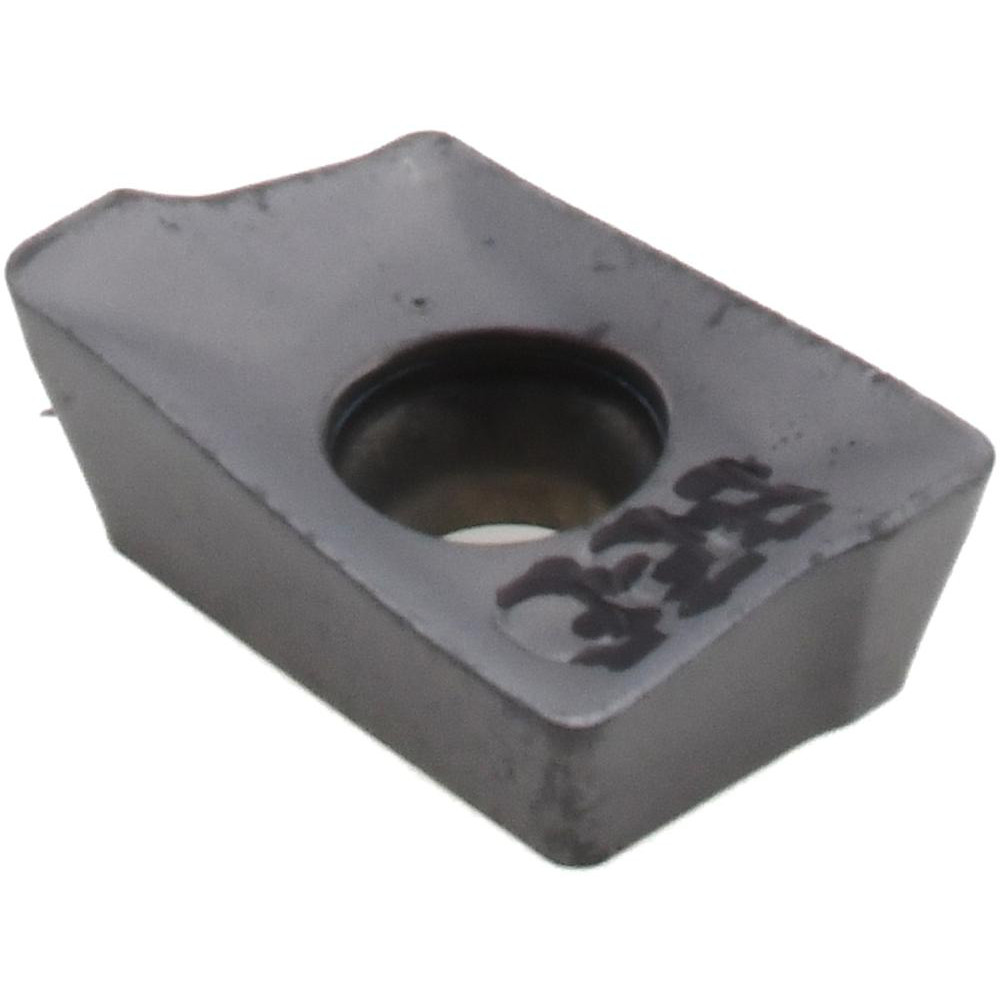

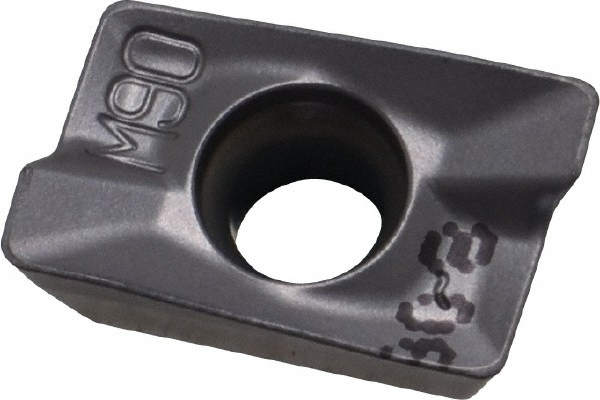

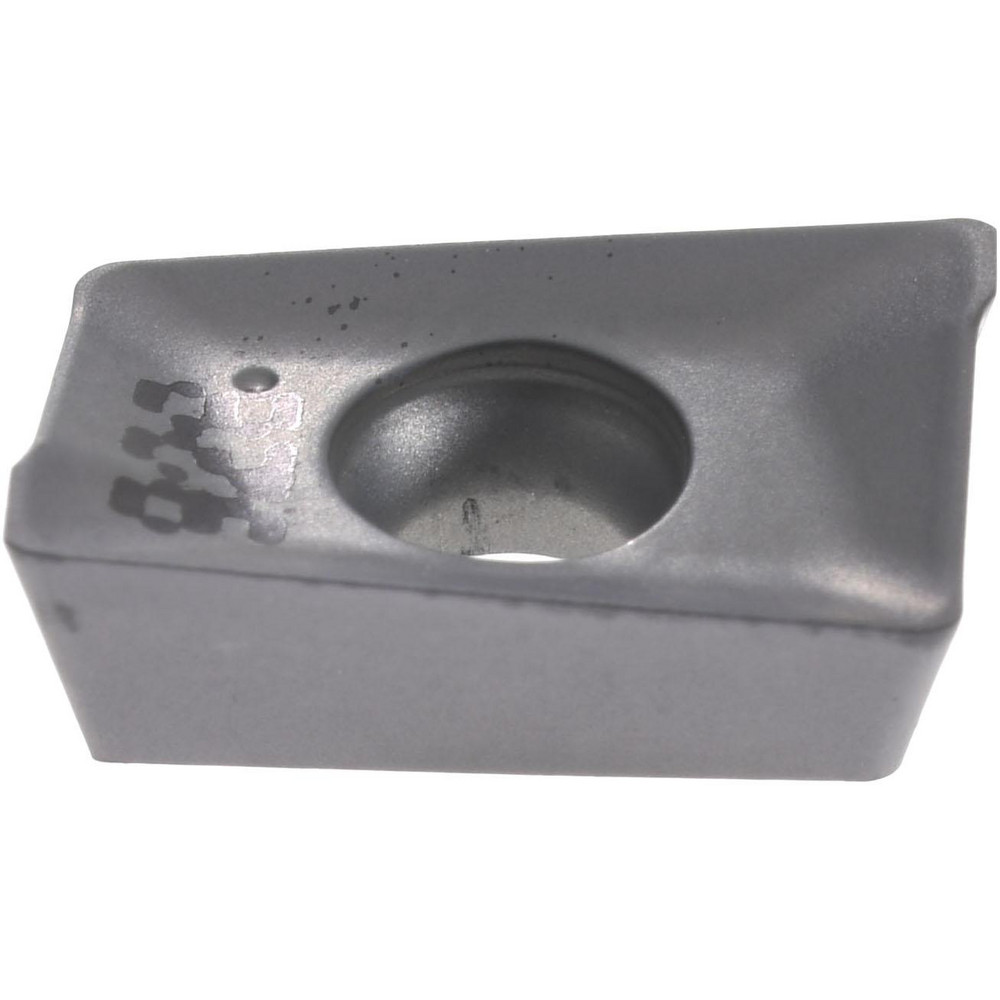

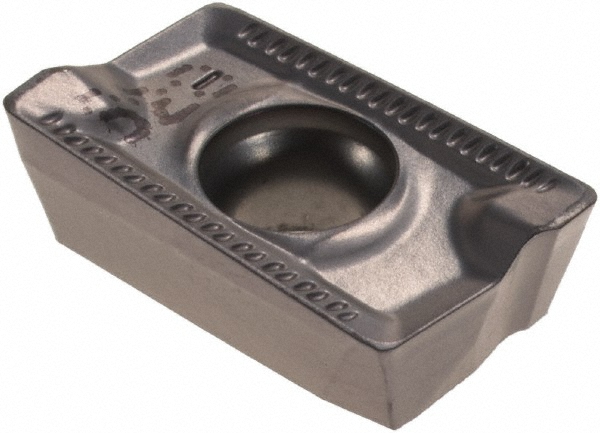

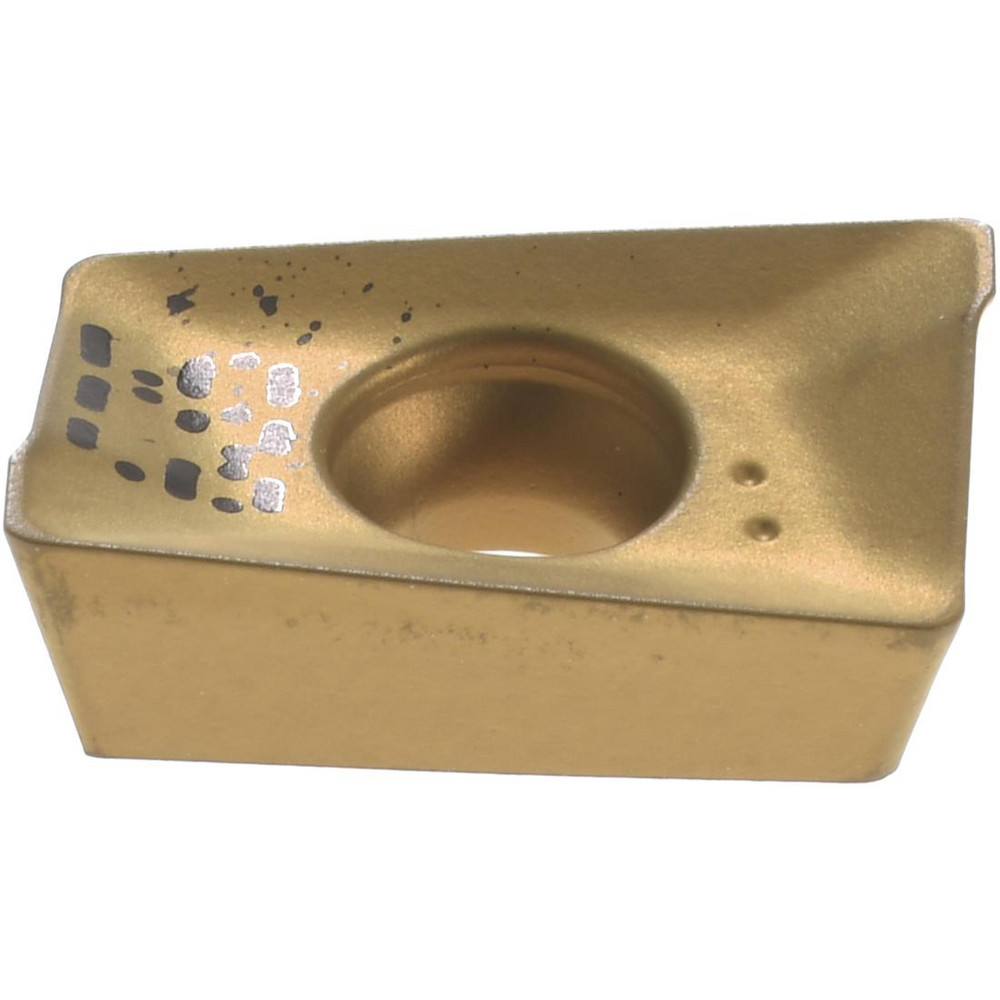

| Insert Compatibility | AP.T 1003.. |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | APK D1.00-1.50-W1-FE |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 8 |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 60840105 |
