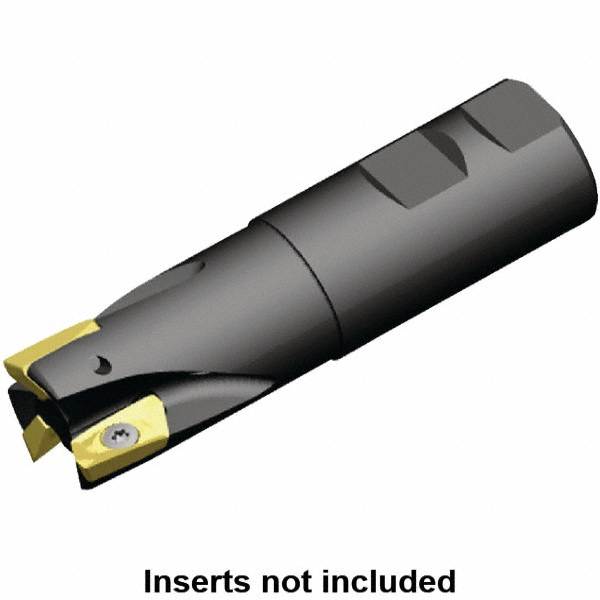

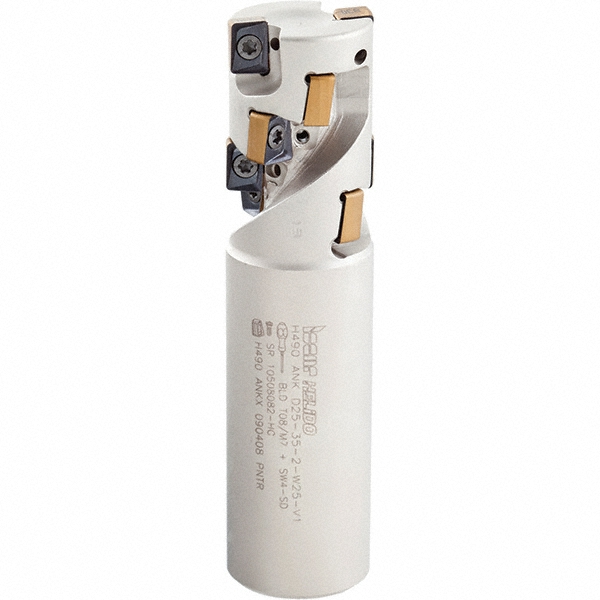

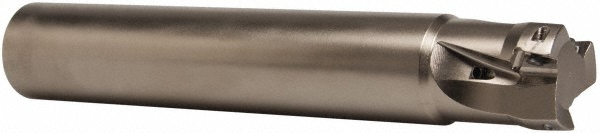

Uses (18) H490 ANKX 09.. Inserts, Through Coolant, 4.52" OAL
| Cutting Diameter | 1-1/4 |
|---|---|
| Overall Length (Decimal Inch) | 4.5200 |
| Maximum Depth of Cut (Decimal Inch) | 1.6800 |
| Cutter Style | H490 ANK-09 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Tool Material | Solid Carbide |
| Series | Helido |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.5600 |
| Head Length (Decimal Inch) | 1.96 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |

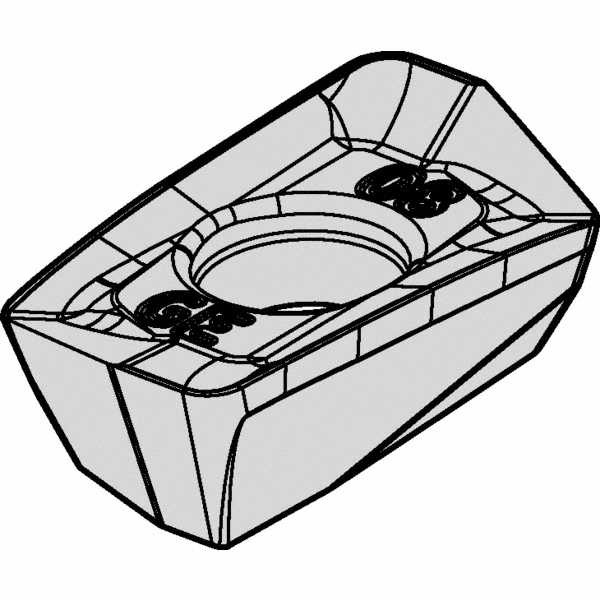

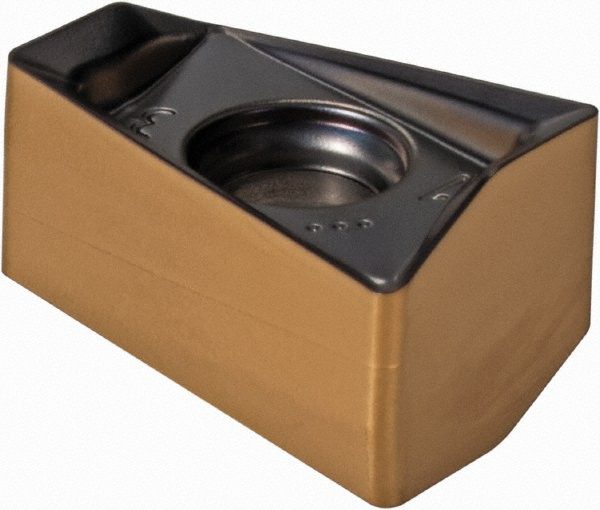

| Insert Compatibility | H490 ANKX 09.. |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 18 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 91148106 |
