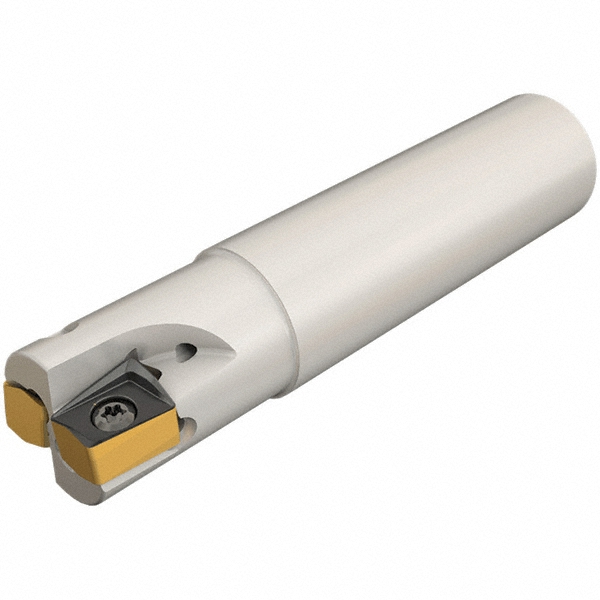

Uses (2) HM90 AP.. 1003.. Inserts, Through Coolant, 110 mm OAL

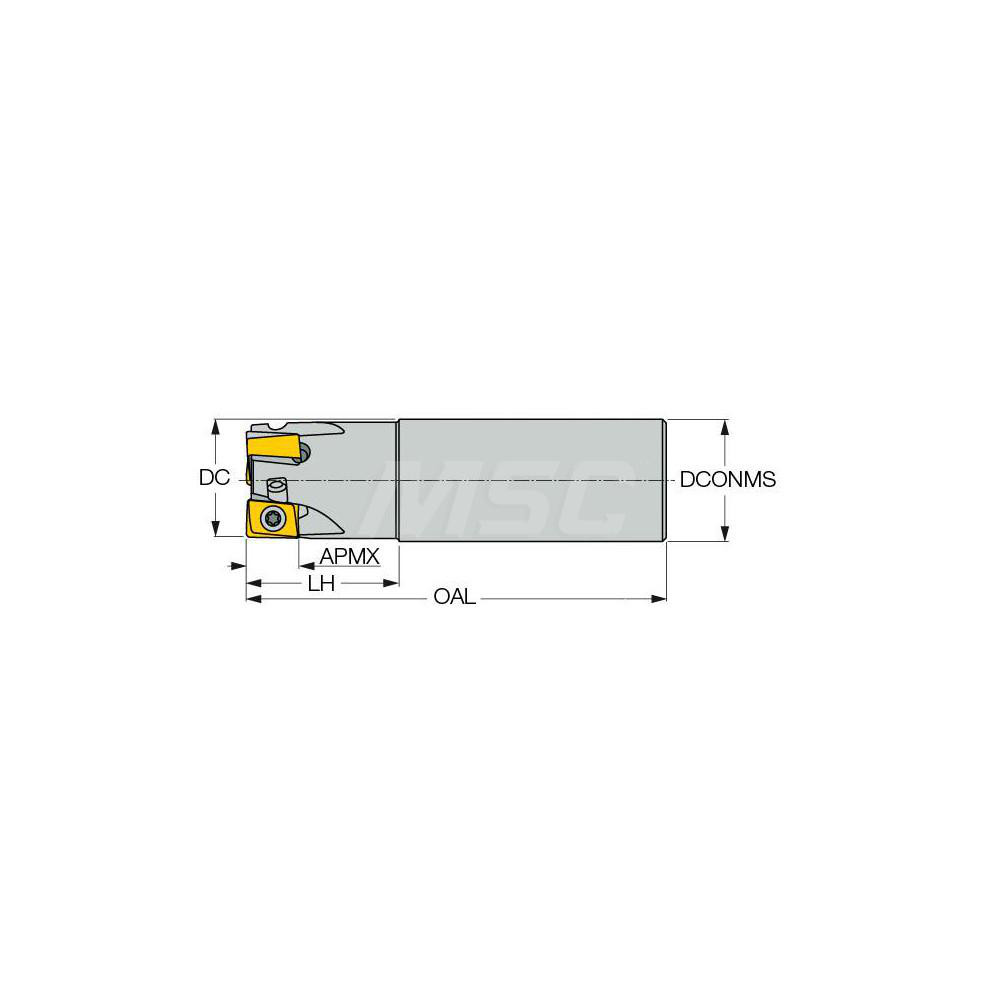

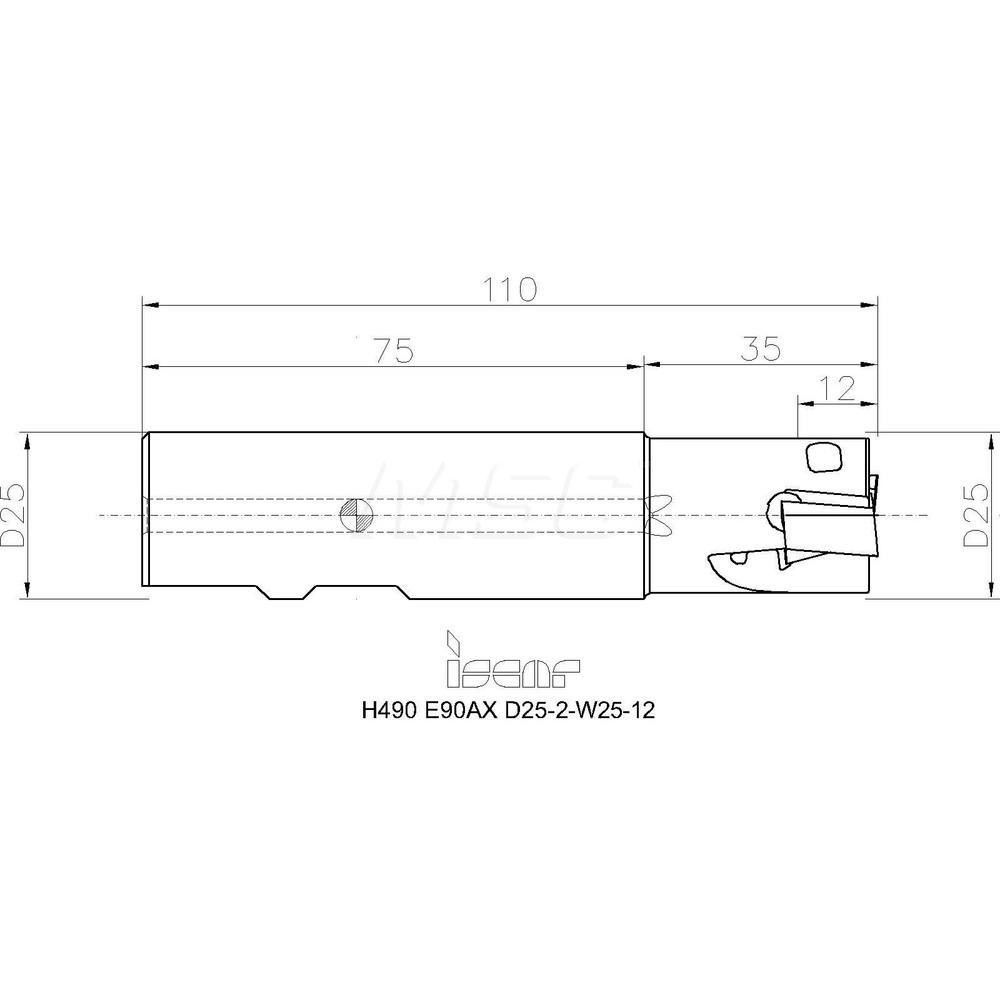

| Cutting Diameter (mm) | 25.00 |
|---|---|
| Overall Length (mm) | 110.00 |
| Maximum Depth of Cut (mm) | 12.00 |
| Cutter Style | H490 E90AX-12 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 25.00 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 1.5 |
| Tool Material | Solid Carbide |
| Series | Helido |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (mm) | 75.00 |
| Head Length (mm) | 35.00 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Rake | Positive |
| Insert Compatibility | HM90 AP.. 1003.. |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 05460076 |
