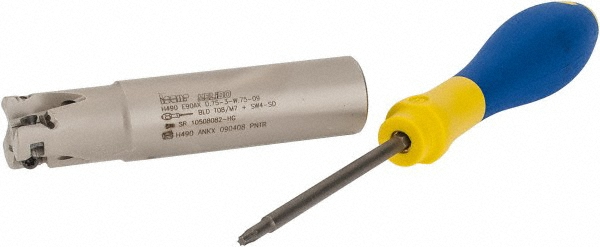

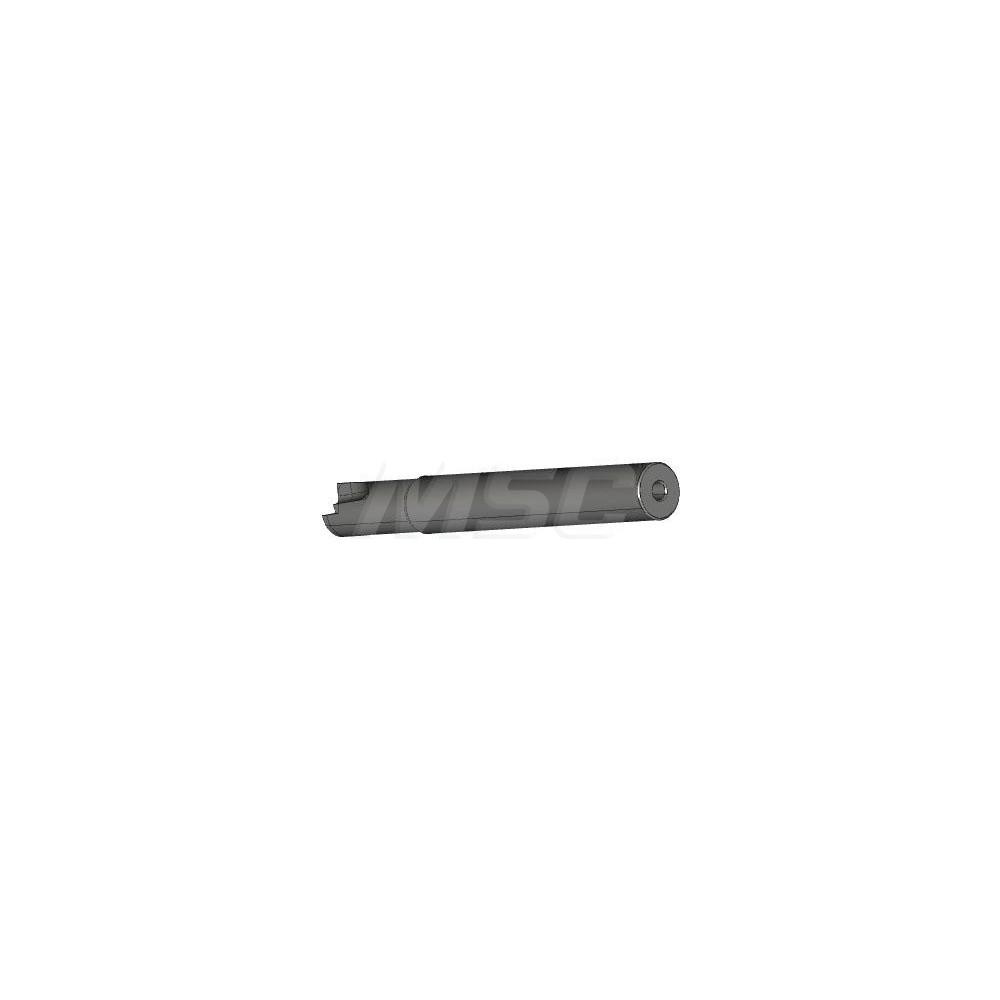

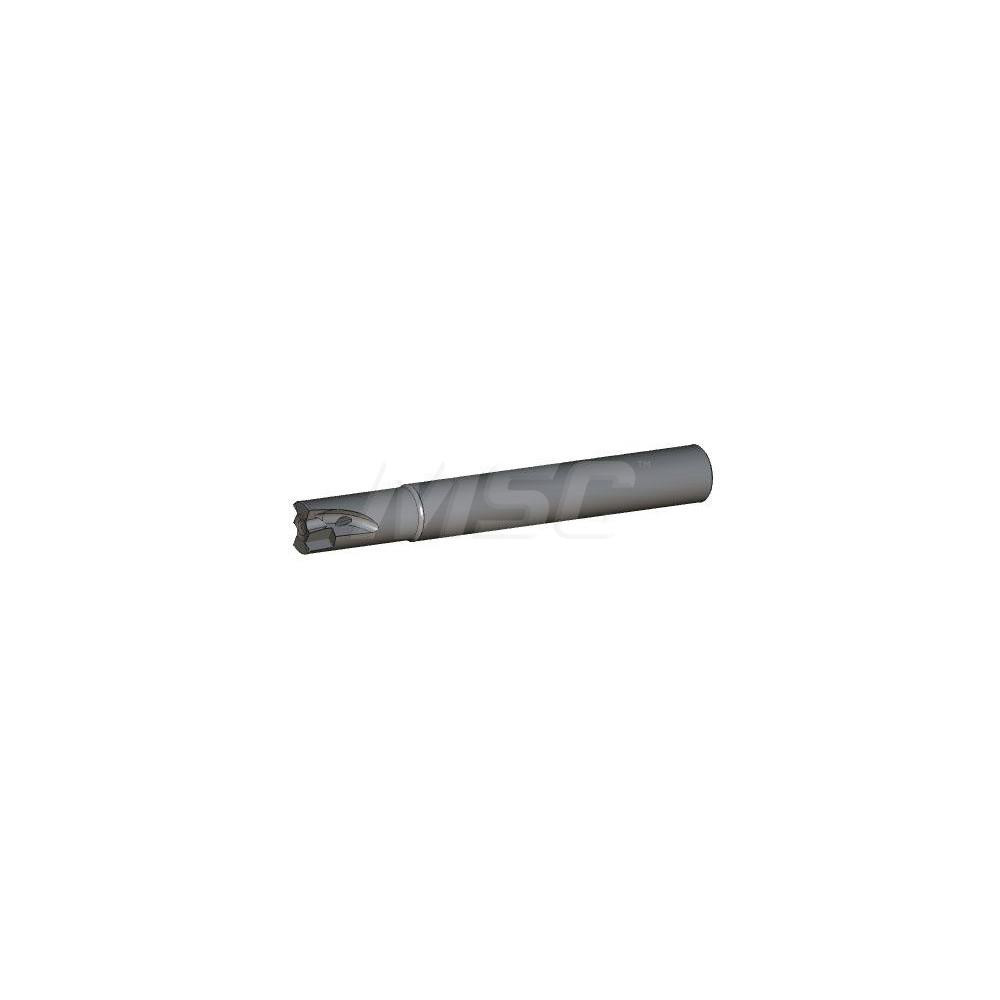

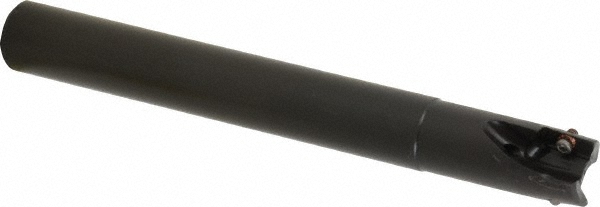

Uses (2) H490 AN.X 09 Inserts, Through Coolant, 6" OAL

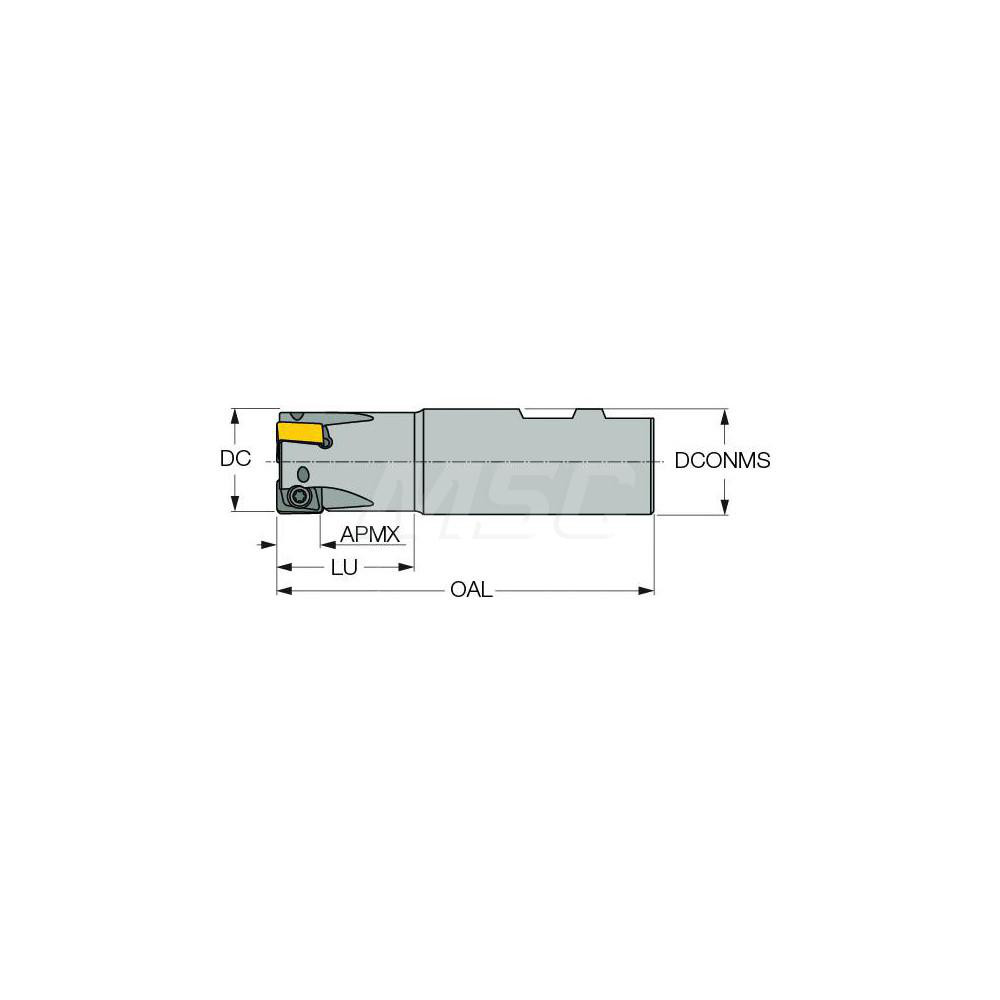

| Cutting Diameter | 3/4 |
|---|---|
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutter Style | H490 E90AX-09 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Tool Material | Solid Carbide |
| Series | Helido |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 4.4300 |
| Head Length (Decimal Inch) | 1.57 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Insert Compatibility | H490 AN.X 09 |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | H490 E90AXD.75-2-C.75-09B |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 1.5700 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 69245454 |
