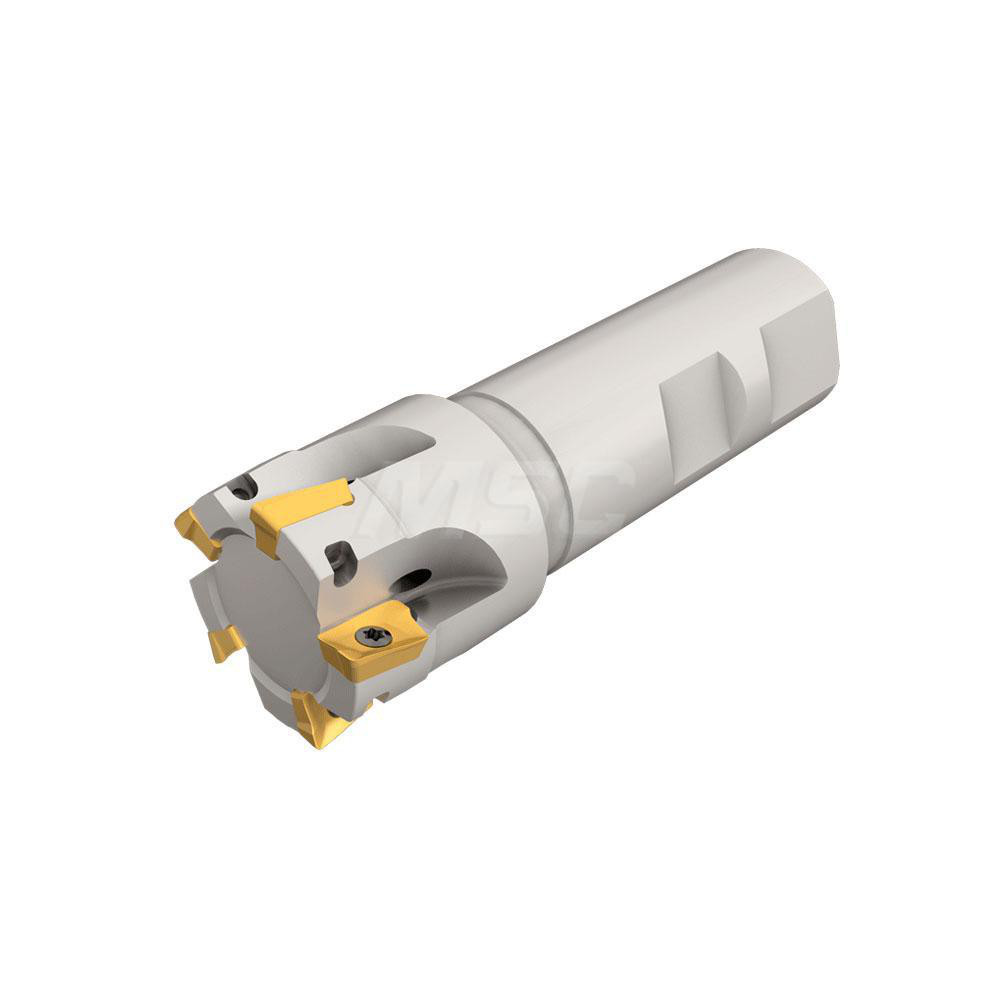

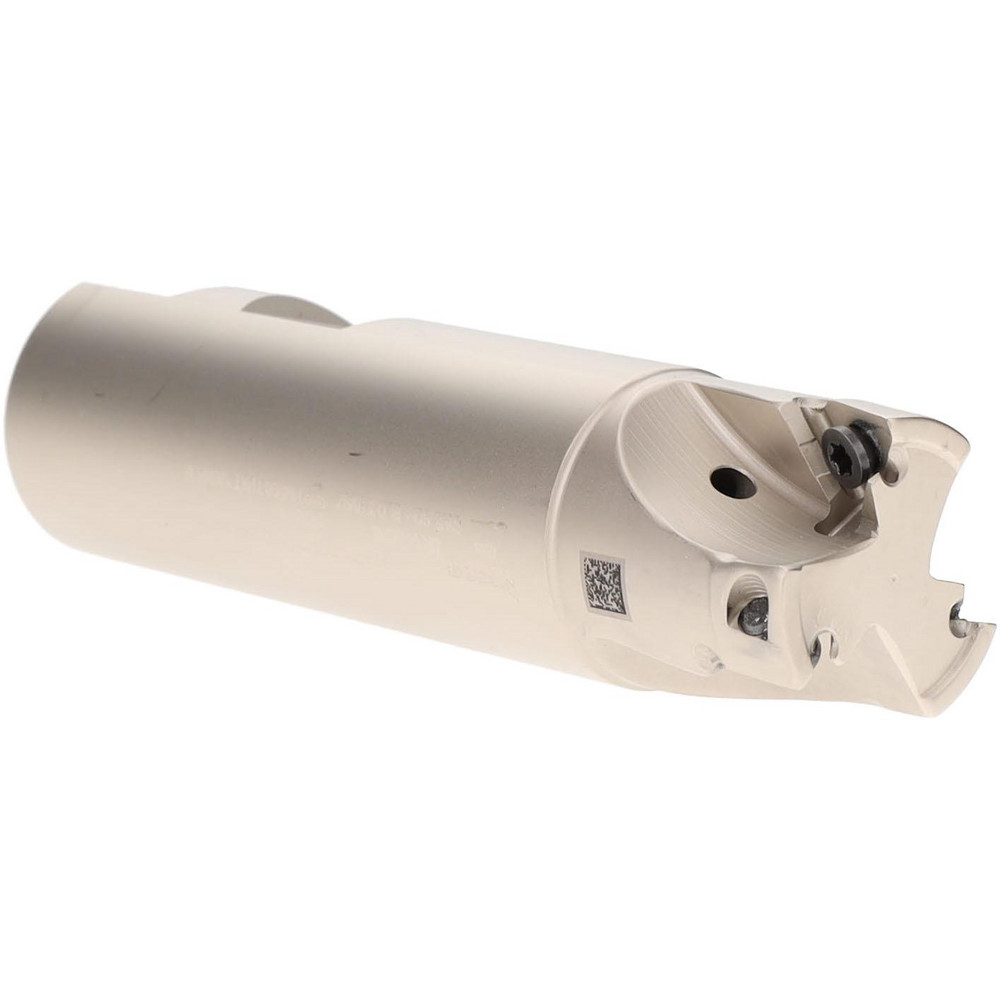

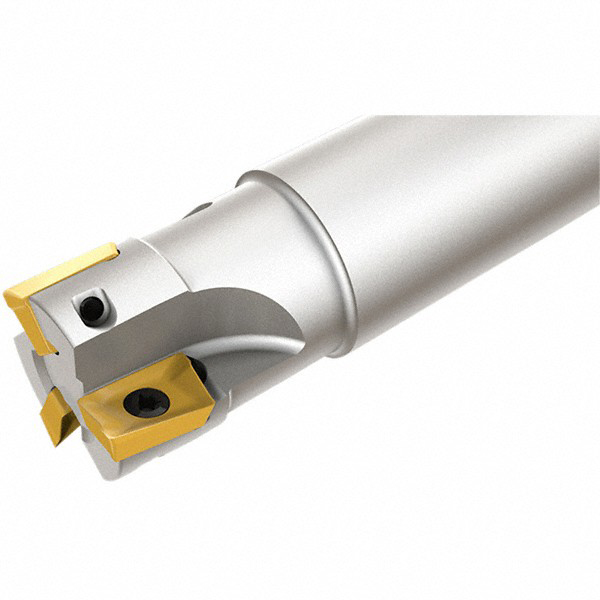

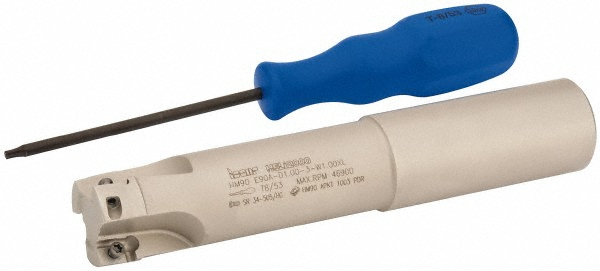

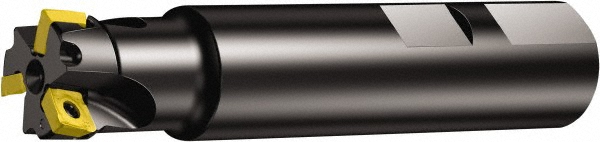

Uses (3) AP..1003..;HM90 AP..1003.. Inserts, 3-3/4" OAL
| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 3.7500 |
| Overall Length (Inch) | 3-3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Cutter Style | HM90 E90A-10 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |

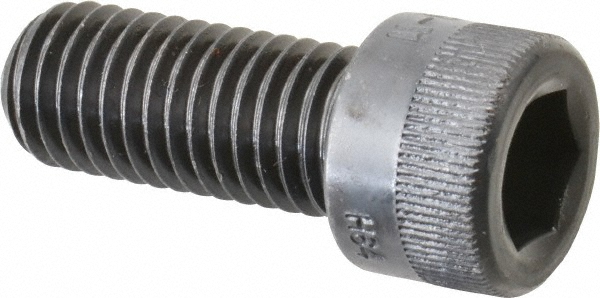

| Insert Holding Method | Screw |
| Maximum Ramping Angle | 2.5 |
| Tool Material | Solid Carbide |
| Series | Heli2000 |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.7500 |
| Head Length (Decimal Inch) | 1 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |

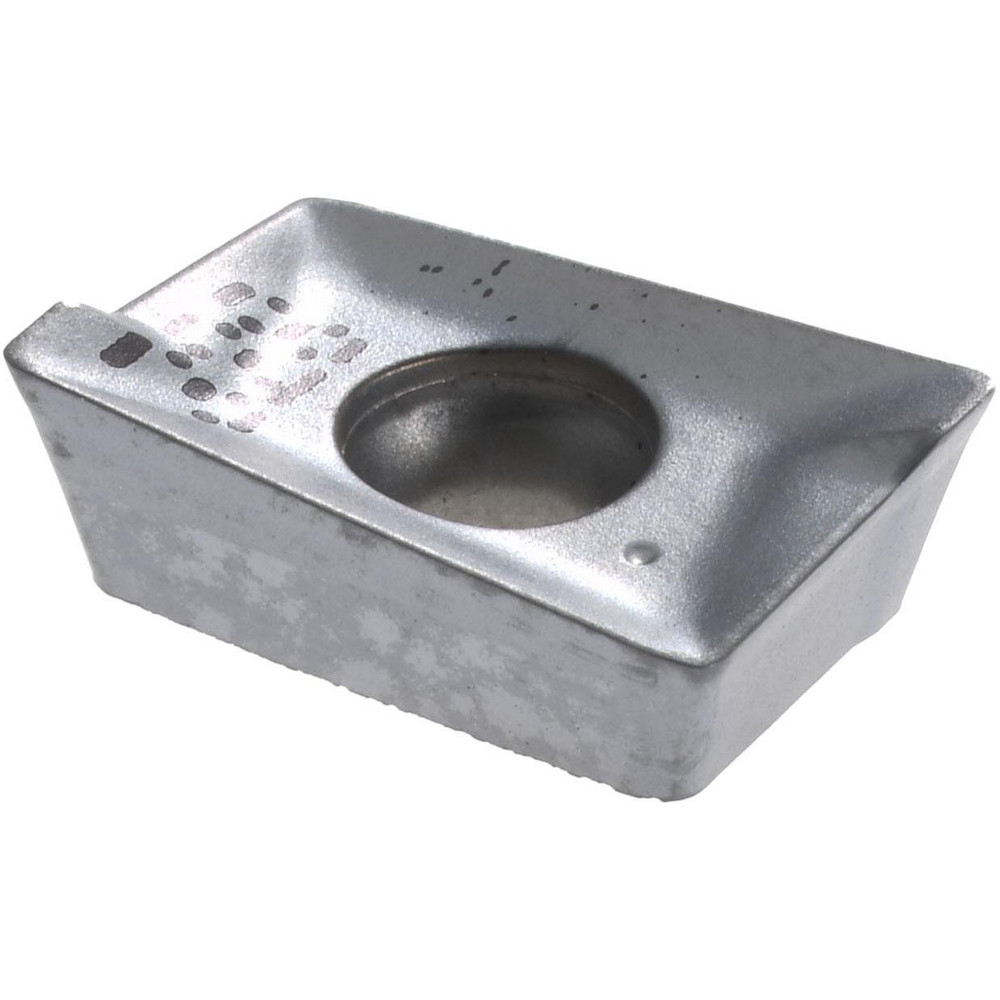

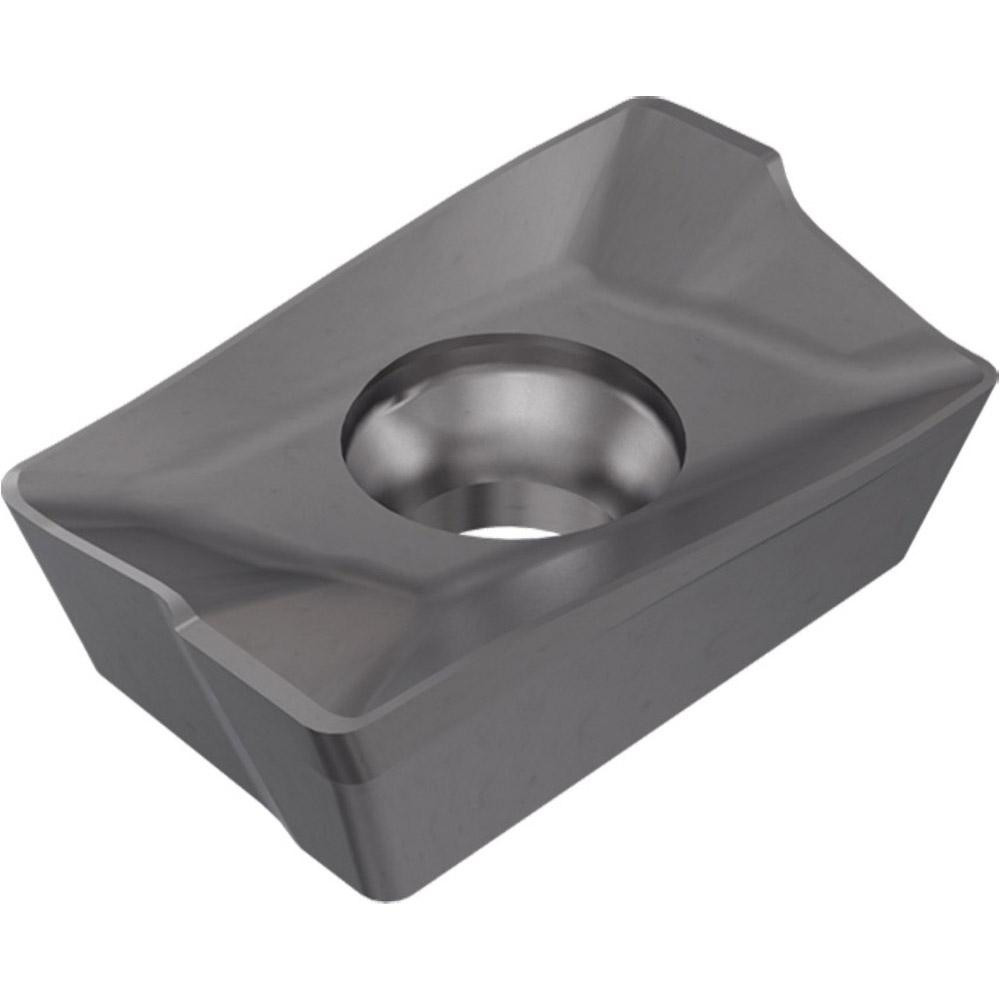

| Insert Compatibility | AP..1003..; HM90 AP..1003.. |
| UNSPSC Code | 27112803 |

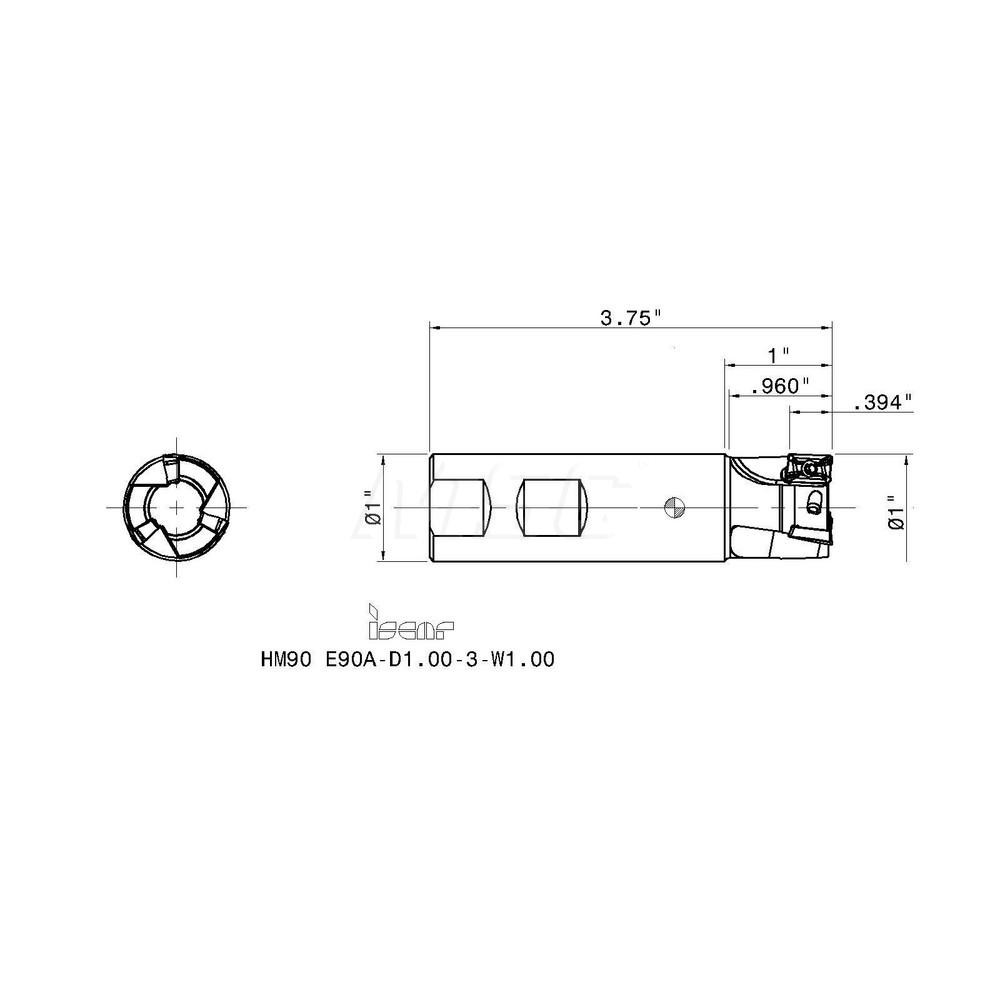

| Manufacturers Catalog Number | HM90 E90A-D1.00-3-W1.00 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 0.9600 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 60841145 |
