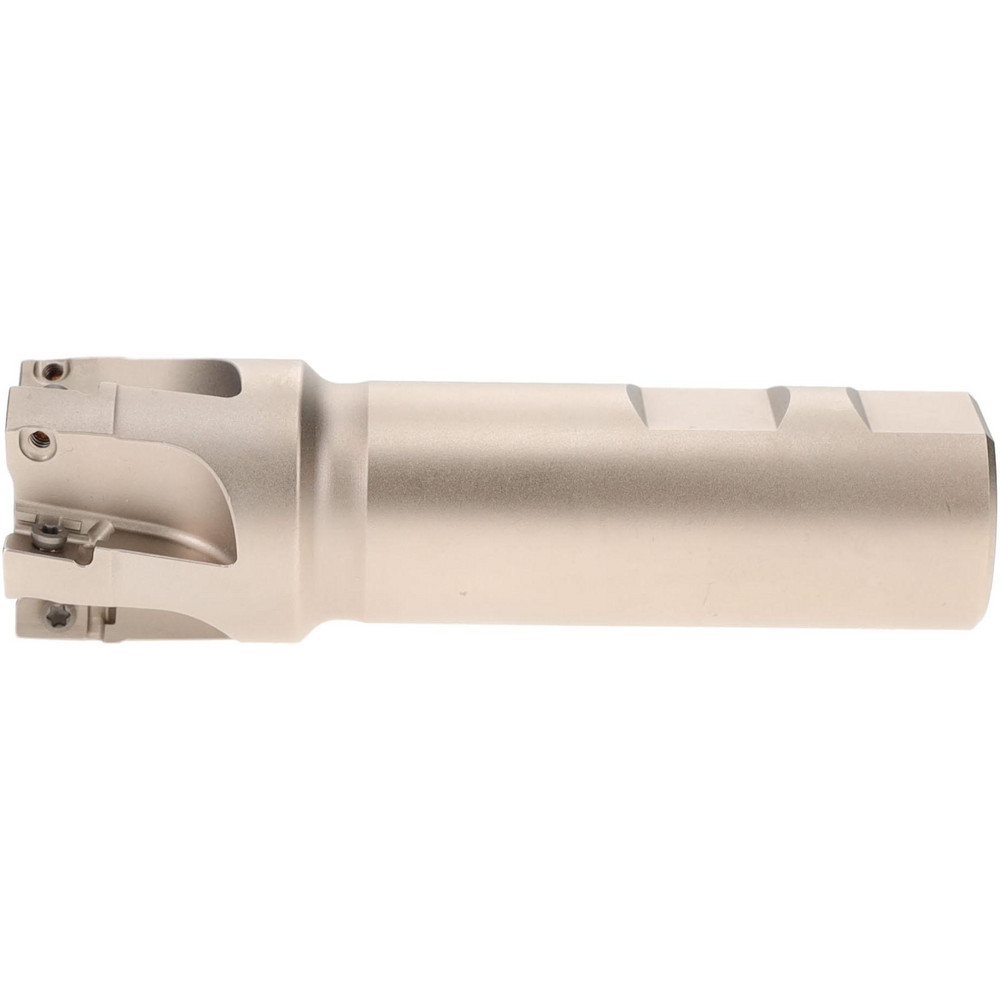

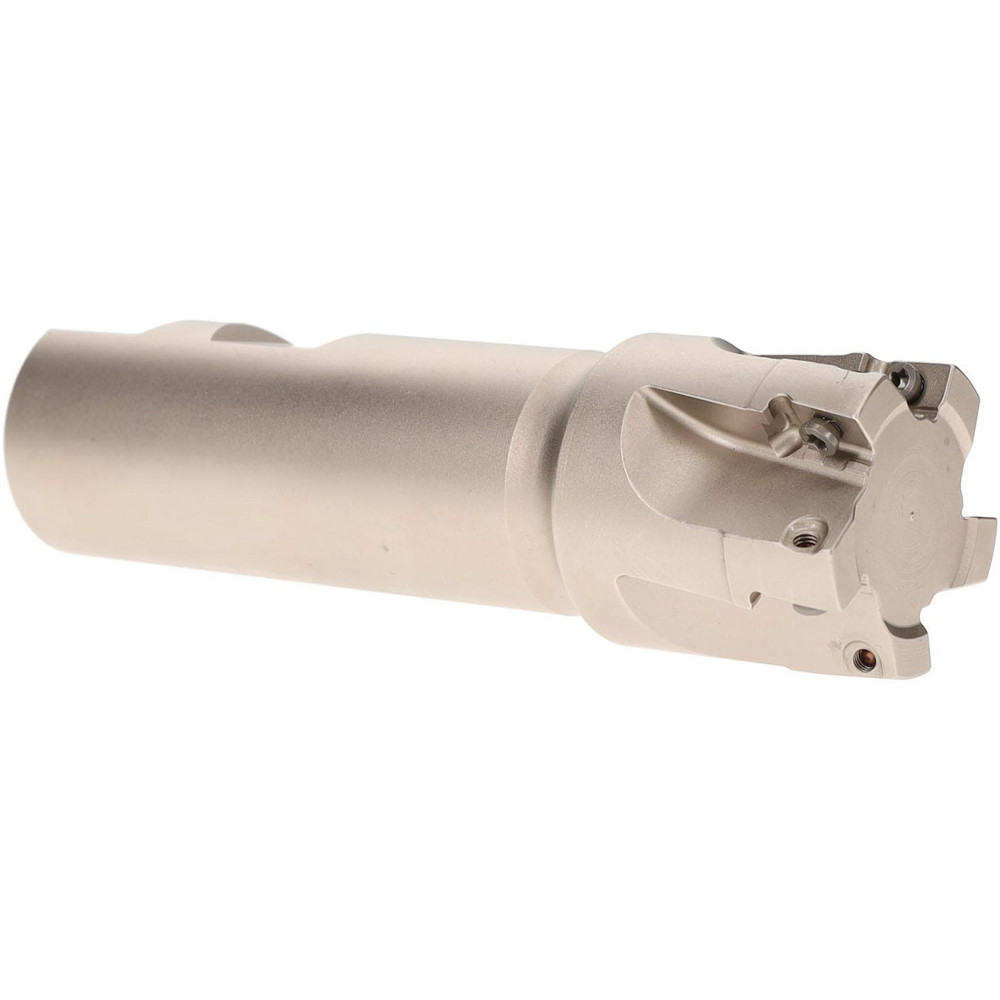

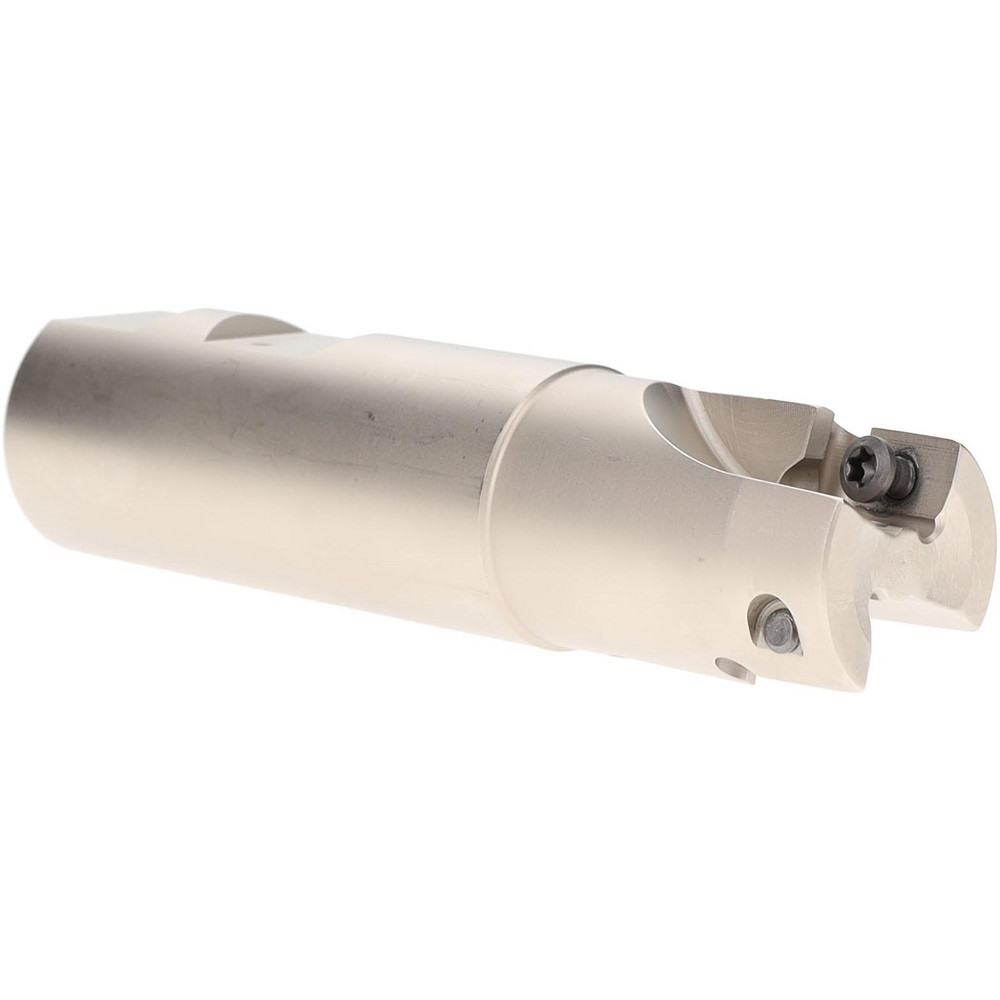

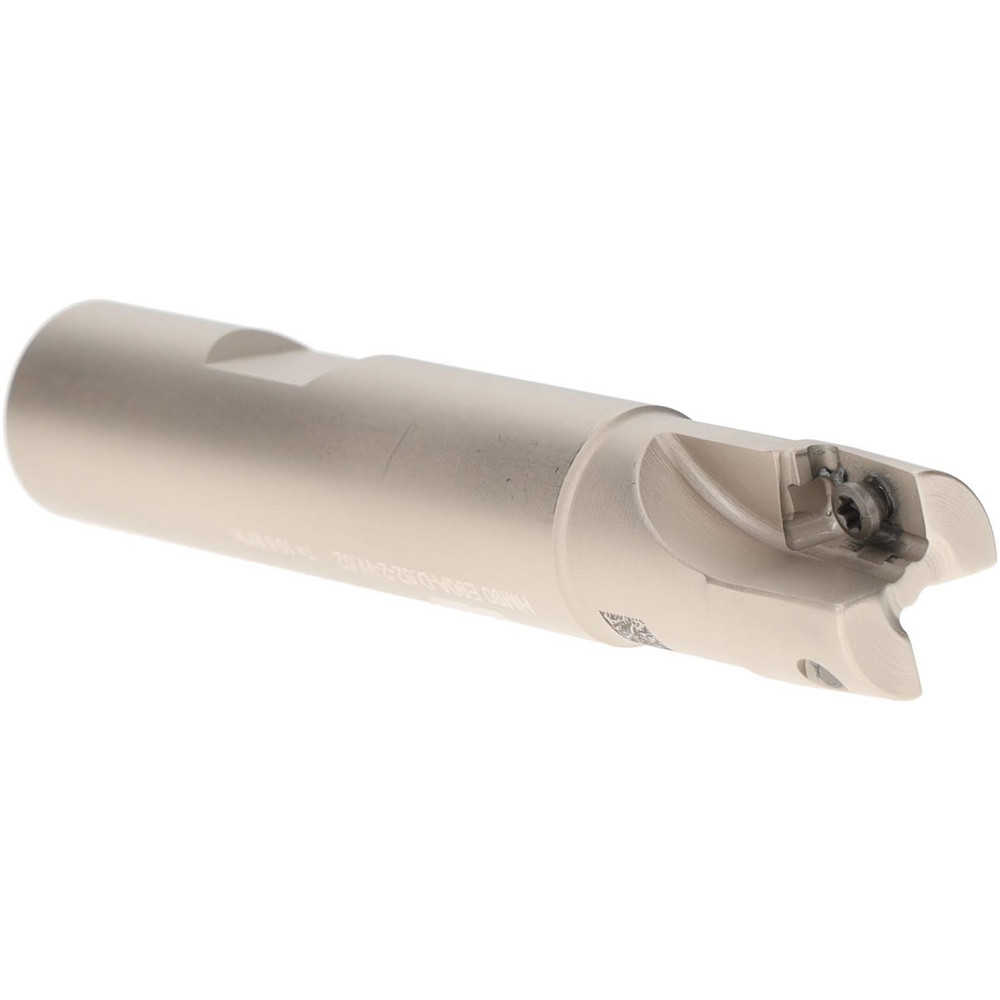

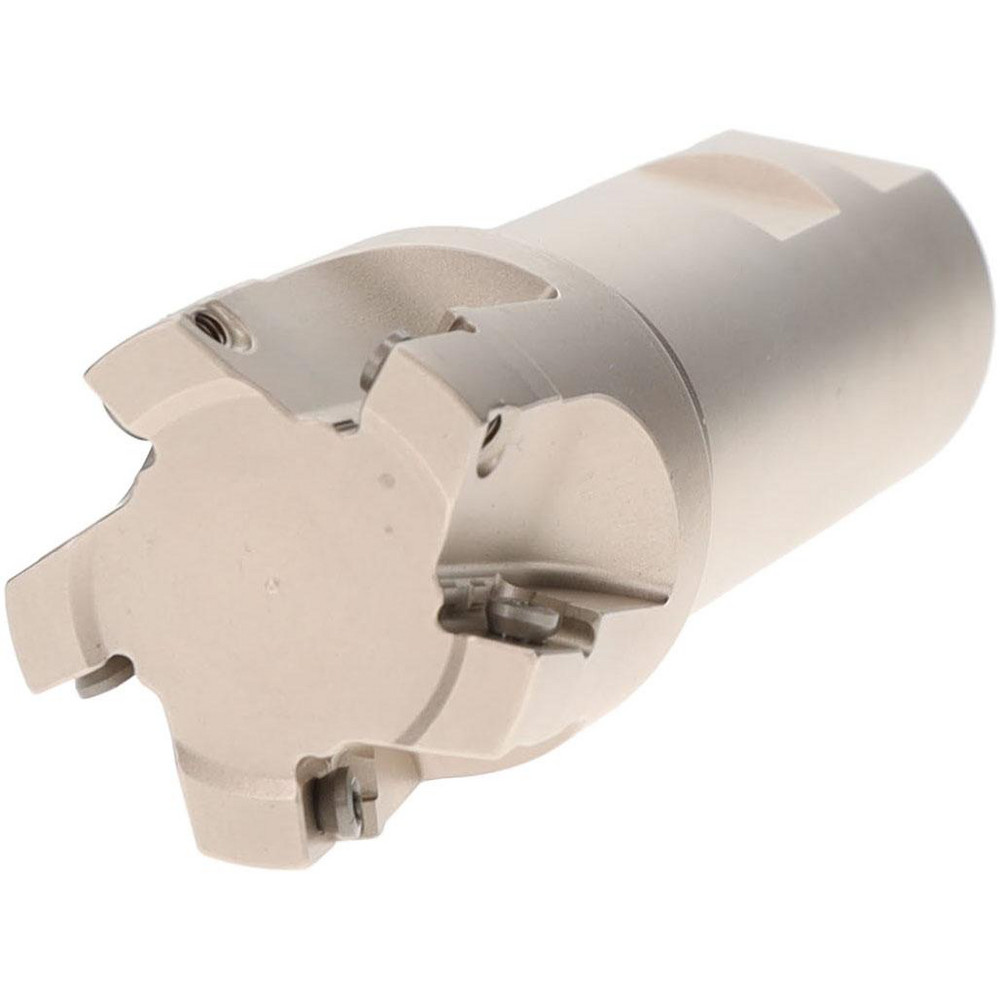

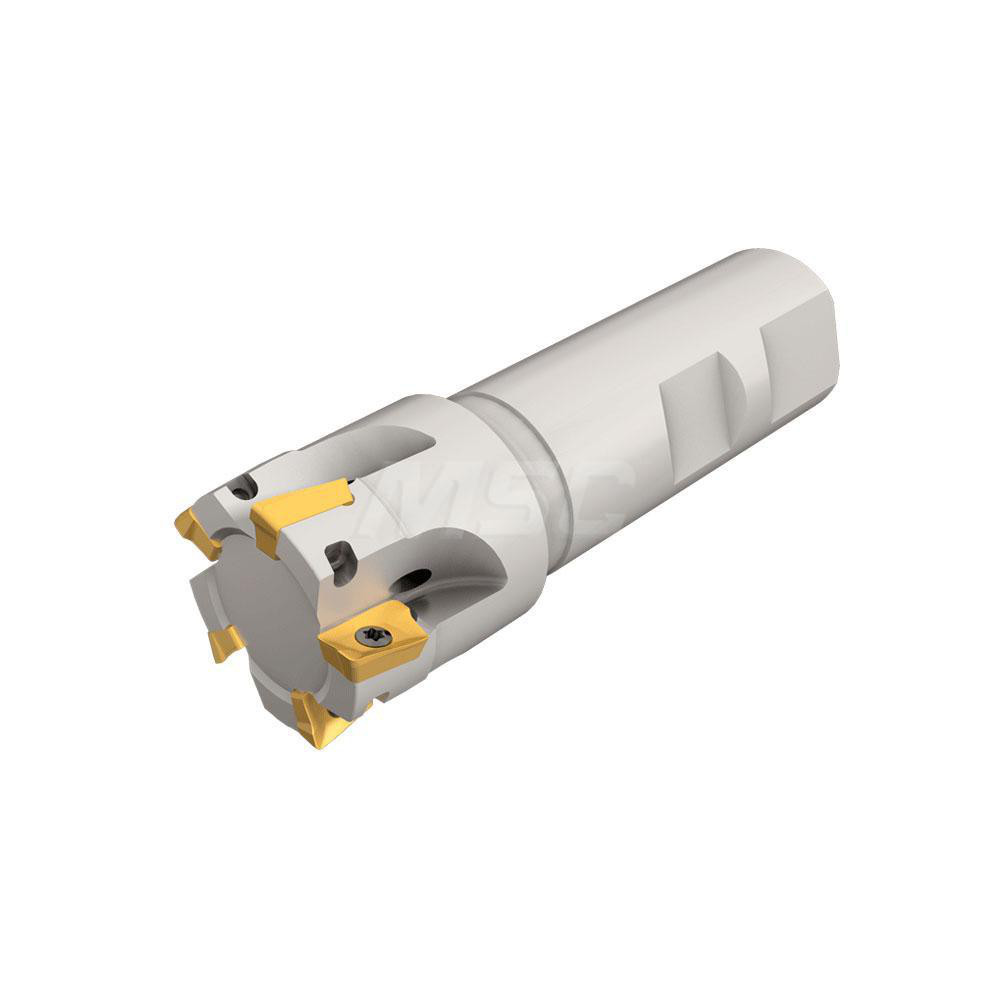

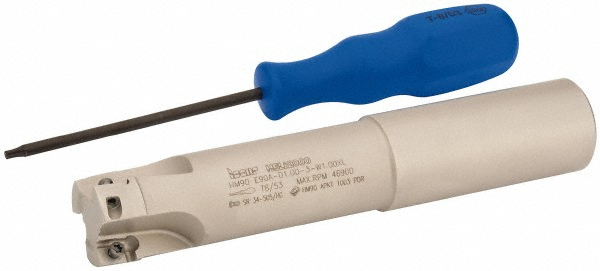

Uses (5) AP..1003..;HM90 AP..1003.. Inserts, 4" OAL

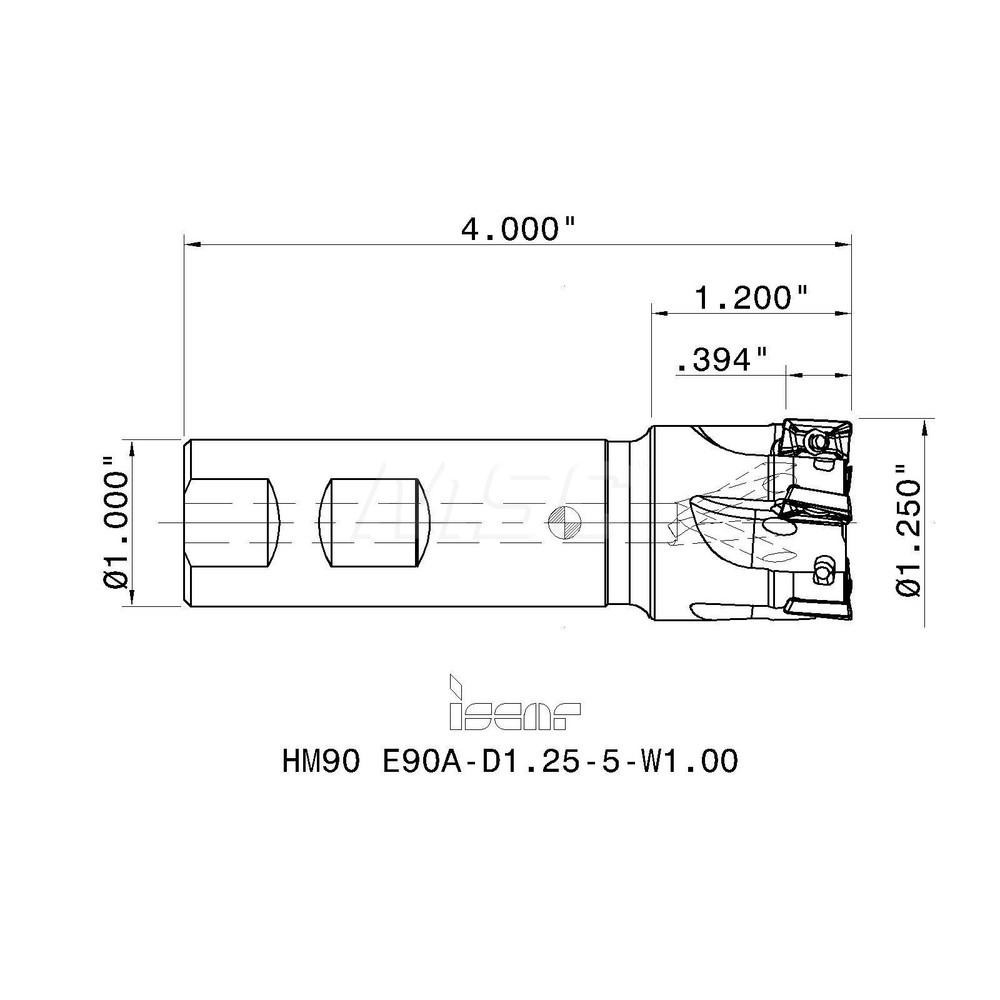

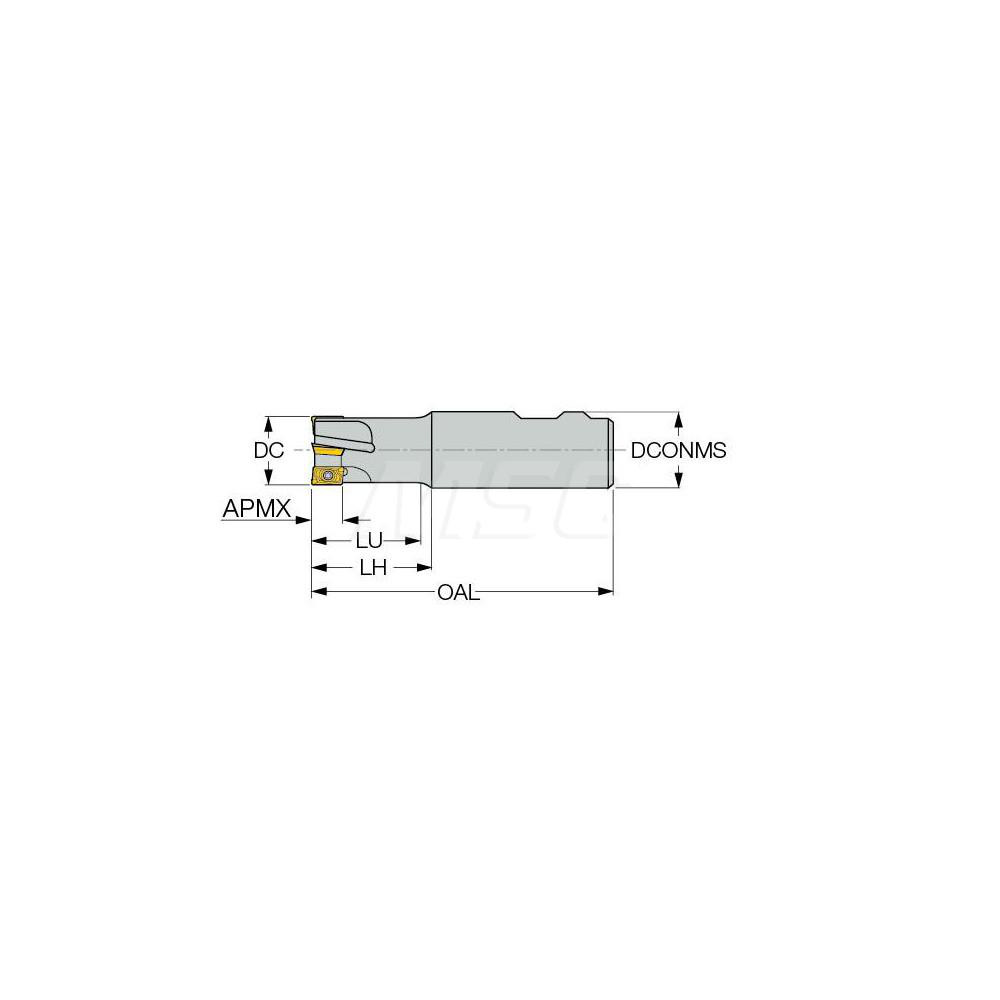

| Cutting Diameter | 1-1/4 |
|---|---|
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Cutter Style | HM90 E90A-10 |

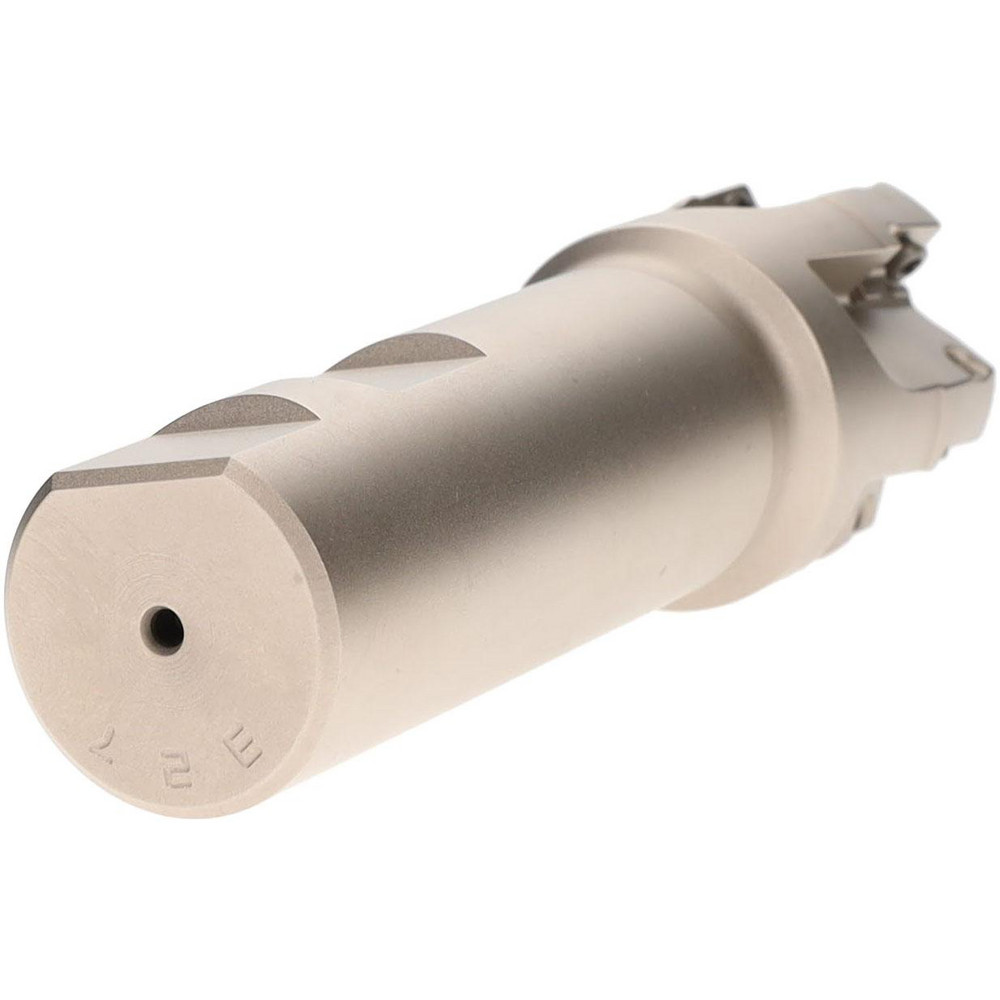

| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |

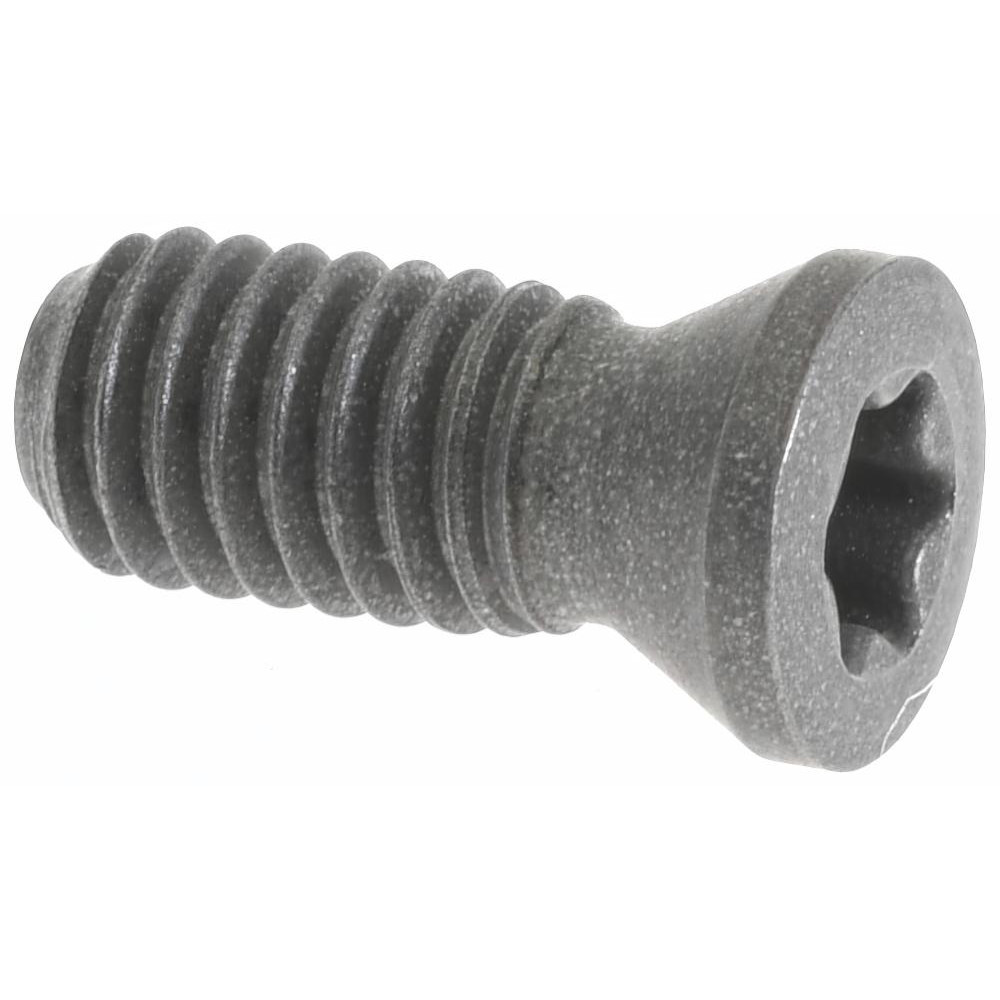

| Insert Holding Method | Screw |
| Maximum Ramping Angle | 3 |
| Tool Material | Solid Carbide |
| Series | Heli2000 |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.5500 |
| Head Length (Decimal Inch) | 1.2 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |

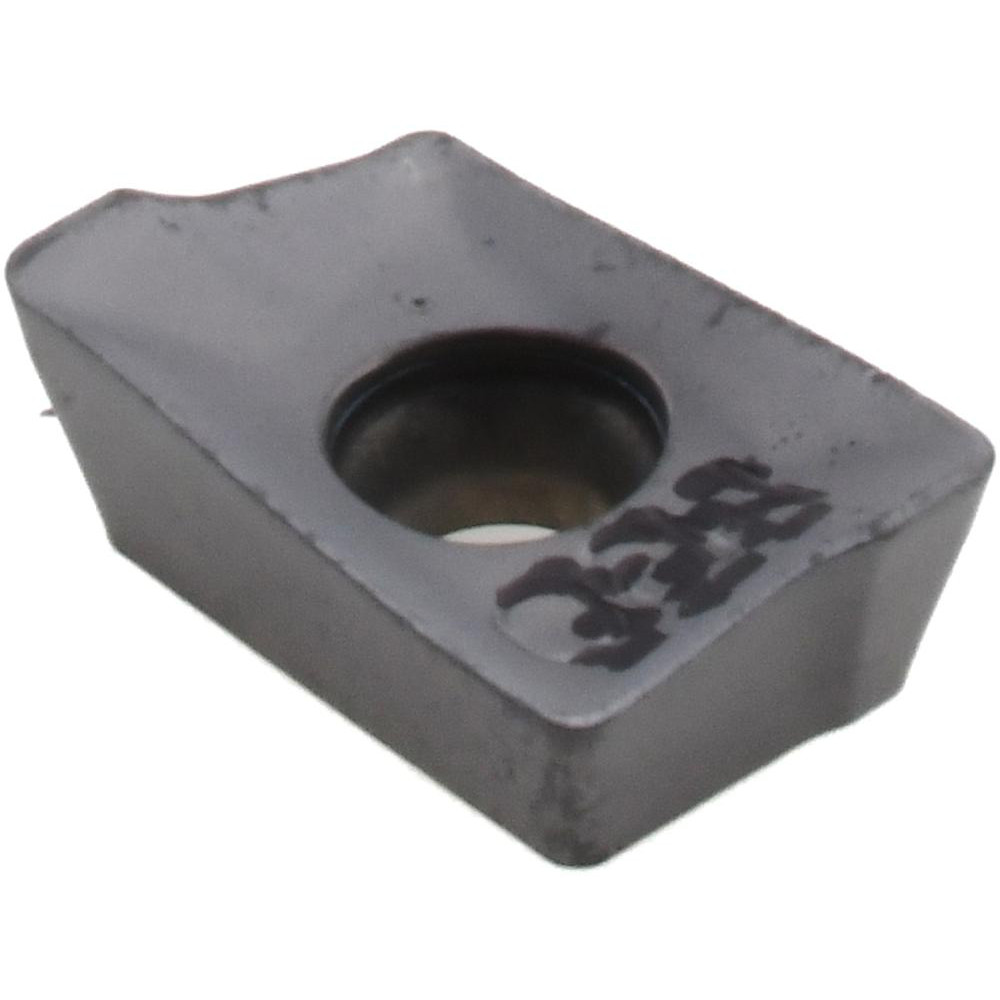

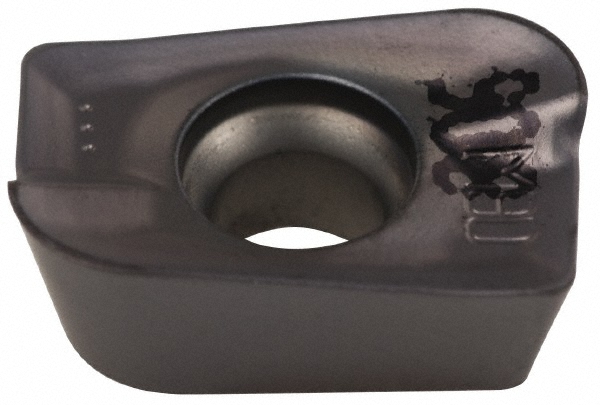

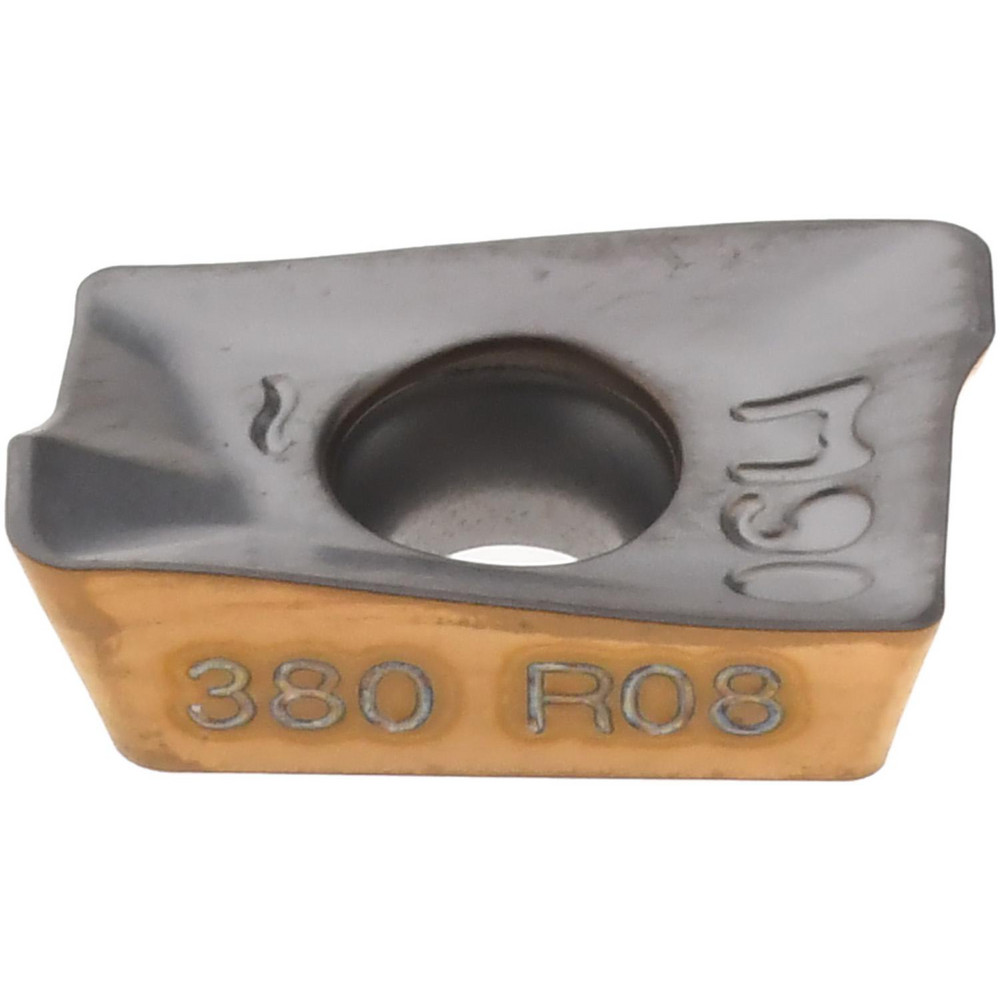

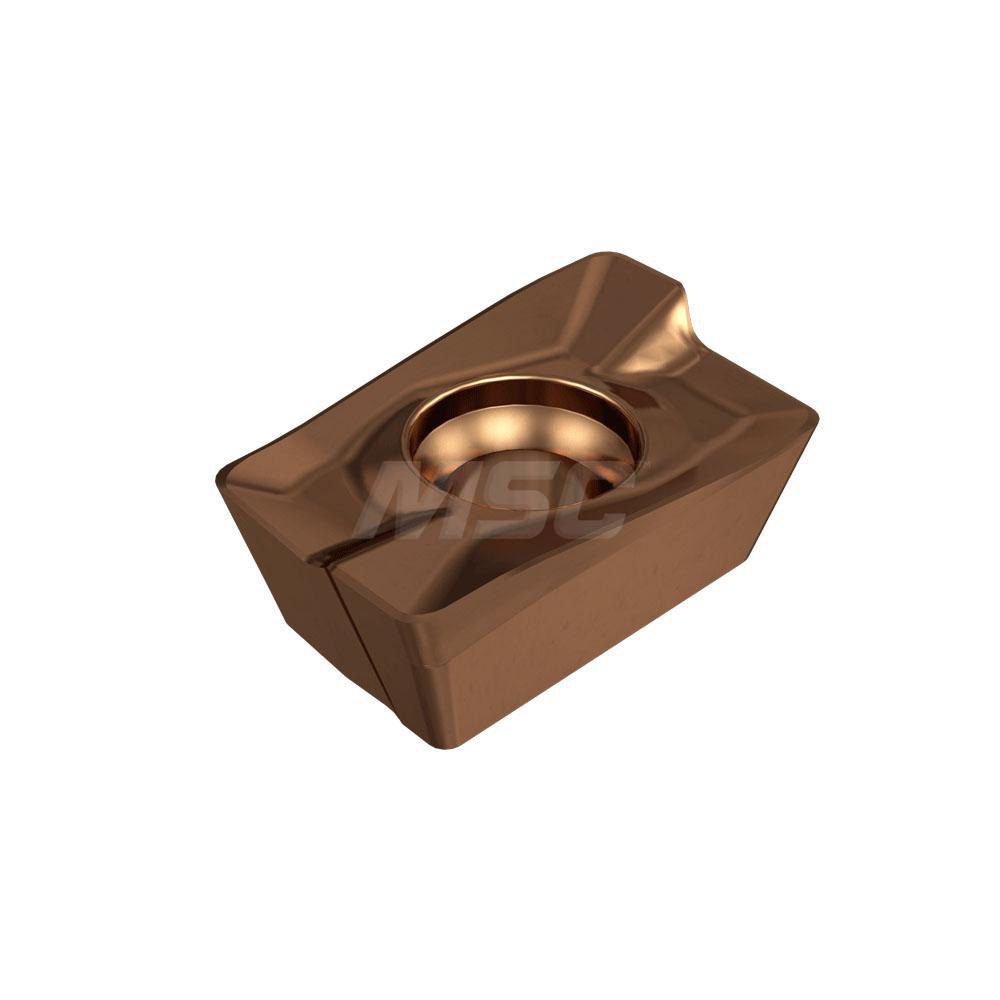

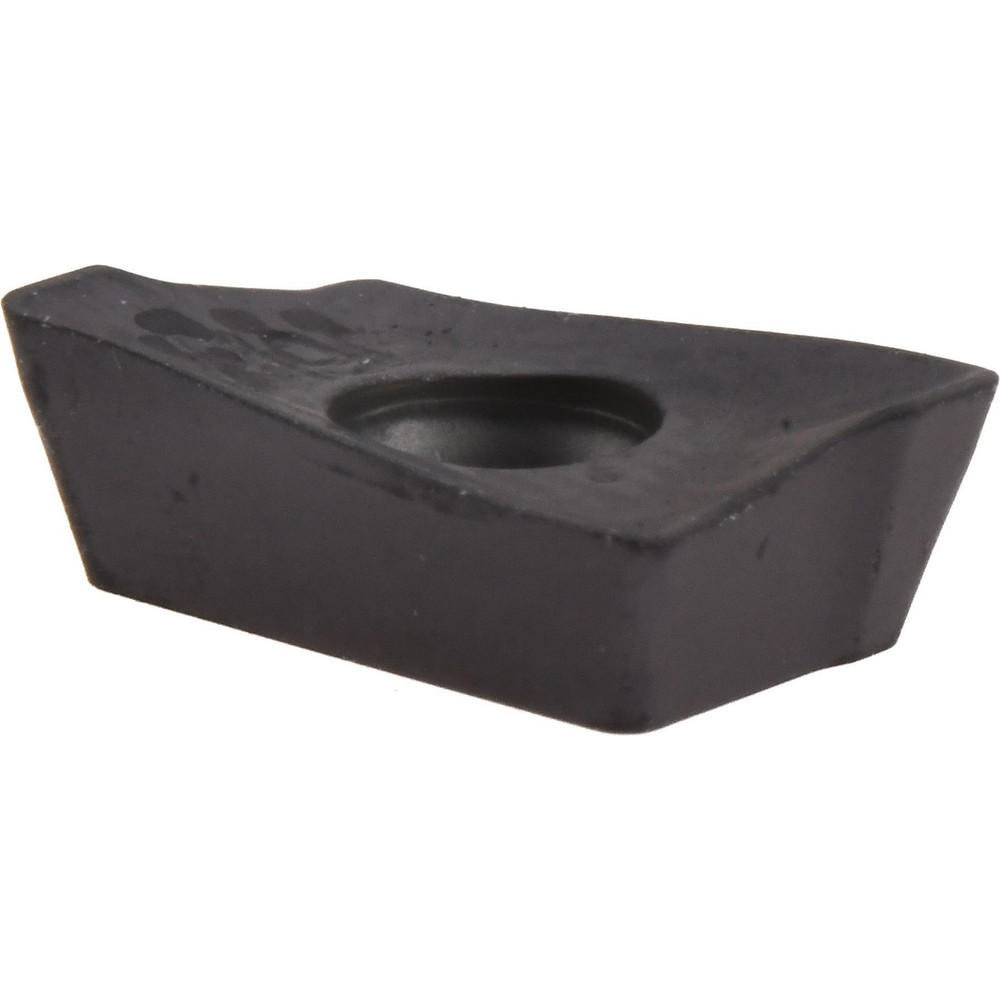

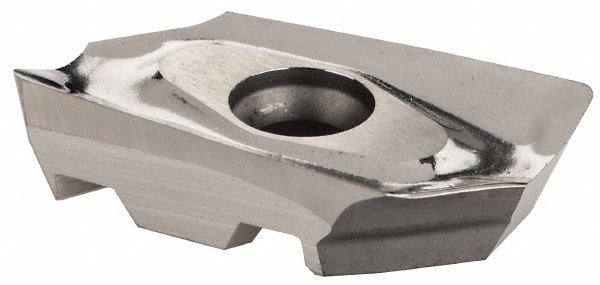

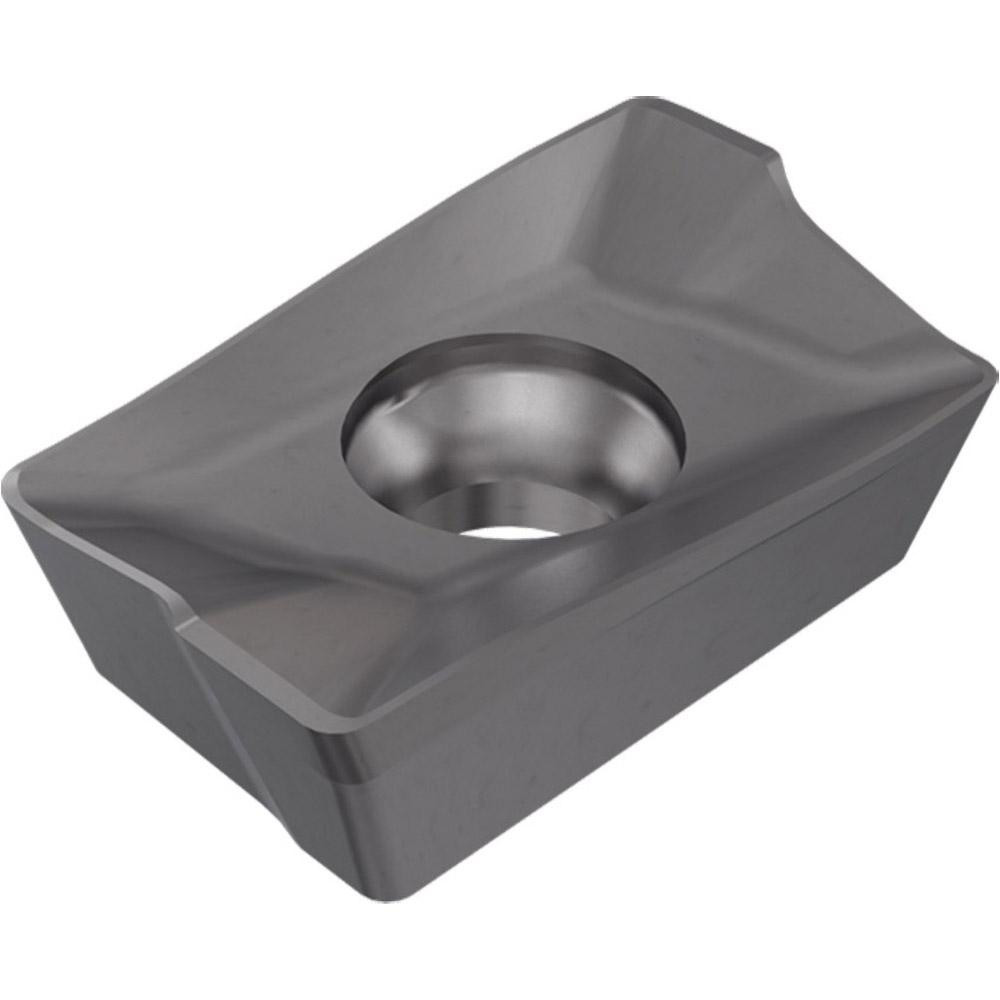

| Insert Compatibility | AP..1003..; HM90 AP..1003.. |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | HM90 E90A-D1.25-5-W1.00 |
| Number Of Flutes | 5 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | No |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 60841228 |
