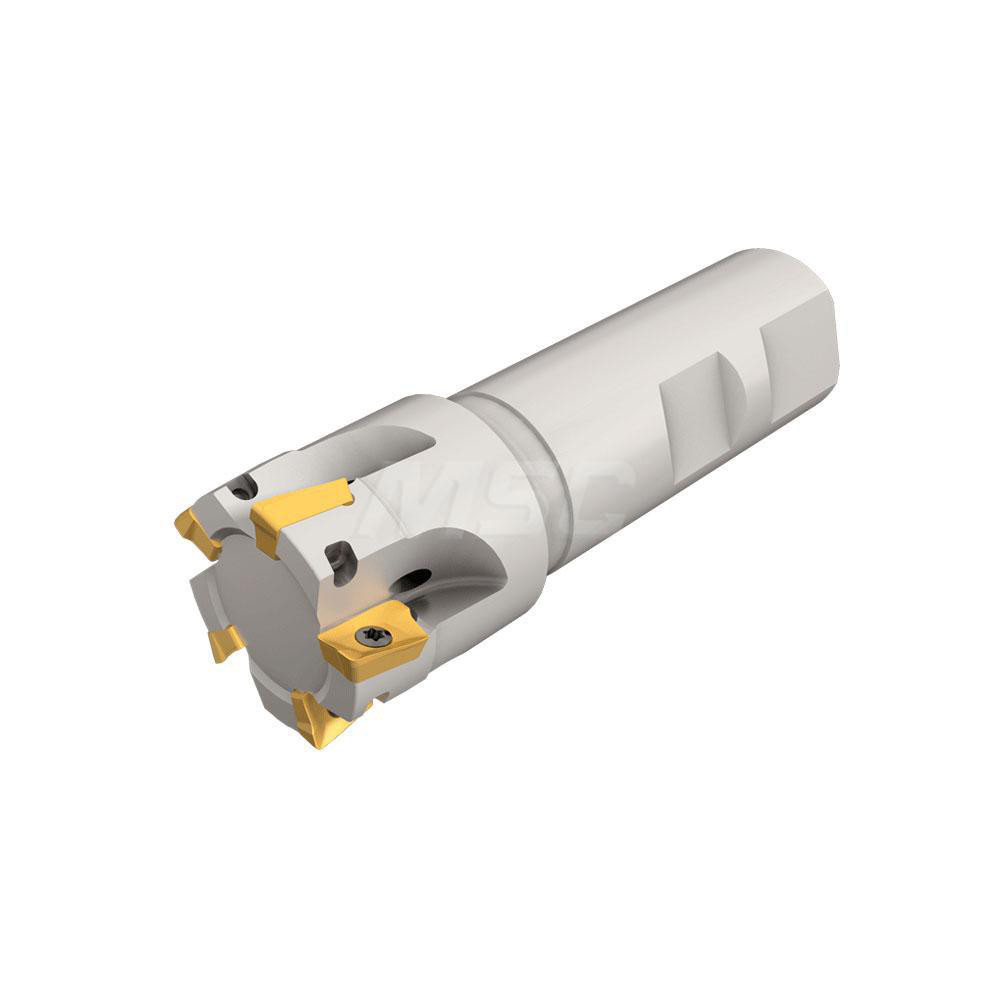

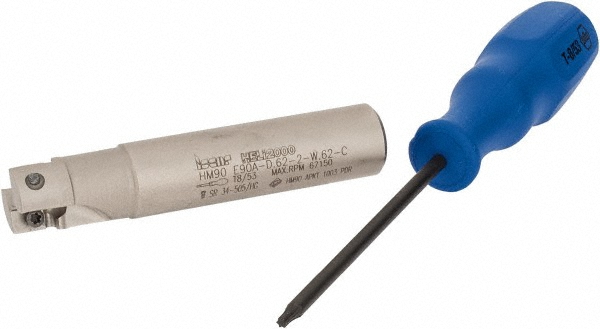

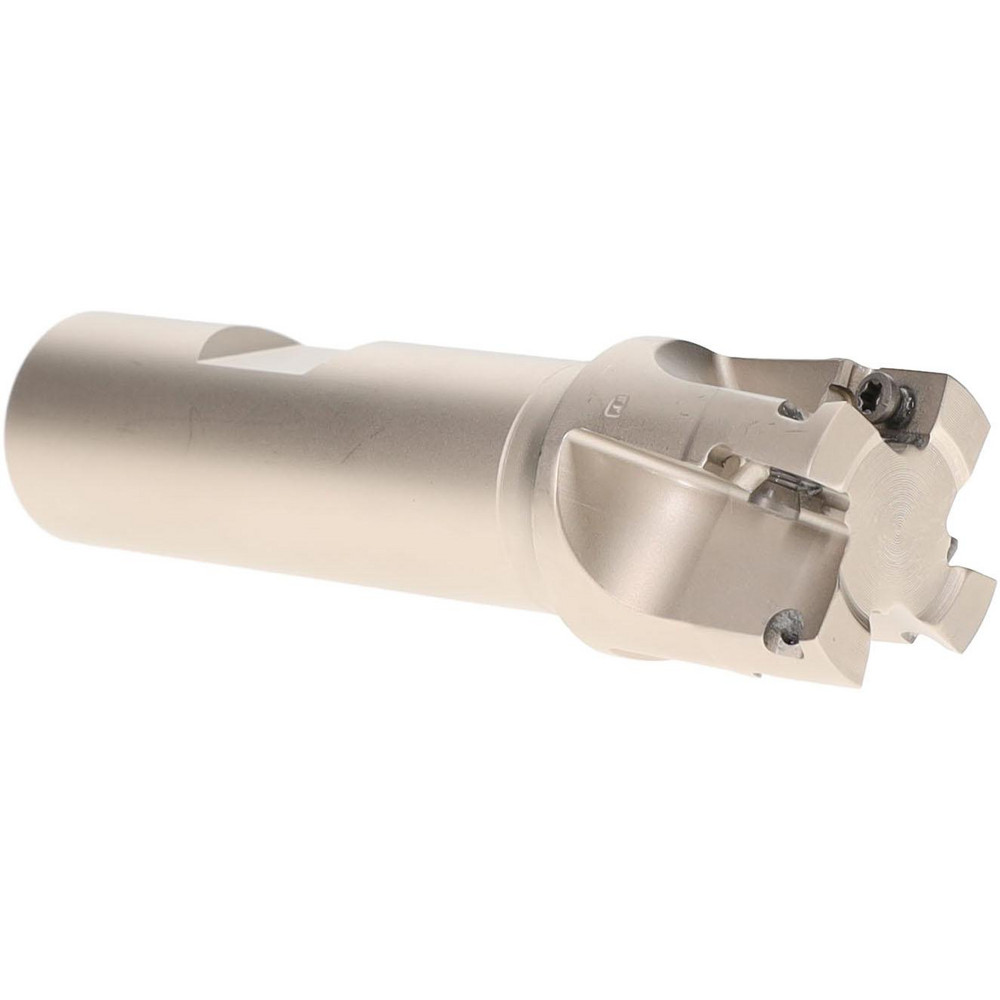

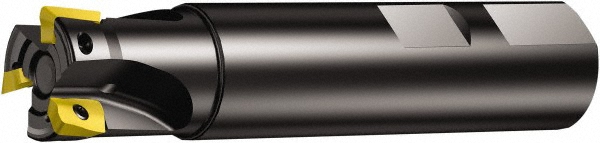

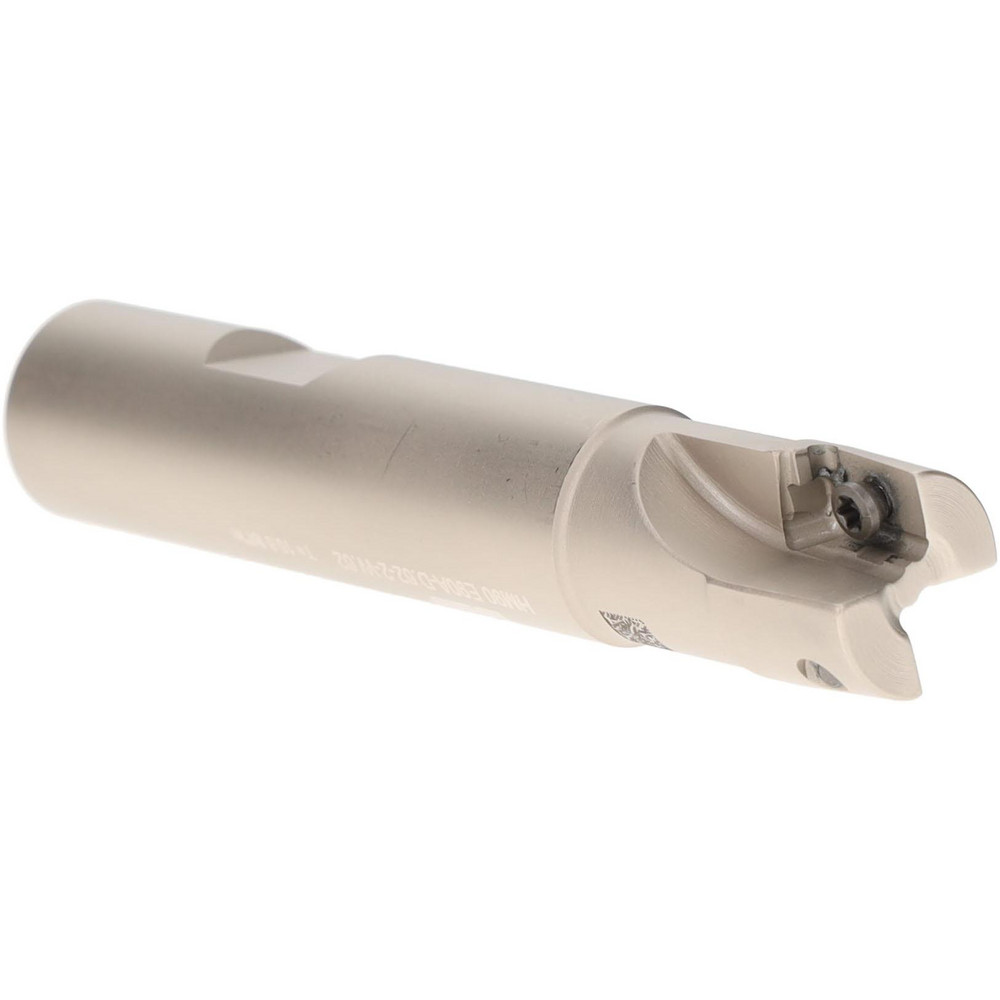

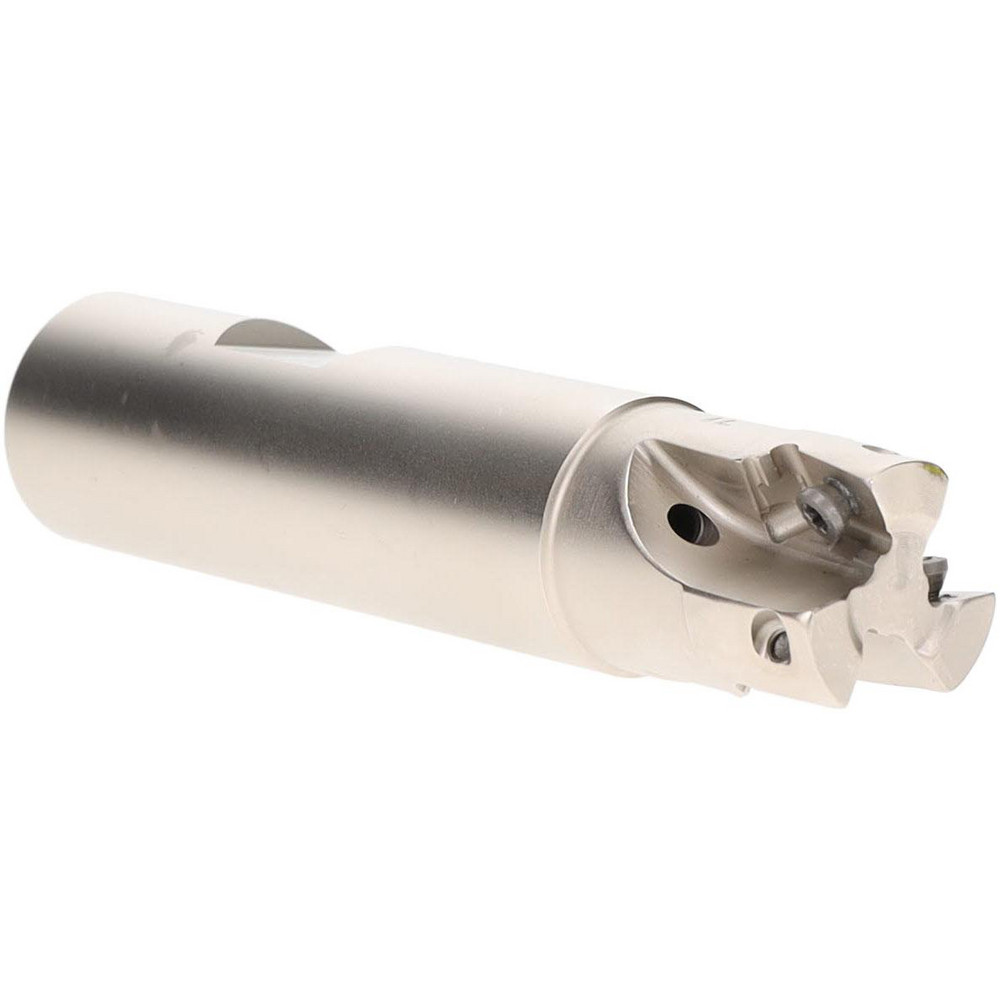

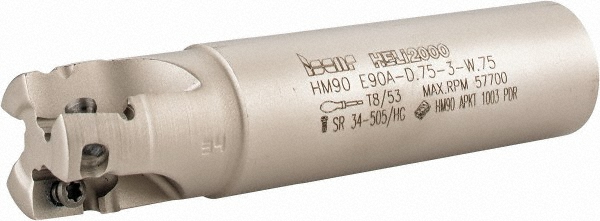

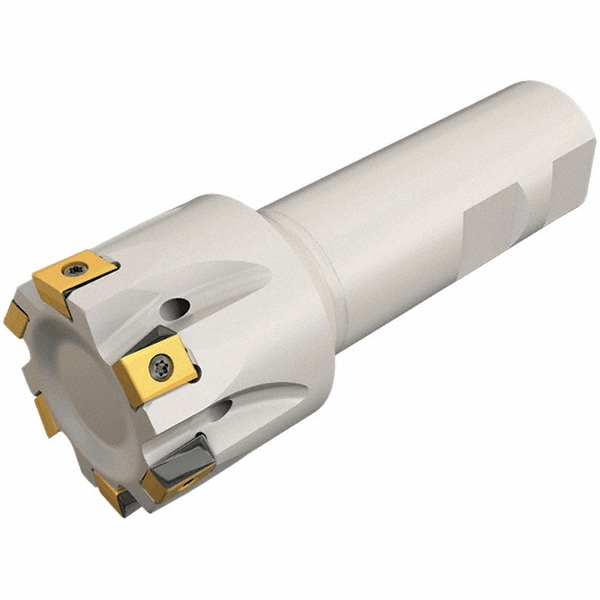

Uses (1) AP..1003..;HM90 AP..1003.. Insert, Through Coolant, 3-1/4" OAL

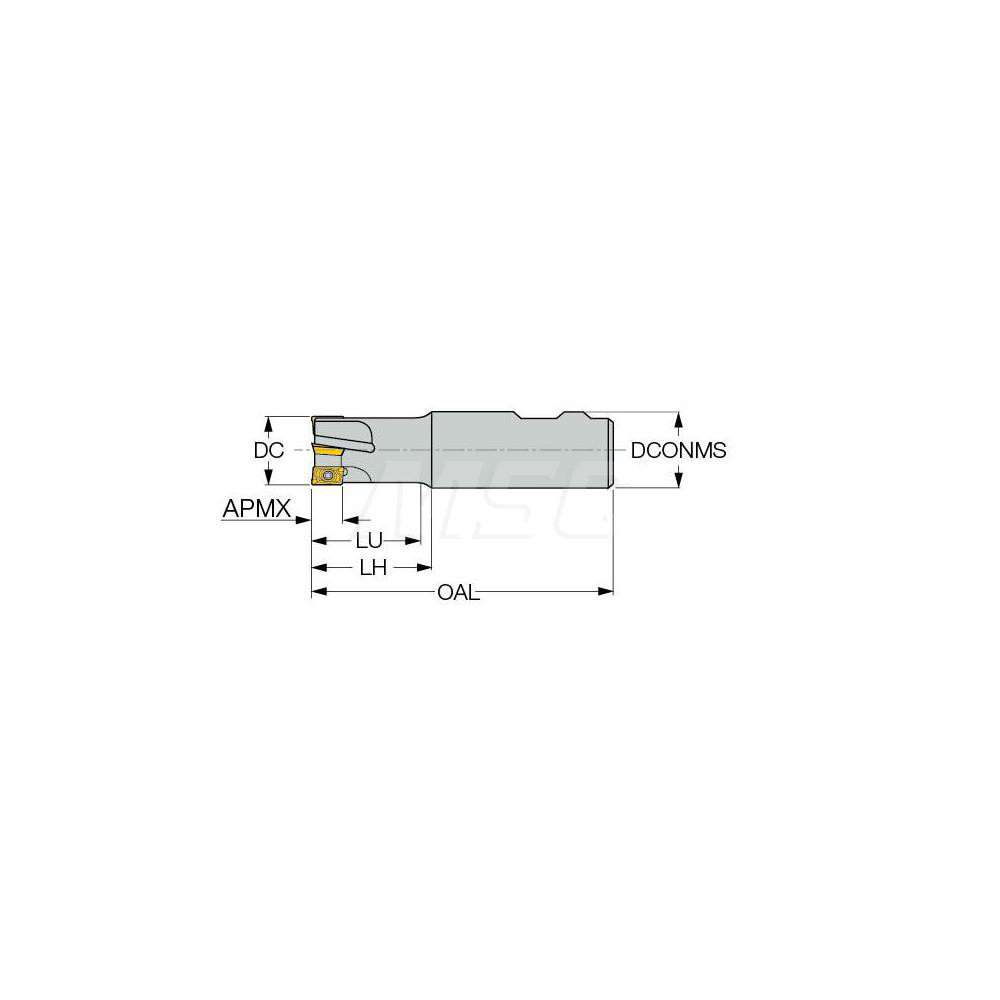

| Cutting Diameter | 0.4400 in |
|---|---|
| Overall Length (Decimal Inch) | 3.2500 |
| Overall Length (Inch) | 3-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Cutter Style | HM90 E90A-10 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 5 |
| Series | Heli2000 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Inch) | 2-1/2 |
| Shank Length (Decimal Inch) | 2.5000 |
| Head Length (Decimal Inch) | 0.75 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Complete Insert Compatibility | APCR; HM90APKW 1003; APKW; APKT; HM90APCT; APKR; APCT; HM90APKT |
| Insert Compatibility | AP..1003..; HM90 AP..1003.. |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 1 |
| Usable Length (Decimal Inch) | 0.5000 |
| Number Of Cutter Inserts | 1 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 74543299 |
