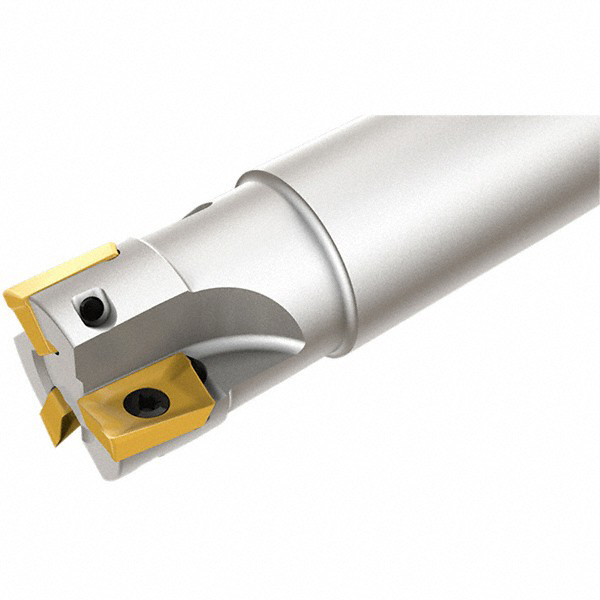

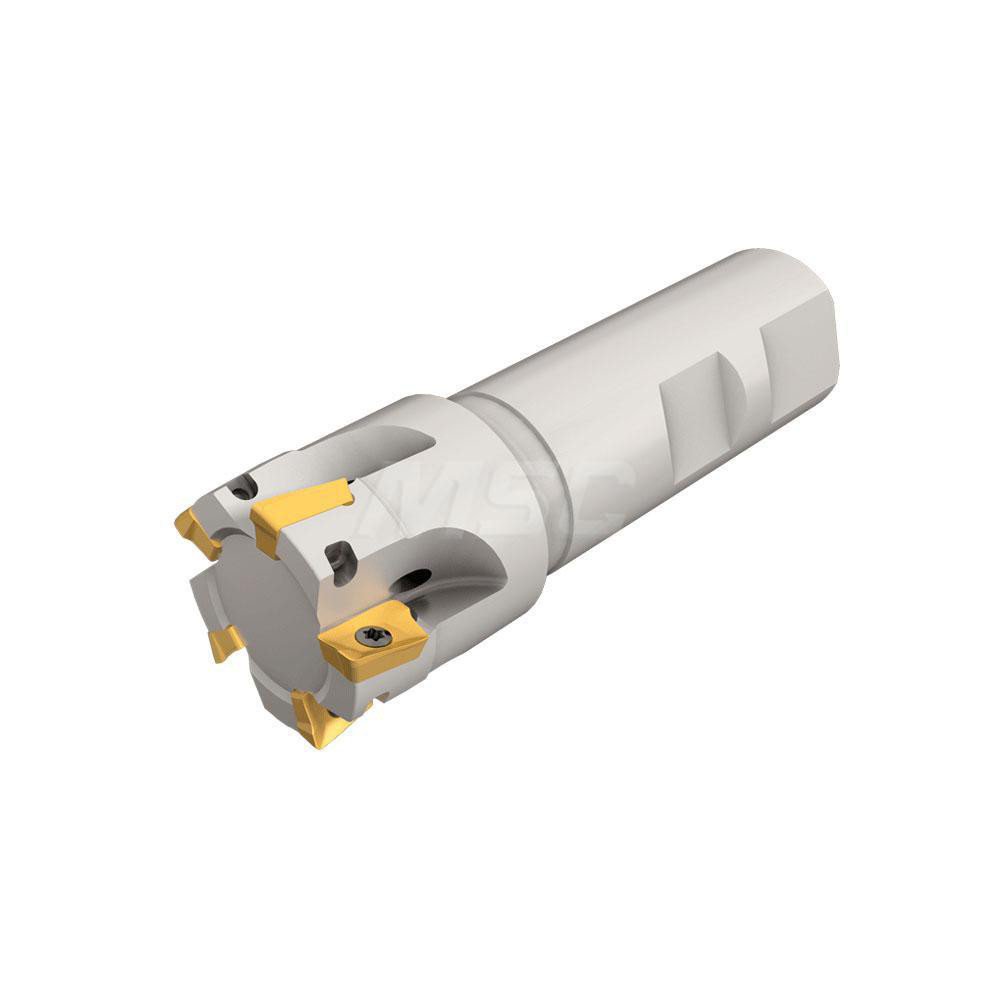

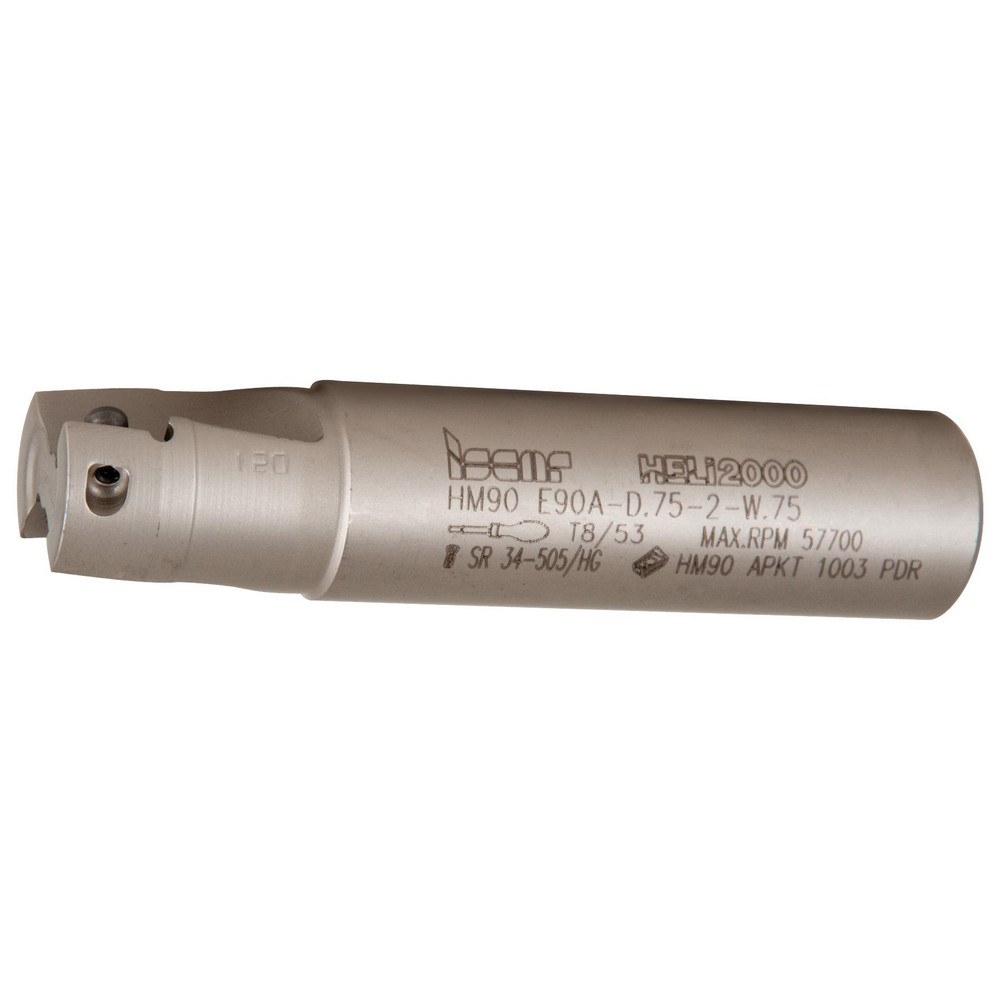

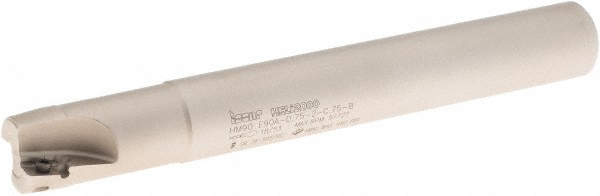

Uses (2) APCR;APCT;APKR;APKT;APKW;HM90APCT;HM90APKT;HM90APKW 1003 Inserts, Through Coolant, 3.38" OAL

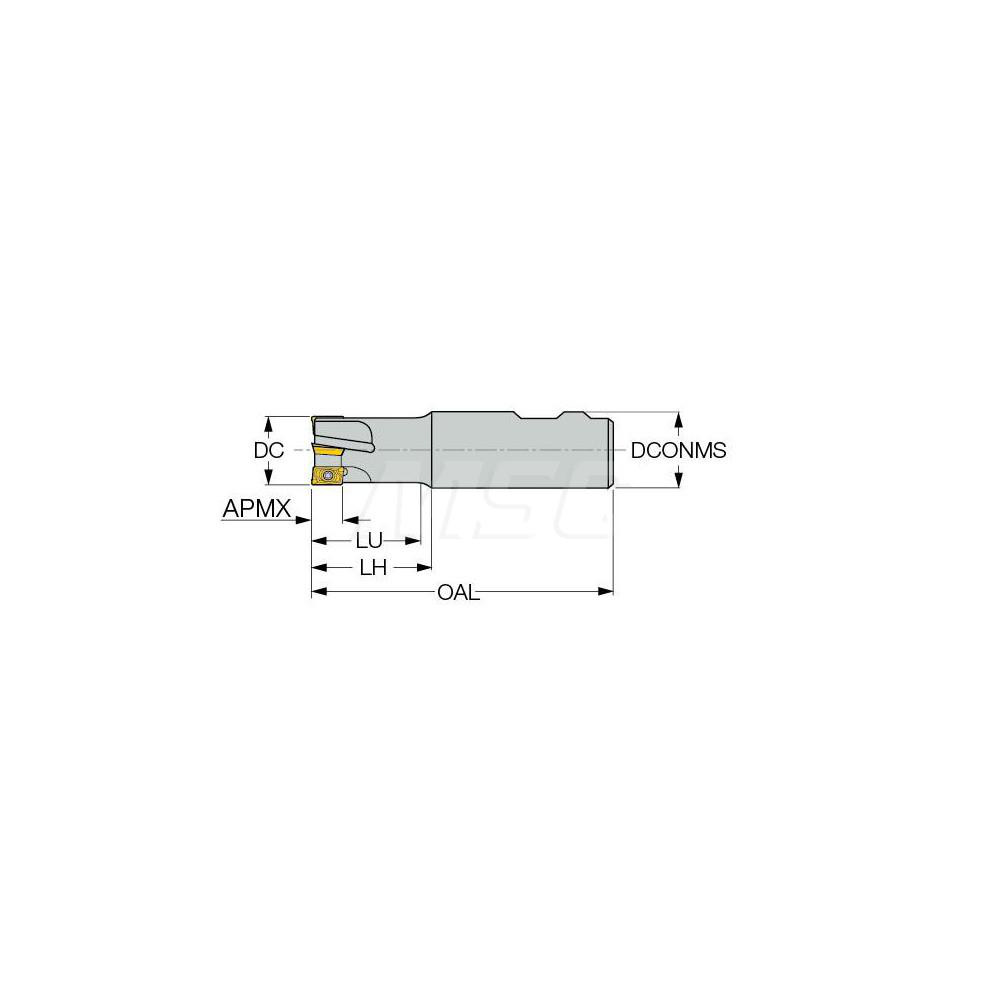

| Cutting Diameter | 3/4 |
|---|---|
| Overall Length (Decimal Inch) | 3.3800 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Cutter Style | HM90 E90A-10 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 3.5 |
| Series | Heli2000 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.3800 |
| Head Length (Decimal Inch) | 1 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Insert Compatibility | APCR; HM90APKW 1003; APKW; APKT; HM90APCT; APKR; APCT; HM90APKT |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 0.9400 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| MSC Number | MSC# 60841020 |
