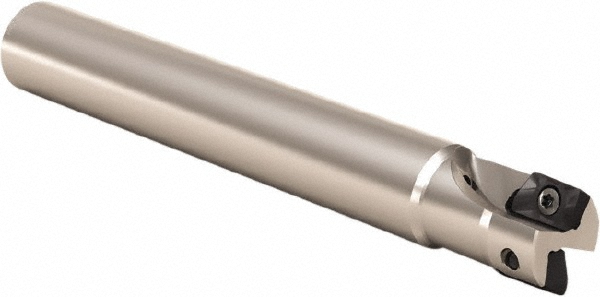

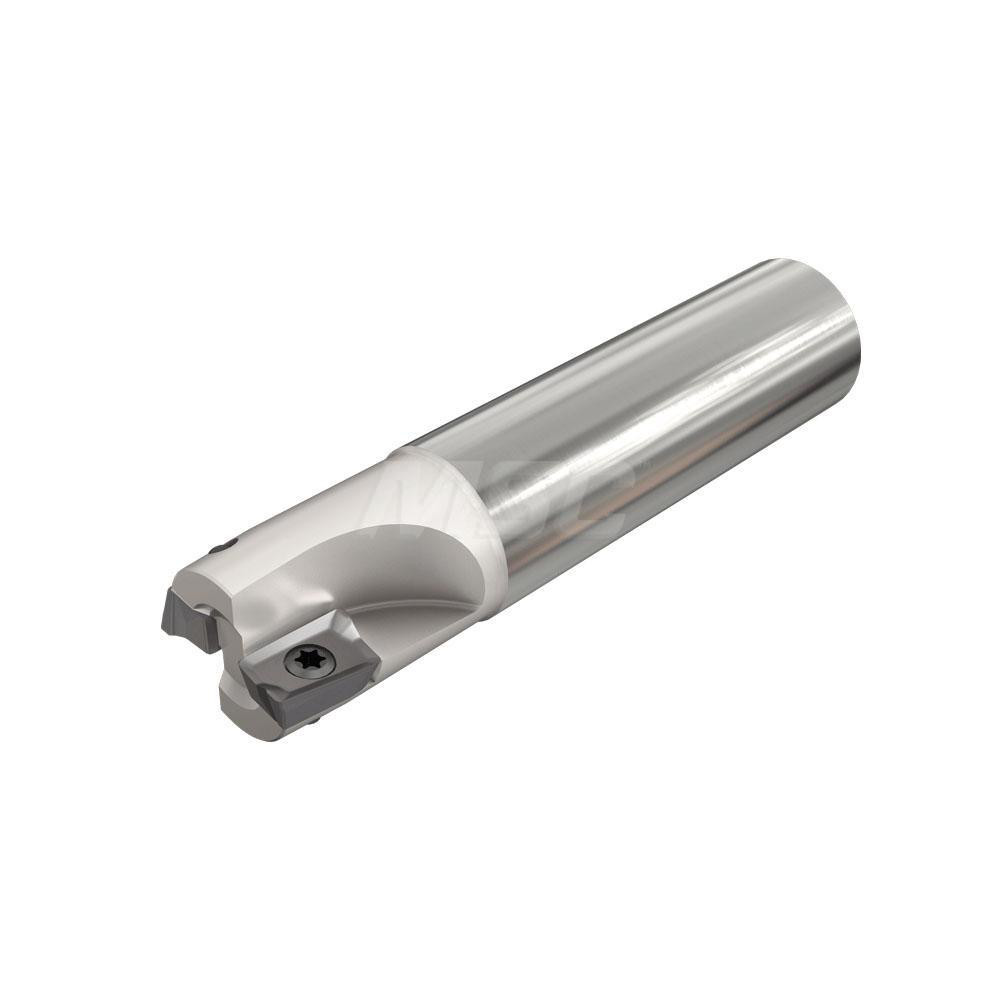

Uses (3) Inserts, 120 mm OAL

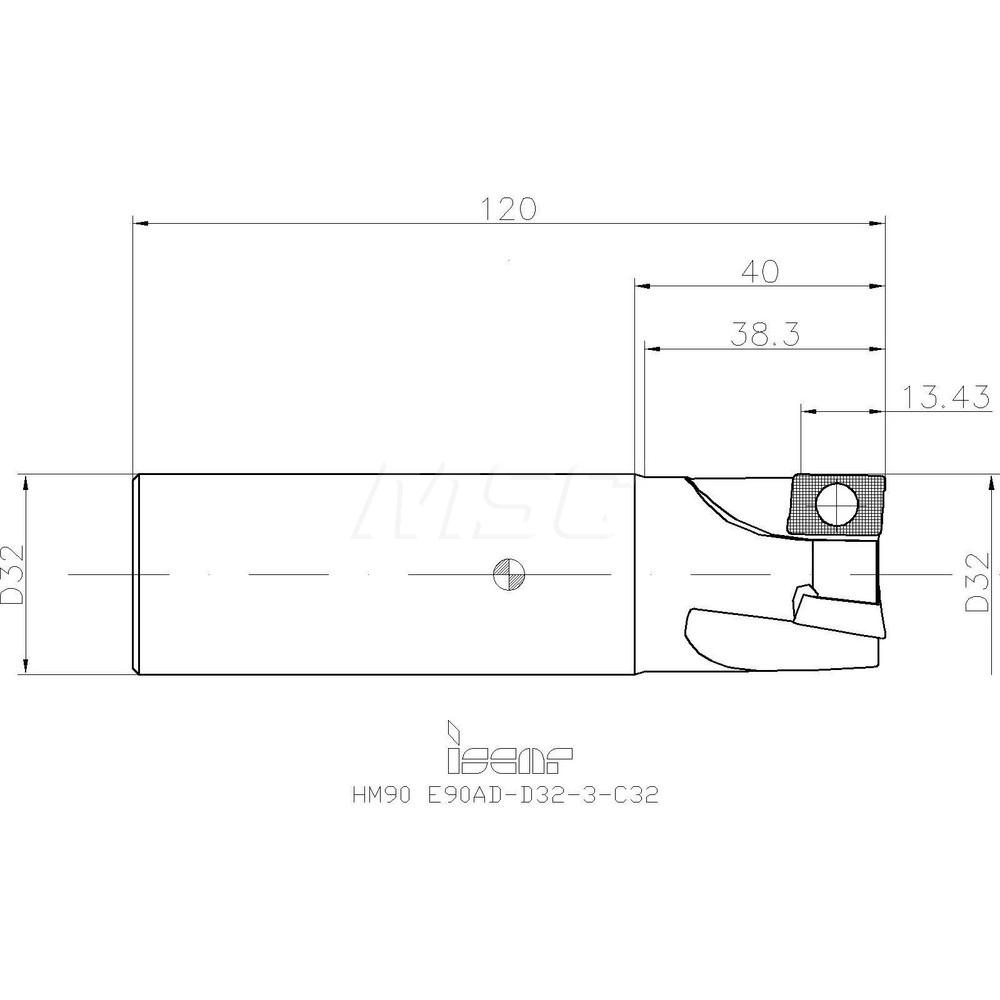

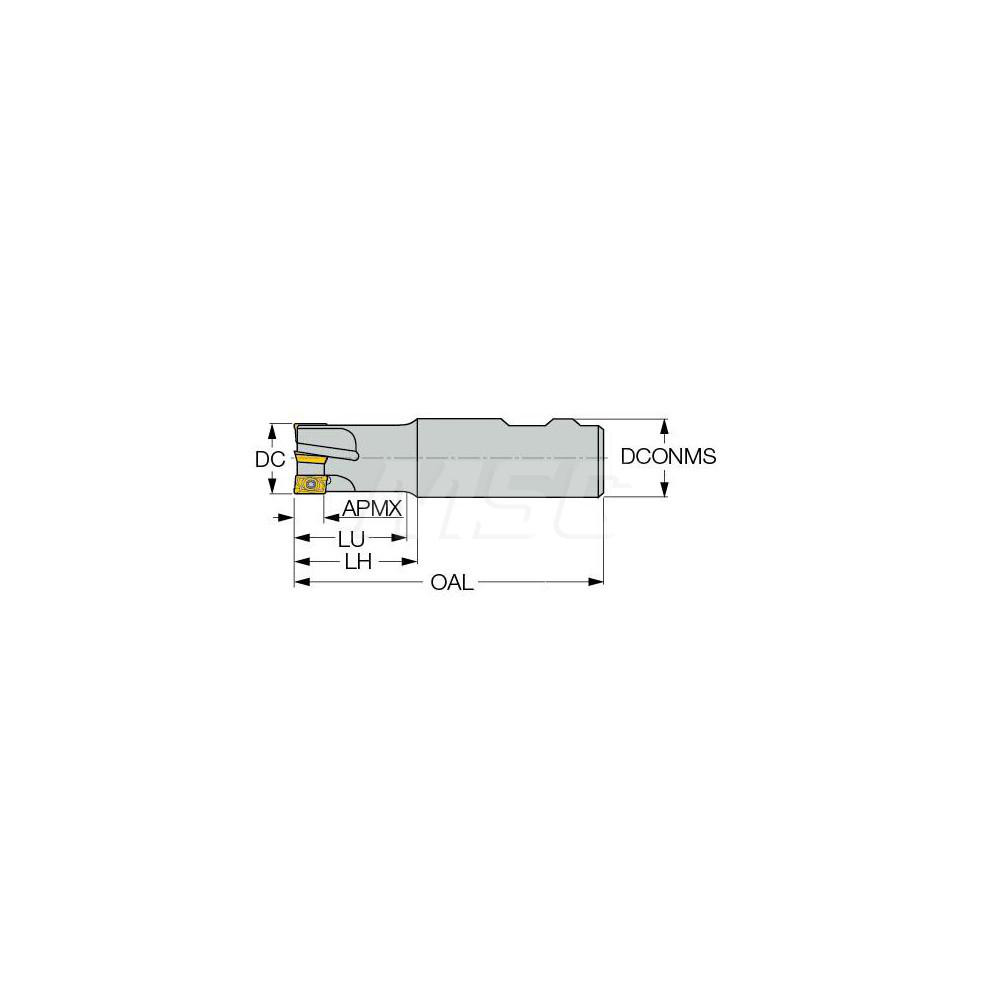

| Cutting Diameter | 1.2598 in |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Overall Length (mm) | 120.00 |
| Maximum Depth of Cut (mm) | 14.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.5630 |
| Cutter Style | HM90 E90AD-15 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 32.00 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 5.3 |
| Tool Material | Solid Carbide |
| Series | Heli2000 |
| Lead Angle | 90 |
| Shank Length (mm) | 80.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Head Length (mm) | 40.00 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| UNSPSC Code | 27112803 |
| Usable Length (mm) | 38.00 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 05432067 |
