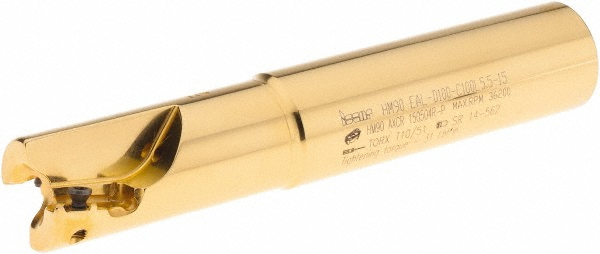

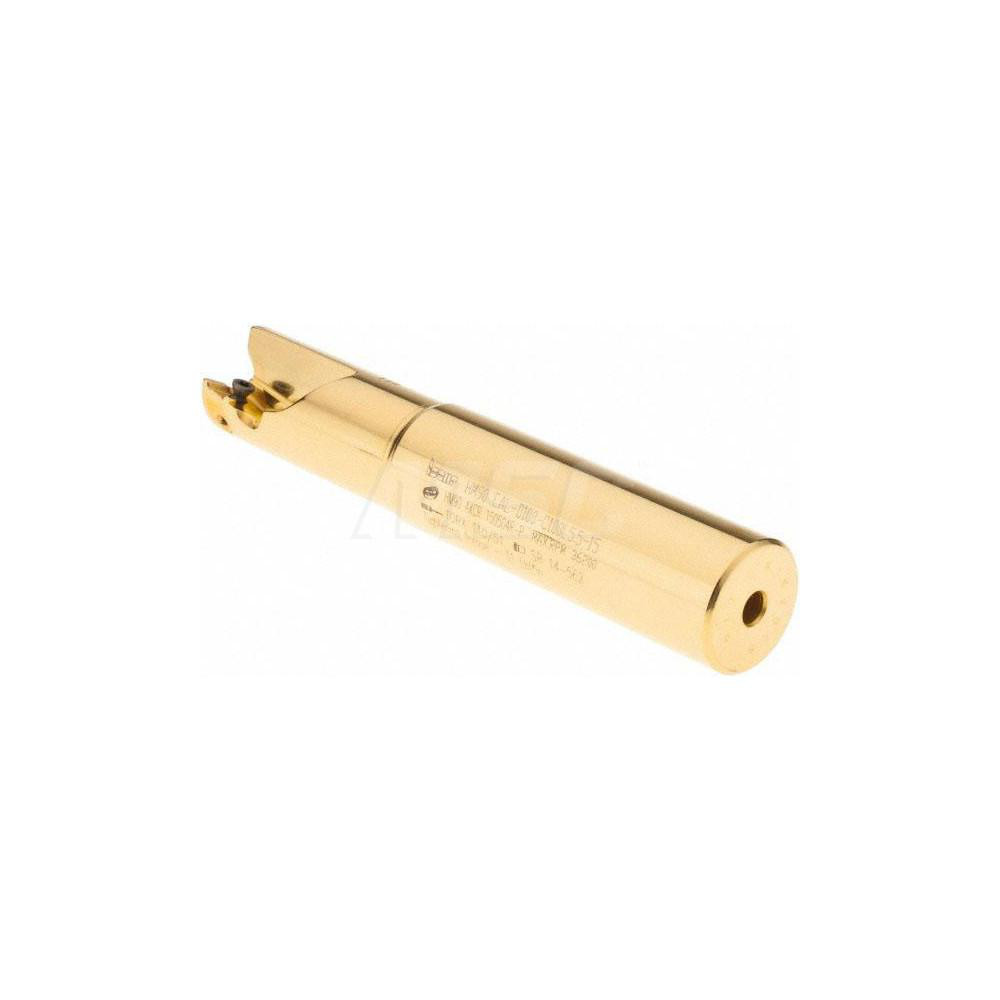

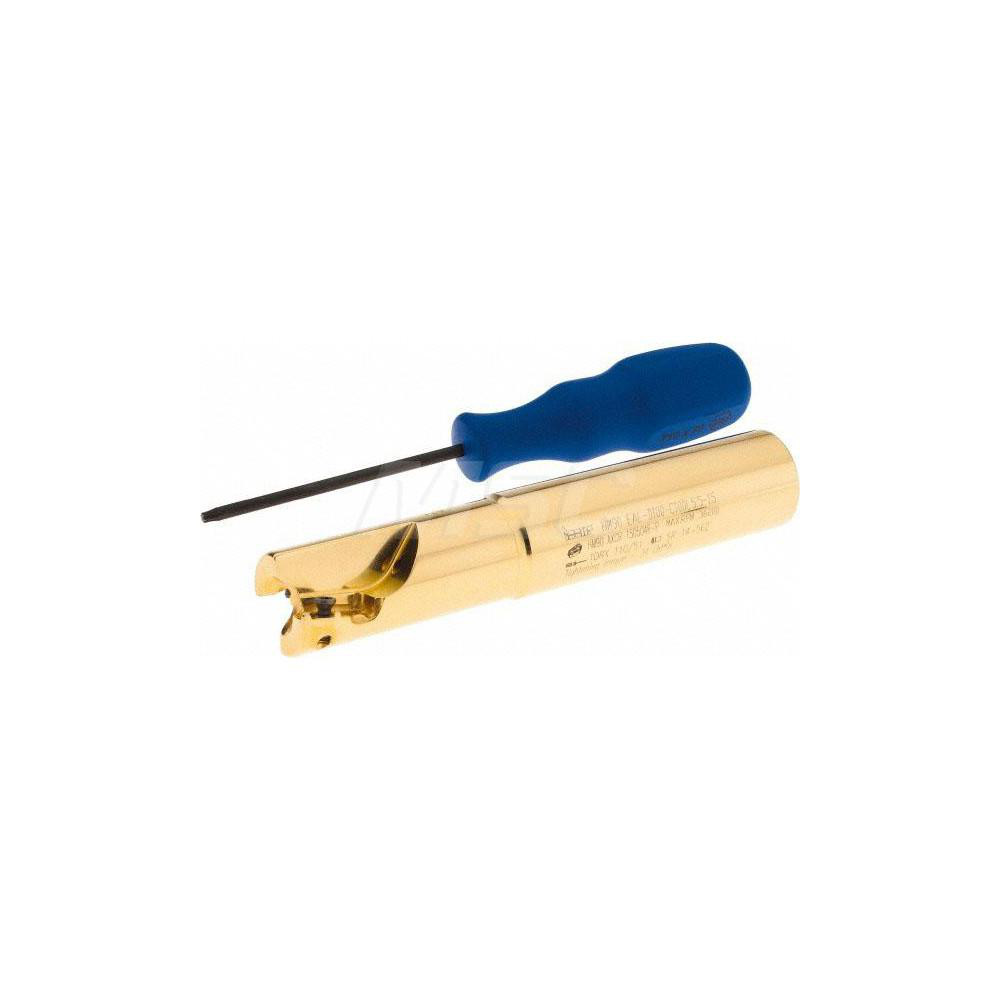

Uses (2) Inserts, Through Coolant, 5-1/2" OAL
| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 5.5000 |
| Overall Length (Inch) | 5-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.5310 |
| Cutter Style | HM90 EAL-15 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 25 |
| Series | Helialu |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 3.1400 |
| Head Length (Decimal Inch) | 2.36 |
| Maximum RPM | 37500 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| UNSPSC Code | 27112803 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 63102941 |
