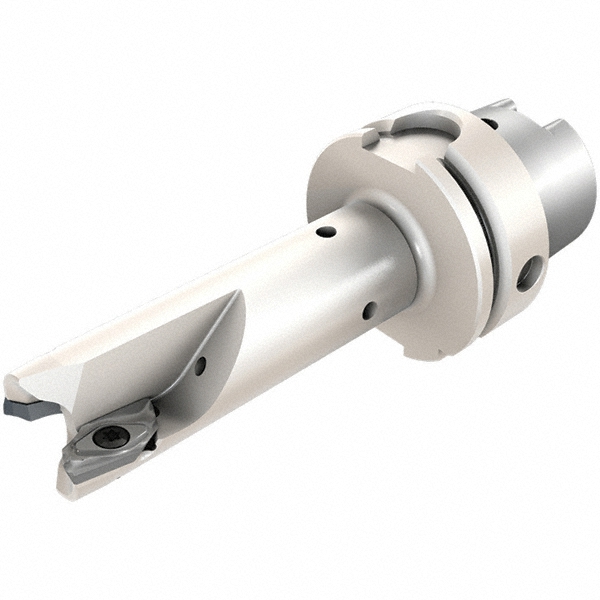

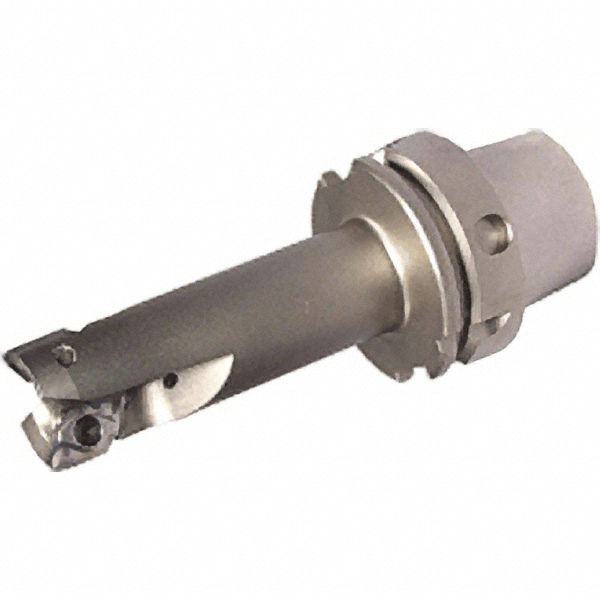

Uses (2) HM90 APCR 1605.. Inserts, Through Coolant

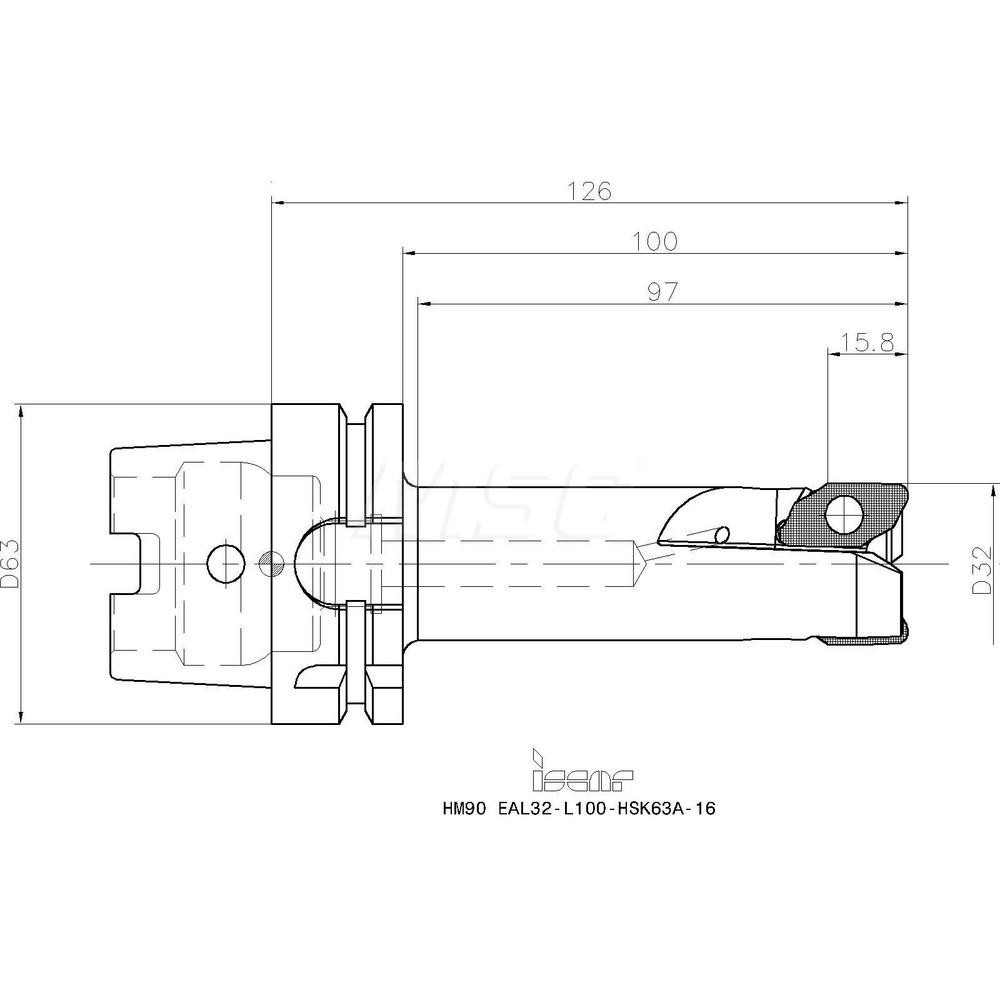

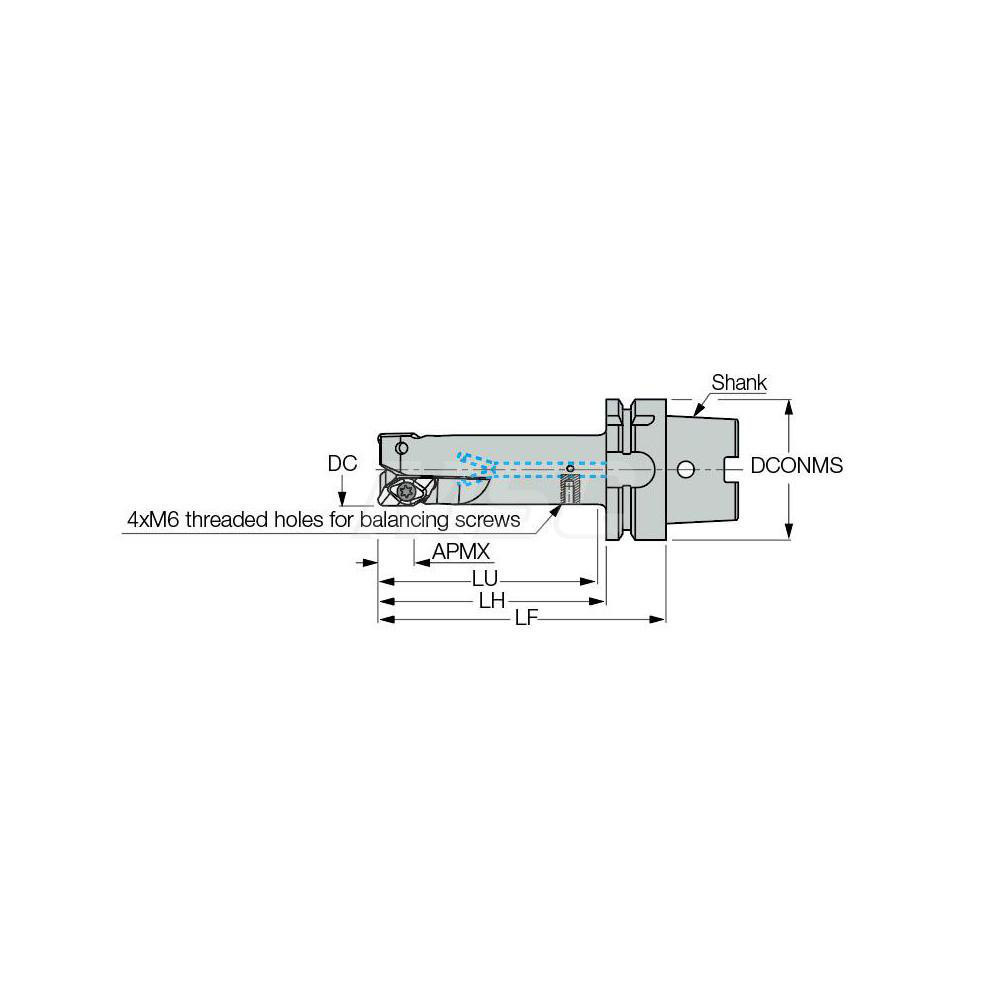

| Cutting Diameter (mm) | 32.00 |
|---|---|
| Maximum Depth of Cut (mm) | 15.80 |
| Cutter Style | HM90 EAL-HSK63A-16 |
| Shank Type | Taper |
| Insert Holding Method | Screw |
| Shank Taper Size | HSK-A63 |
| Maximum Ramping Angle | 22 |
| Tool Material | Solid Carbide |
| Series | Helialu |
| Lead Angle | 90 |
| Head Length (mm) | 126.00 |
| Maximum RPM | 45600 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Rake | Positive |
| Insert Compatibility | HM90 APCR 1605.. |
| UNSPSC Code | 27112803 |
| Usable Length (mm) | 97.00 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Turkey |
| MSC Number | MSC# 91150219 |
