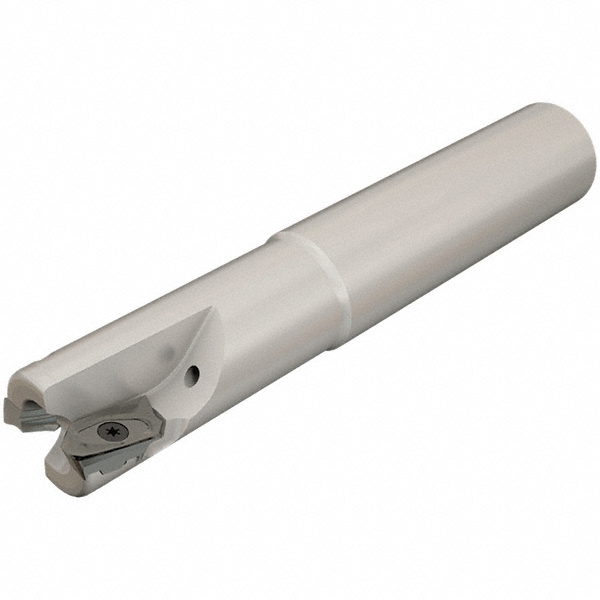

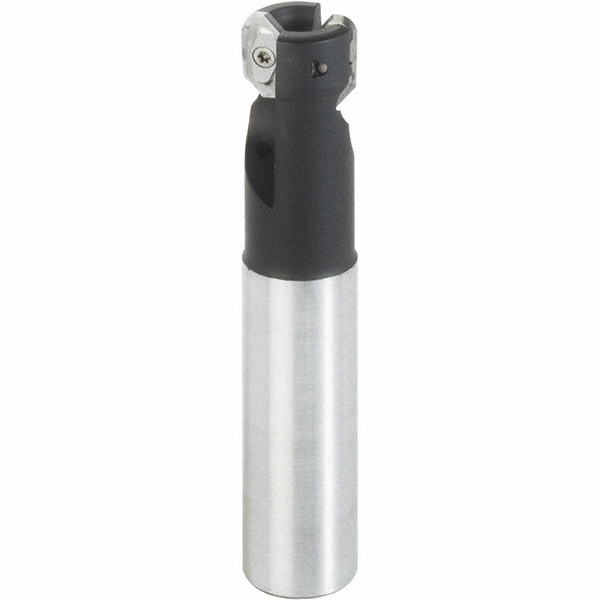

Uses (2) HM90 AXCR 1505.. Inserts, Through Coolant, 140 mm OAL

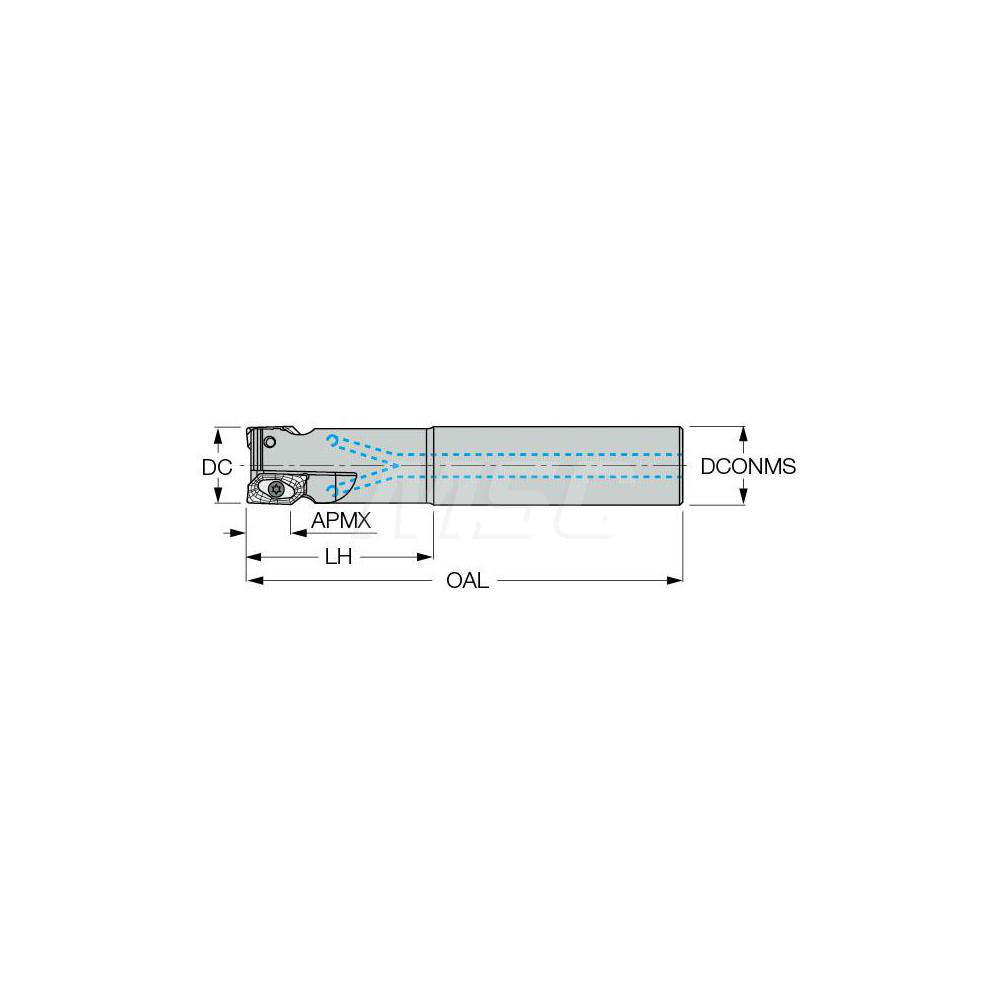

| Cutting Diameter (mm) | 25.00 |
|---|---|
| Overall Length (mm) | 140.00 |
| Maximum Depth of Cut (mm) | 13.50 |
| Cutter Style | HM90 EAL-15 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 21 |
| Tool Material | Solid Carbide |
| Series | Helialu |
| Lead Angle | 90 |
| Shank Length (mm) | 80.00 |
| Head Length (mm) | 60.00 |
| Maximum RPM | 37500 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Rake | Positive |

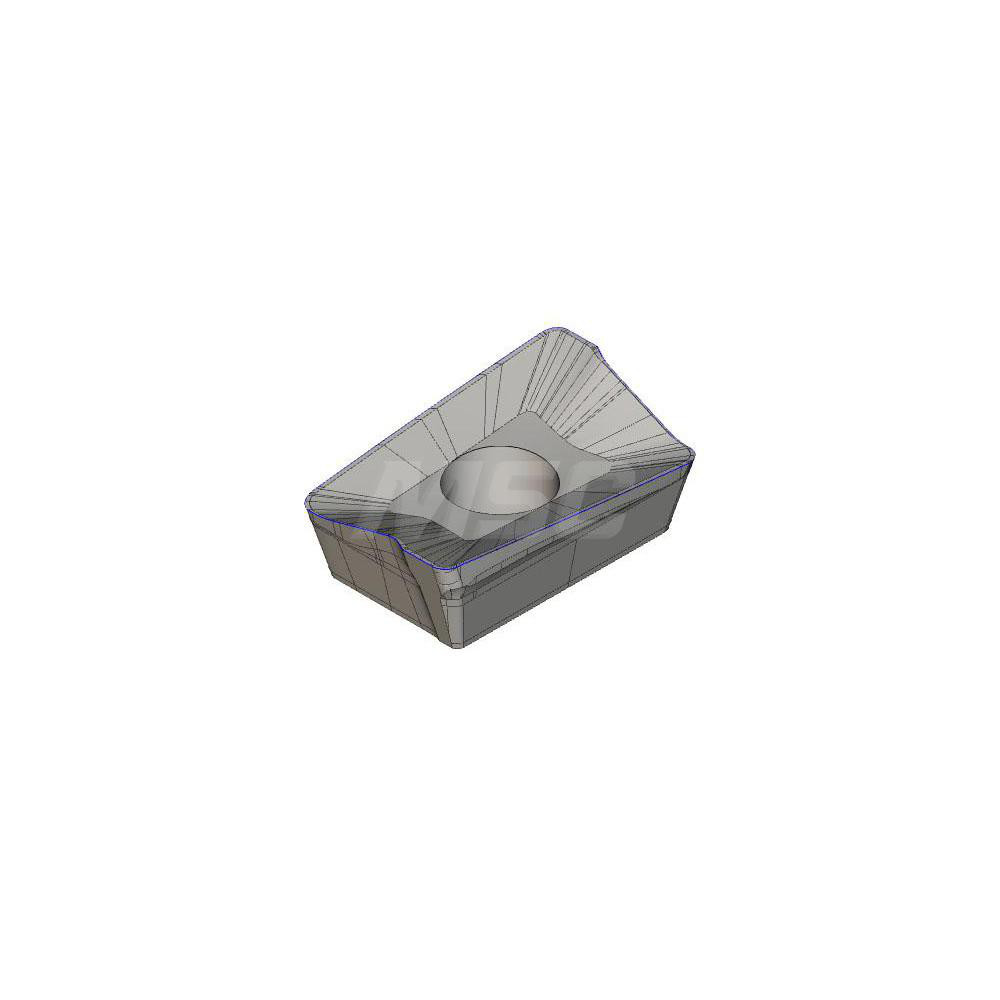

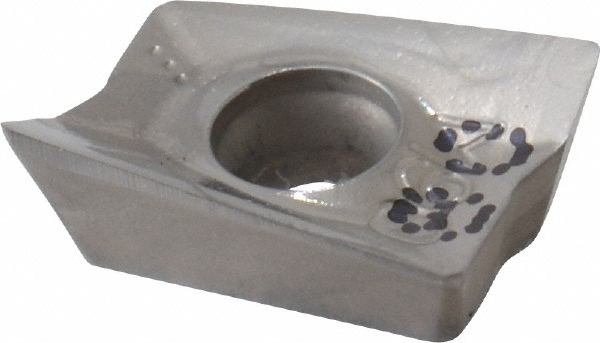

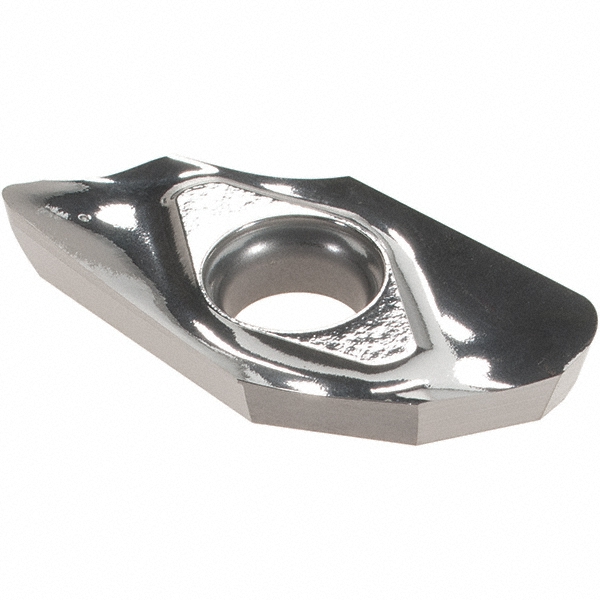

| Insert Compatibility | HM90 AXCR 1505.. |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 44554830 |
