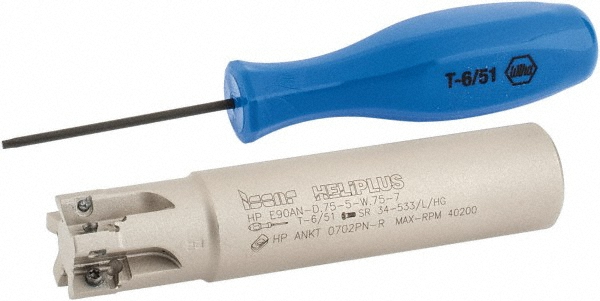

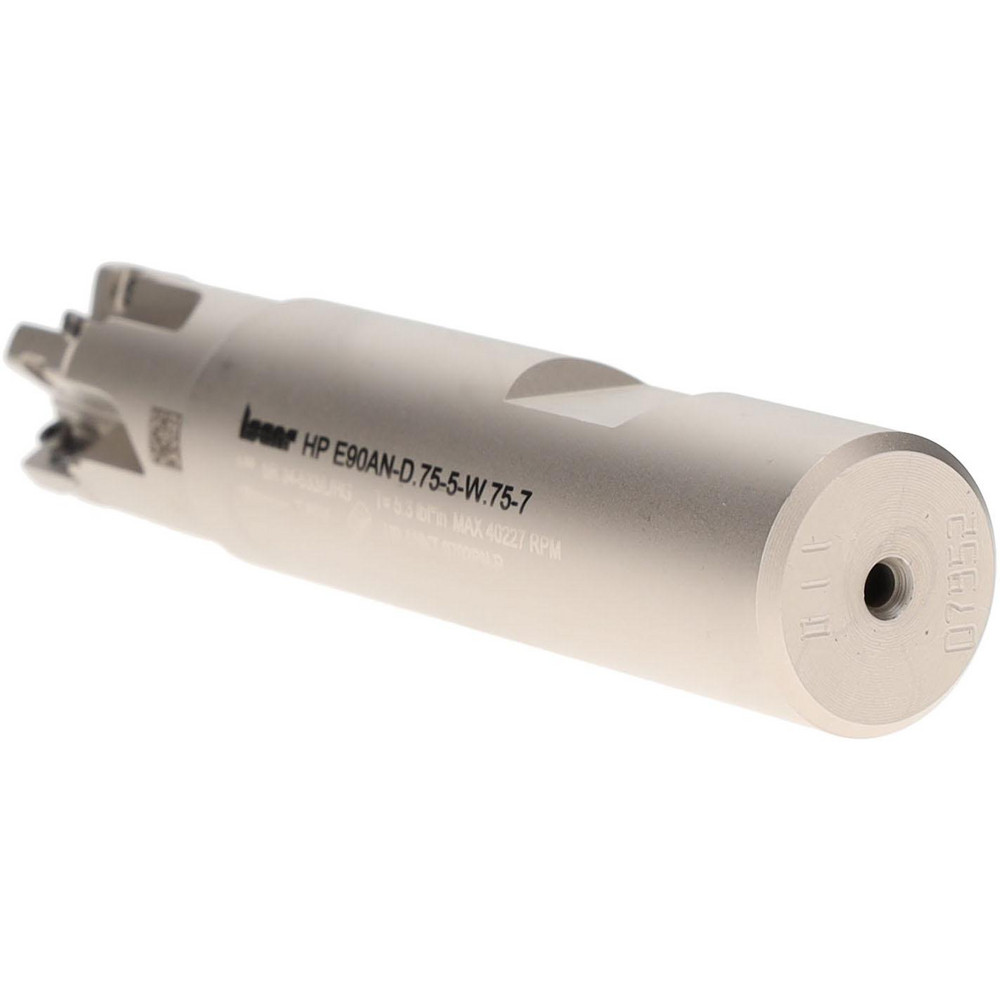

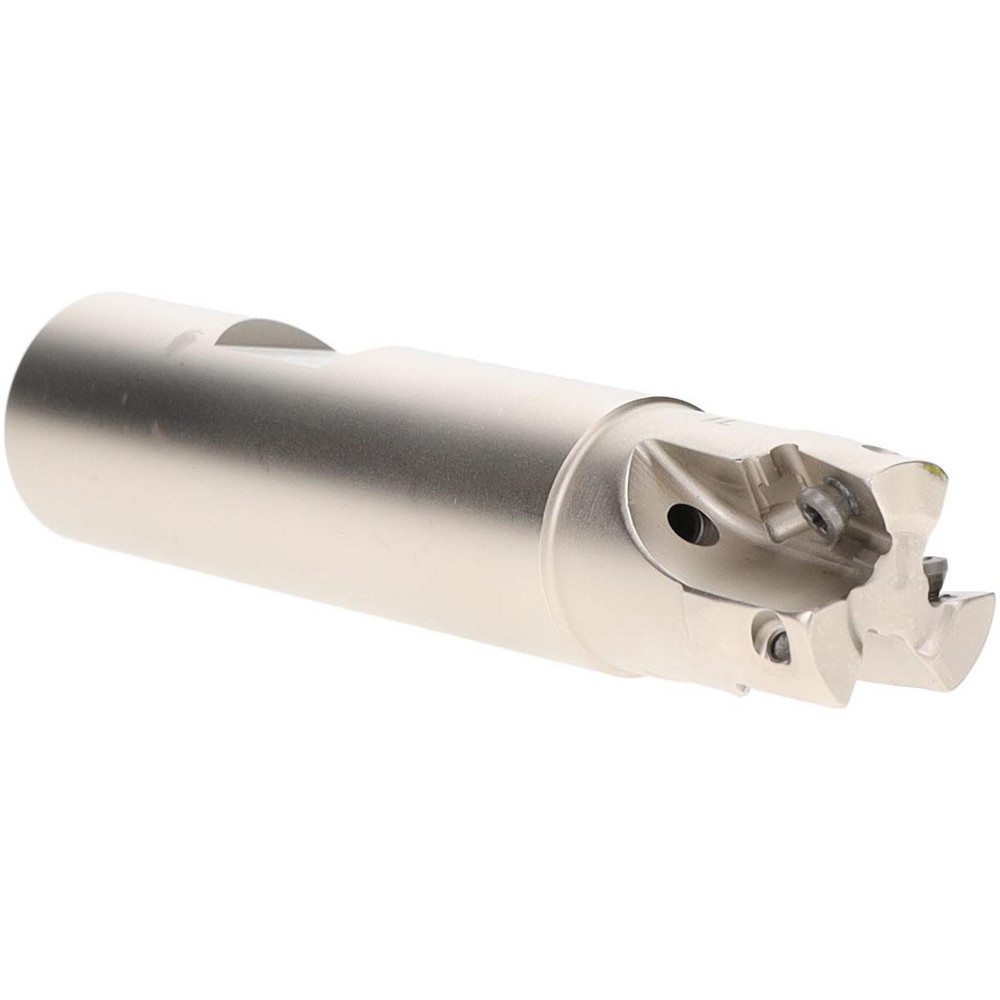

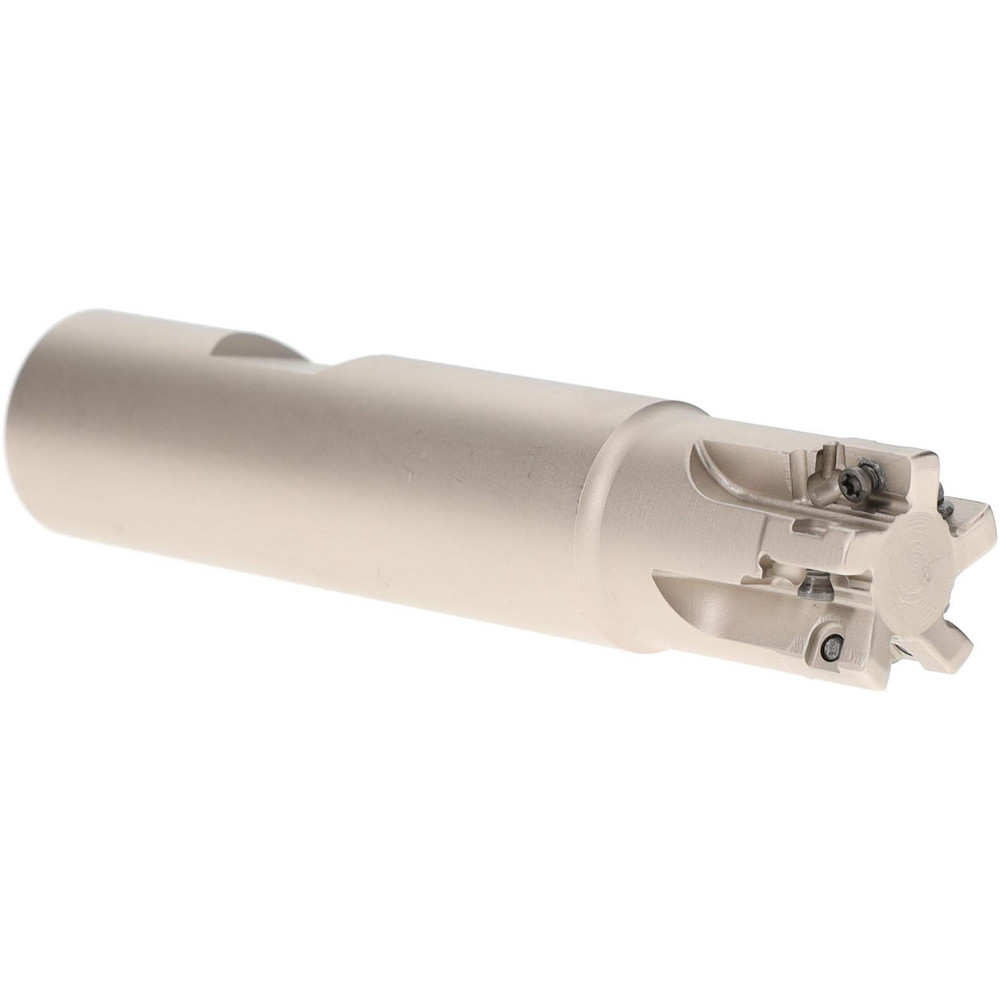

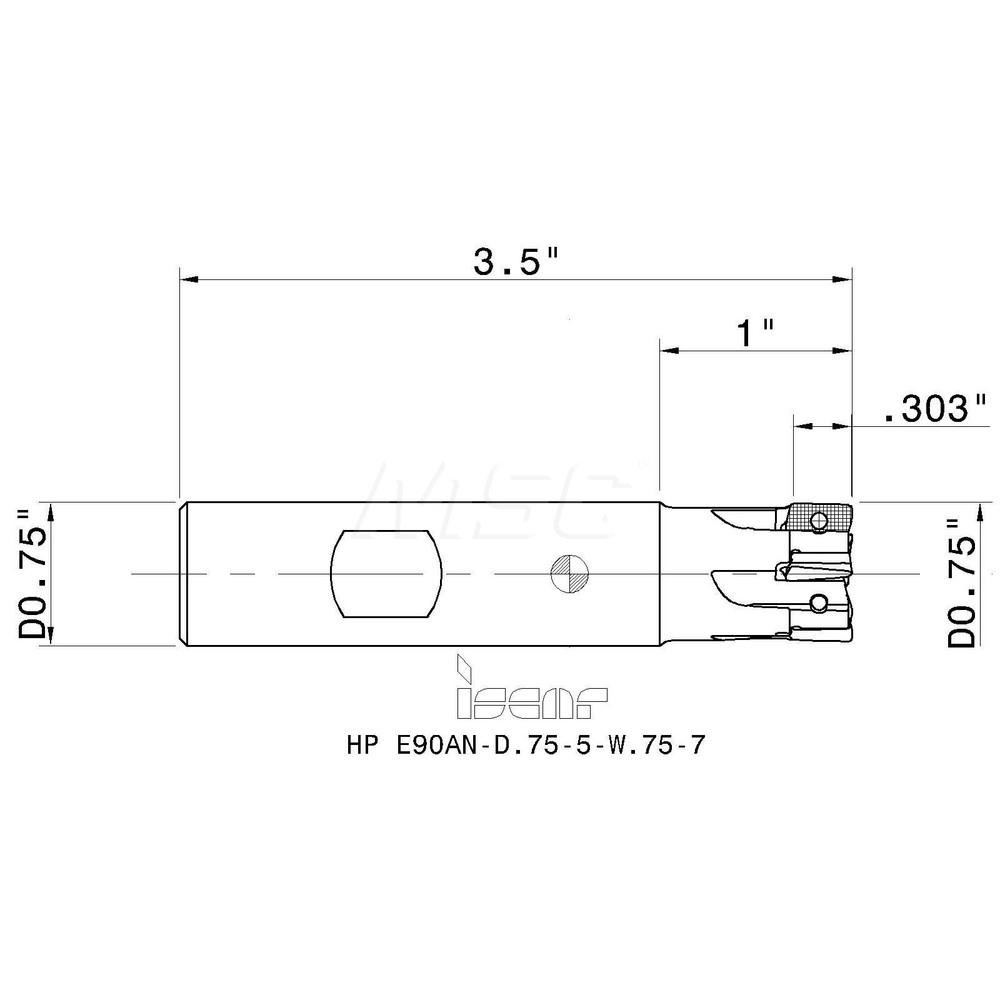

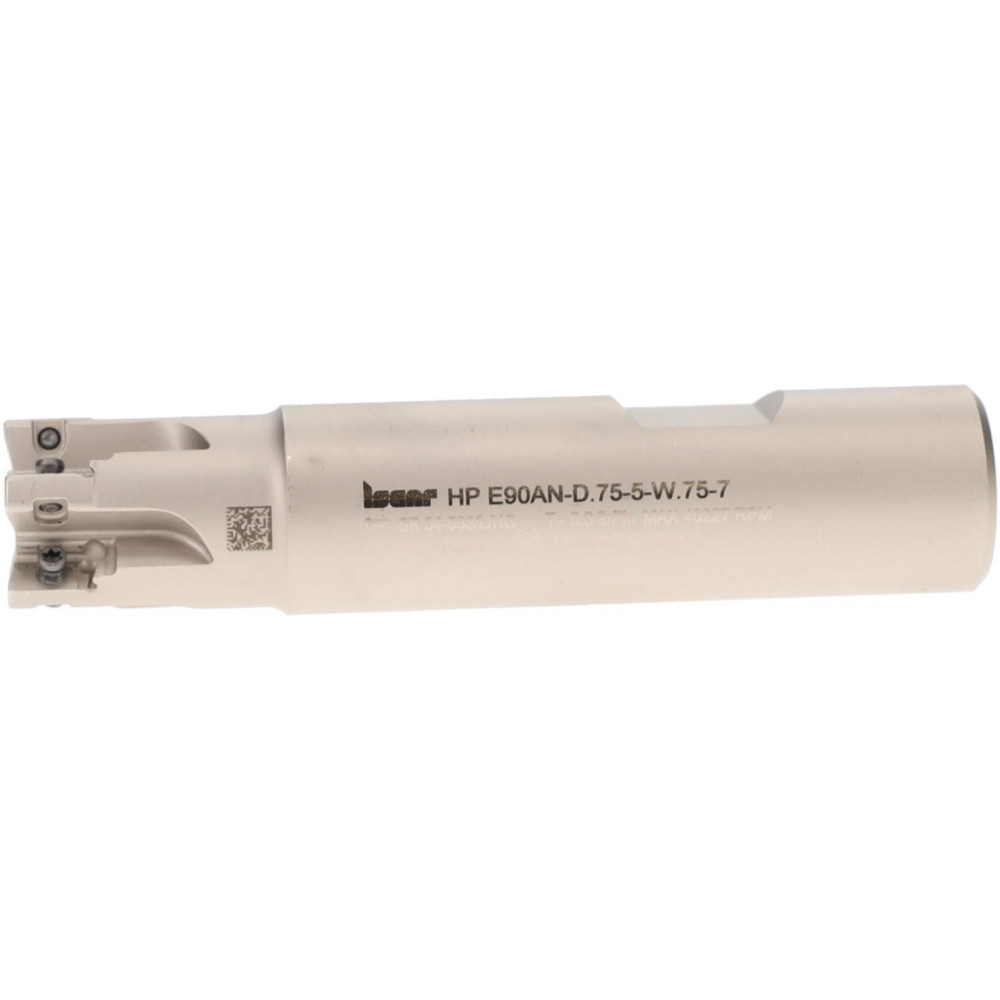

Uses (5) HP AN.. 0702.. Inserts, 3-1/2" OAL

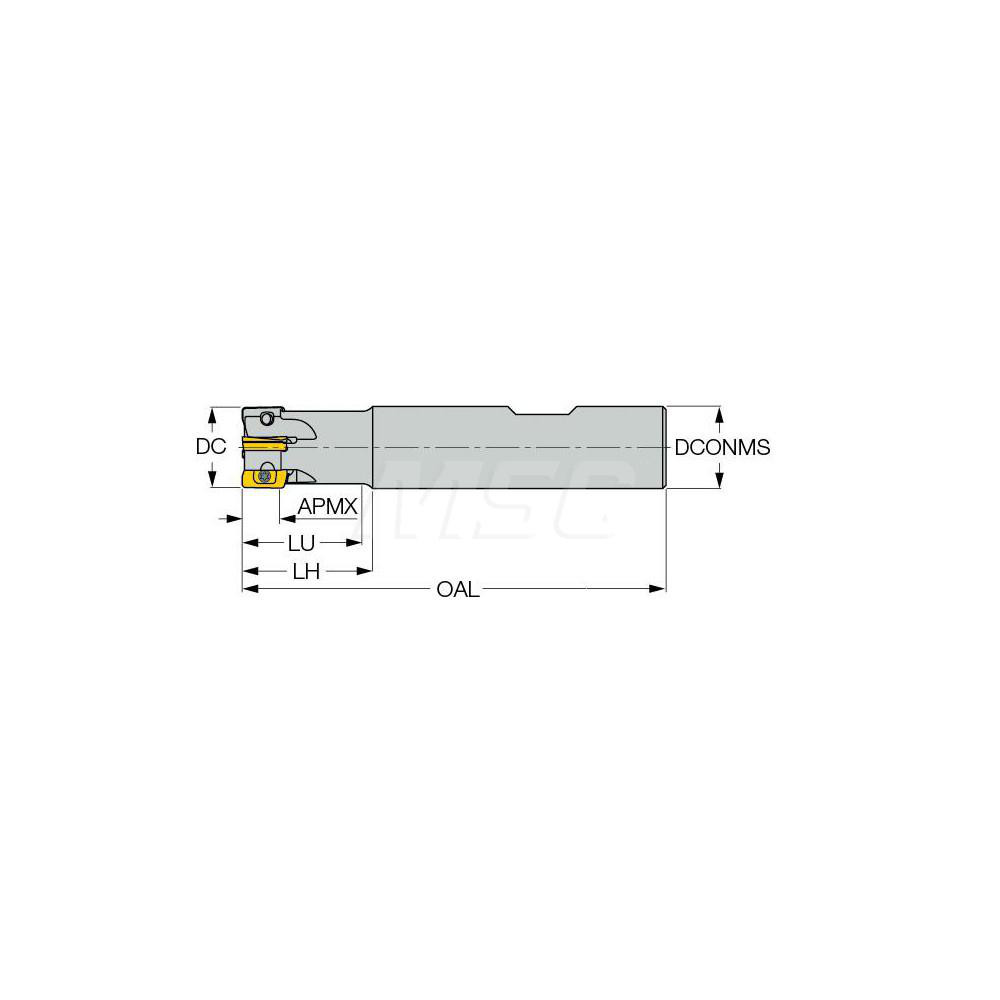

| Cutting Diameter | 3/4 |
|---|---|
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.3030 |
| Cutter Style | HP E90AN-07 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Series | Heliplus |
| Lead Angle | 90 |
| Shank Length (Inch) | 2-1/2 |
| Shank Length (Decimal Inch) | 2.5000 |
| Head Length (Decimal Inch) | 1 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |

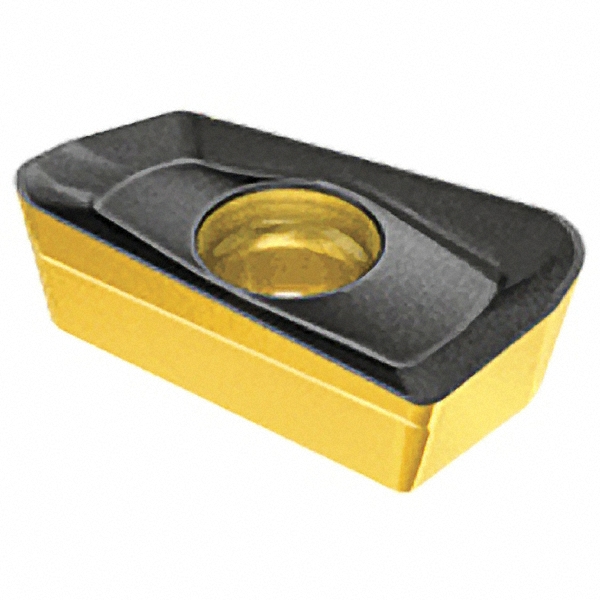

| Insert Compatibility | HP AN.. 0702.. |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | HP E90AN-D.75-5-W.75-7 |
| Number Of Flutes | 5 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 88542121 |
