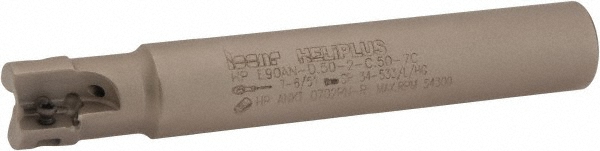

Uses 2, HP ANKT 0702.. Inserts, Through Coolant

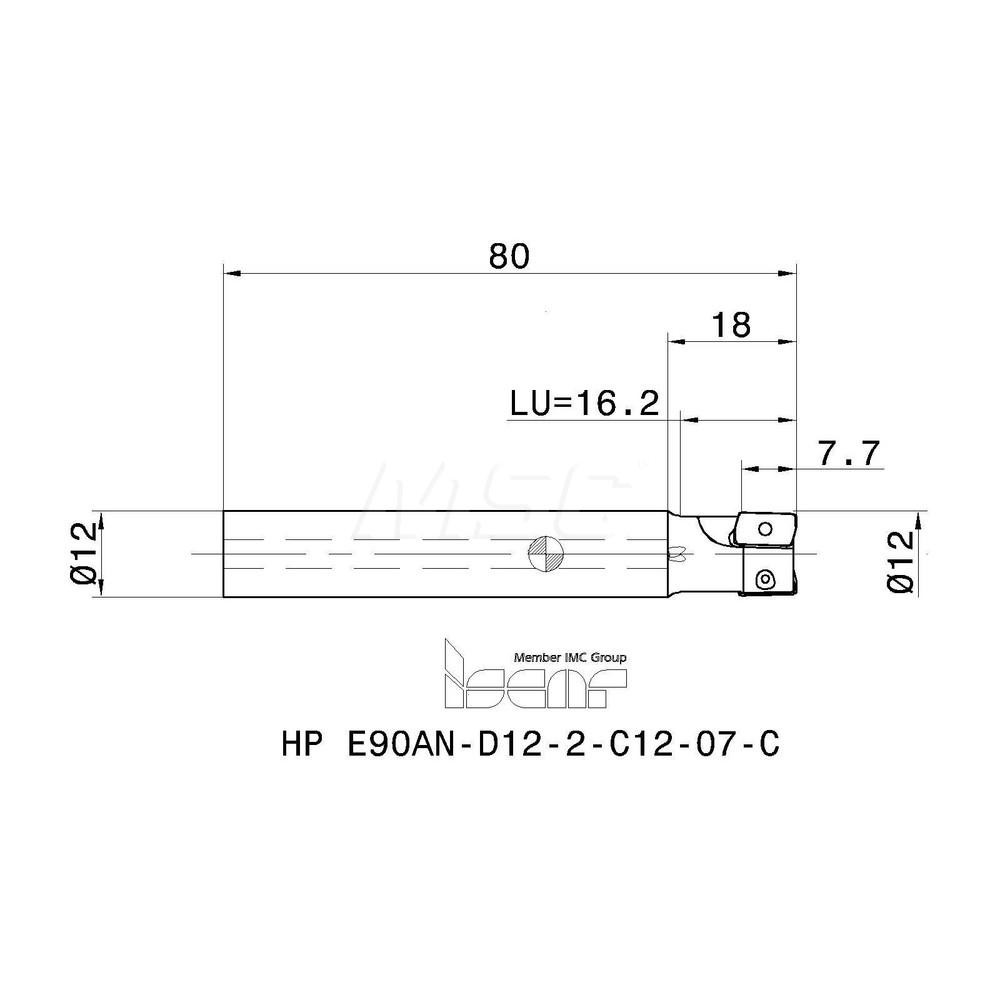

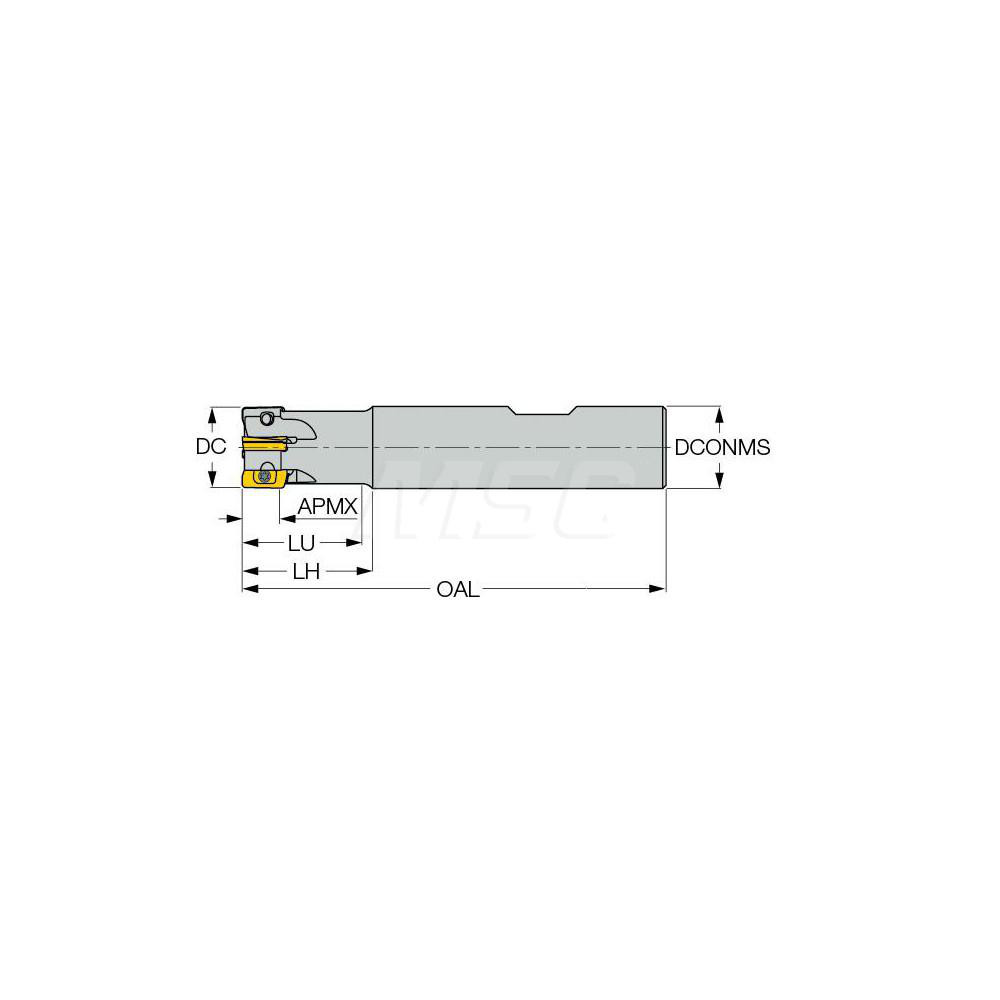

| Cutting Diameter (mm) | 12.00 |
|---|---|
| Overall Length (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 7.70 |
| Cutter Style | HP E90AN-07 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 12.00 |
| Insert Holding Method | Screw |
| Tool Material | Solid Carbide |
| Series | Heliplus |
| Lead Angle | 90 |
| Shank Length (mm) | 62.00 |
| Head Length (mm) | 18.00 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |

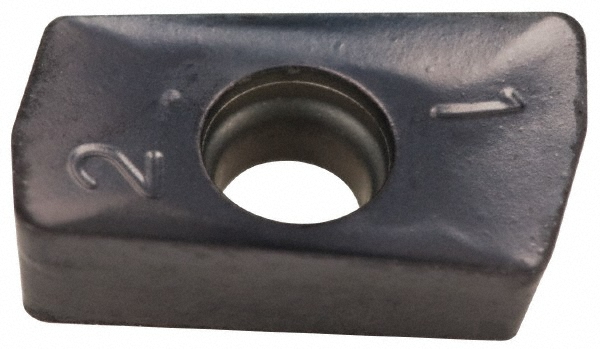

| Insert Compatibility | HP ANKT 0702.. |
| UNSPSC Code | 27112803 |
| Usable Length (mm) | 16.20 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 91150128 |
