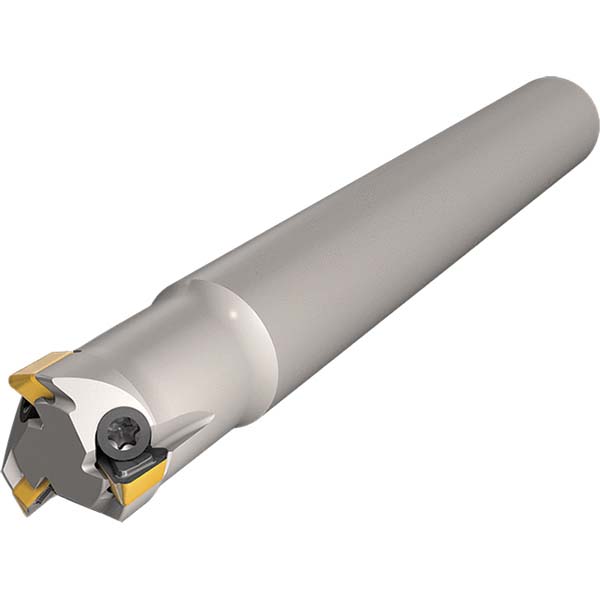

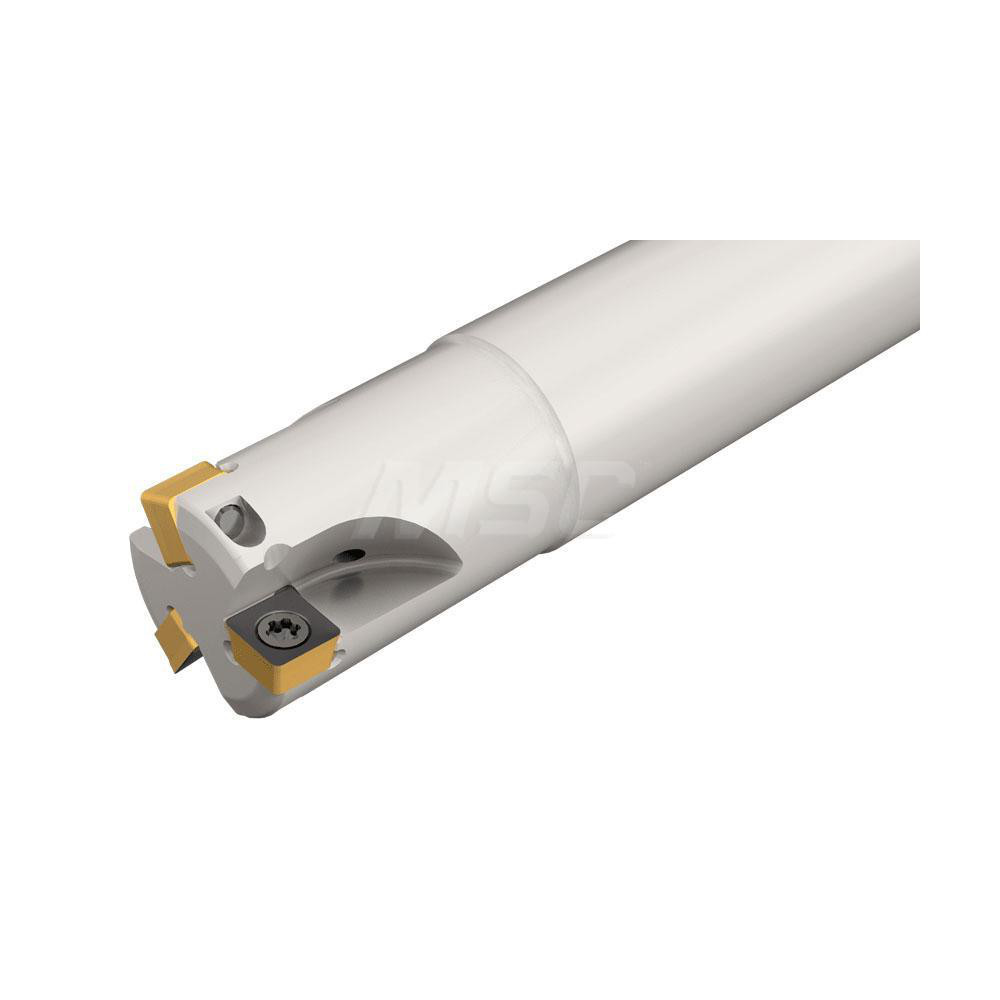

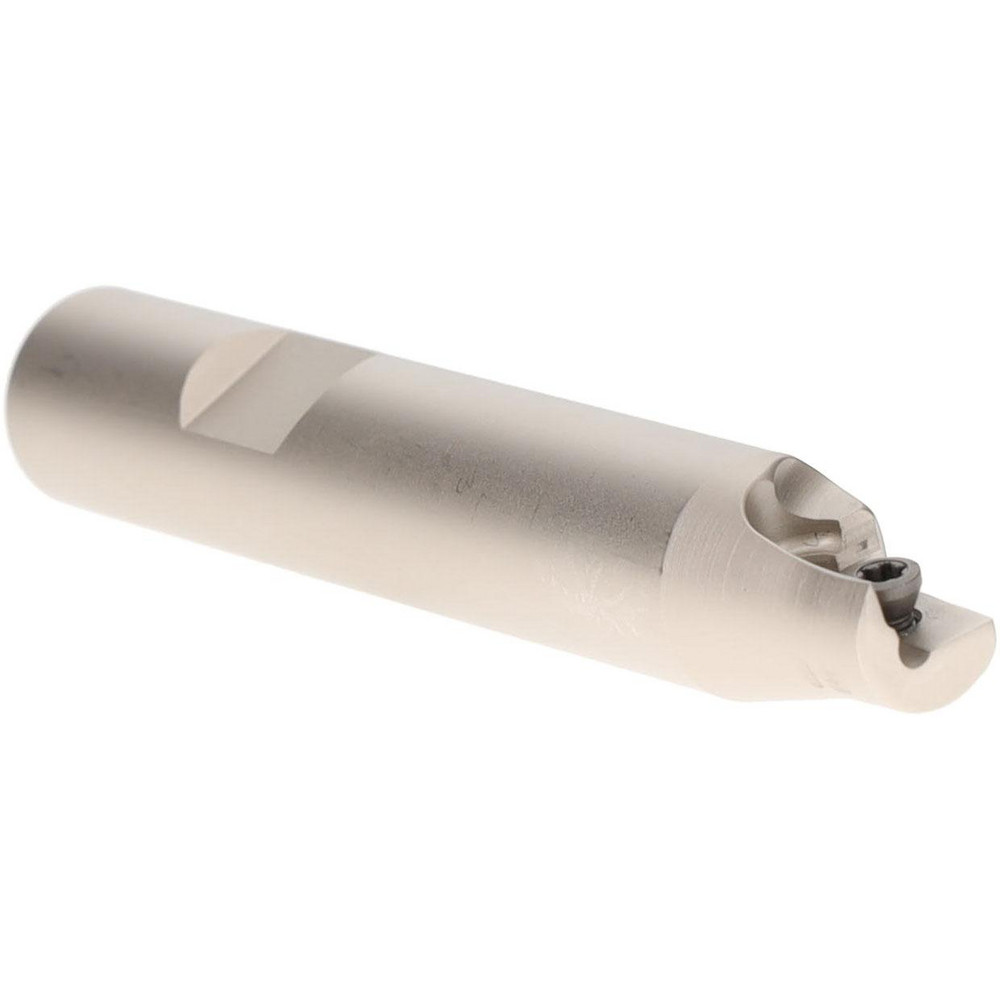

Uses (1) HP ANKT 0702.. Insert, 3" OAL

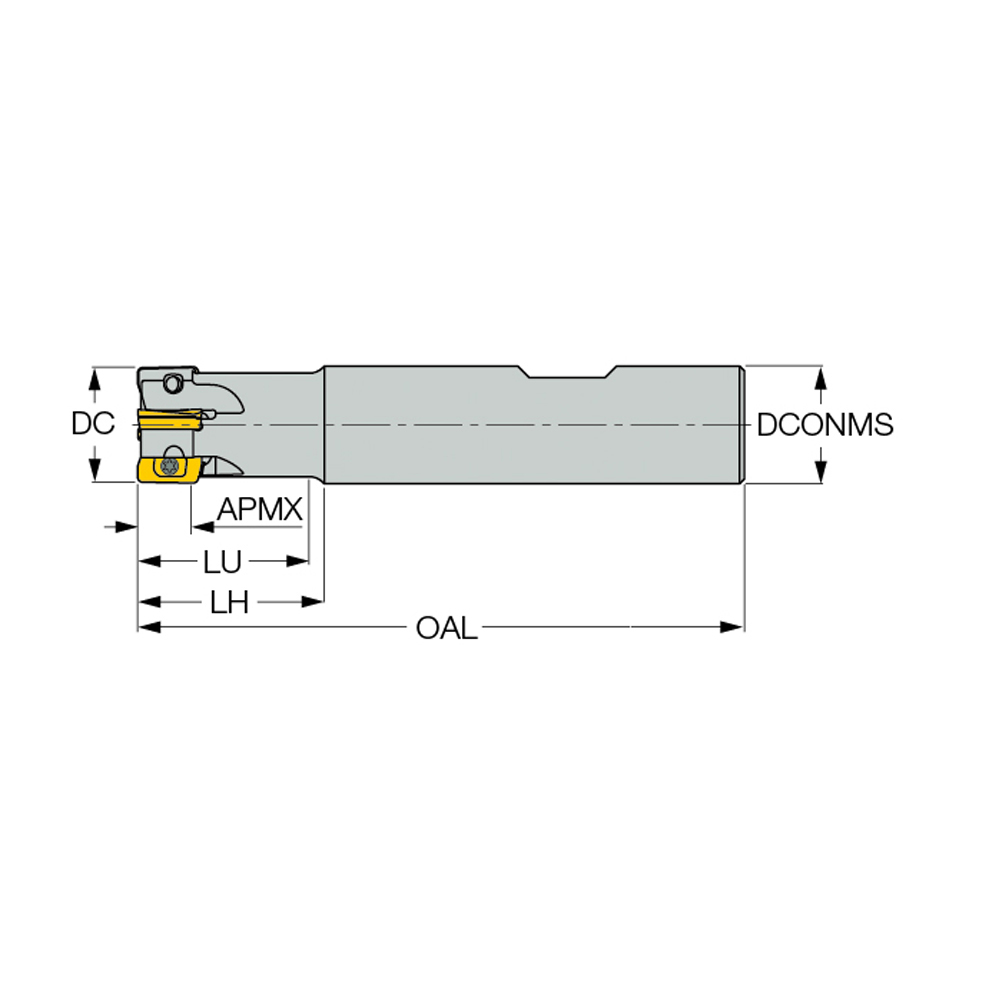

| Cutting Diameter | 3/8 |
|---|---|
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Maximum Depth of Cut (Decimal Inch) | 0.3030 |
| Cutter Style | HP E90AN-07 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 2.5 |
| Tool Material | Solid Carbide |
| Series | Heliplus |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.3600 |
| Head Length (Decimal Inch) | 0.64 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Rake | Positive |

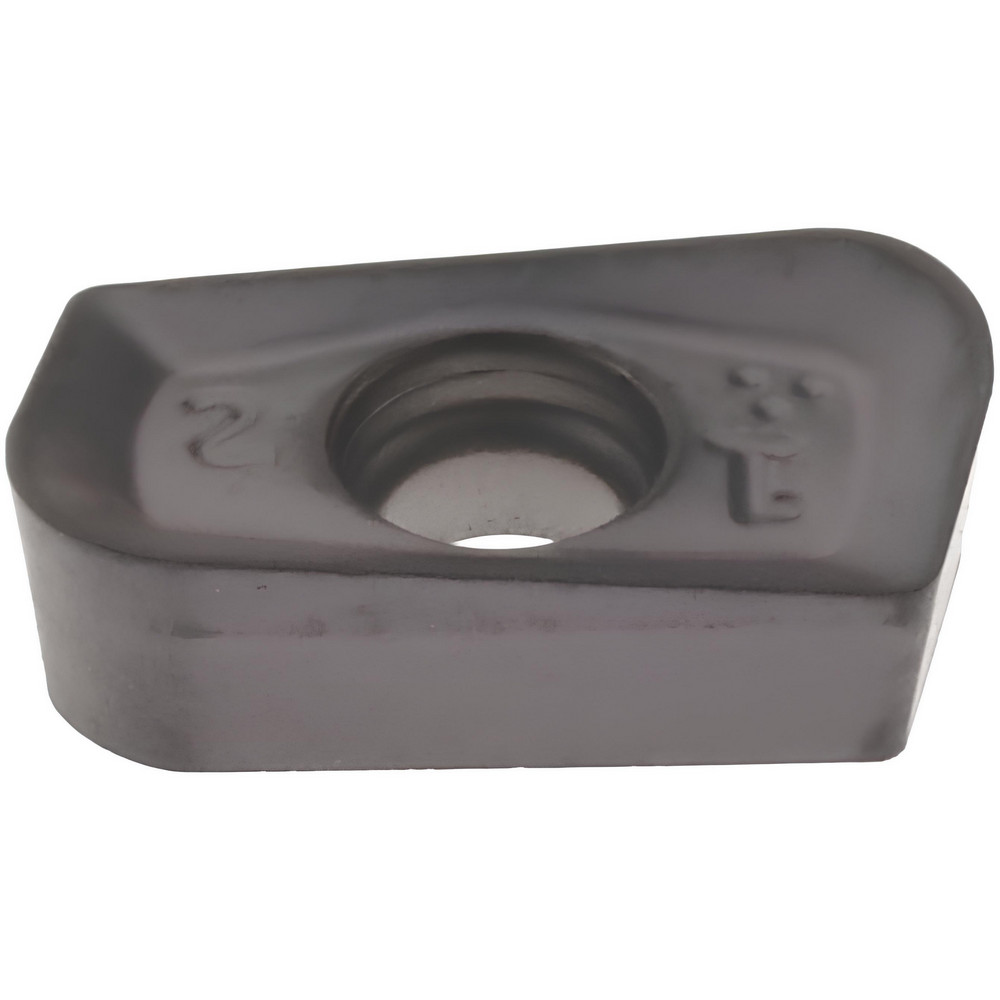

| Insert Compatibility | HP ANKT 0702.. |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 1 |
| Number Of Cutter Inserts | 1 |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 88150917 |
