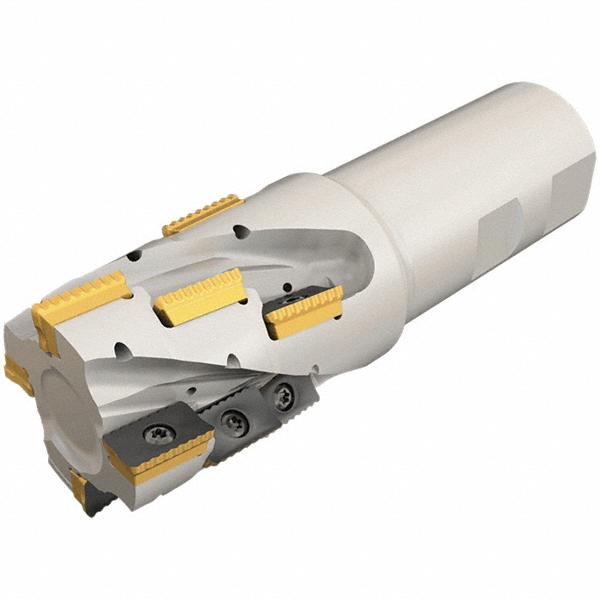

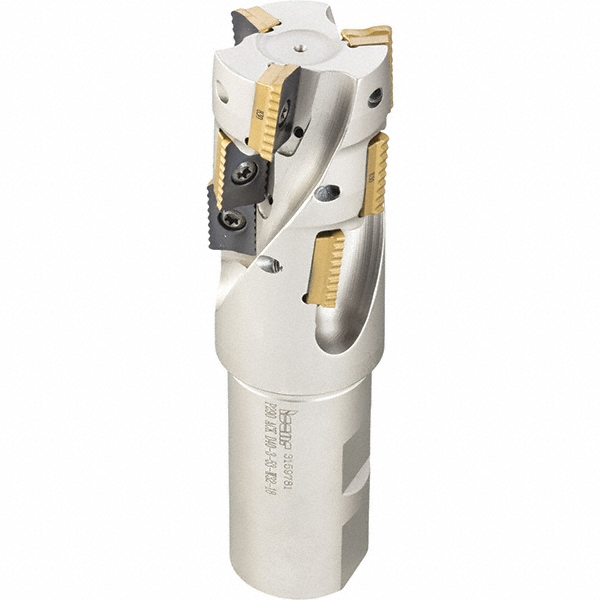

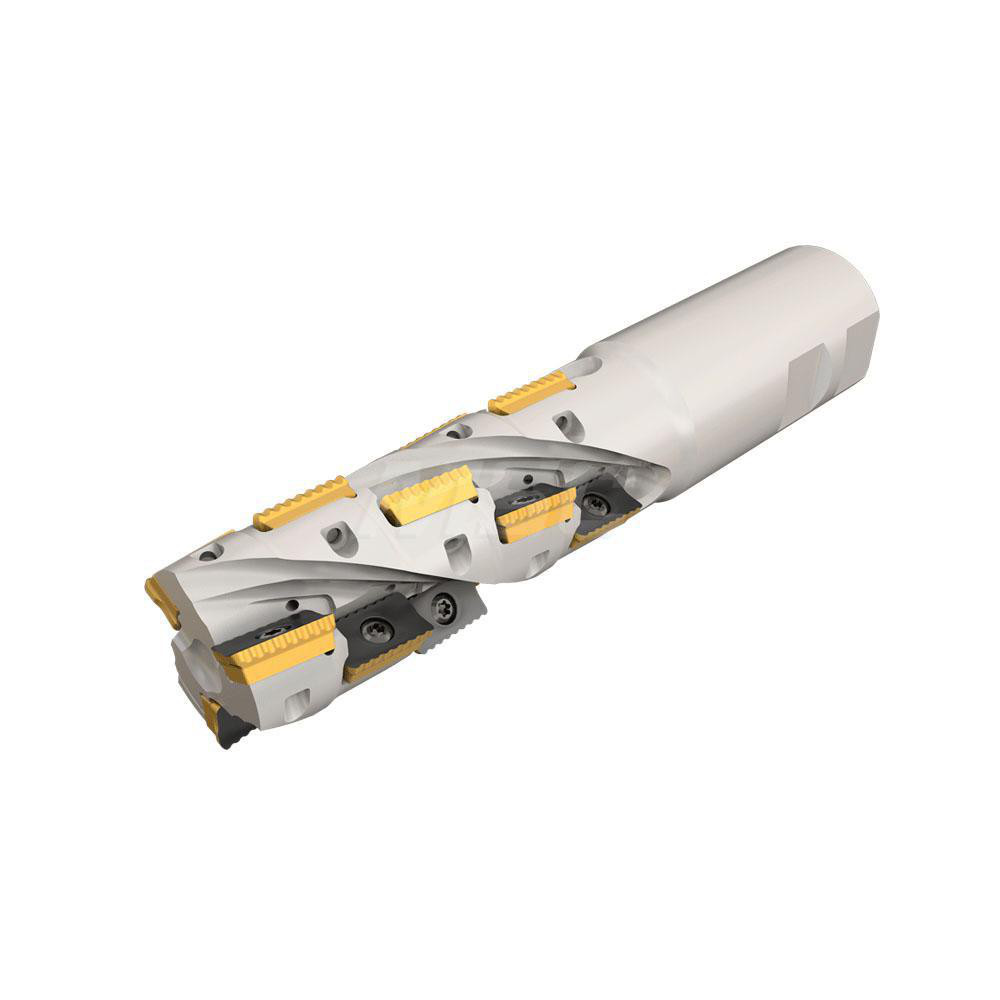

Uses (15) P290 AC.T 1806.. Inserts, Through Coolant, 185 mm OAL

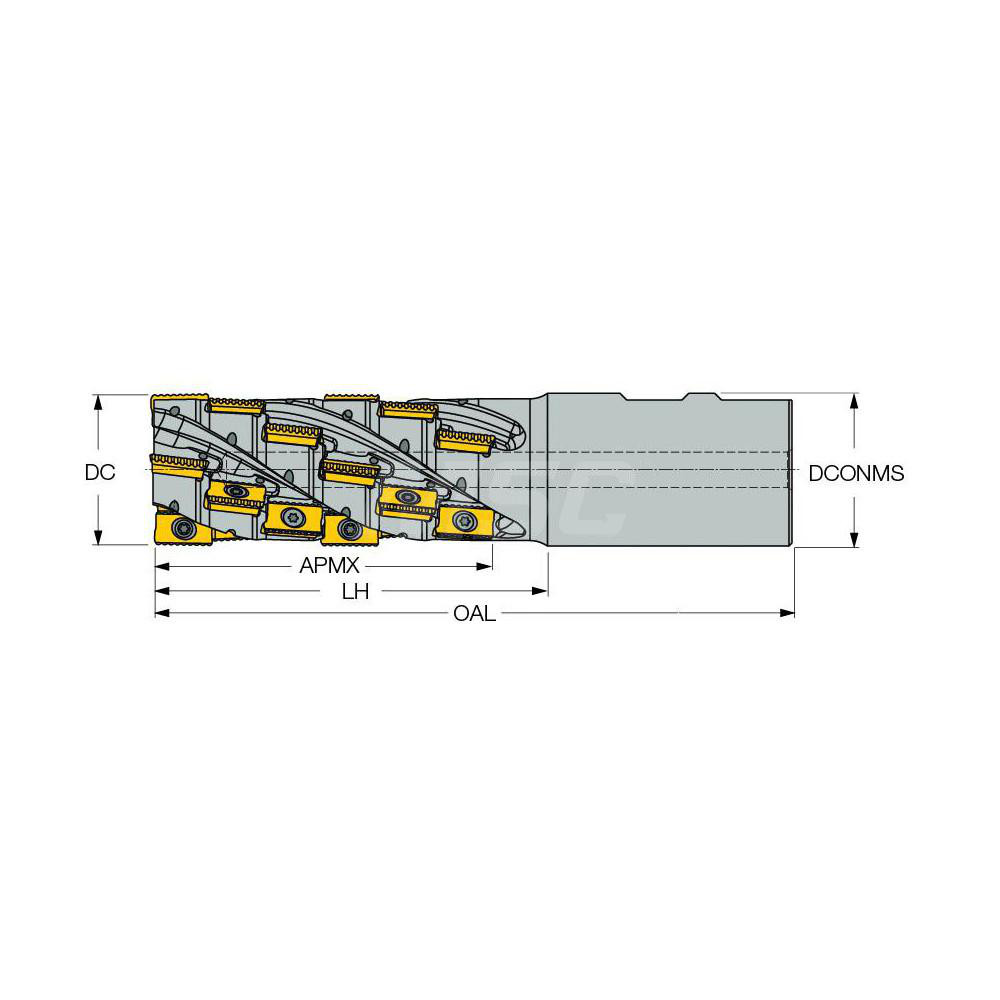

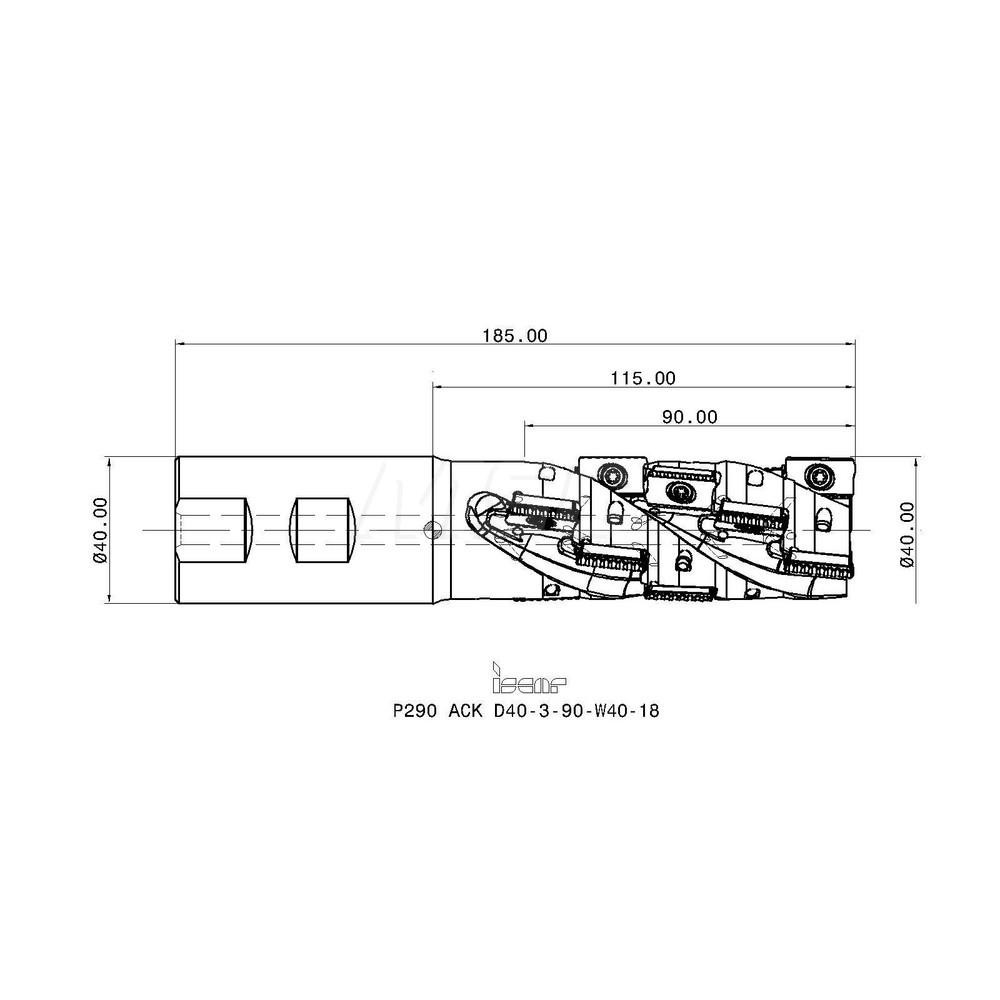

| Cutting Diameter | 1.5748 in |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Overall Length (Decimal Inch) | 7.2835 |
| Overall Length (mm) | 185.00 |
| Maximum Depth of Cut (mm) | 90.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.5433 |
| Cutter Style | P290 ACK-18 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 1.5 |
| Series | MillShred |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 2.7559 |
| Shank Length (mm) | 70.00 |
| Head Length (Decimal Inch) | 4.5276 |
| Head Length (mm) | 115.00 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Insert Compatibility | P290 AC.T 1806.. |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 15 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 30708960 |
