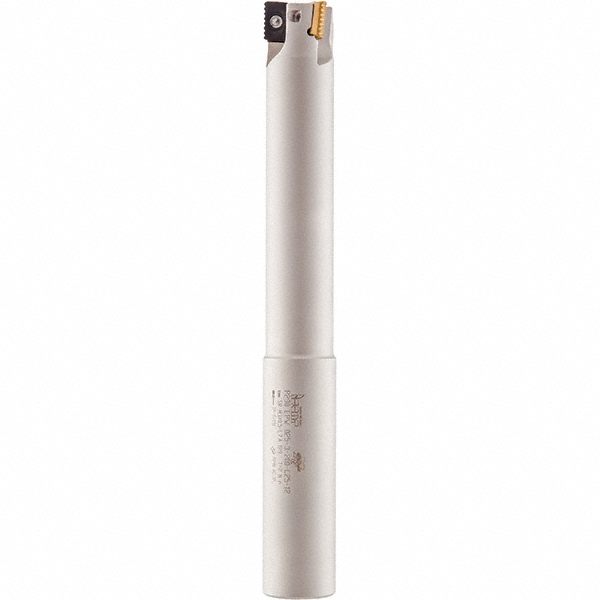

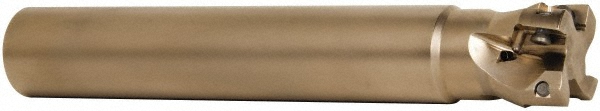

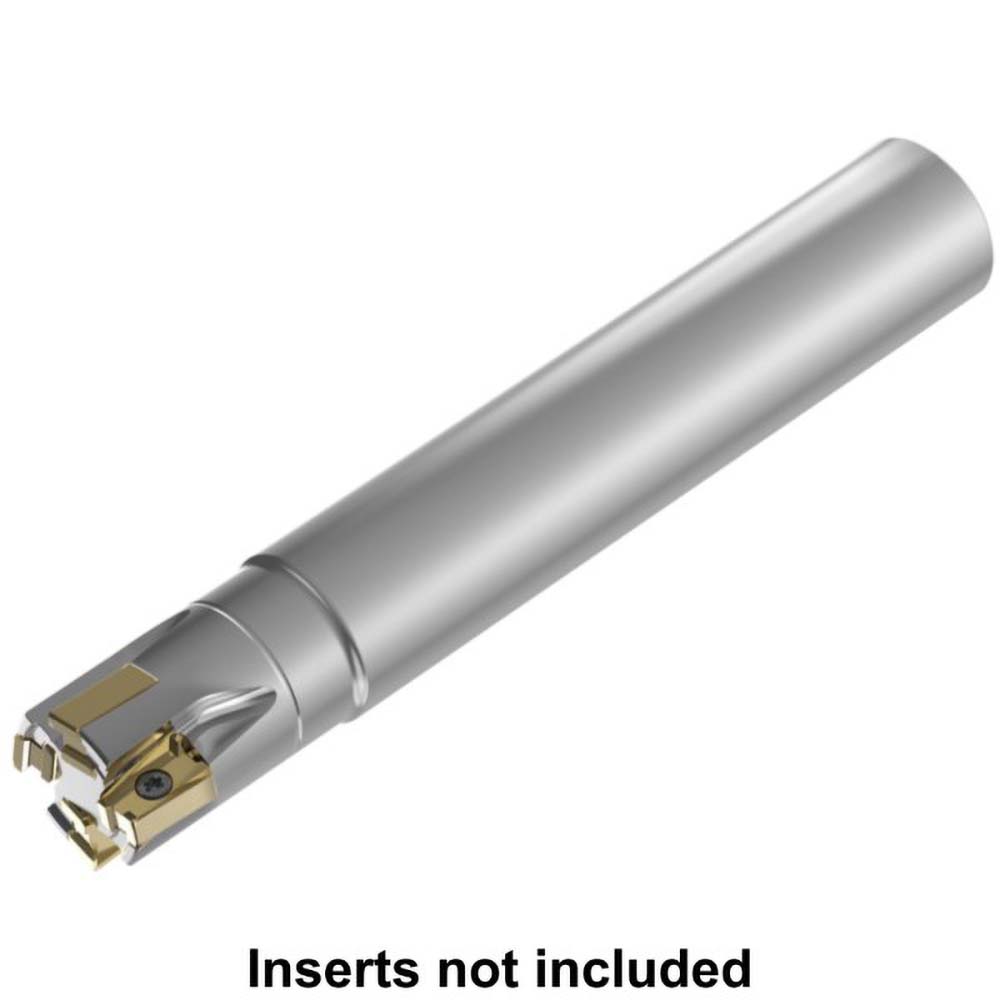

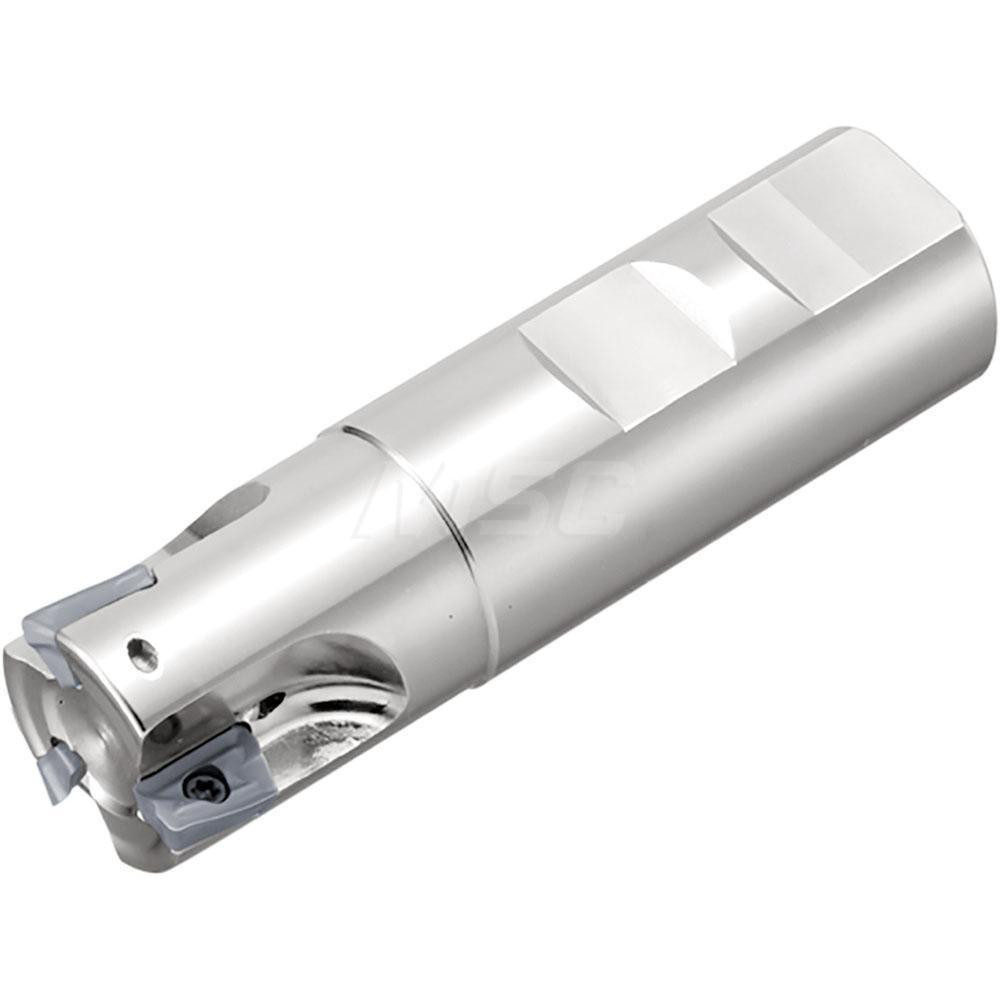

Uses (4) P290 AC.T 1806.. Inserts, Through Coolant, 8" OAL
| Cutting Diameter | 1-1/2 |
|---|---|
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Maximum Depth of Cut (Decimal Inch) | 0.7080 |
| Cutter Style | P290 EPW |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 1.5 |
| Series | MillShred |
| Lead Angle | 0 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Insert Compatibility | P290 AC.T 1806.. |
| UNSPSC Code | 27112803 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 30709109 |
