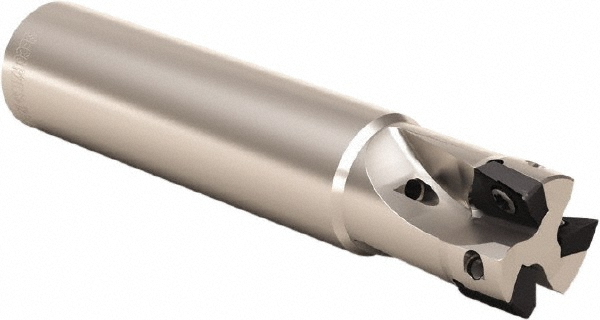

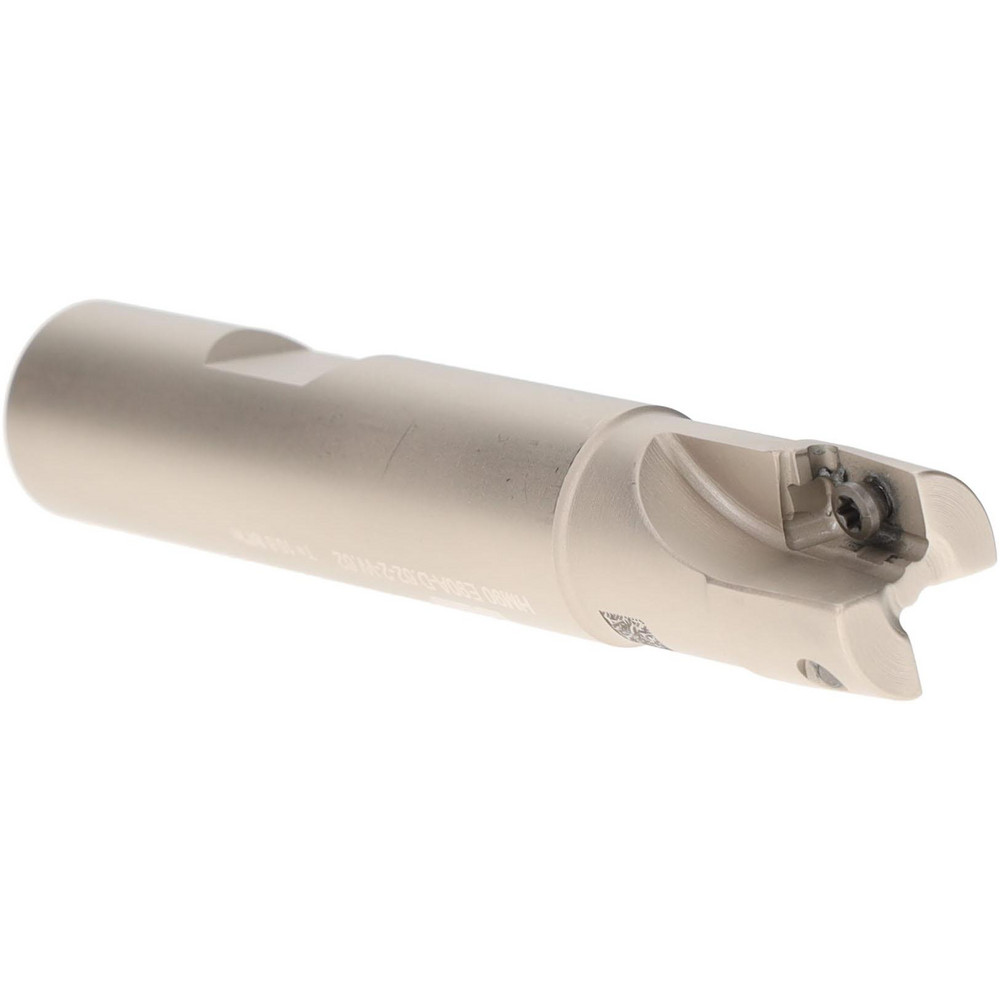

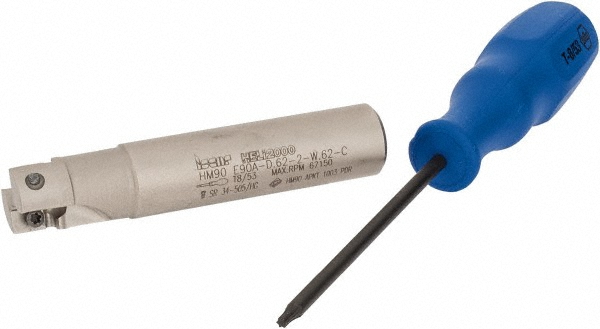

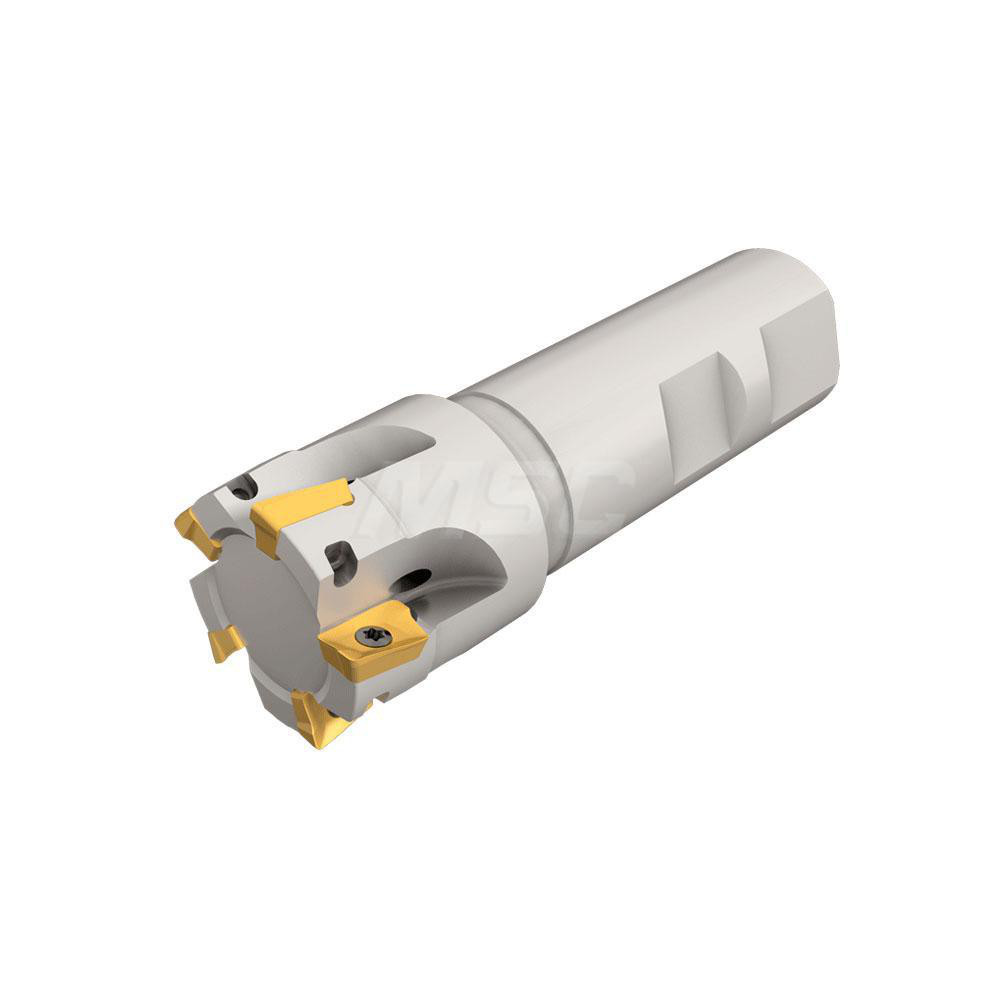

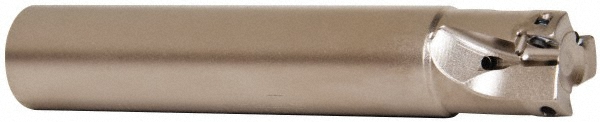

Uses (4) T290 LN.T 0502 Inserts, Through Coolant, 3.11" OAL

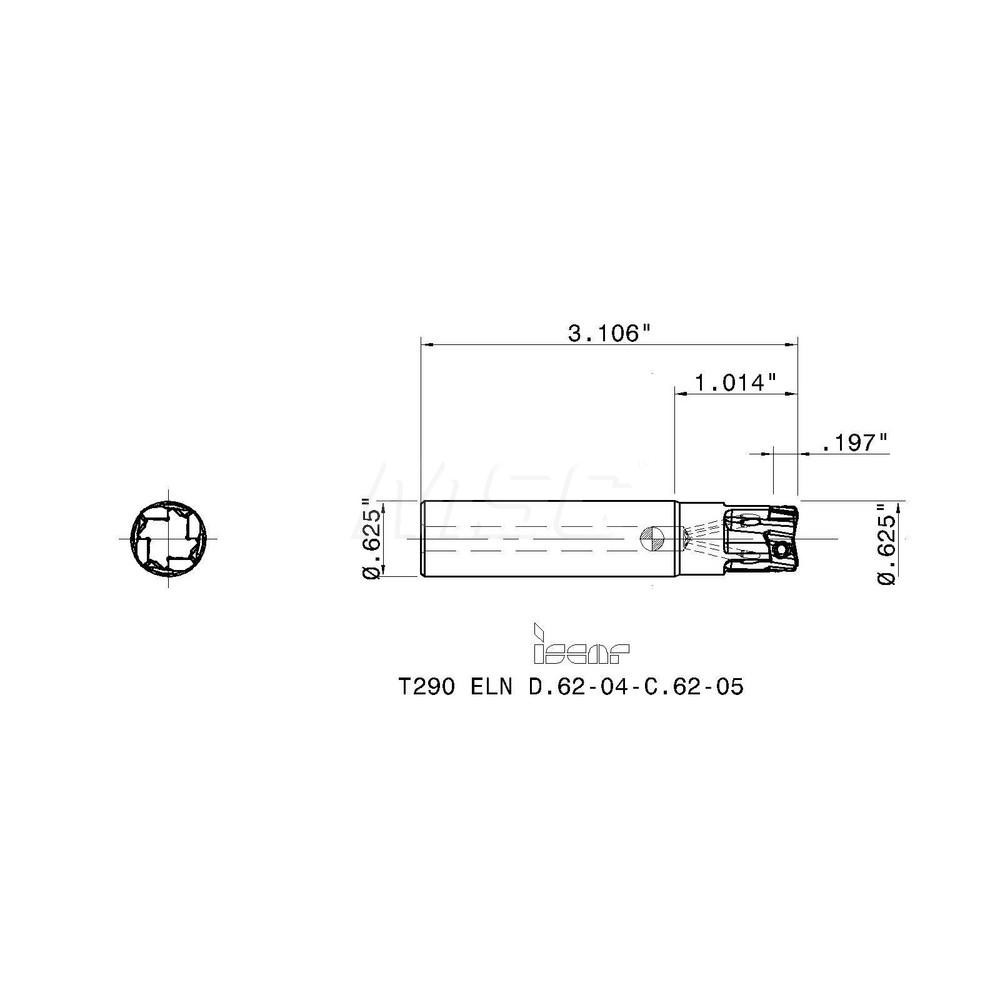

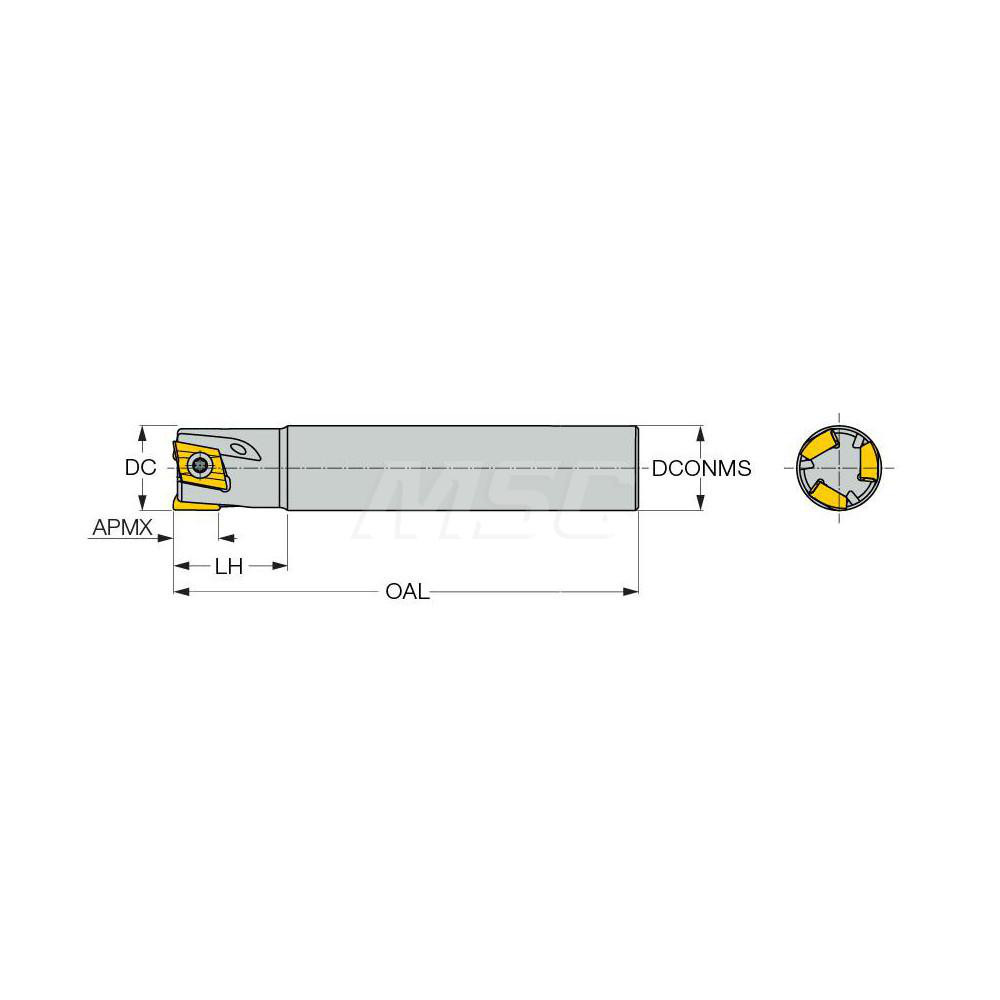

| Cutting Diameter | 5/8 |
|---|---|
| Overall Length (Decimal Inch) | 3.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Cutter Style | T290 ELN-05 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |

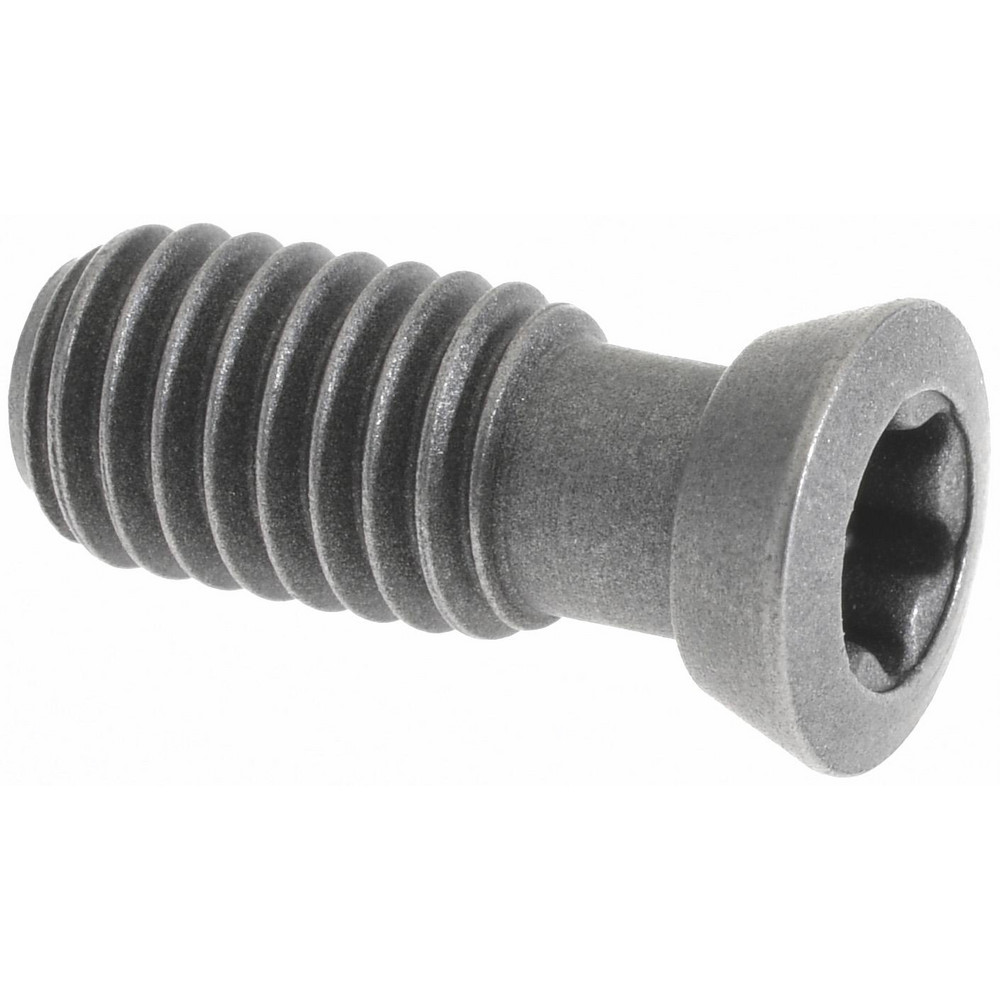

| Insert Holding Method | Screw |
| Tool Material | Solid Carbide |
| Series | SumoMill |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.1100 |
| Head Length (Decimal Inch) | 1 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Insert Compatibility | T290 LN.T 0502 |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 93682847 |
